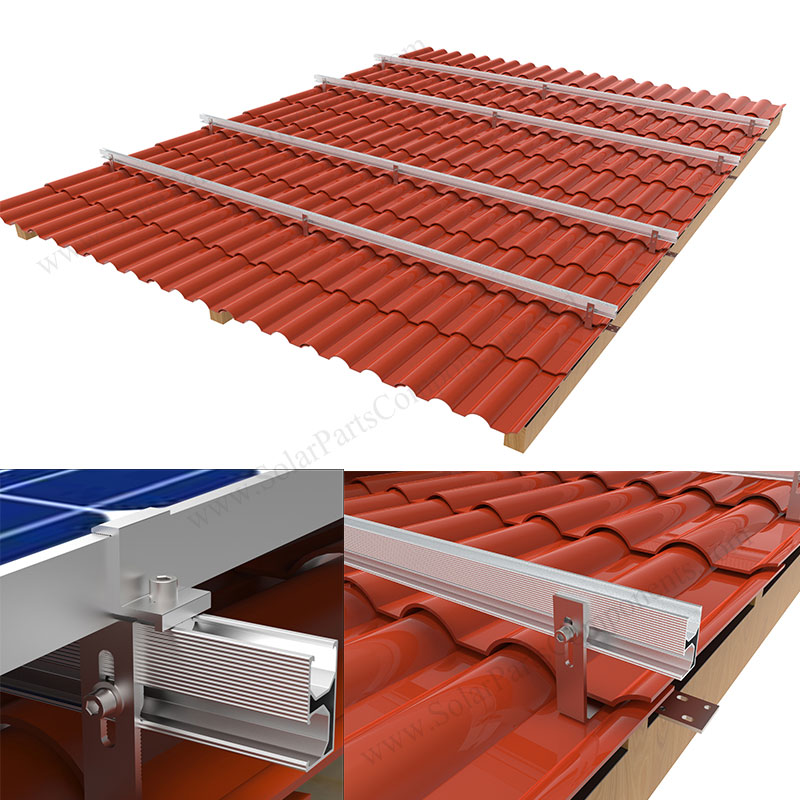

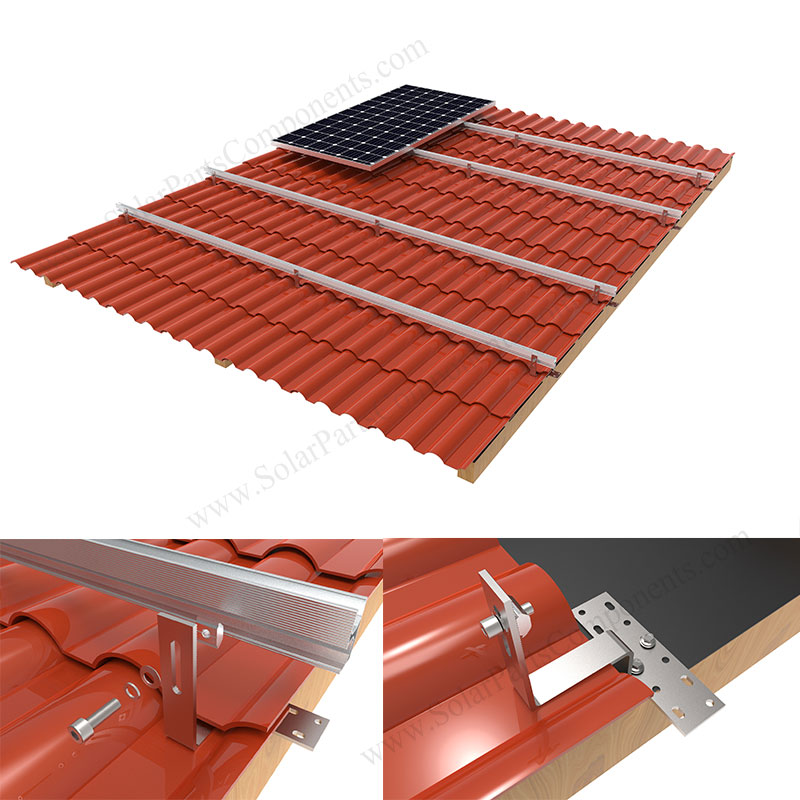

Side Mounted Hook Solar Curved Tile Mounting Systems
- Product Type: Slope Roof Solar Panel Mounting Systems
- Product Model: SPC-RF-IK01-DR
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Portait or Landscape
- Application: Spanish / Roman / Curved Tile Roofing
Product Description :
We use side-mounted solar hooks for curved tile roof mounting systems , it’s a good solution for both residential and commercial projects .
The tilt angle of Sloping Spanish tile roofs can be from 10° – 60° .
Our side mounted solar tile hooks can have choices with lower part adjustable which is near steel plate .
In this way, installers can adjust height in 2 centimeters according to roofing conditiion .
We offer ten years warranty for this Roman tile roofing mount systems . Our high class SUS 304 steel and AL6005-T5 extruded alum alloy are durable and sturdy .
Extra parts like EPDM pads / steel washers / bolts can be purchased seperately for our curved tile roofing systems .
This solar roman tile roof mounting systems don’t need to penetrate tile surface . But install side-mounted hooks on wood roof rafters .
Advantages :
(1) Fits for framed / frameless PV modules ;
(2) Both Portrait / Landscape array can be installed ;
(3) Pre-assembled system package with time and cost effective ;
(4) Professional engineer / design / after-sale teme service ;
(5) Extremely weather adaption .

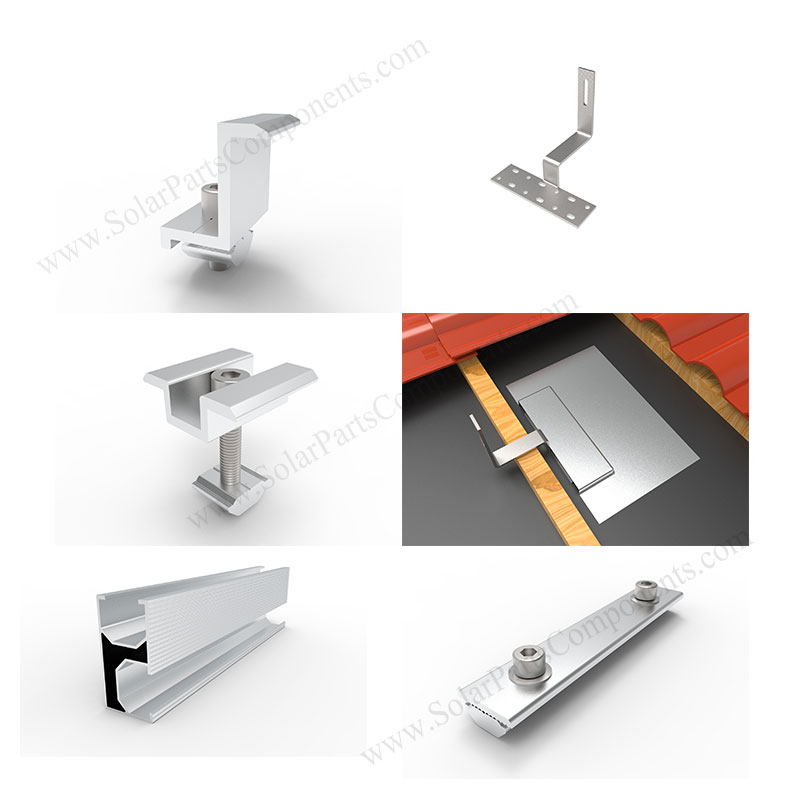

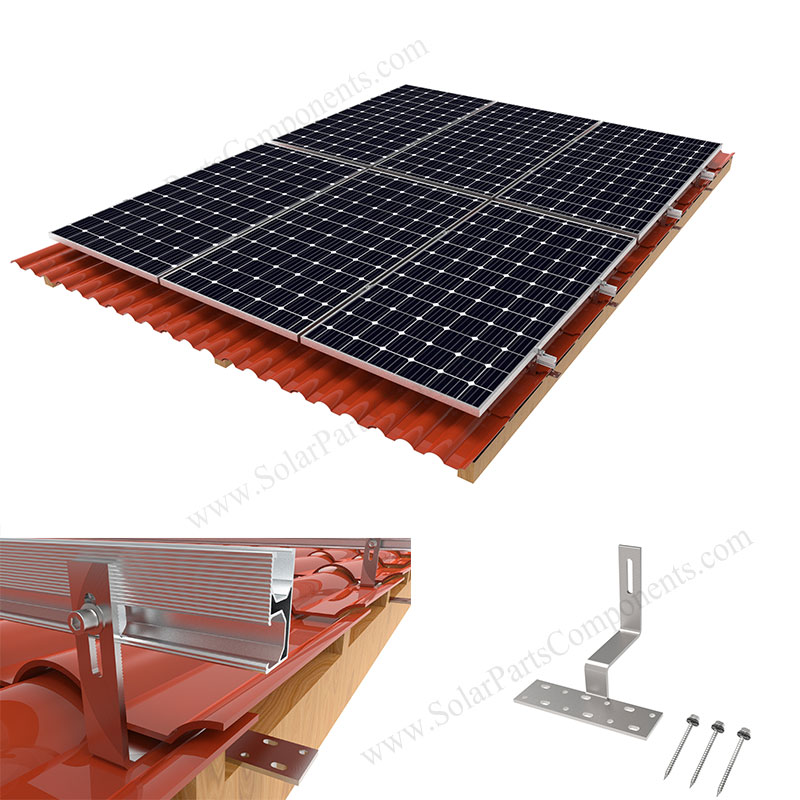

Parts and Components for this curved roof racking mounts system with side mount hook :
Side-mounted solar tile hook , Mid clamps , End clamps , Aluminium Rail, Rail Splice …
Installation Guide :
- Uncover roofing tiles ;
- Screw tile hooks firmly ;
- Cover tile again ;
- Connect Rail and tile hook with bolts and nuts ;

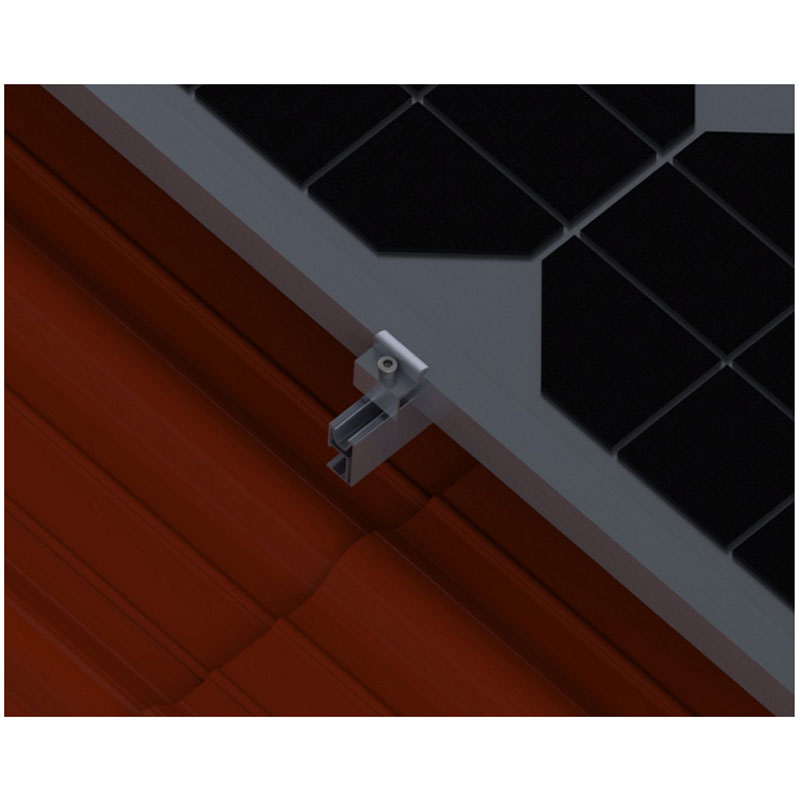

- Fixed PV modules with mid & end clamps ;
- Extend rail length with aluminum splice .

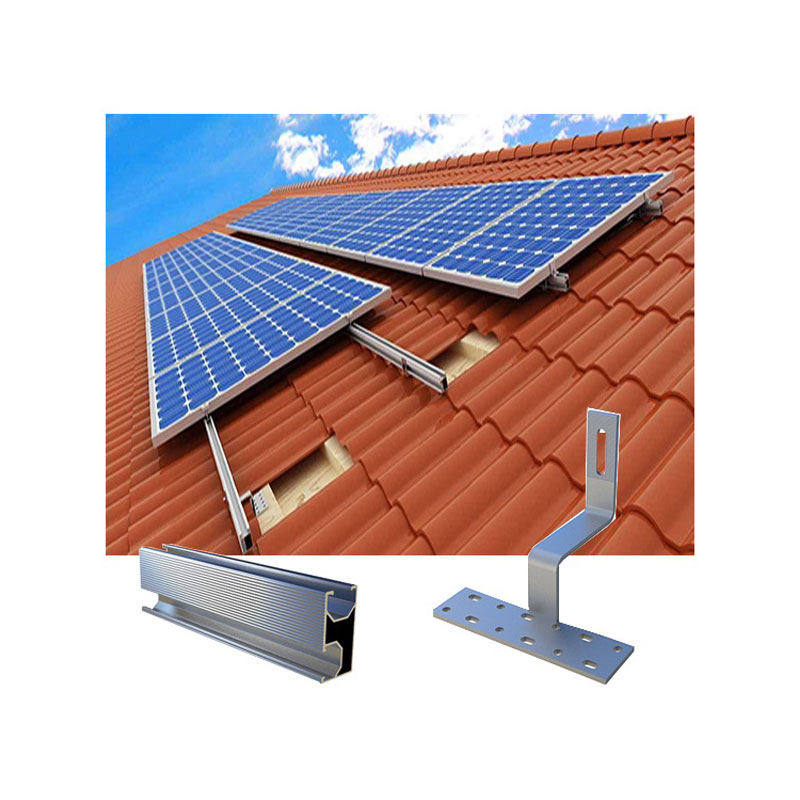

Solar Curved Tile Mounting Systems With Side Mounted Hooks Installation Components
| Brief Descriptions : | |
| side mounted hooks mounting systems for curved tile roof top solar panel installation (SPC-RF-IK01-DR) | |
| Item type: | Spanish Tile Roof Mounting Systems SPC-RF-IK01-DR |
| Technical Parameters : | |
| Type : | Pitchted Tile Roof Solar Panel Mounting Kits |
| Installation Site : | Roman / Spanish / Curved tile roof top |
| Installation Angle : | Pitched Roof 5° ~ 45° |
| Profile Material : | Aluminum Alloy AL6005-T5 |
| Fasten Parts : | Stainless Steel 304 |
| Small Components : | Alum & Stainless Steel |
| Color : | Silvery / Natural / Customized |
| Wind Load : | 60 m / s ( 130 mph ) |
| Snow Load : | 1.4 KN / M2 ( 30 psf ) |
| PV Modules : | Framed or Thin film modules |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Life Span | 25 years |
| Packing Details : | |
| Inner : | Carton Box |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
Project Case Solar Tile Roof Mounting Systems SPC-RF-IK01-DR
| Project No. | SPC-RF-IK01-DR | Customer No. | 0 | Total Project(W) | 24000 | |||||||||
| Ground Clearance(mm) | 0 | Array Amount: | 4 | Total Module Amount: | 80 | |||||||||
| Installation Site: | Wind Speed(m/s:) | 0 | Snow Loading(cm): | 0 | ||||||||||
| Module Length (mm) | 1960 | Module Width (mm) | 992 | Module Thickness(mm) | 40 | |||||||||
| Module Power(W): | 300 | Module Weight(KG): | 22 | Pile Length(mm) | / | |||||||||
| Tilt Angle: | 0 | Foundation Type: | Concrete Base | |||||||||||
| Mounting System Type: | SPC-PA-0 | Array Orientation: | Portrait | |||||||||||
| Item | Product Code | Spec. (mm) |
Material | Project Qty | Spare Qty | Total | R | C | Array No | |||||
| Scale | Qty | 2 | 10 | 4 | ||||||||||
| 80 | ||||||||||||||
| 1 | SPC-IC-H40 |
|
AL6005-T5 | 32 | 3.00% | 1 | 33 | 8 | 32 | |||||
| 2 | SPC-EC-S40 |
|
AL6005-T5 | 144 | 3.00% | 5 | 149 | 36 | 144 | |||||
| 3 | SPC-R-RN52 | 3450 | AL 6005-T5 | 48 | 0.10% | 1 | 49 | 12 | 48 | |||||
| 4 |
|
150 | AL 6005-T5 | 32 | 0.10% | 1 | 33 | 8 | 32 | |||||
| 5 |
|
180 | AL6005-T5 | 144 | 3.00% | 5 | 149 | 36 | 144 | |||||
Please Download PDF version as link >>>
Installation Manual for Solar Tile Roof Mounting Systems SPC-RF-IK01-DR
How to install solar panels on tile roof with brackets ?
solar system install on clay tile roof with solar tile hooks model: SPC-IK-01
More details, kindly check >>>
How to install solar panels on tile roof ?
Can you install solar on tile roof?
Yes, you can install solar panels on tile roof with our mounting system:
Solar Tile Roof Mounting Kits Includes:
(1) Mid clamps;
(2) End clamps;
(3) Aluminum rails;
(4) Rail splices;
(5) Solar tile hooks #1
SPC solar offer professional design and produce pv module installation hardware with competitive price offer.
Solar Panel Tile Roof Mounting System
For roman tile roofs, our designer apply mounting bracket (roof hook) for different roof tops .

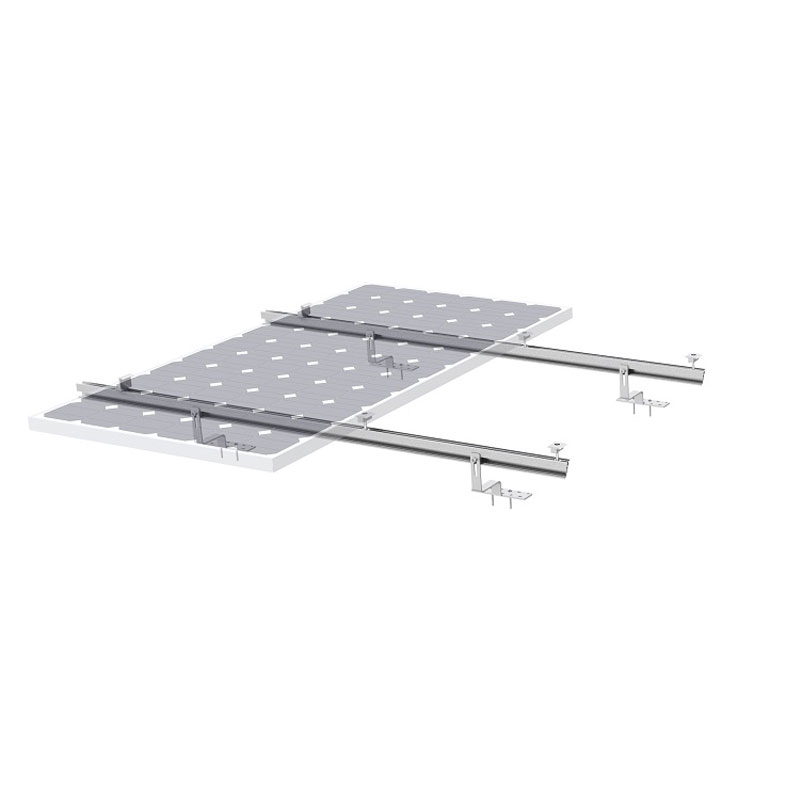

Total solar panel tile roof mounting system includes : brackets (hooks), rails and PV modules …
Feature of our mounting solar panels to roof:
– 20 years up lifetime of quality guarantee ;
– Several series of roof hook bracket for choosing ;
– Solar panel roof rack systems can speed installation with labor cost saving;
– Flashing cover can be chosen if necessary ;
Just remove tile, fix hook and flashing, carve tile, cover tile , done !
With Advanced Machinery: Roll forming machine, Punching machines, Mig/arc welding machines, CNC based automatic loading presses, welding rectifiers, Over head cranes up to 10 tonnes , Numbering machines,
Straightening, Bending machines, Notching machines …
www.SolarPartsComponents.com can offer competitive offer and best service for tile roof mounting solar system for you .
Solar Panel Tile Roof Mounting System
Introduction of Clay Tile Solar Mounting System
Solar Spanish tile mounts
Pre-assembled in our factory save time and labor cost ;
Professional designers /sales/ after-sale team service
Solar tile hook mounts
Suitable for extremely weather and framed/ frameless solar panels.
| Solar Roof Mounting Systems – Solar Tile Bracket + Aluminum Rail | |
| Item type: | Solar Tile Rooftop Mounts |
| Type: | SPC-RF-IK01-DR |
| Installation Site: | Metal Roofing 0 °~ 60° |
Fits for portrait and landscape array.
Solar roof mounts
Solar roof mounts tile roof hooks no need to drill directly into the roof, then can avoid damage or leakage.
Product Description:
“S” Tile roofing also called Spanish tile / Roman Tile / Curved clay tile are very common for roofing structure.
As a professional solar roof hooks manufacturer, we provide wide range for this clay roof racking solutions.
This solar roof mounts for clay tile are compatible for both landscape or portrait module array, framed or frameless module type.
Features of this PV Module racking system for Spanish tile roofing SPC-RF-IK01-DR:
– Rust-resistance by stainless steel and 6005-T5 alum alloy;
– Support solar panel by high quality rail and pitched tile hooks;
– Custom tile roof hooks can be fabricated base on CAD / PDF file given;
– Easy / stable / secured design;
Parts and Components for solar Roman tile roof mounting structure:
– roof hook;
– end clamp;
– end clamp;
– aluminum rail;
Welcome to purchase this Spanish tile roof solar mounting kits from SPC solar with more than 10 years’ experience
and export global market: USA, UK, Australia, Germany …

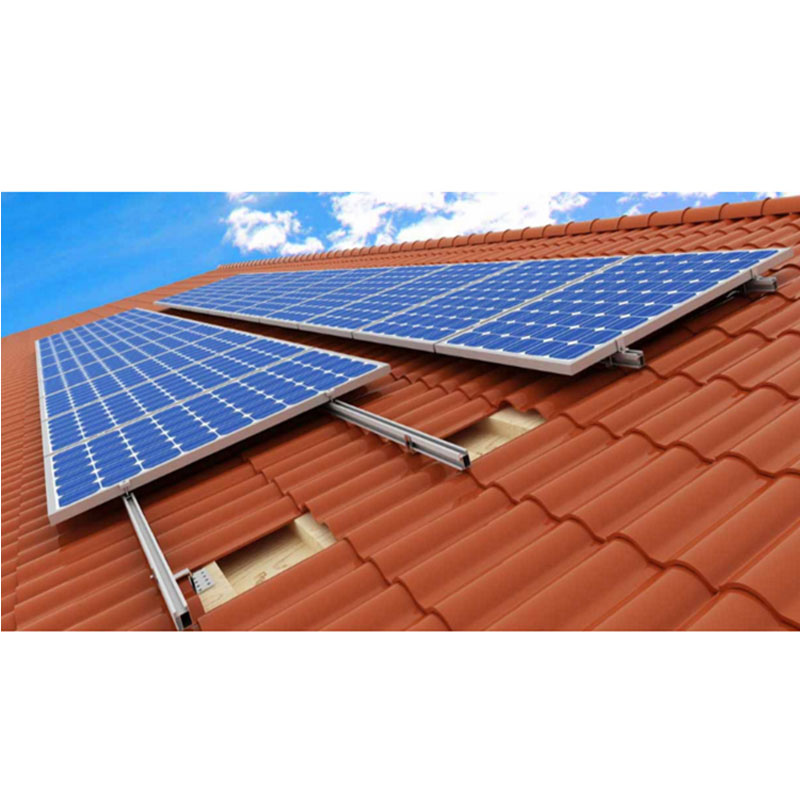

Installation instructions for solar roofing mounts with tile roof hook #1

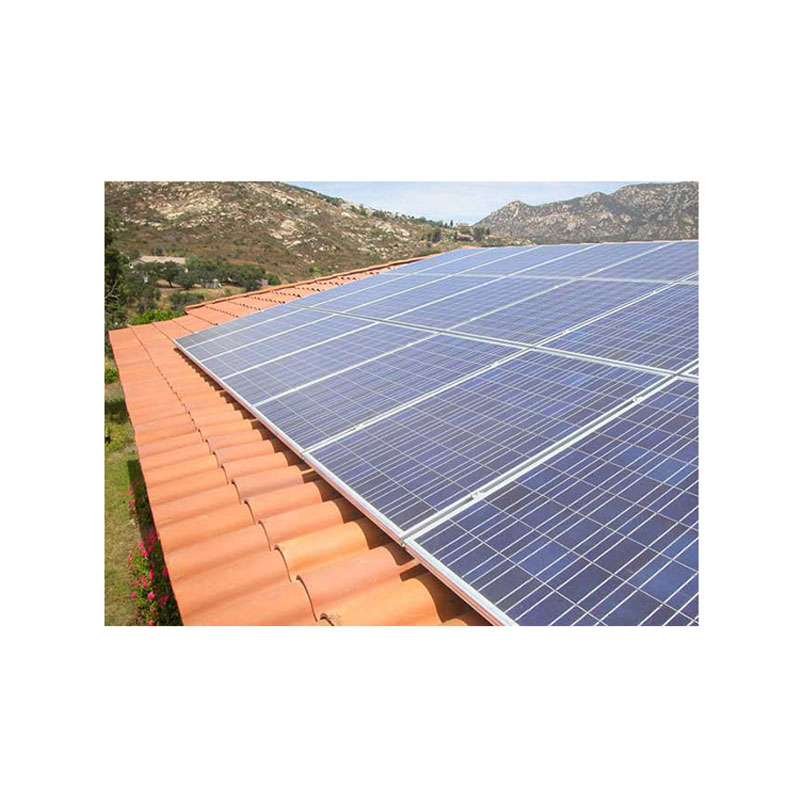

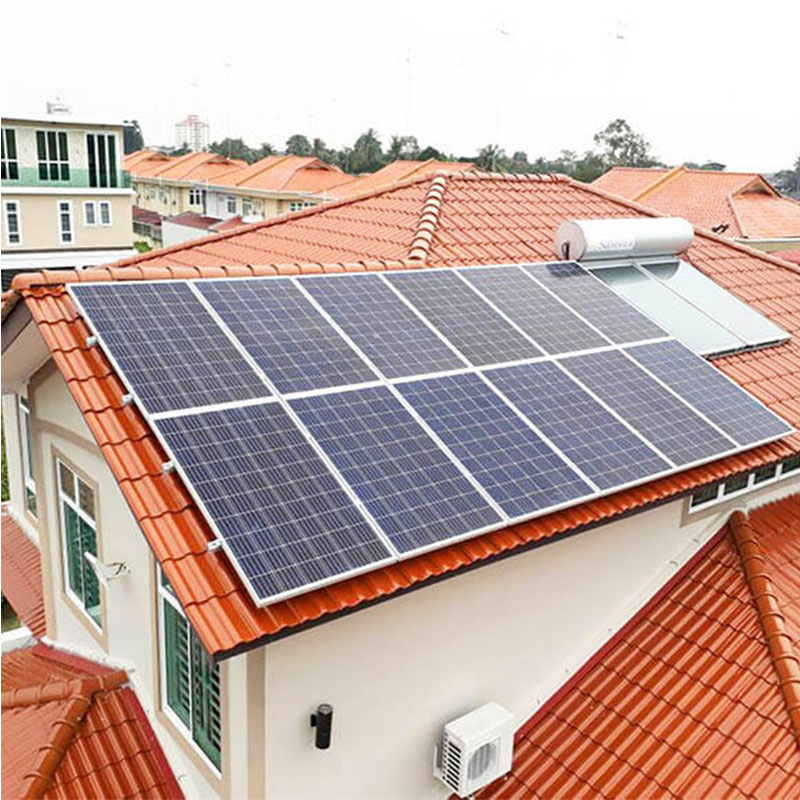

Solar panel roof racking project with stainless roof hooks
SUS304 roof hooks for double pitch tile roof structure,
30 pieces of PV modules project in Germany
High-quality accessories for solar mounting system
It is applied for solar tile roof system, with cost-effective design to receive great welcome.
solar roof hook for Roman tile roof mounting system

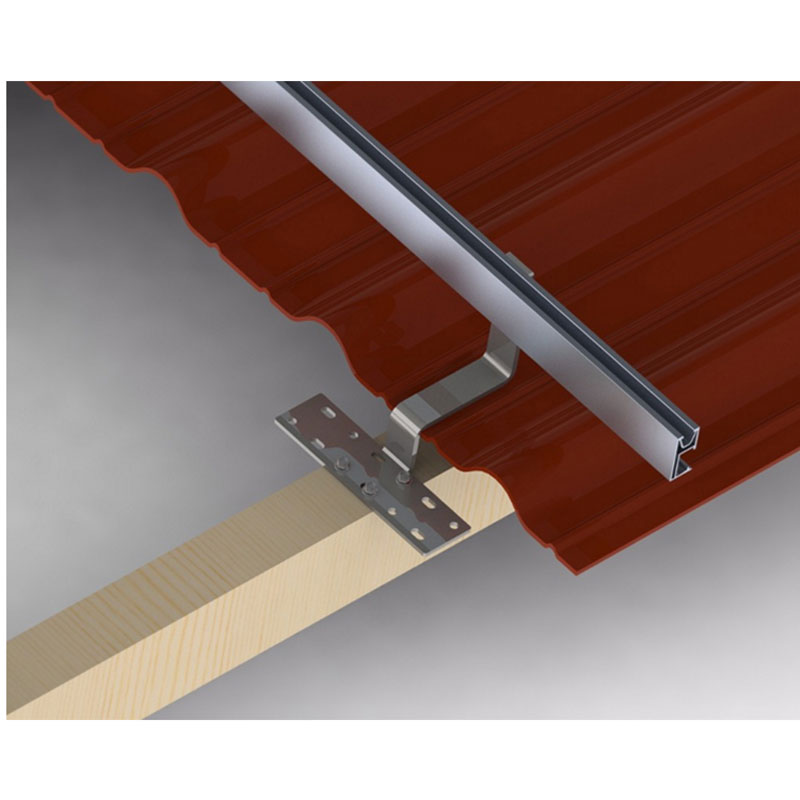

The Roman tile roof hook is an adjustable side mounting hook, compatible with most Roman tile roofs.
Off Grid Solar Power System with Curved Tile Roof Solar Mounting Kits
Introduction off grid solar power system for home , farmhouse …
‘solar Curved tile mounting system can be perfectly apply for the structure if it’s curved Spanish / Roman / Clay tile roofing .
Reasonable price for Roman roof mount
SPC solar carry many types of PV module installation options for Curved / Roman / Clay roofing
tile roof hook side mounted for clay roof mount
Our No.1 hot-sale solar roof bracket is installed side-mounted with aluminum rails.
Cost-effective, very easy installation !
Data Sheet for tile roof hook side mounted SPC-RF-IK01-DR
Scenario details on data sheets for Solar tile roof mounted SPC-RF-IK01-DR
More details kindly check>>
Data Sheet for tile roof mounting SPC-FR-IK01-DR
