How to install solar panels on tile roof ?
Tile roofing tops are very good choice for solar panel power generation.
Utilized roptop space and make our earth GREEN.
But how to mounted pv modules on clay tile roofing ?
It is the best solution to install solar panels on tile roof. It is suitable for commercial and household installation methods, and is very suitable for DIY design of idle household roofs, which satisfies the reuse and aesthetics of the roof.

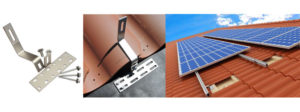

We use side-mounted hooks for curved tile roof installation systems, and our high-grade SUS 304 stainless steel and AL6005-T5 extruded oxidized aluminum alloy rails are sturdy and durable. The installation system does not need to penetrate the tile surface, and install the side-mounted hooks on the wooden beams.
solar system install on tile roof is the best choice for Roman tile roof installation. The design of the mounting hook is not adjustable, and the mounting structure is an aluminum guide rail for side mounting. Use our roof hooks to quickly install solar panels.
Feature:
- Widely used for inclined roof surfaces;
- Non-adjustable roof hook, anti-corrosion and wind resistance;
- High-quality stainless-steel material, quick installation;
- Suitable for framed/frameless photovoltaic modules to install vertical/horizontal arrays;
- The pre-assembled design is time and cost-effective;
Following are some tips from our SPC solar specialist.

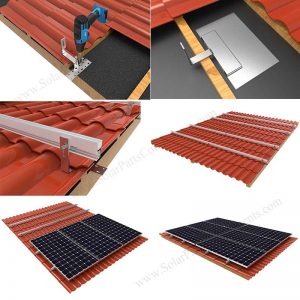

(1)
First of all,
for Clay / Roman / Spanish curved roofing,
you have to uncover some of tiles, anchor position for aluminium rail supports.
Usually they should be under 2 meter for span range, 1.5 meter is our industry standard, if your place is located in hurrican area, our engineer will shorten bracket distance to 1.2 meter.
(2) Drilling roof purlines with timber screws, attaching solar tile hooks on the position. Flashing plate is a kind of essential components for prevent water infiltrating from roof penetrating holes.
(3) Settle anuminum rails parellel, keep all solar panels on same level.
With experience, SPC solar with several kinds of mounting kits for adjustable height of mounting system. So that installer can easily operate our roof mounting kits for tile roof projects.
Solar system install on tile roof ensures quick installation of tile roof, remove the tiles, screw the stainless steel brackets to the wooden beams, and then reinstall the tiles in their original positions. In the hot summer, air can be circulated between the solar panels and tiles, and the air can be circulated to cool the solar panels.
The solar panel installation system uses rails and brackets to fix the solar system on the roof frame. In addition to Roman tiles, we have also designed special hook mounting systems for asphalt shingles and flat tile roofs.
Want to know more of knowledge of how installing solar panels on tile roof,
contact us through email, our pv power technicians can offer options, evaluate for your investment ruturn, release professional CAD design and make your clean power station a success !
Fell free to download our PDF version as link >>>
More details of this Solar tile roof mounting system, SPC-RF-IK04-DR, kindly check >>>
