PV Aluminum Mid Clamps
- Product Type: Solar Mounting Clamps
- Product Model: SPC-Mid-Clamps-5mm-Wings
- Material: Aluminium Alloy
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Landscape / Horizontal
- Application: Solar Racking
Product Description:
Our aluminum mid clamp for solar panel is made of extruded anodized aluminum material, which has good rust-proof and corrosion protection. The aluminum mid clamp for solar mounts is used to clamp solar panels between two solar modules by fixing with rail to firmly clamping panels from wind and any other shaking. The mid clamp is anodized on surface finish normally, it can be mill finish as customer’s request also. We have silvery and black for your choice or customized to meet your demands. Our factory provides the different mid clamp series, including 30/35/40/45/50mm and more to fit the solar panels. The aluminum mid clamp for solar panels is matching with a socket head screw, a flat washer, a spring washer and a sliding nut. It also can be equipped with grounding clip to fix into mounting rail to reach grounding propose. We are serious with the quality of the mid clamps and provide the guarantee for our other products.
Features of aluminum mid clamps for solar panels:
1.Superior quality for Corrosion protection and anodized treatment on surface;
2. Save space and time for transporting;
3. Fast and easier to be installation;
4. Be various of sizes to fit the solar panels;
5. Highly cost effective and factory price;
6. 5mm thickness wings, more stronger;
SPC solar carry framed or thin film mid / end clamps, both fixed or adjustable types. Aluminum mid clamp for solar panels is one of the indispensable components in the solar mounting system, which plays an important role.
Specification of this aluminum mid clamps for solar installation
– Standard lengh of clamp: 40mm, other customized size: 35 / 40 / 45 / 50 / 55 … available
– Screw Bolts: M8×45mm, M8×50mm,M8×55mm,M8×60mm,M8×65mm…
– Surface treatment: Anodized;
– Color: silivery / black …
More details of this aluminum mid clamps for solar mounts, Contact us by our website:www.SolarPartsComponents.com
| Brief Descriptions: | |
| Solar mounting components- aluminum mid clamps for solar panels | |
| Item type: | Solar mounting components |
| Type: | |
| Installation Site: | Ground or roof solar panel mounting |
| Profile Material: | Aluminum6005 – T5 (Anodized) |
| Color: | Silvery / black or according to customer requirements |
| PV Modules: | Framed |
| Module Orientation: | Portrait and Landscape |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag +inner box +Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
How many styles of mid clamp and end clamp are there?
Q:
I am looking for aluminum mid and end clamps for solar panels, Can you show your product styles?
A:
Nice to receive enquiry about our mid clamps and end clamps .
Please refer to our most common types and factory price as following :

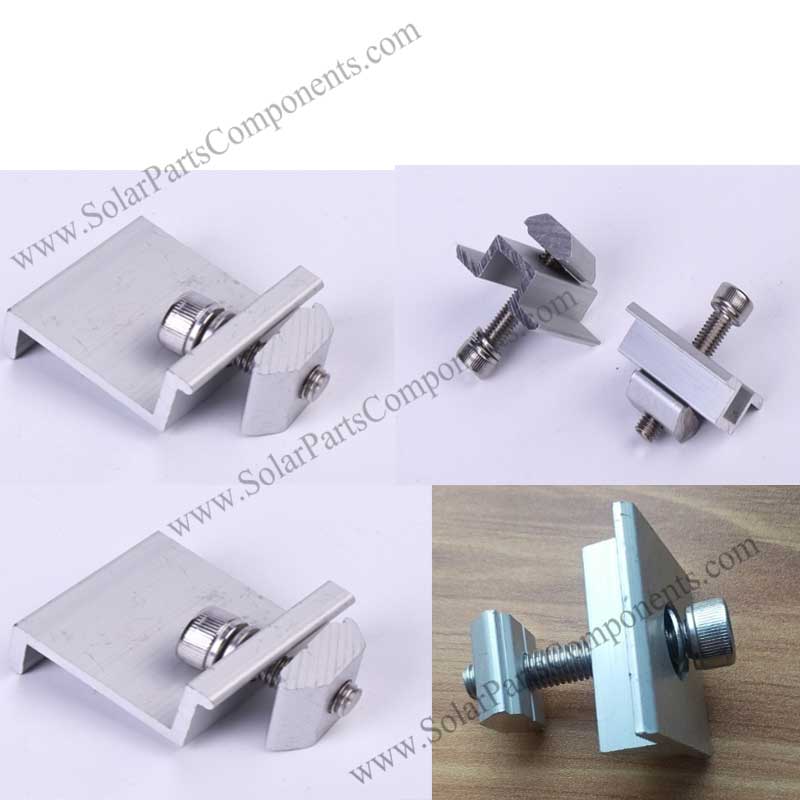

For 35mm thickness solar panels such profile below:
aluminum mid clamps for solar panels
aluminum end clamps for solar panels
Thank you & look forward for early reply !
Q:
Thank you for your kind reply, maybe I can purchase some samples, please send an invoice for each quantity of 500 pieces, thank you!
What is the material of mid clamp for solar panel?
The mid clamp is made of high-quality aluminum material with exquisite workmanship and has the characteristics of high strength and strong corrosion resistance.
The following is an inquiry about aluminum mid clamp for solar panel:
Q:
I want details about this product because I have a workshop in Egypt and I want it.
I want to know the price and how to order it
A:
Appreciate for your inquiry about our mounting system.
Can you offer more details of workshop ?
I will let our engineer check it for you.
Q:
I want to ask about aluminum mid clamp for solar panel . How much are these parts?
I want about one thousand pieces.. I’m in Egypt.

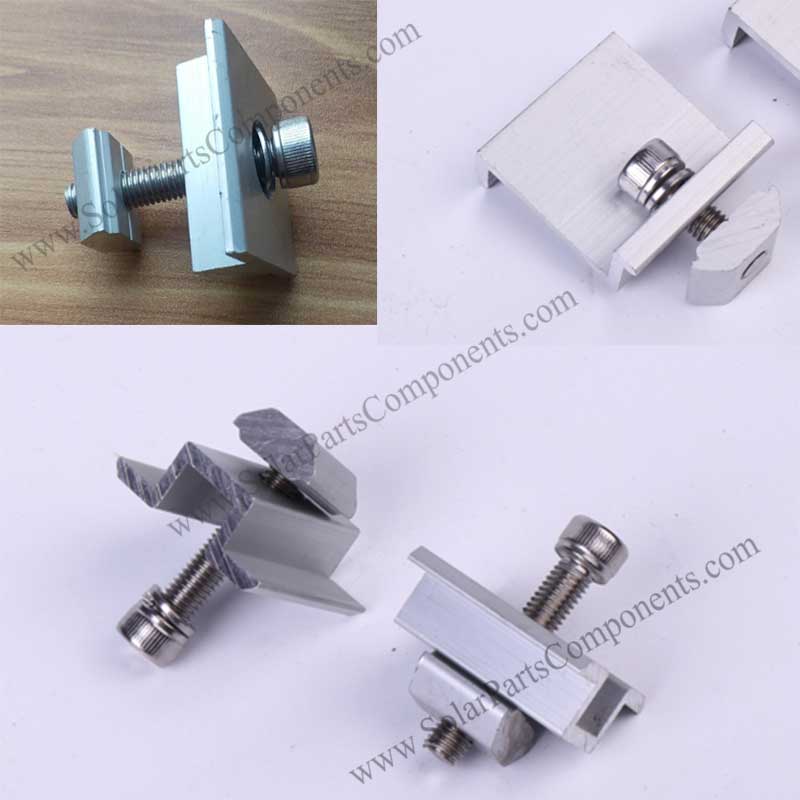

aluminum mid clamp for solar panel
aluminum end clamp for solar panel
A:
Appreciated for your inquiry about our clamps.
A: Aluminum Clamp;
B: Hex socket bolts;
C: Spring Washer;
D: Nut;
Base on 10000 sets in quantity, our factory prices please see at attached.
What is the material of mid clamp for solar panel?
The mid clamp is made of high-quality aluminum material with exquisite workmanship and has the characteristics of high strength and strong corrosion resistance.
The following is an inquiry about aluminum mid clamp for solar panel:
Q:
I want details about this product because I have a workshop in Egypt and I want it.
I want to know the price and how to order it
A:
Appreciate for your inquiry about our mounting system.
Can you offer more details of workshop ?
I will let our engineer check it for you.
Q:
I want to ask about aluminum mid clamp for solar panel . How much are these parts?
I want about one thousand pieces.. I’m in Egypt.
aluminum mid clamp for solar panel
aluminum end clamp for solar panel
A:
Appreciated for your inquiry about our clamps.
A: Aluminum Clamp;
B: Hex socket bolts;
C: Spring Washer;
D: Nut;
Base on 10000 sets in quantity, our factory prices please see at attached.
Need 15,000 pieces of aluminum mid clamp for solar panel
”
aluminum mid clamp for solar panel
solar panel aluminum mid clamps
Aluminum mid clamps for solar panels 50mm
Q:
I am looking for Aluminum mid and end clamps for solar panels 50mm to create an upstand/bracket solution for flat roofs that incorporates this fixing clamp between my design and solar panel. Whilst I can reverse engineer from the drawings. available, I’d like to avoid any unnecessary mistakes, and wanted to know if CAD was available for and of the fixing clamps shown on the page linked above.If this is something you can assist me with that would be great.
Best regards
Tom
A:
Nice to know you are looking for aluminum solar clamps 50mm.
We solar clamps manufacuturer with more than 13 years experience.
May I know how many quanity of each would you need?
Q:
aluminum clamps for solar panel 50mm
A:
Please refer to our CAD for our Aluminum mid and end clamps for solar panels 50mm enclosed.
Hope we can be your good partener.
Q:
Thank you for your CAD of the Aluminum mid and end clamps.
Let us say 100,000 QTY for the first order.
Please quote you best price.
A:
Please refer to our quotation as file attached.
Thank you
What's solar mid clamps, how to choose?
The solar panel mid clamp is used to fix the solar module to the guide rail. It is a mounting clip for the PV mounting clip of the frame mounting panel. It is very suitable for a variety of framed solar modules and photovoltaic installation structures.
Aluminum middle clamp, used for solar panel installation structure, provides solar medium voltage for solar installation structure, the middle pressure is made of extruded anodized aluminum with a length of 35mm, and after precise design, the middle clamp can be firm Ground the connection between the panel and the panel.
The solar mid clamp fixes two adjacent solar panels to the mounting rail and uses them between the two panels. The medium voltage is suitable for installing 35mm/40mm/45mm… framed solar panels. It is a hollow (single-shaped) mid clamp, which can be easily installed rail.
Feature:
- Aluminum material is anticorrosive and has a high recovery rate, which is suitable for green energy;
- Between the standard medium voltage connecting plate and the plate, saving the use of fixing parts;
- Light weight but strong, quick installation;
- Smooth surface and beautiful appearance;
- Customized size, can be customized;
Universal and standard pv mid clamps, used to connect solar panels to the rails. The easy-to-insert module means that you can easily slide it into the guide rail to hold it in place, and when used with a 35mm thick module, all components can be used.
Solar mid clamps are made of high-quality materials and are fully anodized to obtain perfect anti-corrosion effect.
We manufacture medium voltage solar panels according to customer requirements. We provide aluminum clamps whose components can be accurately positioned and easily install solar panels on the structure, the thickness can be from 35 mm to 50 mm. If you need other bracket systems or accessories, if you have any needs, please feel free to contact us: www.solarpartscomponents.com.
Need competitive price of mid clamps for solar panels?
As luminum mid clamps for solar factory,
we can offer good quality mounting clamps for your PV installation with competitive price.
More details are available here.
Solar Clamps Factory
Q:
Good Afternoon,
I am looking at your solar clamps:
Bifacal solar panel mid clamp: 5mm to 10.5mm (Bifacial – Glass Glass)
Please could I ask for quote for the following you are able to offer:
1) Mid Clamp 150mm – Black QTY: 120, 240
2) End Clamp 150mm – Black QTY: 2040
Flexible solar clamps – aluminium, with seals – 2m or 4m lengths (Or specify max length please) QTY: 102,040
With fixings for rail such as SPC-U62#-L-T2 (also consider atlenative rail
Please could I also ask for rail costs for 3m Lengths of the rail, plain (QTY: 2550,1080)
Please confirm weight etc. or shipping costs to UK.
Your assistance is appracieted
Best Regards
James Blythe
A:
Hello James
Thank you for your inquiry from our solar clamp factory.
Yes we can provide all you need.
Please refer to our quotation as file attached.
Thank you.
Do you need mid clamp fasteners for mounting solar panels?
Yes, mid clamp fasteners are essential for mounting solar panels.
More details, kindly check>>>
