Different roof types have different designs.
Of course, their accessories are different.
Every roof is unique, so we have many options to protect our array.

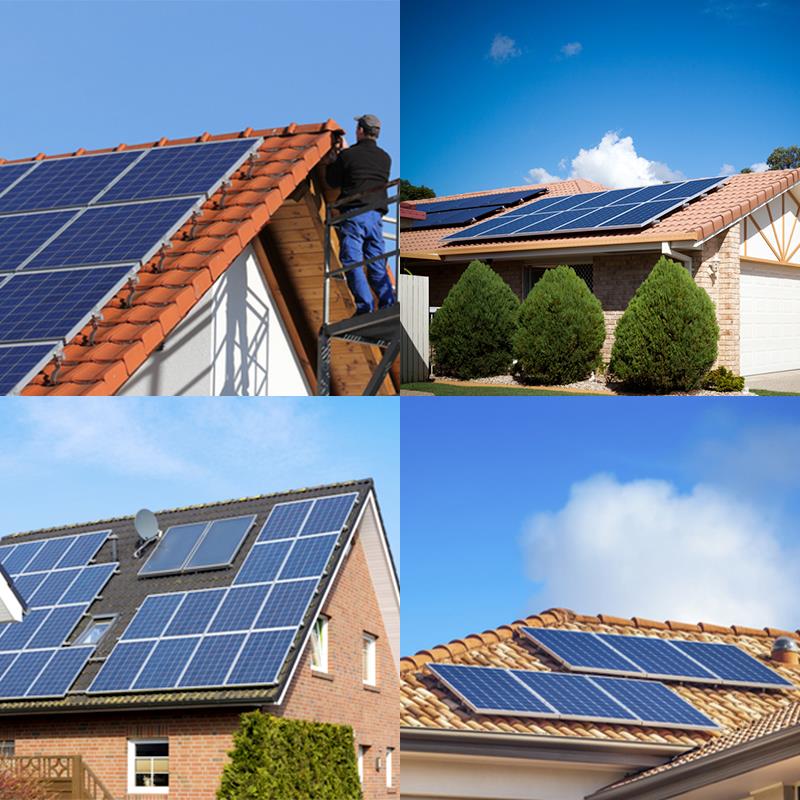

Let’s focus on the installing solar panels on tile roof today
The guide for roof hook installation can be found in the corresponding installation instructions. the basic steps will be shown below. In general, tile modification is inevitable. when installing the roof hook, it must be ensured that there is a distance of 5 mm side 5 mm between the roof hook and the tile below.
The tile roof mounted can reduce the penetration on the solar installation of the tile roof, and the tile roof hook is tightly fixed on the wood beam through the wood screw under the tile
Appropriate grinding and pre-drilling screw holes are recommended.

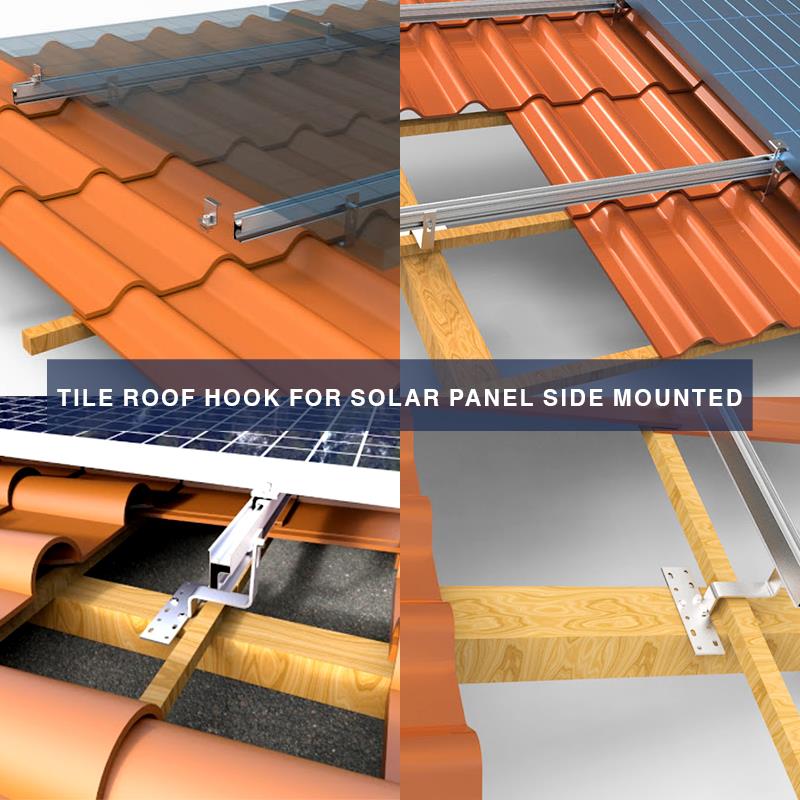

How to install the tile roof hook for solar panel side mounted?
1.Remove roof tiles at marked locations or hooks, simply lift them slightly
2. Insert the roof hook into the wooden beam and screw the roof hook.
3.Cover the hook with tile.
Accessories and Material:
Material: stainless steel (A2-70)
Tile hook for side mounted rail
2* wooden screw
Why not choose the tile roof hook for solar panel bottom mounted?
In fact, their installation steps are similar. Their main difference is that the hooks and rails needed for installation are different. It needs the tile hook for bottom mounted rail.
After the comparison, we summarized tile roof hook for solar panel side mounted advantages:
1. It is cost-effective.
2. Sales volume.
3. Has a wide range of applications
The good ideal for installing solar panels on tile roofs makes the roof solar installation system to achieve the best results.
