Solar roof mounts tile roof hooks no need to drill directly into the roof, then can avoid damage or leakage. Which developed to fit all types of tiles in solar roof mounting projects. It accommodates all framed and unframed solar panels currently on the market. It's complete product range of mounting brackets provide for fast and simple fixing to purling, not affecting the integrity or function of the tiles themselves.
Solar roof mounting's extrusion rail, inclined mounting parts, various blocks and tile roof hooks can be pre-installed in our factory, saving your labor cost and installation time. The customized length eliminates the need for on-site welding and cutting, then ensuring high anti corrosion, structural strength and artistic appearance from our factory to the installation site. Introduce our tile roof hook SPC-IK-01 technical information's below to you:
-Material: SUS 304 stainless steel anti-corrosion;
-Color: Natural or Customized;
-Maximum wind speed: up to 60 m/s;
-Snow load: up to 1.4 KN/㎡;
-Duration of over 20 years.
We are the solar panel roof mounts pitched roof mounting system manufacturers and specialist. Welcome to our website: www.SolarPartsComponents.com.We also can provide competitive price and superior customer service.

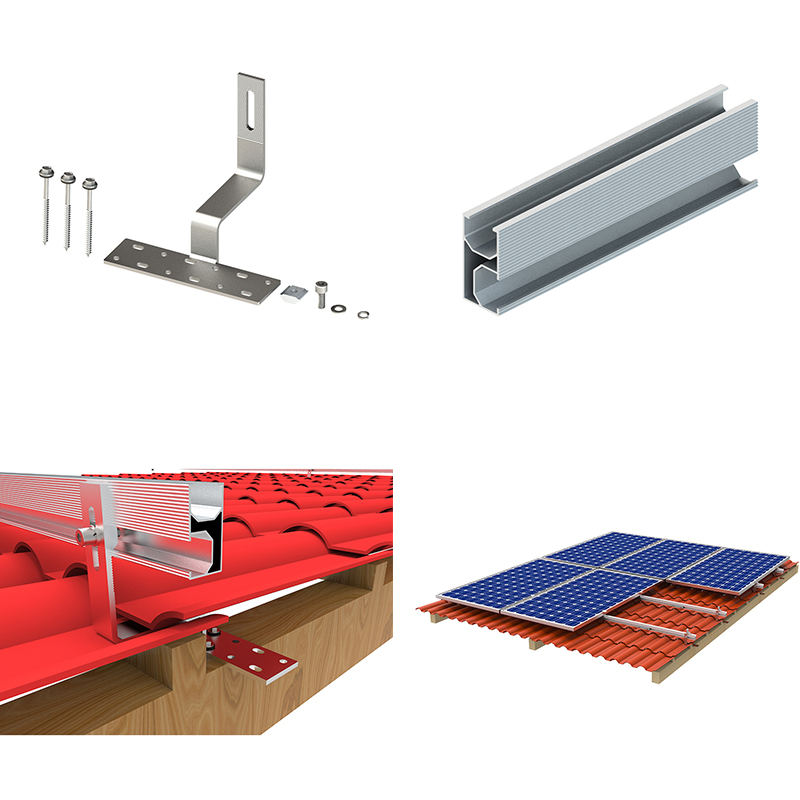

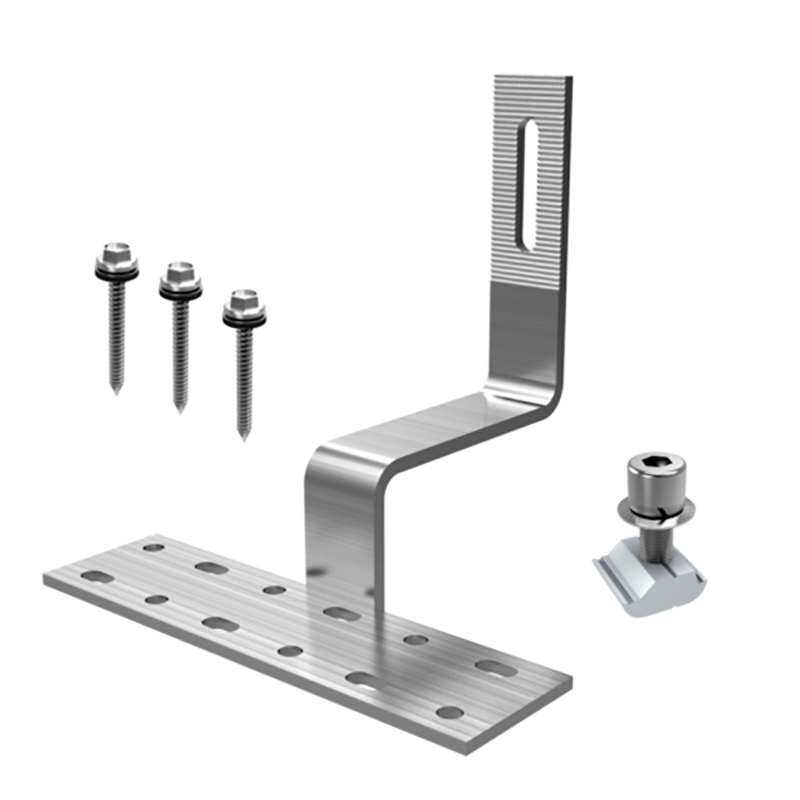

Solar panel roof mounts bracket is fixed PV solar mounting by hooks on slope tile roof. Which can install any module in almost any mounting situation or configuration. The components are easy to install and used for various tile roof types. Our SPC-IK-01 tile roof hook include accessories: three wood screws, Rail 01,rail 01 connector, mid and end clamps. Its installation is easy and solid and reliable. Installation steps below:
1. Remove the roof tiles at the marked positions;
2. Locate the main beam and underline it;
3.install the tile hook in the underline position;
4. Drill the hole according to the position of the hook;
5. Apply sealant to the drill hole;
6. Insert the roof hook to the wooden beam and use wood screws to fix;
7. Cover the tiles then use M8x25 bolt nuts to install Rail 01;
8.Check it is correction and safe.
