Balcony adjustable solar racking kit
New Balcony adjustable solar mounting
- Product Type: Balcony Solar Mounting System
- Product Model: SPC-BAS
- Material: Aluminum alloy &SUS304
- Max Wind Load : 40 m/s
- Max Snow Load : 1.2 KN / M 2
- Solar Module Orientation: Landscape
- Application: Balcony rail
Descriptions
The Balcony adjustable solar racking kit is a product that is installed on balcony railings and allows for the easy construction of small home PV plants on balconies. The Balcony adjustable solar racking kit are made of high-quality aluminum 6005-T5 &SUS304, and its adjustable design makes it more popular in the solar market, because it can accommodate more different solar module dimension and installation requirements.
Installation and removal are very simple and quick; the installation can be completed by 1-2 people. The system is bolted and fixed, so there is no need for welding or drilling during installation.
With a maximum tilt angle of 30°, the panels’ tilt angle can be flexibly adjusted according to the installation site to achieve the best power generation efficiency. The panel’s angle can be adjusted at any time thanks to the unique telescopic tube support leg design. Optimized structural design and material selection ensure the system’s strength and stability in a variety of climatic environments.
The solar module converts daylight and sunlight into power. As light falls on the module, electricity is fed into the house network. The inverter feeds electricity into the household electricity network via the nearest power socket. Thus, the electrical base load’s electricity costs are reduced, and a portion of the household electricity demand is saved.
Features of the Balcony adjustable solar racking kit
- Easy to use
Small variety of accessories, easy installation.
2.Lower electricity costs
With the balcony solar system, you can reduce your electricity costs because you can produce some of your own electricity and use it immediately. Reduce your dependence on ever-rising electricity prices.
- Pre-assembled adjustable frame
highly save the labor cost at your installation site.
- Durable and Low Corrosion
The balcony solar mounting system is made entirely of 6005-T5 aluminum alloy and 304 stainless steel in various anodized thicknesses, making it suitable for even the harshest environments, such as corrosive sites near the coast.
Welcome to contact us anytime, our company website: www.solarpartscomponents.com
| Datasheet | |
| Balcony adjustable solar racking kit | |
| Item type: | Balcony Solar Mounting System |
| Type : | SPC-BAS |
| Installation Site : | Balcony |
| Installation Angle : | 10° ~ 30° |
| Profile Material : | Aluminium AL6005-T5&SUS 304 |
| Fasten Parts : | SUS 304 / A2-70 Stainless Steel |
| Small Components : | AL 6005-T5& Stainless Steel |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 40 m / s |
| Snow Load : | 1.2KN / M2 |
| PV Modules : | Frame solar Module |
| Module Orientation : | Landscape |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
Why use adjustable Balcony Solar Mounting Bracket?
Adjustable Solar balcony bracket
The balcony hooks are made of stainless steel, weatherproof and highly durable. The brackets for adjusting the tilt angle are made of aluminum. The included screws are made of stainless steel.The telescopic arm is adjustable from 15-45° degrees to achieve the ideal tilt angle and get the maximum efficiency from your solar panels.
balcony solar system project
Advantages of Adjustable Balcony Mounting Bracket:
Can you mount adjustable Balcony Solar Mounting system?
600W balcony system
600W balcony system package:
√ 2 pcs 410W solar panels
√ 1 unit 600W Microinverter
√ mounting structure with adjustable tilt 15°-30°
√ 5m AC cable.
600W balcony system package
Features
Quick installation
Installation and removal can be easily completed by 1-2 person, which is simple and fast.
No dilling/welding
No weldng or dnlling is required during installation, oanly bolt and foxation.
Adjustable angle.
Panel tit angle can be flexibly adjusted to obtain optimum power generation fficiengy, with
maximum tit angle 30°
Stable and relable
Optimizd structural design and material selection ensure the strength and stability of the system, suitablefor a variety of diferent climatic environments.

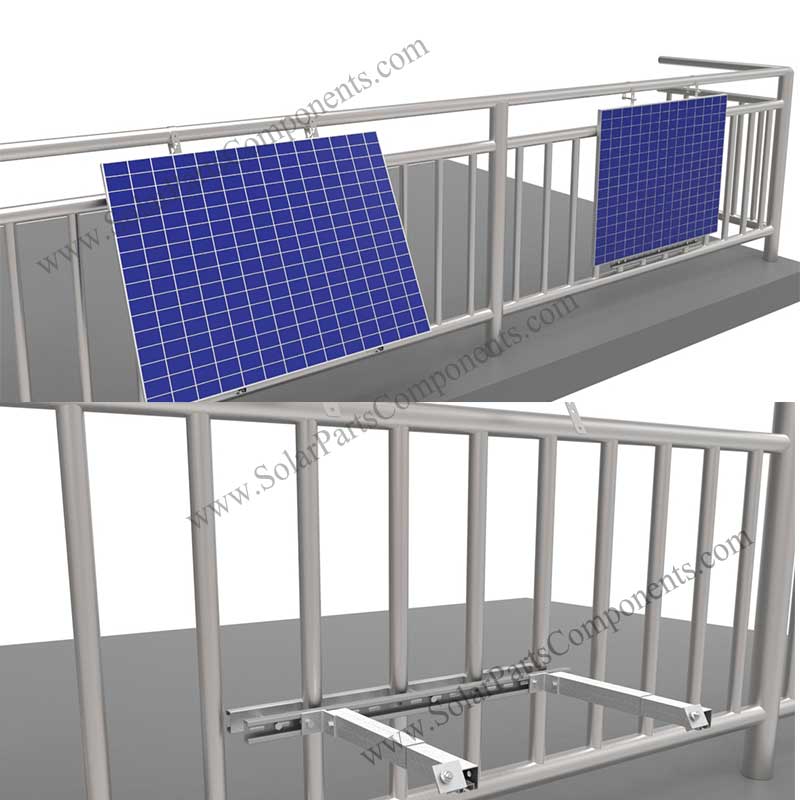

Balcony adjustable aluminium solar PV mounting
Balcony adjustable aluminium solar PV mounting

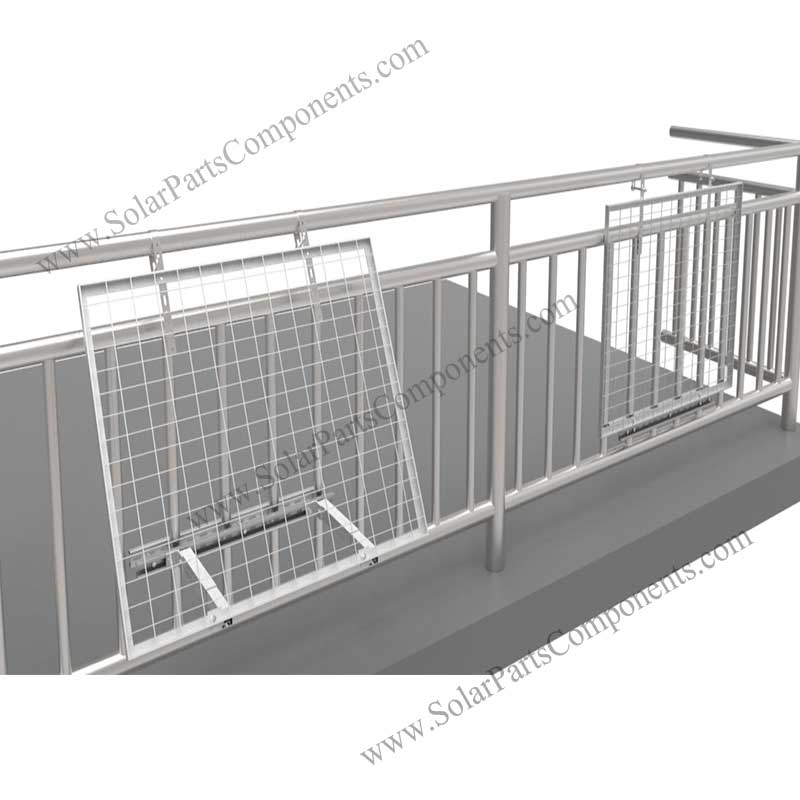

Balcony adjustable solar PV structure
Tilt angle adjustment range 10°-30°
Perfect for Ground/Wall/Balconyrailing
Aluminum construction and stainless steel – secure and durable assembly
Suitable for panels up to 1134mm wide
including all fastening screws
Withstands a maximum wind speed of 40m/s

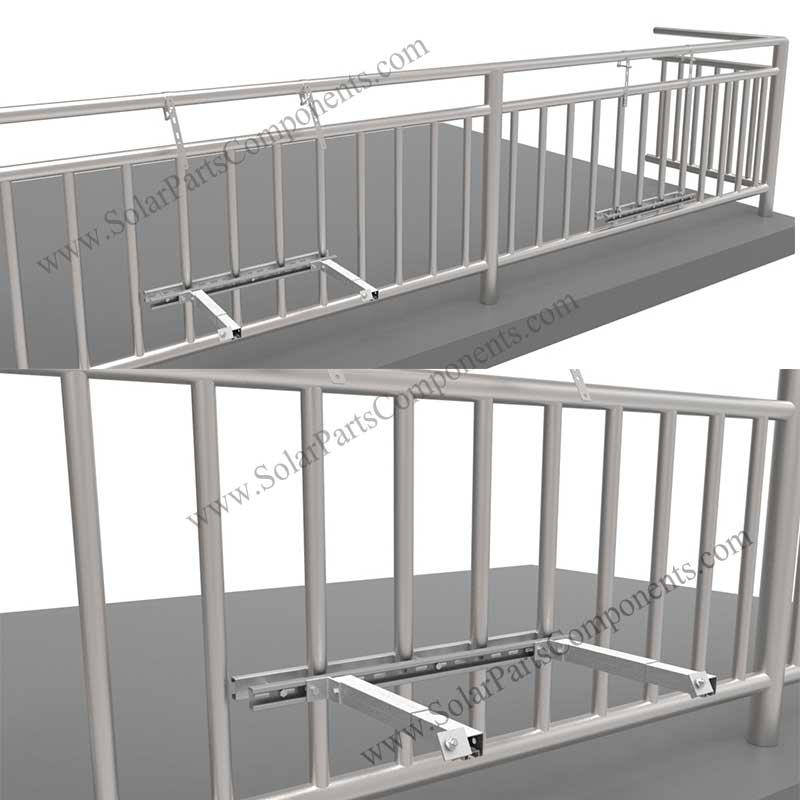

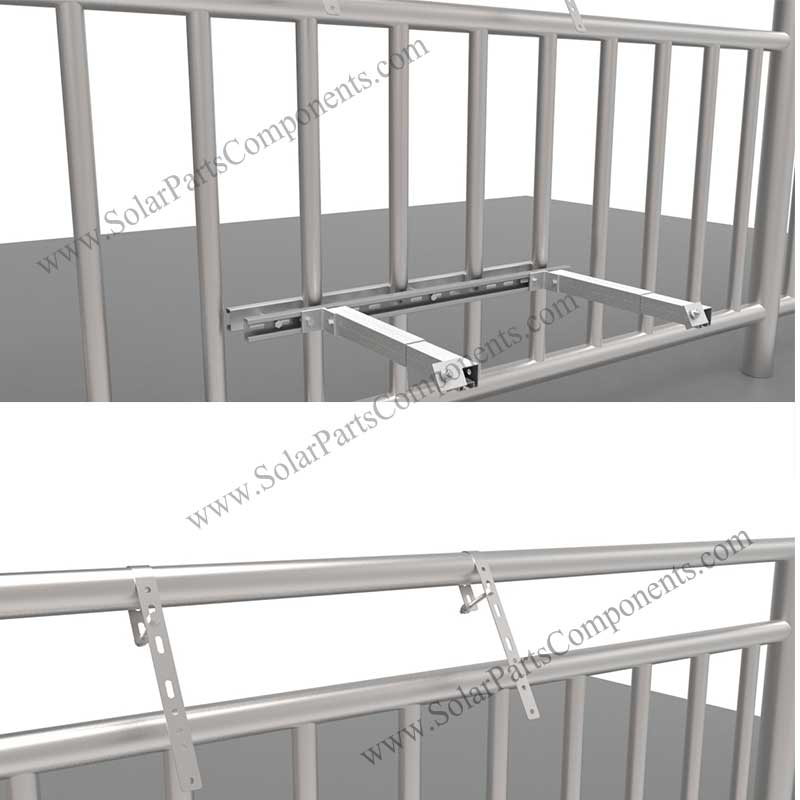

Balcony adjustable system components

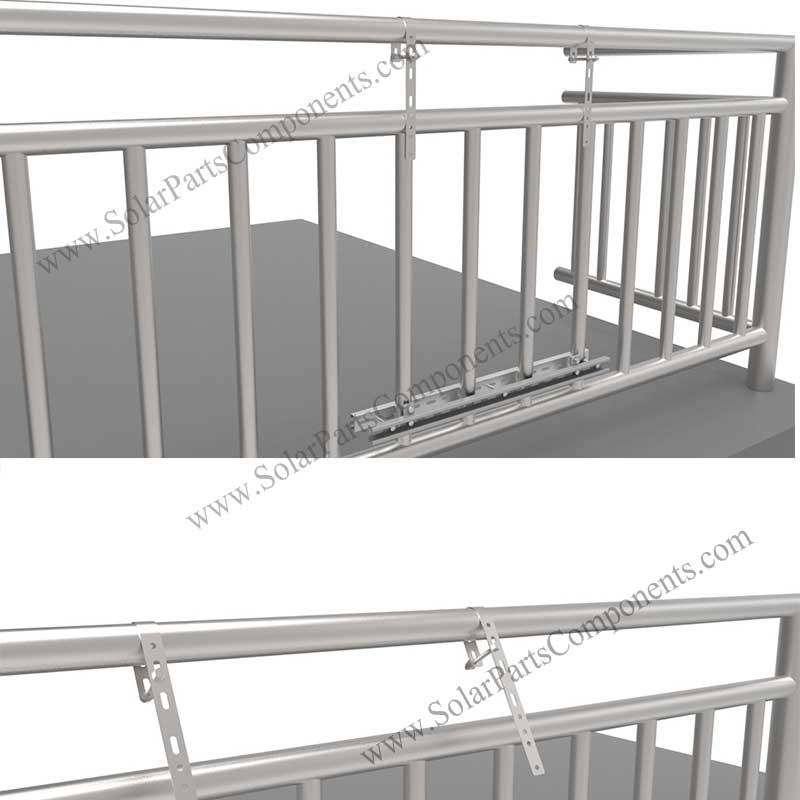

Aluminum Balcony adjustable Bracket with Hook 10°-30°
This Balcony adjustable Bracket with Hook 10°-30°
Balcony
No more tedious assembly: solar panel brackets are already pre-assembled and can be easily attached with the enclosed screws.
Maximum solar energy efficiency: balcony power station bracket allows you to adjust the tilt angle of your solar panel in the range of 10-30° degrees to optimally capture sunlight.Not only for balcony power plants: PV balcony power station brackets are flexible and allow the installation of solar panels in different places such as gardens, mobile houses and roofs.High quality and standards: solar panel brackets made of high-quality aluminium and stainless steel, provide a stable and durable support for your PV balcony power plant.
This solar panel mount guarantees a reliable and safe installation.
Balcony Bracket with Hook
You will receive: 1 pair of balcony power station brackets, 4 clamping straps, all required screws, 1 installation instructions
- Overview
-
Descriptions
The Balcony adjustable solar racking kit is a product that is installed on balcony railings and allows for the easy construction of small home PV plants on balconies. The Balcony adjustable solar racking kit are made of high-quality aluminum 6005-T5 &SUS304, and its adjustable design makes it more popular in the solar market, because it can accommodate more different solar module dimension and installation requirements.
Installation and removal are very simple and quick; the installation can be completed by 1-2 people. The system is bolted and fixed, so there is no need for welding or drilling during installation.
With a maximum tilt angle of 30°, the panels’ tilt angle can be flexibly adjusted according to the installation site to achieve the best power generation efficiency. The panel’s angle can be adjusted at any time thanks to the unique telescopic tube support leg design. Optimized structural design and material selection ensure the system’s strength and stability in a variety of climatic environments.
The solar module converts daylight and sunlight into power. As light falls on the module, electricity is fed into the house network. The inverter feeds electricity into the household electricity network via the nearest power socket. Thus, the electrical base load’s electricity costs are reduced, and a portion of the household electricity demand is saved.
Features of the Balcony adjustable solar racking kit
- Easy to use
Small variety of accessories, easy installation.
2.Lower electricity costs
With the balcony solar system, you can reduce your electricity costs because you can produce some of your own electricity and use it immediately. Reduce your dependence on ever-rising electricity prices.
- Pre-assembled adjustable frame
highly save the labor cost at your installation site.
- Durable and Low Corrosion
The balcony solar mounting system is made entirely of 6005-T5 aluminum alloy and 304 stainless steel in various anodized thicknesses, making it suitable for even the harshest environments, such as corrosive sites near the coast.
Welcome to contact us anytime, our company website: www.solarpartscomponents.com
- Specification
-
Datasheet Balcony adjustable solar racking kit Item type: Balcony Solar Mounting System Type : SPC-BAS Installation Site : Balcony Installation Angle : 10° ~ 30° Profile Material : Aluminium AL6005-T5&SUS 304 Fasten Parts : SUS 304 / A2-70 Stainless Steel Small Components : AL 6005-T5& Stainless Steel Color : Silvery or according to customer requirements Wind Load : 40 m / s Snow Load : 1.2KN / M2 PV Modules : Frame solar Module Module Orientation : Landscape Warranty 10 years Designed LifeSpan 25 years Packing Details : Inner : Bubble bag+inner box+Carton Outer : Wooden Box, Steel Pallet, MDF, etc - FAQ
-
Why use adjustable Balcony Solar Mounting Bracket?
The Adjustable Balcony Mounting Bracket allows you to set your ideal angle according to seasons, and they are easily and stably to attach solar panel and inverters to your balcony.High quality aluminum and stainless stee make they durable and provide optimal performance over long period of time.
Adjustable Solar balcony bracket
The balcony hooks are made of stainless steel, weatherproof and highly durable. The brackets for adjusting the tilt angle are made of aluminum. The included screws are made of stainless steel.The telescopic arm is adjustable from 15-45° degrees to achieve the ideal tilt angle and get the maximum efficiency from your solar panels.
balcony solar system project
Advantages of Adjustable Balcony Mounting Bracket:
☆ Easy to use – Small variety of accessories, easy installation.☆ High Durability – Best materials ensure 10 years warranty and 25 years service time.☆ The aluminum alloy material has a beautiful appearance, easy handling,suitable for installation on the balcony.☆ Pre-assembled adjustable frame – highly save the labor cost at your installation site.Can you mount adjustable Balcony Solar Mounting system?
Adjustable Balcony Solar Mounting System can be installed. And Easy Installation! Complete System in one Shopping. Adjustable angle15–30°. It can fit with all different kind of panels. Small MOQ is acceptable
600W balcony system
600W balcony system package:
√ 2 pcs 410W solar panels
√ 1 unit 600W Microinverter
√ mounting structure with adjustable tilt 15°-30°
√ 5m AC cable.
600W balcony system package
Features
Quick installation
Installation and removal can be easily completed by 1-2 person, which is simple and fast.
No dilling/welding
No weldng or dnlling is required during installation, oanly bolt and foxation.
Adjustable angle.
Panel tit angle can be flexibly adjusted to obtain optimum power generation fficiengy, with
maximum tit angle 30°
Stable and relable
Optimizd structural design and material selection ensure the strength and stability of the system, suitablefor a variety of diferent climatic environments.Balcony adjustable aluminium solar PV mounting
The new Balcony adjustable aluminium solar PV mounting is manufactured with 6005-T5 aluminum alloy and SUS 304 stainless steel in different anodized thicknesses, and is claimed to feature excellent corrosion resistance and durability. It applies to coastal regions and many other harsh environments which are more susceptible to corrosion. With all pre-assembled parts, the installation can be done in a very short time.
Balcony adjustable aluminium solar PV mounting
The Balcony adjustable aluminium solar PV mounting is adjustable to different types of commonly-sized balconies with aluminum railings. Its standardized components are suitable for 60-cell as well as for 72-cell panels.The Balcony adjustable aluminium solar PV mounting, which comes with a 10 year product warranty, can be installed on a balcony with an Allen key, a torque wrench and a spanner.
Balcony adjustable solar PV structure
Tilt angle adjustment range 10°-30°
Perfect for Ground/Wall/Balconyrailing
Aluminum construction and stainless steel – secure and durable assembly
Suitable for panels up to 1134mm wide
including all fastening screws
Withstands a maximum wind speed of 40m/s
Balcony adjustable system components
Aluminum Balcony adjustable Bracket with Hook 10°-30°
This Balcony adjustable Bracket with Hook 10°-30°
Balcony
No more tedious assembly: solar panel brackets are already pre-assembled and can be easily attached with the enclosed screws.
Maximum solar energy efficiency: balcony power station bracket allows you to adjust the tilt angle of your solar panel in the range of 10-30° degrees to optimally capture sunlight.Not only for balcony power plants: PV balcony power station brackets are flexible and allow the installation of solar panels in different places such as gardens, mobile houses and roofs.High quality and standards: solar panel brackets made of high-quality aluminium and stainless steel, provide a stable and durable support for your PV balcony power plant.
This solar panel mount guarantees a reliable and safe installation.
Balcony Bracket with Hook
You will receive: 1 pair of balcony power station brackets, 4 clamping straps, all required screws, 1 installation instructions
