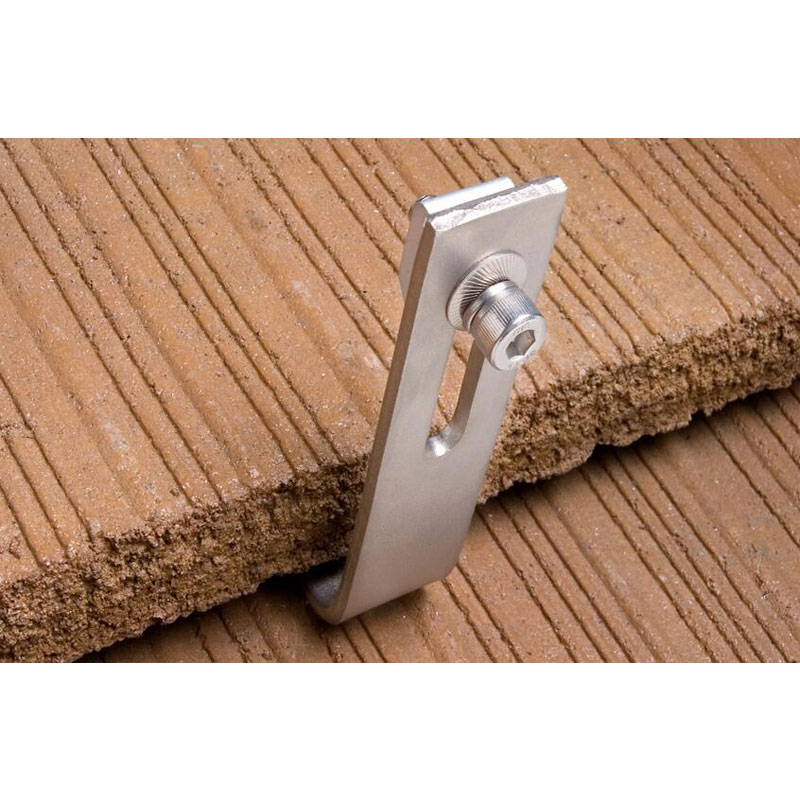

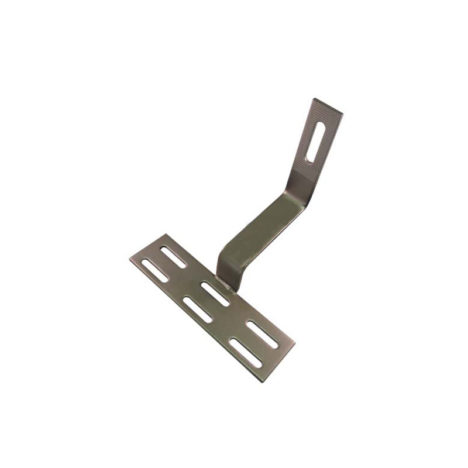

Curved Tile Roof Hooks, Non-adjustable, Side Mounting
- Product Type: Solar Curved Tile Roof Hooks
- Product Model:SPC-IK-01
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Pitched Tile Roof Installation
Product Description :
Our solar curved tile roof hooks are good solutions for residential or commercial roofing solar panels installation.
It’s designed as nonadjustable with preminum quality 304 stainless steel, anti-rust,strong and durable.

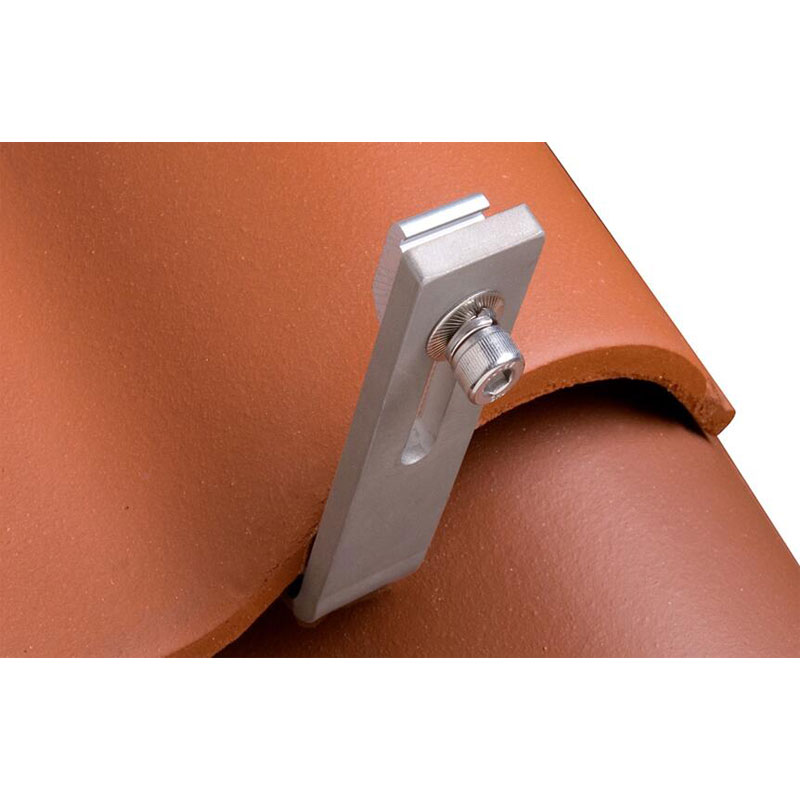

The installed structure is for side mounting aluminum rails.
Using our Spanish roof hooks, solar panels can be quick installed for pitched or even roofing.
This solar roof hooks are suitable for most kinds of Roman, Spanish, clay tiles.
Advantages :
- Our solar curved roof tile hooks can be easy and quick installed by using our hexagon socket head bolts and T sliding blocks ;
- Widely application: fits for even or sloping roofing surface;
- Our QC team can keep reliable good quality of this non-adjustable roof hooks, anti-corrosion, wind-resistance ;
- Offer 10-Years Warranty for our side mounted rails roofing hooks.
Choosing our solar roofing hooks, pre-assembly for Spanish roof tile, Roman roof tiles and Clay roof tiles, SUS 304 + Al6005-T5 . Great choice for pitched tile roofs .

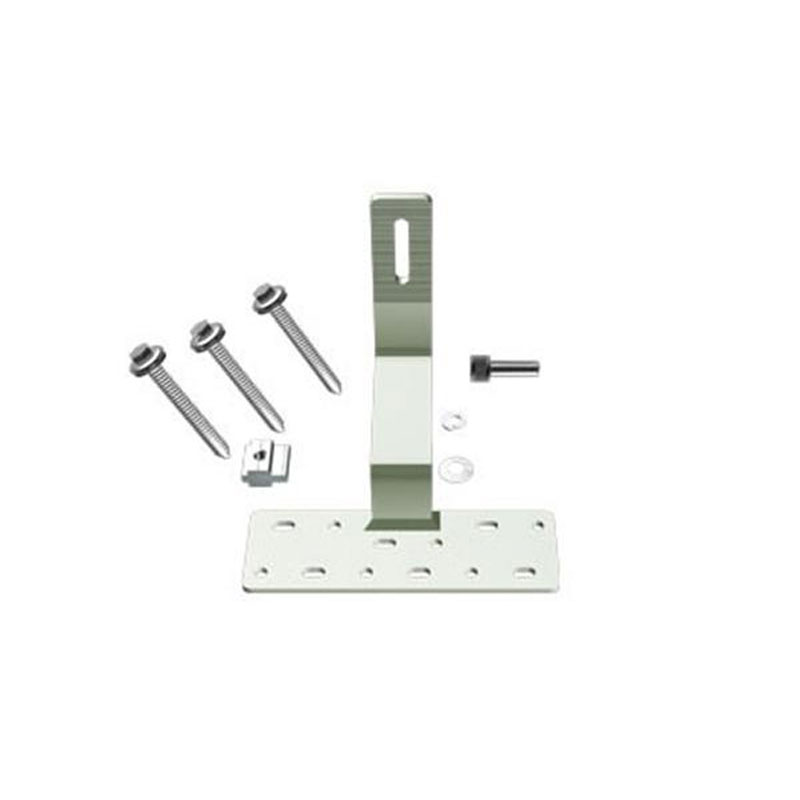

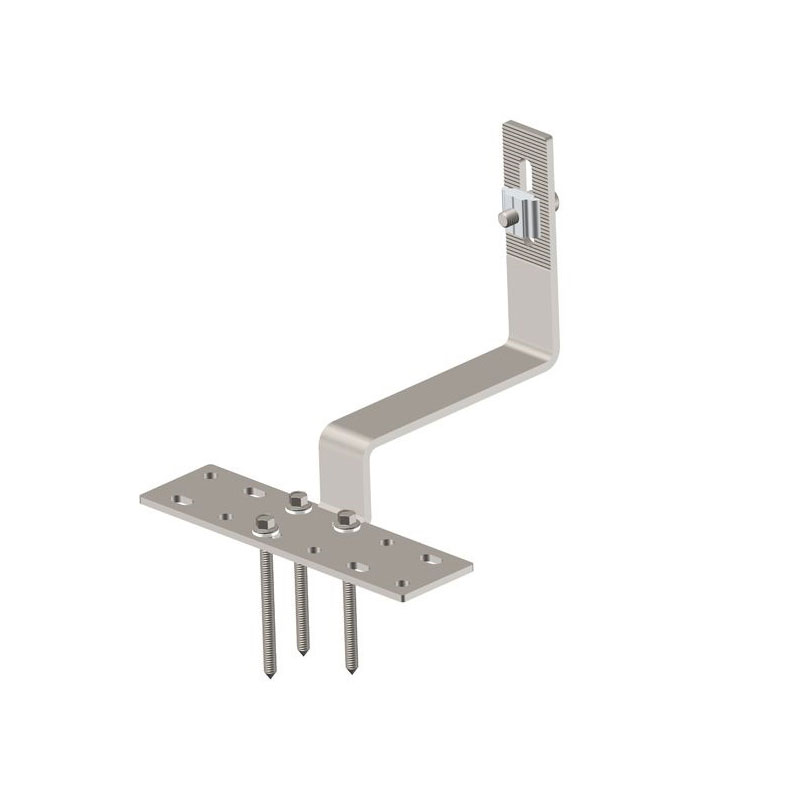

Parts and Components for Solar Curved Tile Roof Hooks, Non-adjustable, Side Mounting :
Stainless 304 Hook;
Hexagon socket head bolts;
T sliding nut block;
Hexagonal Socket head bolt;
Spring Washer
Sharp-point screw

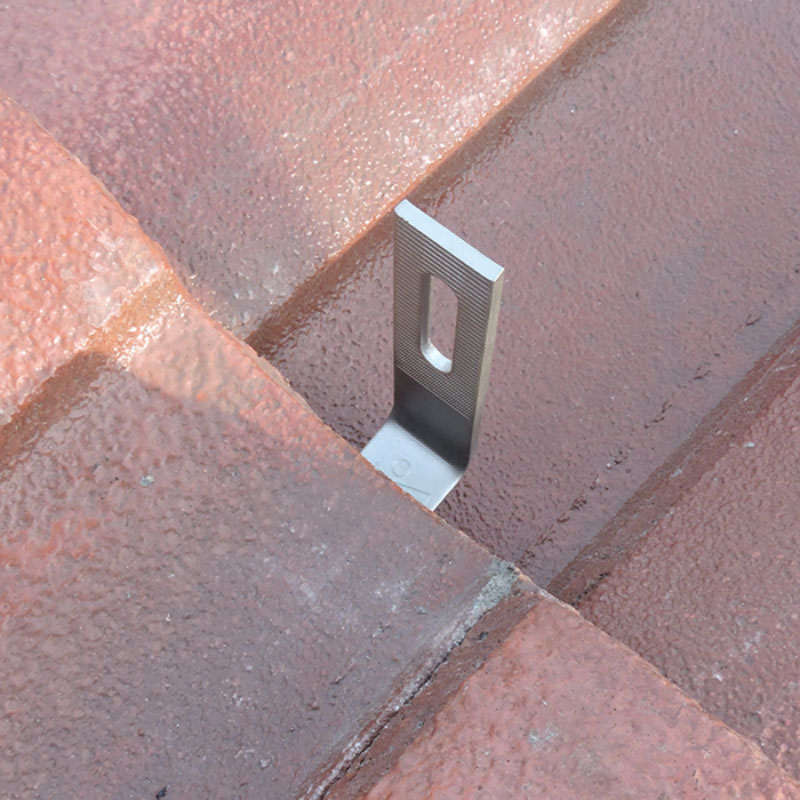

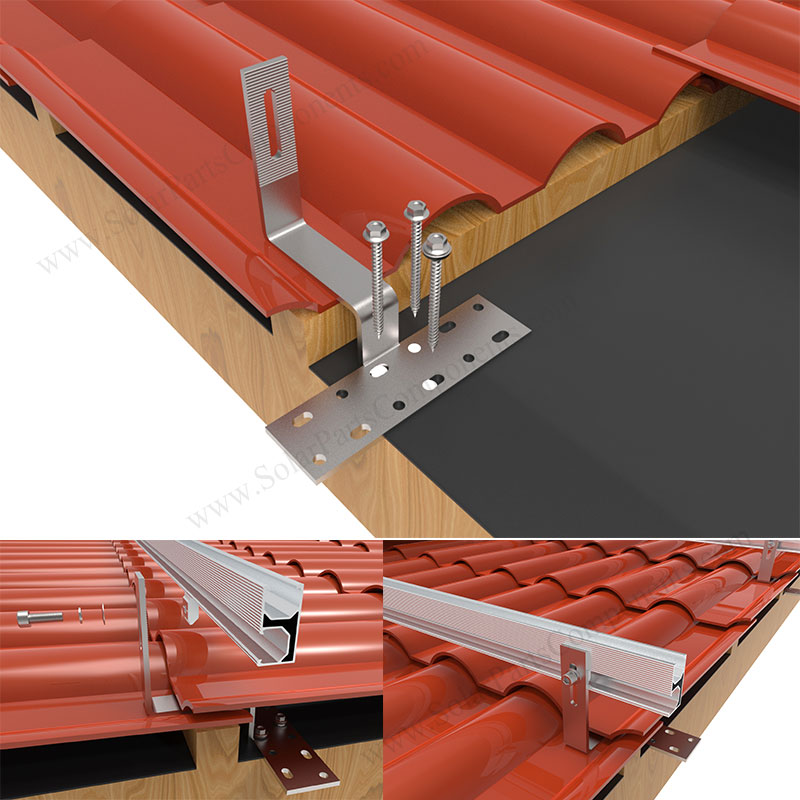

Installation Guidance for this solar roman tile roof hook:
(1) Uncover Roman curved tile with tools carefully;
(2) Install our SUS304 solar roof hook with wood screws;
(3) Cover clay tile again after solar hook are well fastened;
(5) Fasten other mounting kits to PV modules: mid / end clamps, aluminum rails …

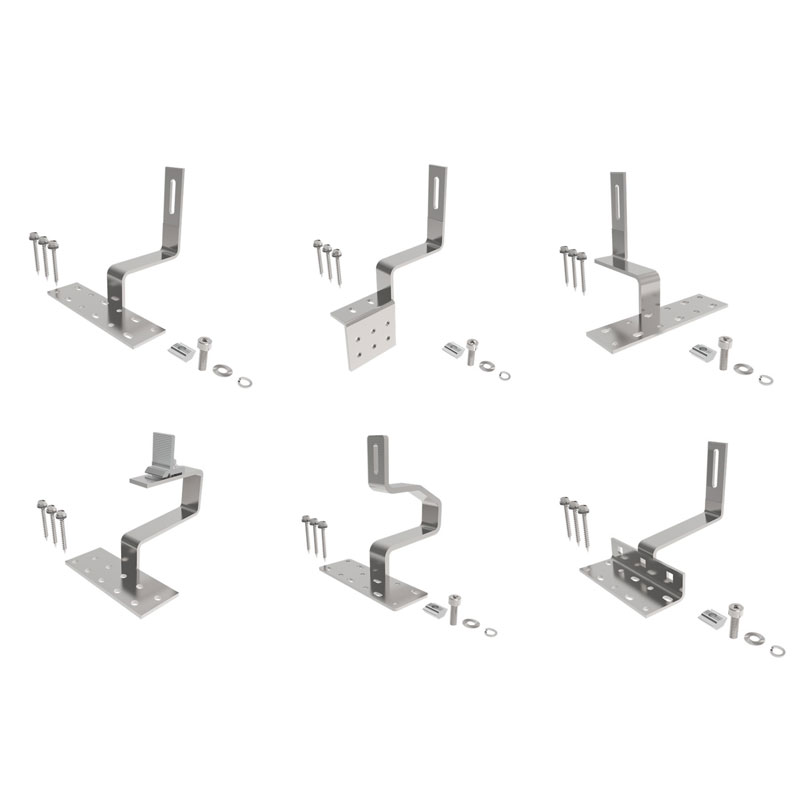

More type of tile roof hooks both adjustable and non-adjustable are available for our factory. Please feel free to contact us, our website: www.solarpartscomponents.com
| Brief Descriptions: | |
| Solar Mounting Components – Curved Tile Roof Hooks, Non-adjustable, Side Mounting | |
| Item type: | Solar Curved Tile Roof Hooks |
| Type: | Roof Hooks |
| Installation Site: | Pitched Roof |
| Profile Material: | SUS 304 Stainless Steel |
| Fasten Parts: | Stainless Steel / Aluminum T Sliding Nut |
| Color: | Silvery or according to customer requirements |
| Wind Load: | 60 m / s, 216km/h |
| Snow Load: | 1.4 KN / M2 |
| PV Modules: | Framed, Frameless |
| Module Orientation: | Portrait and Landscape |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Unit Weight | 478 g/1.05p |
| Standard Packing: | 60 pieces per carton |
| Inner: | Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
project case for Solar Roof Hooks SPC-IK-01
| Project No. | SPC-RF-IK01-DR | Customer No. | 0 | Total Project(W) | 24000 | |||||||||
| Ground Clearance(mm) | 0 | Array Amount: | 4 | Total Module Amount: | 80 | |||||||||
| Installation Site: | Wind Speed(m/s:) | 0 | Snow Loading(cm): | 0 | ||||||||||
| Module Length (mm) | 1960 | Module Width (mm) | 992 | Module Thickness(mm) | 40 | |||||||||
| Module Power(W): | 300 | Module Weight(KG): | 22 | Pile Length(mm) | / | |||||||||
| Tilt Angle: | 0 | Foundation Type: | Concrete Base | |||||||||||
| Mounting System Type: | SPC-PA-0 | Array Orientation: | Portrait | |||||||||||
| Item | Product Code | Spec. (mm) |
Material | Project Qty | Spare Qty | Total | R | C | Array No | |||||
| Scale | Qty | 2 | 10 | 4 | ||||||||||
| 80 | ||||||||||||||
| 1 | SPC-IC-H40 |
|
AL6005-T5 | 32 | 3.00% | 1 | 33 | 8 | 32 | |||||
| 2 | SPC-EC-S40 |
|
AL6005-T5 | 144 | 3.00% | 5 | 149 | 36 | 144 | |||||
| 3 | SPC-R-RN52 | 3450 | AL 6005-T5 | 48 | 0.10% | 1 | 49 | 12 | 48 | |||||
| 4 |
|
150 | AL 6005-T5 | 32 | 0.10% | 1 | 33 | 8 | 32 | |||||
| 5 |
|
180 | AL6005-T5 | 144 | 3.00% | 5 | 149 | 36 | 144 | |||||
Please Download PDF version as link >>>

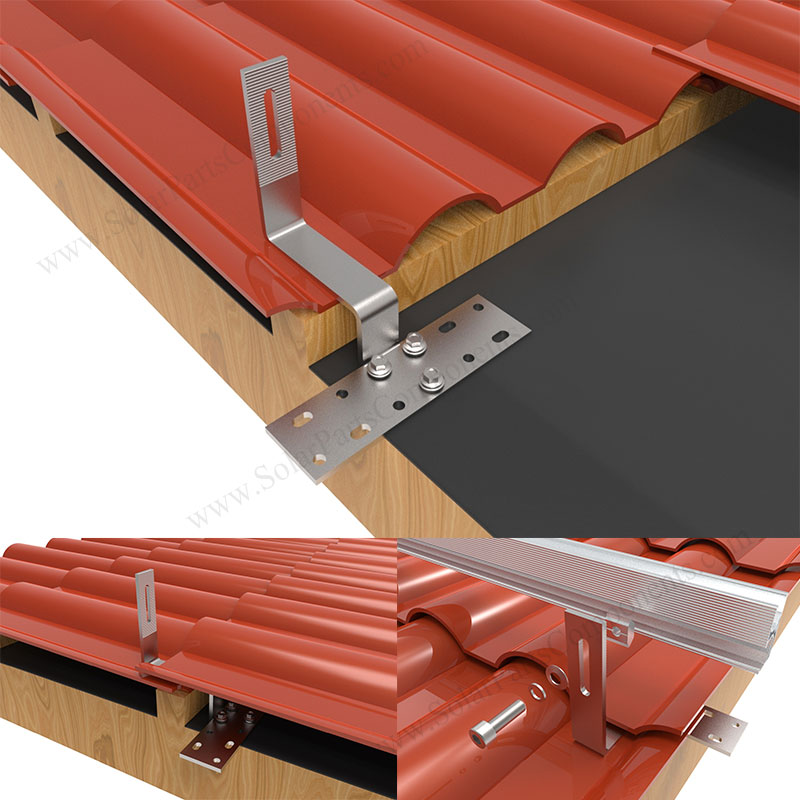

Installation Manual for Solar Roof Hooks SPC-IK-01
Drawings / Sizes / Dimension for this solar roof hooks -SPC-IK-01

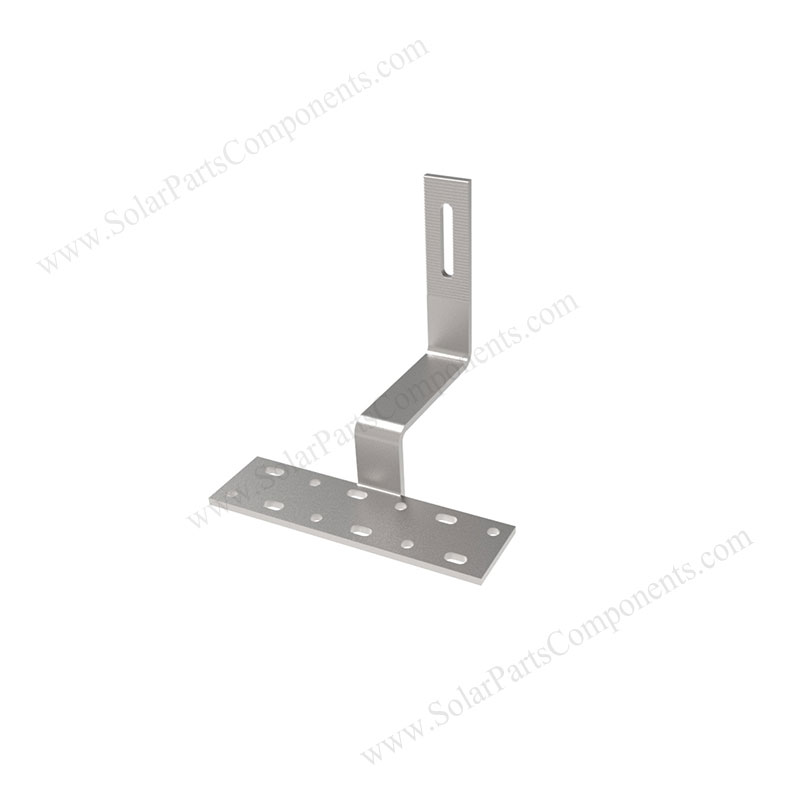

Solar Roof Hooks SPC-IK-01 Introduction
How do you secure a solar panel to a tile roof with model SPC-IK-01?
Q:
“How can I secure solar panel to tile roof with Solar Curved Tile Roof Hooks, and where can I purchase them? I am in the USA,”
A:
“You can directly contact our sales person.
Just send me web link / photo / quantity / address…
We’ll come back to you prices with freight cost later.”
Q:
“I am looking for the Solar Curved Tile Roof Mounted System- side Mounted Hook, SPC-IK-01”
A:
“Appreciated for your inquiry about our Solar Curved Tile Roof Hooks , Non-adjustable, For Side Mounted Rails, SPC-IK-01.
I have sent price with freight cost to your email.
Below are information for our Solar Curved Tile Roof Hooks , Non-adjustable, For Side Mounted Rails, SPC-IK-01 for you reference:
Model SPC-IK-01 is the most widely used clay tile roof attachment solution on the market, suitable for most clay tile roof, no damage to the roof during installation;
We add a flashing plate (optional) to the base of the hook and no chance for leaks. The parts can be pre-assembly on factory to save your installed time on site.
Features and Benefits for SPC-IK-01:
Non-adjustable accessory base and multiple solar module accessory options;
Corrosion-resistant material;
Quick and simple installation;
Complete configuration of parts and rails to save extra procurement;
Fully pre-assembled;
Reliable with mulitple hole patterns and slotted connections for adjustable.

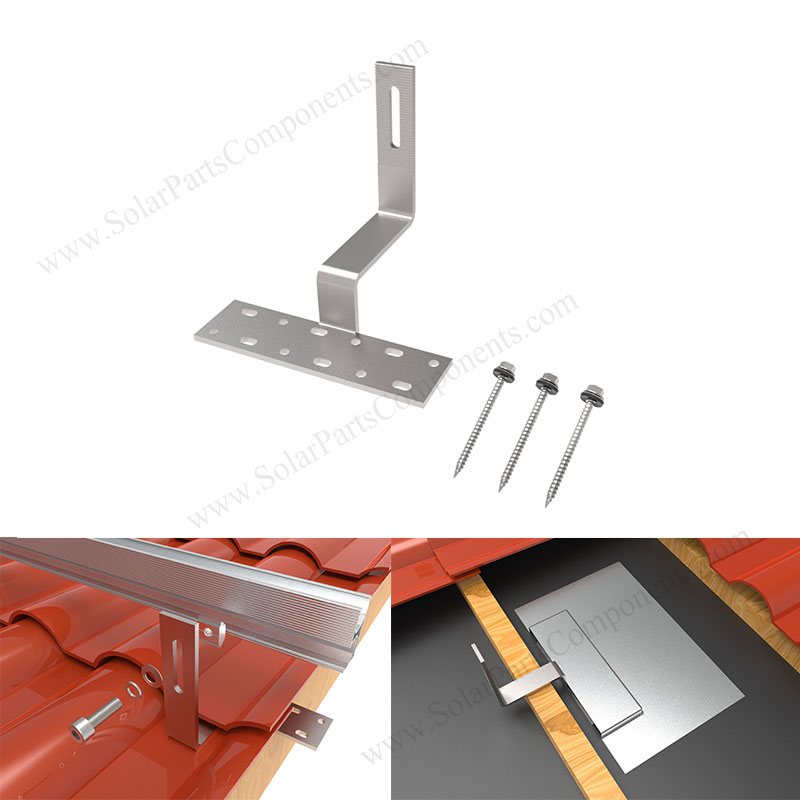

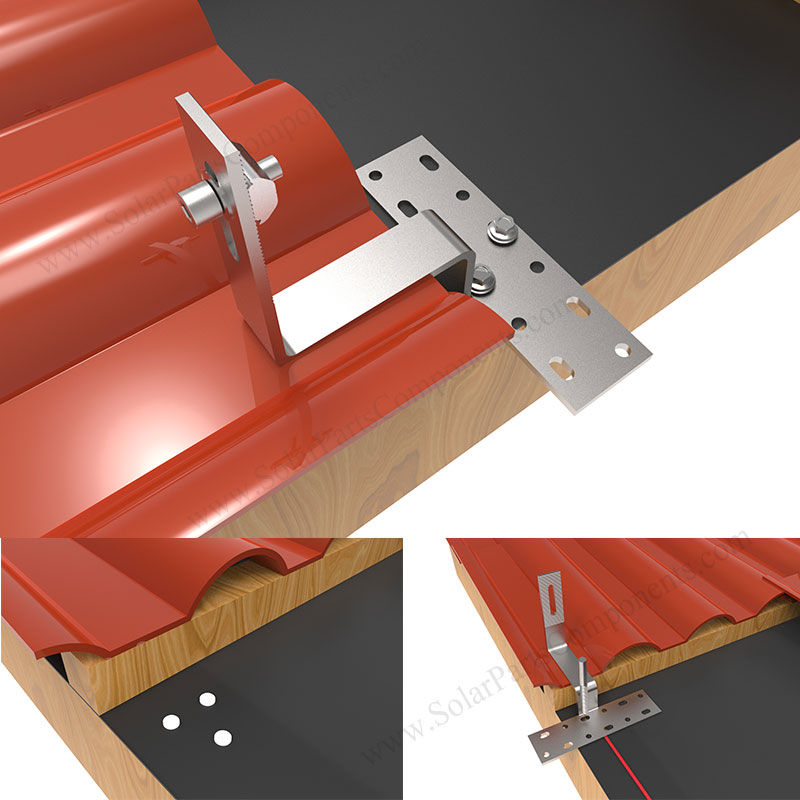

Installation Instruction for SPC-IK-01:
Remove the tiles from the area in which will be installed. Locate and mark the rafters;
Place the hook and pre-drilled two holes;
Remove the hook, clear the debris, and fill the pre-drilled holes with sealant;
Place and mount the hook using the solar screws.
Thank you and have a wonderful day!”

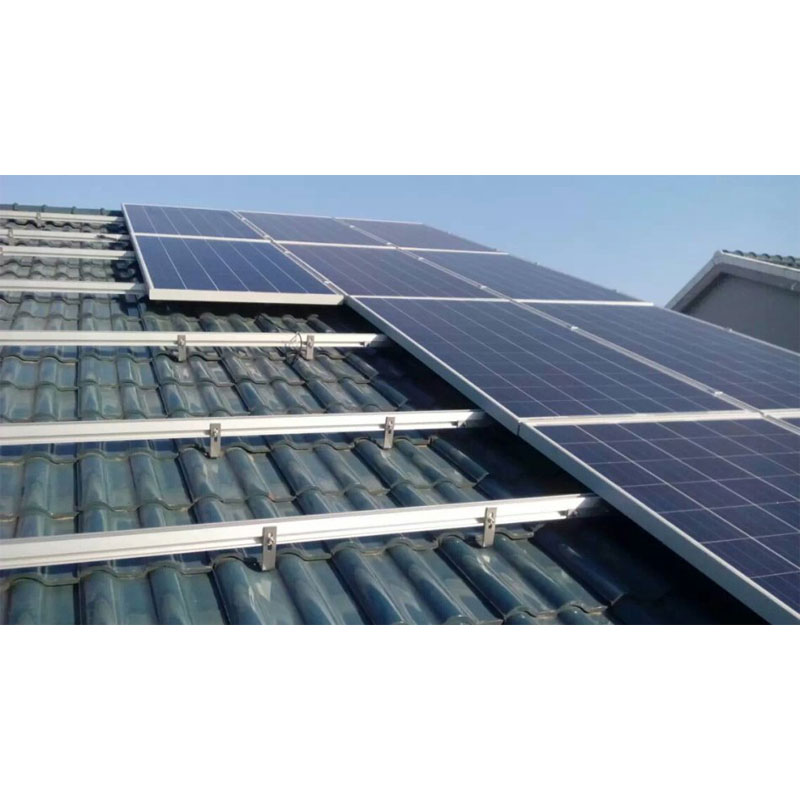

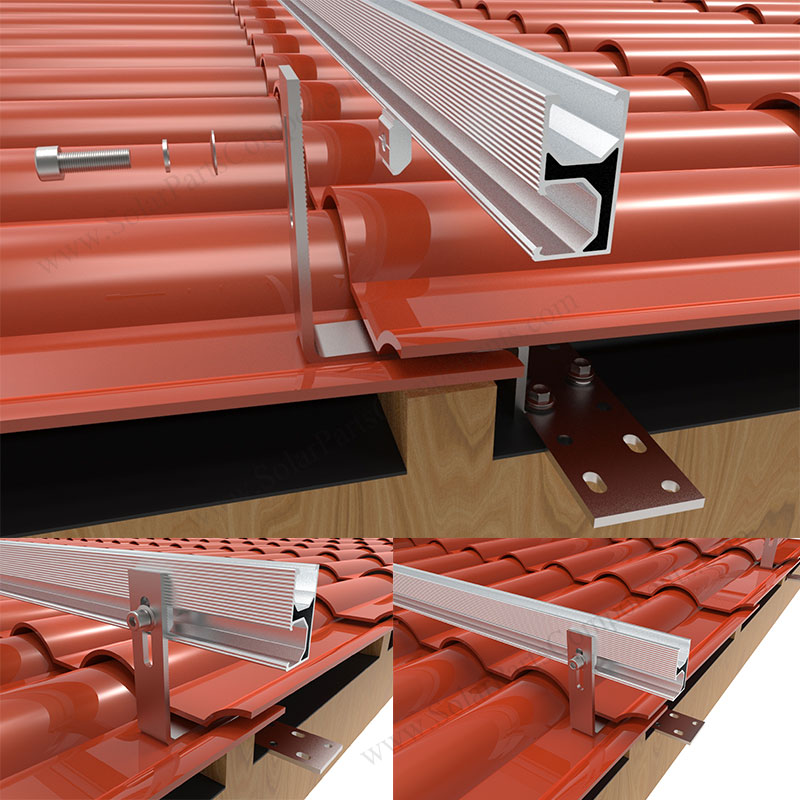

How to install solar panels on tile roof with hooks ?

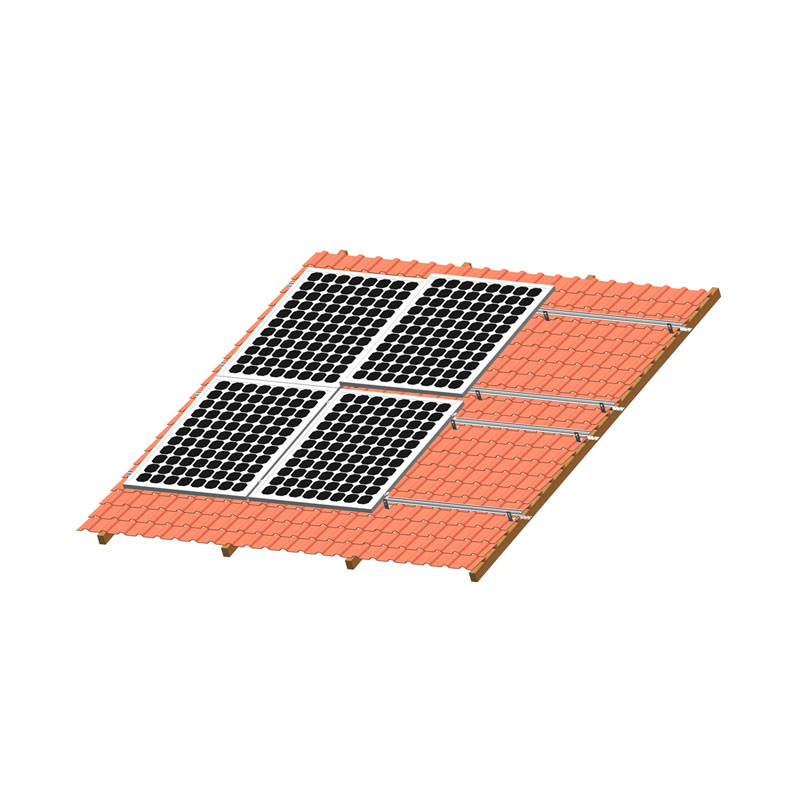

solar panels installed on clay tile roofs with hook / bracket
More details, Kindly click below >>>
How to install solar panels on tile roof ?

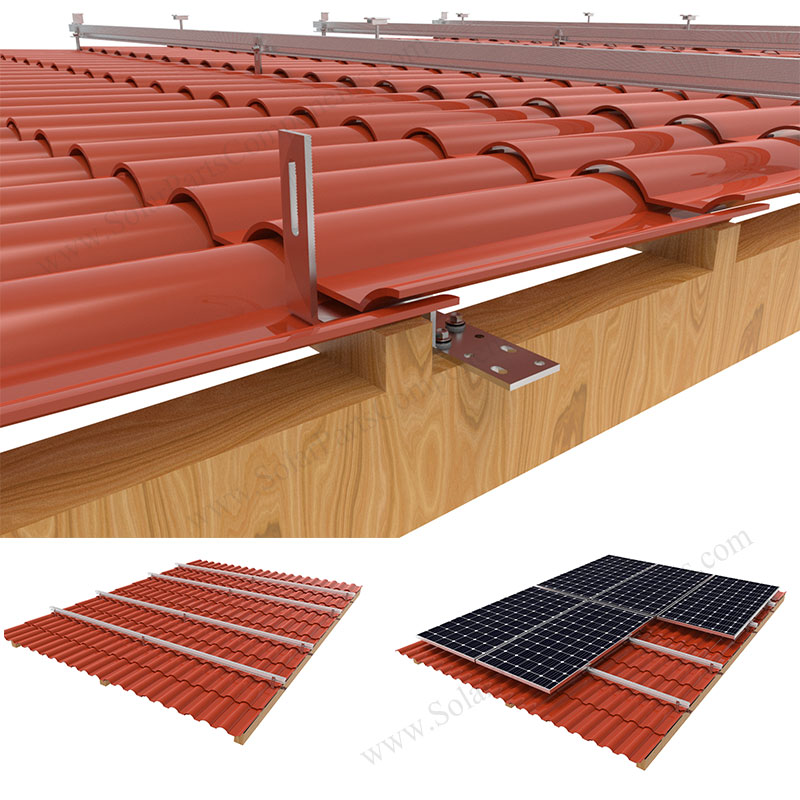

Installation Guide for Solar Roof Hooks Model : SPC-IK-01
Installation Guide for Solar Roof Hooks Model : SPC-IK-01,
This SUS304 stainless steel bracket fits Spanish / Roman / Curved tile roofing profiles, side mounted .
More details, Kindly click below >>>
Installation Guide for Solar Roof Hooks Model : SPC-IK-01
How to install this solar bracket on clay tile rooftop ?
Please refer to installing manual operation list for this PV module brackets on clay roofing
Which kind of roofing can matched this non-adustable solar hooks ?
This non-adjustable SUS304 stainless steel PV module bracket is used for CLAY / ROMAN / CURVED roofing .
Comparing other roof tops, this is a kind of popular type .
Difference between non-adjustable and adjustable roof hook
Key points for none adjustable VS. height adjustable PV Module Brackets .
Non-adjustable solar tile roof brackets Installation
Non-adjustable solar tile brackets is fixed arm height and cost-effective for clay roofing mounting .
Hot sale solar panel hooks for Spanish roofing
Factory direct solar tile roof hooks wholesale for Roman / Spanish / Clay curve tile roofing .
What is the price of Solar Tile Roof Hooks SPC-IK-01?
Q:
Hi William,
Please see attached email with image of the Tile interface roof hook, please can we get a price on 2000 pcs in s/s and aluminium based on the following dimensions;
- 110mm
- 50mm
- 170mm
- 120mm
- 80mm
- 50mm
- 30mm
Thanking you in advance.
Regards
Glenn
South Africa
solar tile roof hook price
A:
Dear Glenn,
Nice to received your inquiry for our solar tile roof hook SPC-IK-01 2000 PCS.
Please kindly find out the attachment for our quotation for the tile roof hooks.
Thank you,
Solar Tile Roof Hooks sale team

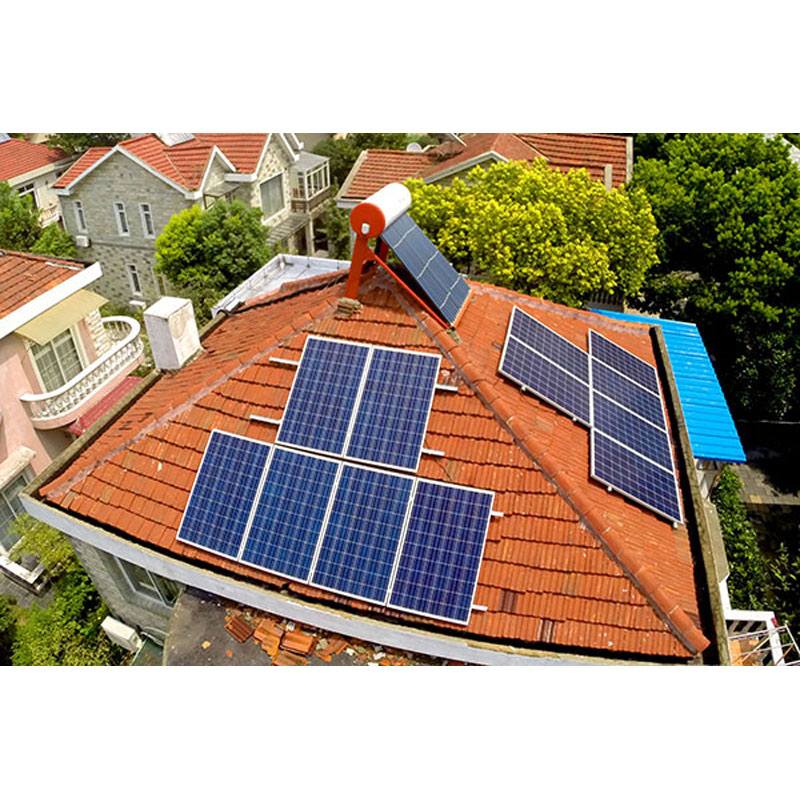

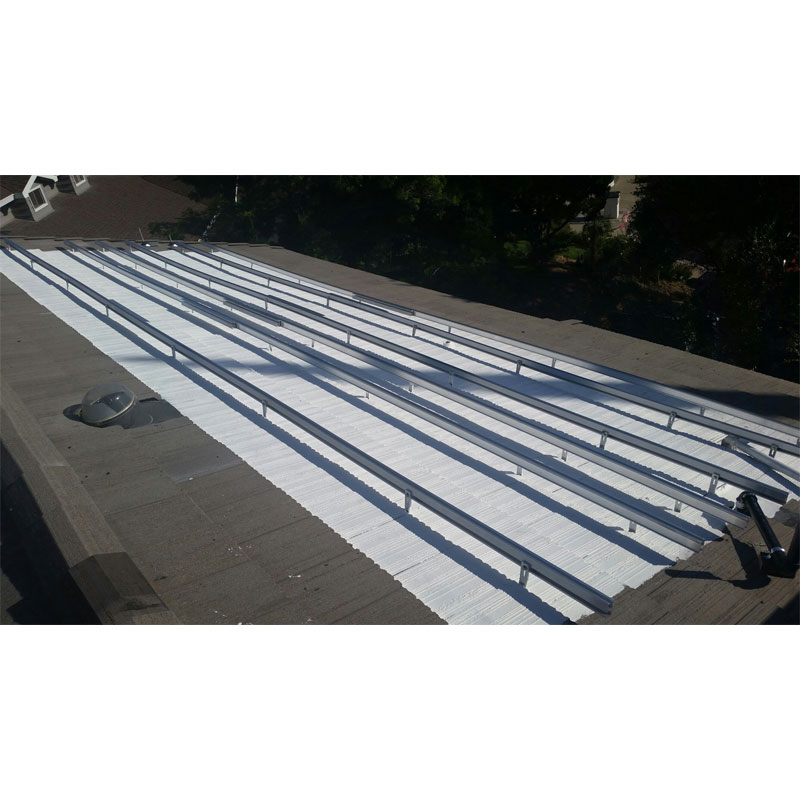

Tile Hooks for double pitched roof project
One tile roofing mounting project with our SUS304 hooks
Model : SPC-Tile-Hooks-001C

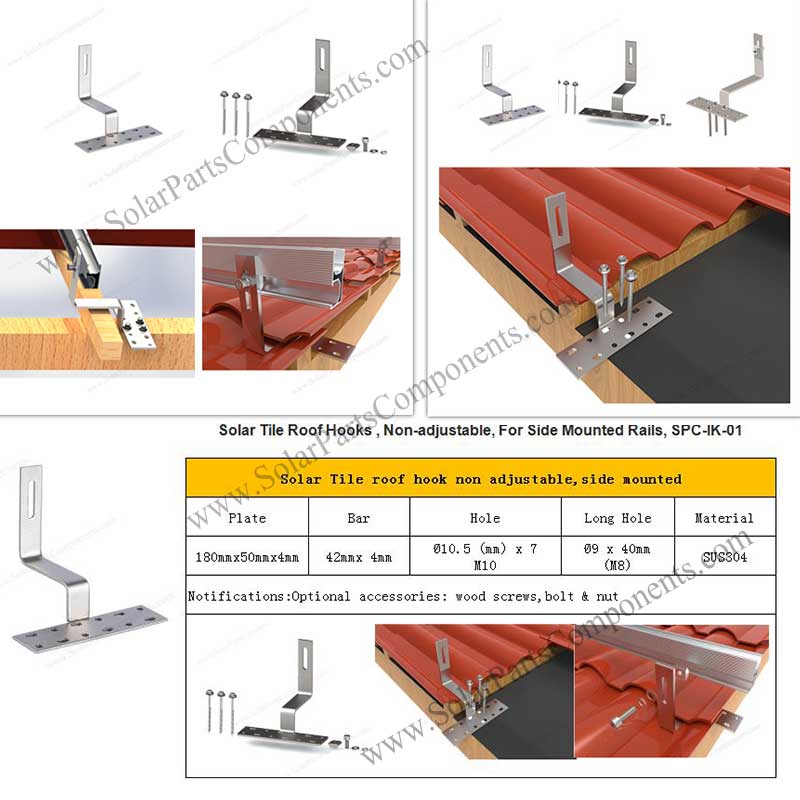

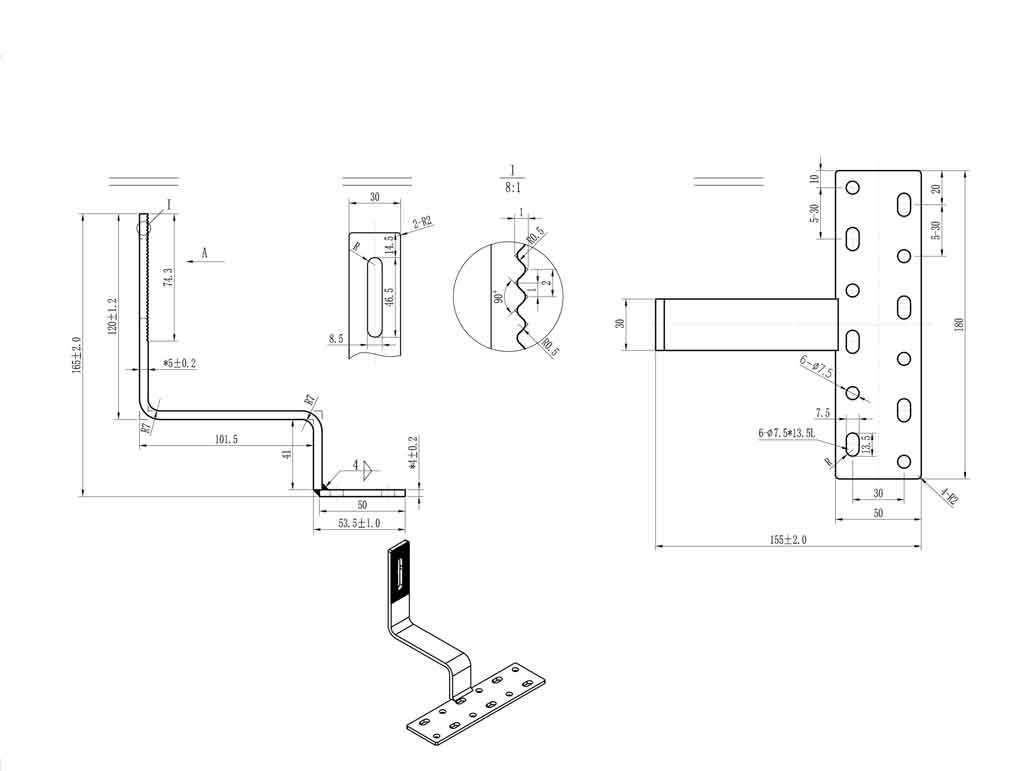

Drawing for Side Mounted Clay Tile Roof Hook - SPC-Tile-Hooks-001C
Non-adjustable, Side Mounted Solar Panel Hooks for Clay / Roman /Spanish / Curved tile roofing
Model : SPC-Tile-Hooks-001C

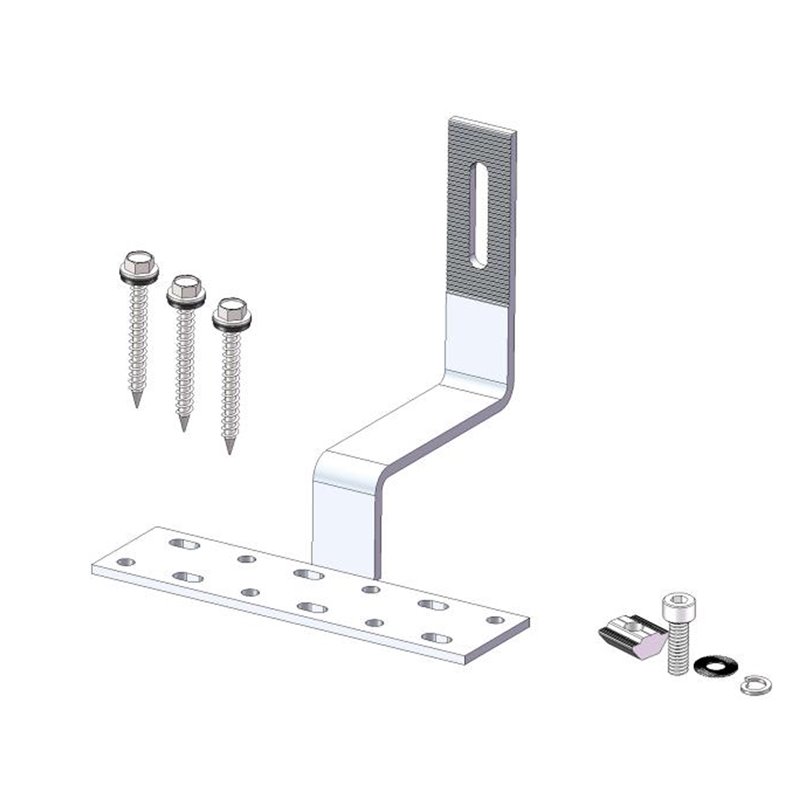

Drawing for Side Mounted Curved / Spanish / Roman Tile Roof Hooks?
Drawing of Solar Roof Hooks and Brackets for Spanish Roofing
Solar panel Spanish tile hooks SPC-Tile-Hooks-001 sizes, dimension, profile details :
Features of this solar tile roof mounting system Hook
Tile roof hook is totally factory direct, most cost-effective price with easy installation for panels. The tile roof mounting system is specific designed according to the AS/NZS 1170 standard, guarantee solar panel’s stability.
what are the features of Solar Curved Tile Roof Hooks？
Features of this SPC-IK-01:
1. Complete parts;
2. Seiko forging, strong stability;
3.SUS304 material, strong corrosion resistance;
4. Use pre-installation mode to save cost.
Solar Tile Roof Hooks SPC-IK-01 Parameters
PARAMETERS for our solar panel roof hooks model : SPC-IK-01
| Item No. | Parameters |
| SPC-IK-01 | Item type: Solar Tile Roof Brackets |
| Installation Angle : 0° ~ 60° | |
| Installation Site : curved tile roofing | |
| Profile Material : SUS 304 | |
| Net Weight : 1.45 (lb) / 656 [g]/pcs | |
| Packing : Carton box [540 x 220 x 200 mm / 60 pcs] | |
| Applications : Solar Roman / Spanish / Curved Roofs Installation | |
| NOTE : Produce as Drawing |
