SPC factory design highly resistant SUS304 tile roof hooks, including adjustable and non-adjustable styles, they
are suitable for a wide variety of climatic area. Suitable hook will be designed to install on different tiles,
which can meet market demand for over the world. Today we are going to talk about side mounted hooks for pitched
roof racking system.

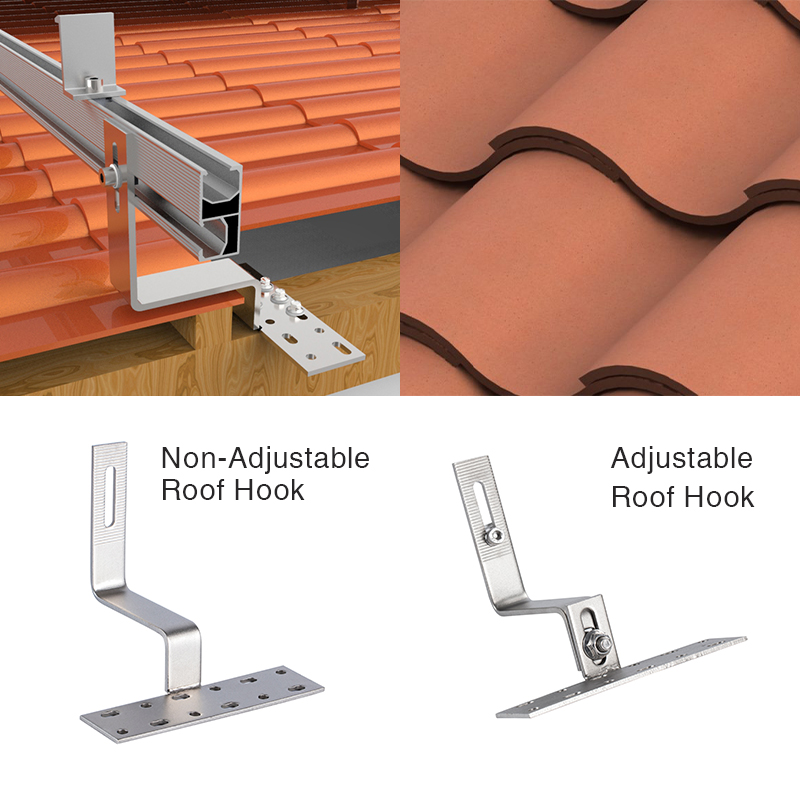

No matter adjustable or non-adjustable style, SPC’s tile hooks are compatible for wood beam, steel beam and
cement beam. As below will find the difference:
|Adjustable Tile Hook||Non-adjustable Tile Hook|
|Application||Clay Tile Roof||Clay Tile Roof|
|Installation Site||Side mounted on rail||Side mounted on rail|
|Feature||Install according to height||Easy installation|
Refer to the form, we discover these 2 types of roof hooks are similar in most details. But if you would like to
find a cost-effective one, I will recommend the solar panel clay tile roof brackets fixed. As you seen, it saves
much time than adjustable roof hook when installation. It no needs to adjust the height, can be fixed to the rail
directly. Otherwise, it has much attractive price for commonly used. SPC solar is a factory directly photovoltaic
products integrator, which will offer most competitive price for you.
A high quality China-made stainless steel SUS304 roof hook that makes it easy to put solar panel on tile roofs
without cutting the tiles. Firstly, remove roof tiles slightly at marked position, then input the roof hook to the
beam. Match with 3 wood screws(M6.3*60) to make the hook tightly fixed on the beam. After that, cover the removed
tiles on the hook, placing it flat, no to against the hook. For side mounted rails, our non-adjustable hook batten
is 48mm wide and has 12 holes for mounting if desired.

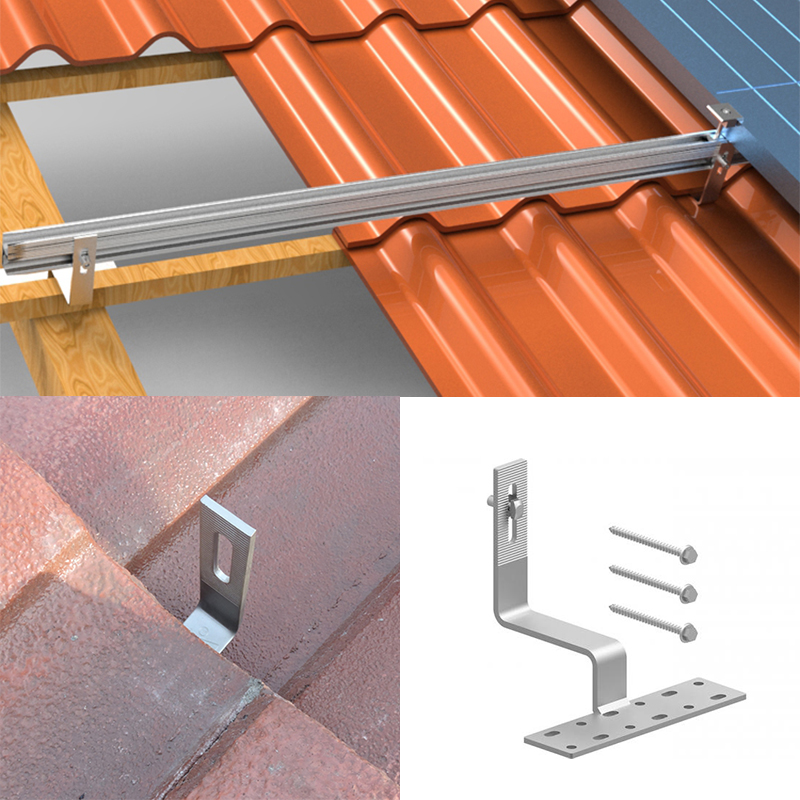

Here is a partial diagram of solar tile roof hook for side mounted installation.
1. Best SUS304 quality ensure 10 years’ warranty, and up to 25 years’ service time;
2. Pre-assembled holes to save labor cost when installation;
3. Its structure has been strictly tested to make sure solar panel roof brackets fixed on clay tile
Other solar components to be using with non-adjustable hook for clay tile:
Wood screw M6.3*60;
Bolts and Nuts;
Solar module clamps(end clamp & mid clamp)
If you have a tile roof and don’t know how to install solar panels, don’t hesitate to contact us. SPC team can
provide OEM&ODM service to meet your different needs. Contact us today to get started!
