Photovoltaic Tile Roof Bracket
- Product Type: Photovoltaic Panel Mounting Hooks
- Product Model:SPC-IK-08
- Material: Stainless Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Photovoltaic Panels Roof Installation
Product Description:

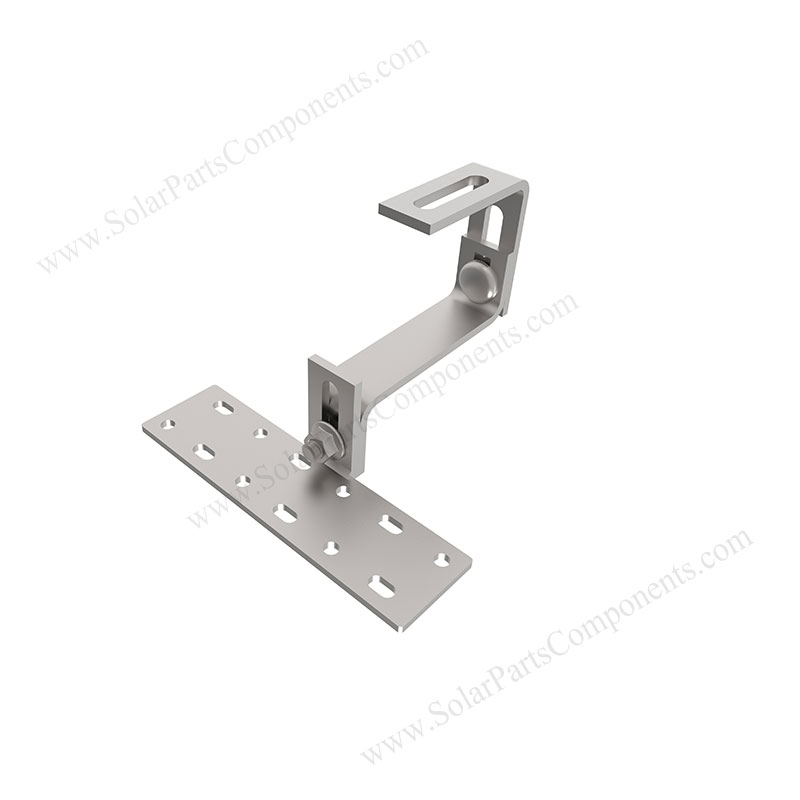

This photovoltaic roof panel hook (SPC-IK-08) is double adjustable, which can operate by base and arm for height adjustment.
Photovoltaic roof tile brackets model: SPC-IK-08 can be well mounted on both framed or frameless pv modules,
just matched with our standard / bifacial clamps.
This solar roof hook bracket is robust, perform well under extremely weather condition.

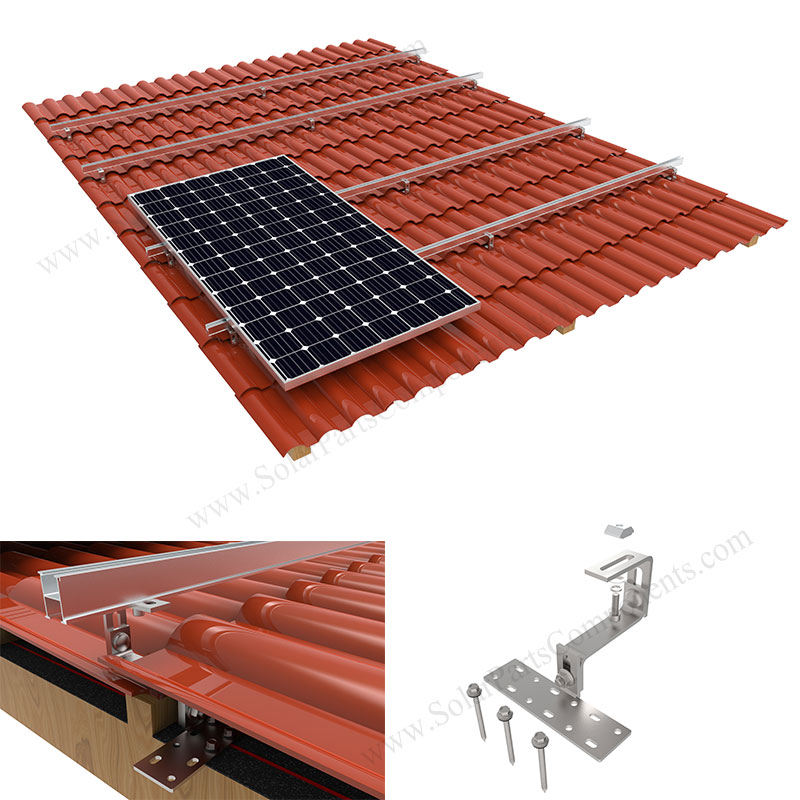

With our tile brackets, you can furnish photovoltaic module panels on Spanish clay tile roofing.
Feature of photovoltaic tile roof hooks, SPC-IK-08:
1. Horizontal or vertical orientation array supports;
2. Fit for sloped rooftop mounting location;
3. Can be adjusted to keep solar panel parallelly;
4. Pre-assembled packing save labor cost for installation;
5. 10 years warranty and 25 years life span designed;
6. Leaking protection with flashing plate optional;

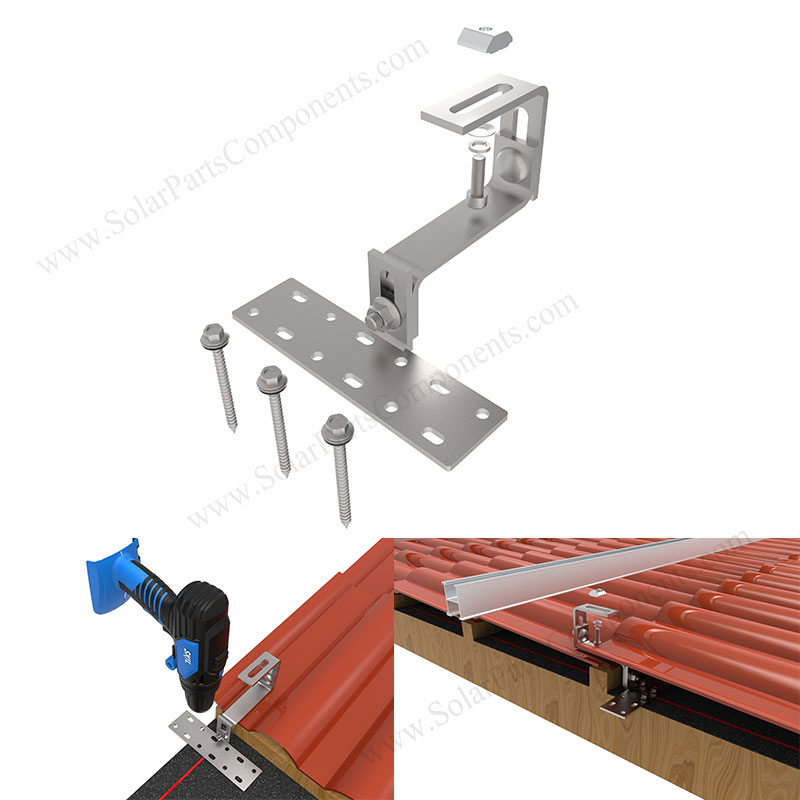

Parts & components of photovoltaic tile hooks, SPC-IK-08:
-photovoltaic tile system hook;
– wood timber screws;
– M8 Hex socket bolt;
– nut;
– serrated washer;
– roof flashing;
Installation steps of photovoltaic clay roof brackets, SPC-IK-08 is very simple and time saving.
Welcome to choose our arched / curved ceramic tile roofing solar mounted brackets / hooks fixture series from www.SolarPartsComponents.com
| Brief Descriptions: | |
| Photovoltaic Roof Panel Hooks SPC-IK-08 | |
| Item Type: | Photovoltaic Roof Tile Brackets |
| Type: | SPC-IK-08 |
| Installation Site: | Tile Roofing Mounting System |
| Profile Material: | A2 / SUS304 Stainless Steel |
| Fasten Parts: | Lag Screws / Expansion Bolts |
| Wind Load: | 60 m / s |
| Snow Load: | 1.4 KN / M2 |
| PV Modules: | Framed, Frameless |
| Module Orientation: | Portrait and Landscape |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag+inner box+Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
Installation Manual for Solar Roof Hooks SPC-IK-08
Solar pan tile roof brackets factory
Q:
Hi, I am interested in purchasing some of photovotaic roof hook bracket for solar pan tile roof mounting.
Shippment to the UK ASAP, looking for the cost and also the minimum quantities for delivery.
Karl
s
A:
Hi Karl, nice to get your inquiry for our solar pan tile roof brackets,
may i know how much would you need?
solar pan tile roof brackets factory
Q:
Can I get 800 pcs for the first trial order, after if they are workabe, it would be big quantity.
If possible, please send me cost with shippment and what is the delivery time.
A:
Well received,I have sent our offer for 800 pcs of photovotaic tile roof hooks to your email.
please kindly check.
Thank you.
Solar pan tile roof brackets factory

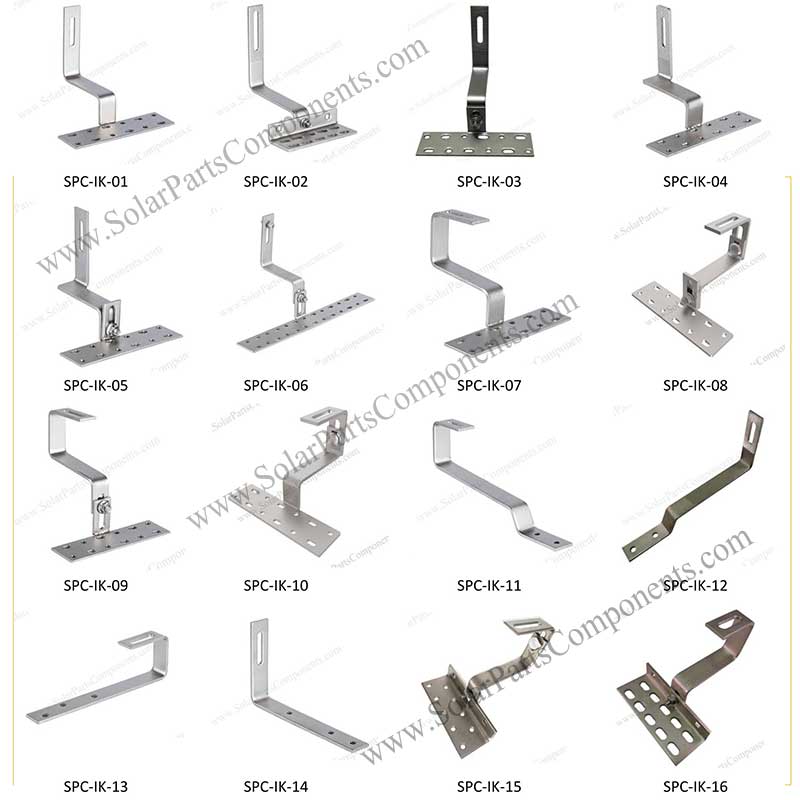

More of our solar tile roof hooks are available for our factory.
The features of Photovoltaic Tile Roof Hooks.
Features of this Photovoltaic Tile Roof Hooks :
1.Double adjustable;
2. Stainless steel, corrosion resistance, high hardness;
3. Widely used in glazed tile roofs;
4. Pre-assembly method, easy installation.
Double adjustable PV tile roof hook

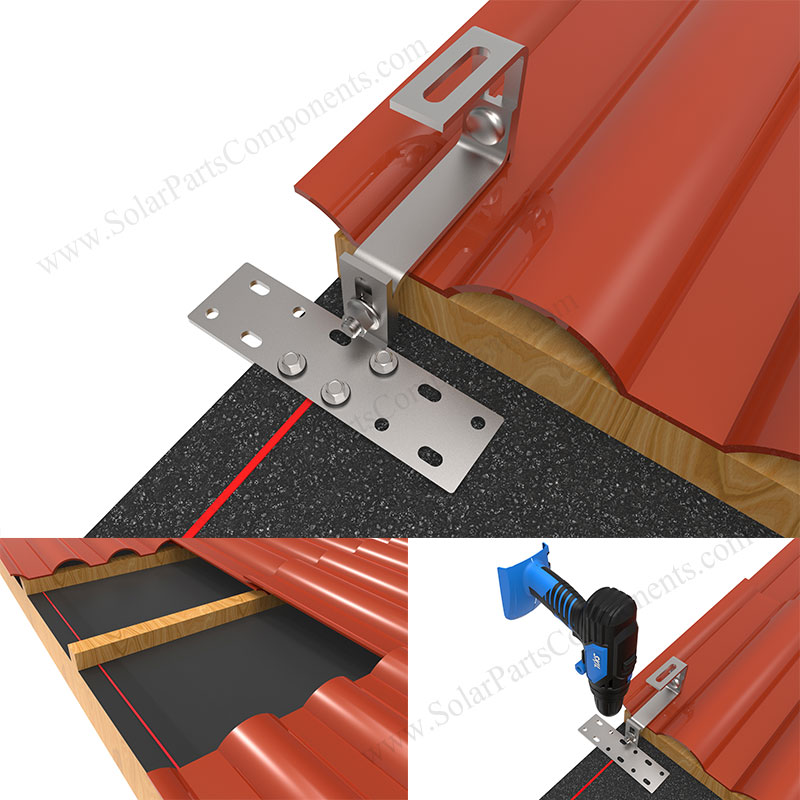

Tile roof hook #08 installation

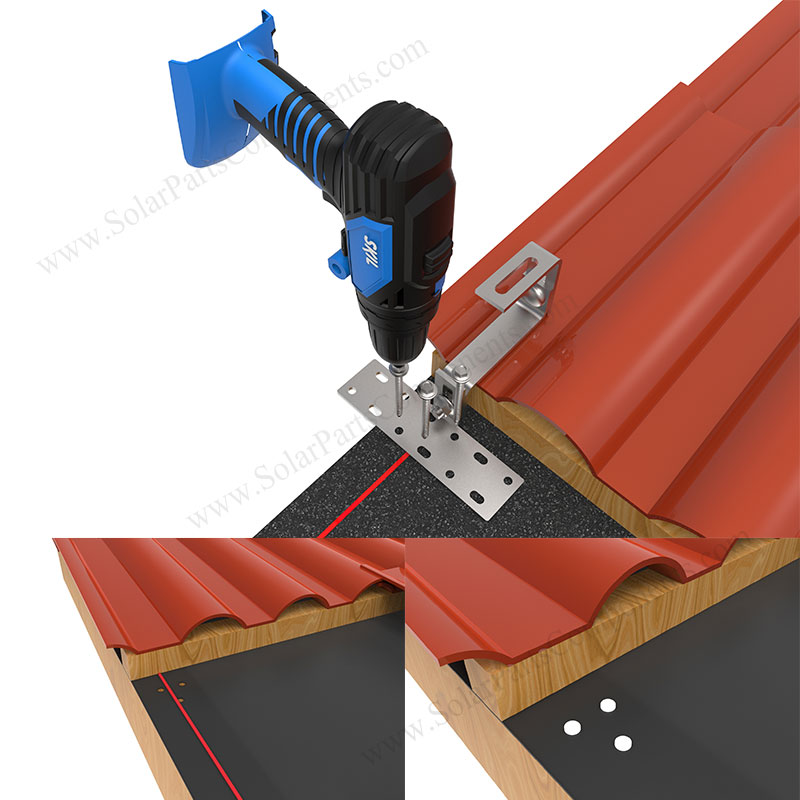

How do you install solar roof hooks for SPC-IK-08?
It’s very easy to install Photovoltaic Panel Mounting Hooks, SPC-IK-08
How much of this solar tile hooks with adjustable for arms
Question:
How mush are your SPC-1K-08 solar hooks / brackets (bottom mount) for “S” concrete roof tiles?
It appears to me they give more wiggle room on a roof that is 25 years old and the tiles are not 100% perfectly aliened. When you mount the rail to your bracket you can do a loose tighten over the entire rail then return to final tighten. I do not see the ½ “ to 1” wiggle room in a side mount bracket. Am I correct?
Might need 2500 of them.
Thank you,
Gary
Escondido, CA
Answer:
arm adjustable solar roof bracket
