SOLAR ROOF MOUNTING COMPONENTS
Stainless Steel Roof Hook #1 (SPC-IK-01)
Installation Manual
1.1

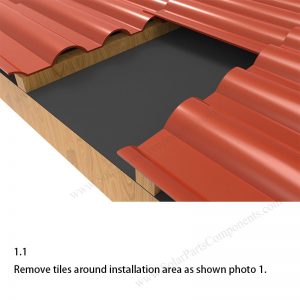

Remove tiles around installation area as shown photo 1.
1.2

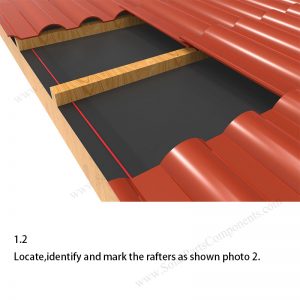

Locate,identify and mark the rafters as shown photo 2.
1.3

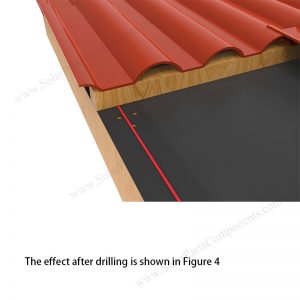

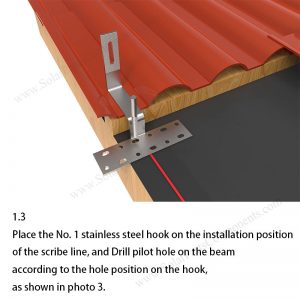

Place the No. 1 stainless steel hook on the installation position of the scribe line, and Drill pilot hole on the beam according to the hole position on the hook, as shown in photo 3. The effect after drilling is shown in Figure 4
1.4

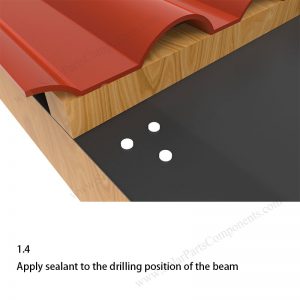

Apply sealant to the drilling position of the beam
1.5
Place No. 1 stainless steel hook on the main beam, align the hole position with the drilling hole, and fix No. 1 hook on the main beam with wood screws, as shown in photo 6.

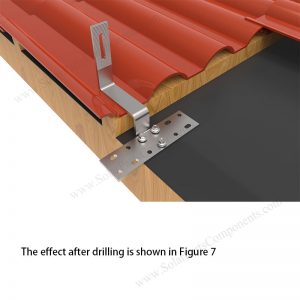

The effect after drilling is shown in Figure 7
1.6

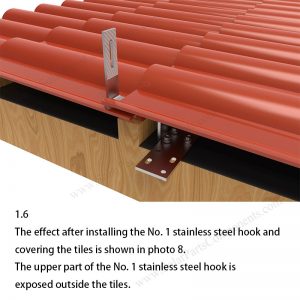

The effect after installing the No. 1 stainless steel hook and covering the tiles is shown in photo 8. The upper part of the No. 1 stainless steel hook is exposed outside the tiles.
1.7

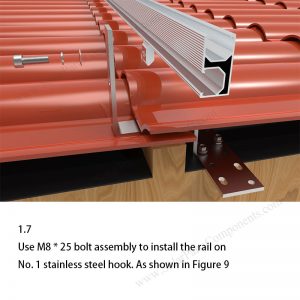

Use M8 * 25 bolt assembly to install the rail on No. 1 stainless steel hook. As shown in Figure 9
1.8

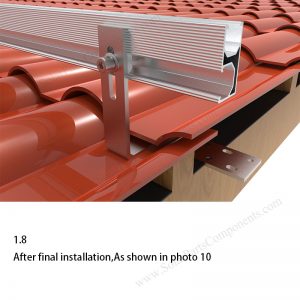

After final installation,As shown in photo 10
