Solar Roof Mounting Kits
- Product Type: Roof Mounting Systems with Tile Hooks
- Product Model:SPC-RF-IK08-DR
- Material: A2 Stainless Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Portait or Landscape
- Application: Pitched Rooftop
The solar roof mounting kits with tile hooks are suitable for curved tile roofs. The main material of the solar panel adjustable hook is stainless steel, which has high corrosion resistance. In addition, the adjustable hooks of the solar panels can be adjusted for the side rails.
The tile roof solar mounting system provides a perfect solution for installation on tile roofs. The roof is fixed using high-strength stainless steel roof hooks, which is suitable for almost all Spanish tiles. The system fully complies with international standard wind and snow loads, making it suitable for a variety of climate zones.
The innovative design of solar roof mounting kit with tile bracket and the pre-assembled components make installation easy and quick. Suitable for different conditions and most solar panels currently on the market. The strength/weight ratio is significantly higher than other frame products, thereby providing a better and larger frame span, improving efficiency, and excellent corrosion resistance to extend product life.
Feature of solar roof mounting kits with tile hooks, SPC-RF-IK08-DR:
1. Suitable for Roman/ curved tile roofs;
2. Suitable for common rails;
3. No tile cutting, no penetration of the roof;
5.Twenty Five years life designed;
6.Pre-assembled components make installation easy and quick;

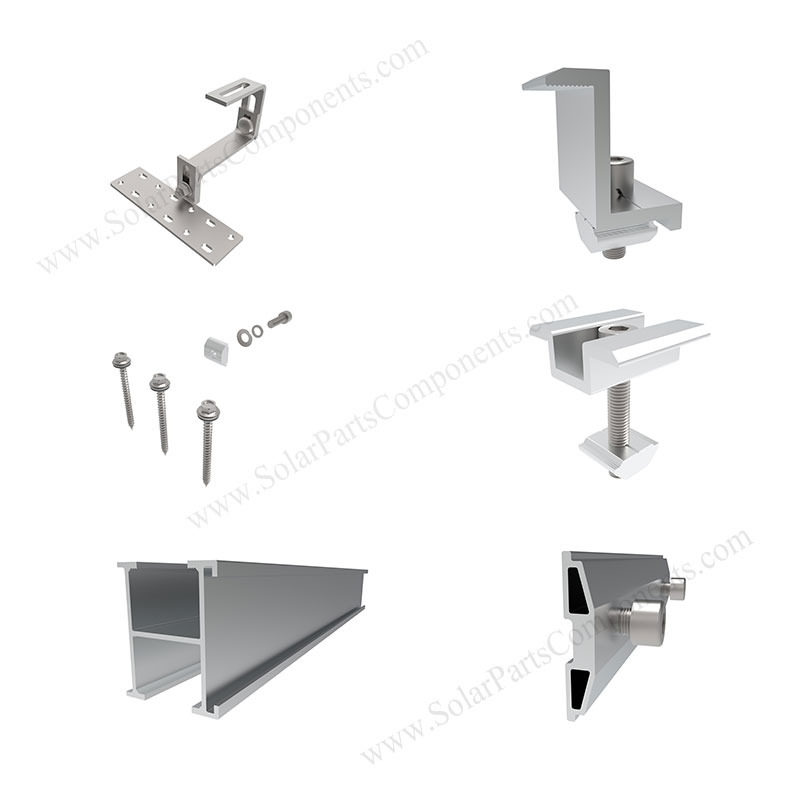

Parts and Components of solar roof mounting kit with tile bracket, SPC-RF-IK08-DR:
-solar hook bracket;
-steel screws & aluminum nut;
-flashing plate optional;
Designed for solar roof mounts kit with tile hook brackets, with height options, can be used in various tile roof installation systems, and can be used with conventional guide rails to speed up installation. It is suitable for all standard curved tile roofs and all bracket systems based on standard rails. The pre-assembled adjustable hooks can realize simple full roof placement.
SPC provides a quick and easy way to install solar roofs, suitable for all standard Roman/Curved/Spainsh roof mounting systems. It has a water baffle specially designed to improve the waterproof performance, and the efficient waterproof performance exceeds the best practices of all roof industries. If you have any needs, please feel free to contact us: www.solarpartscomponents.com.
|Solar Roof Mounting Kits with Tile Hooks|
|Item type:||solar roof mounting kit with tile bracket|
|Installation Site:||Tile Roofing 0 °~ 60°|
|Profile Material:||SUS304 Stainless Steel, Aluminum Rail|
|Fasten Parts:||Stainless Steel / Aluminum T Sliding Nut|
|Wind Load:||60 m / s|
|Snow Load:||1.4 KN / M2|
|PV Modules:||Framed, Frameless|
|Module Orientation:||Portrait and Landscape|
|JIS C 8955: 2011|
|International Building Code IBC 2009|
|California Building Code CBC 2010|
|Designed Lifespan||25 years|
|Inner:||Bubble bag+inner box+Carton|
|Outer:||Wooden Box, Steel Pallet, MDF, etc|
