Solar Roof Racking Systems
- Product Type: Ground Racking Systems for Roof
- Product Model: SPC-RF-IK07-DR
- Material: Stainless steel,Aluminium Alloy
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Portait or Landscape
- Application: Pitched Tile Rooftop

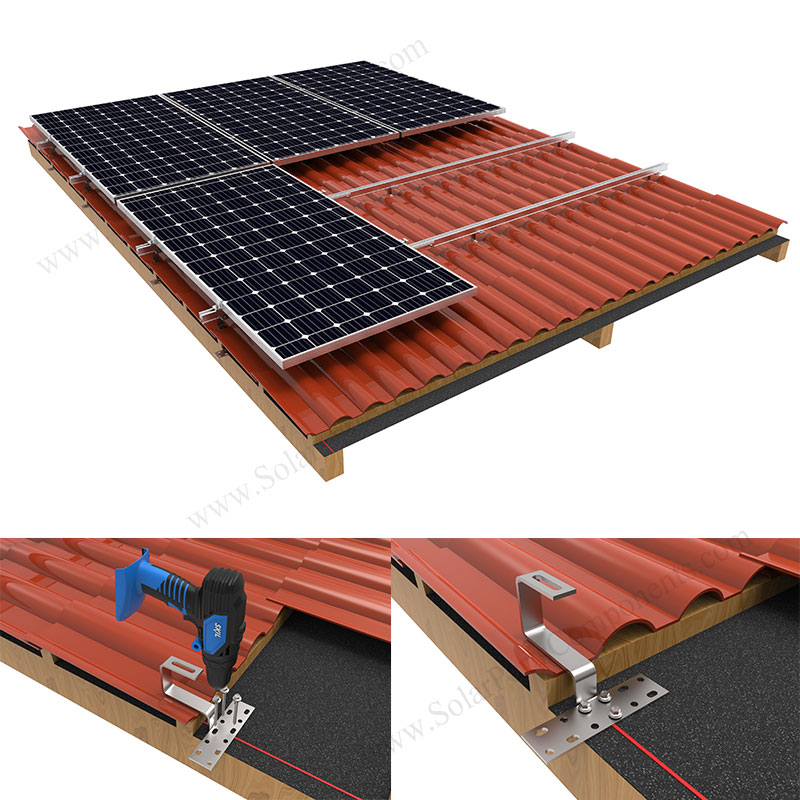

The solar racking system for roof is specifically designed for residential and commercial tile roof applications.
The module allows installation on tiled roofs. It can withstand a wind speed of 60 meters per second through a robust design and high-quality materials.
Corrosion resistance is achieved through anodized structural grade aluminum and stainless steel parts.
With the increasing demand for solar energy, many people choose to install solar panels on the roof.
In order to effectively support the tile roof installation system, we have specially designed installation components for tile roofs.

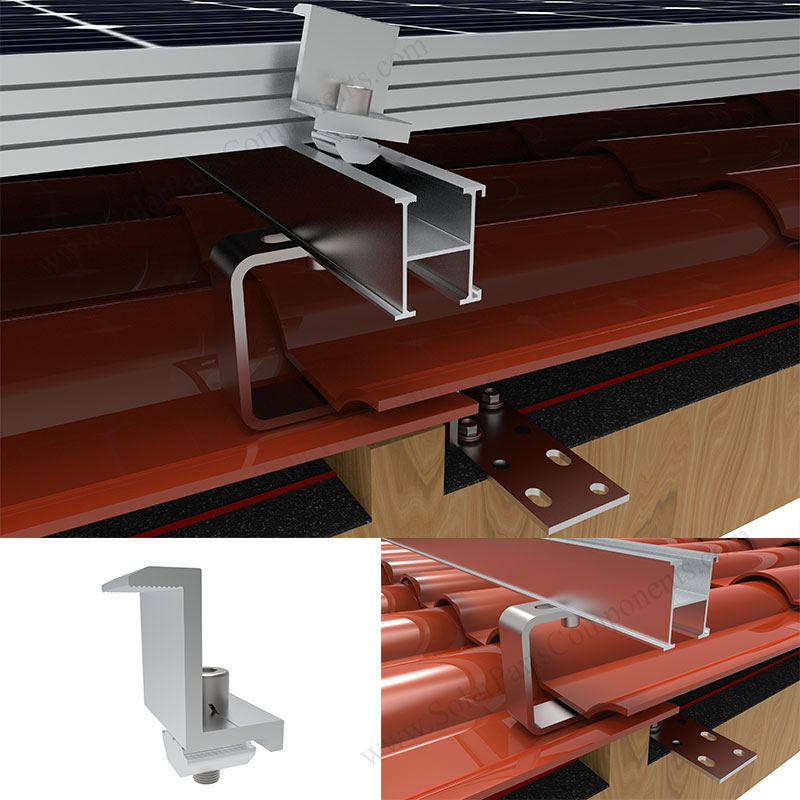

The hook for solar panels is one of the important installation components.
The unique and innovative design makes installation quick and easy.
The roof-damaging behavior of cutting tiles and perforating is eliminated, and the adjustable height provides application flexibility.

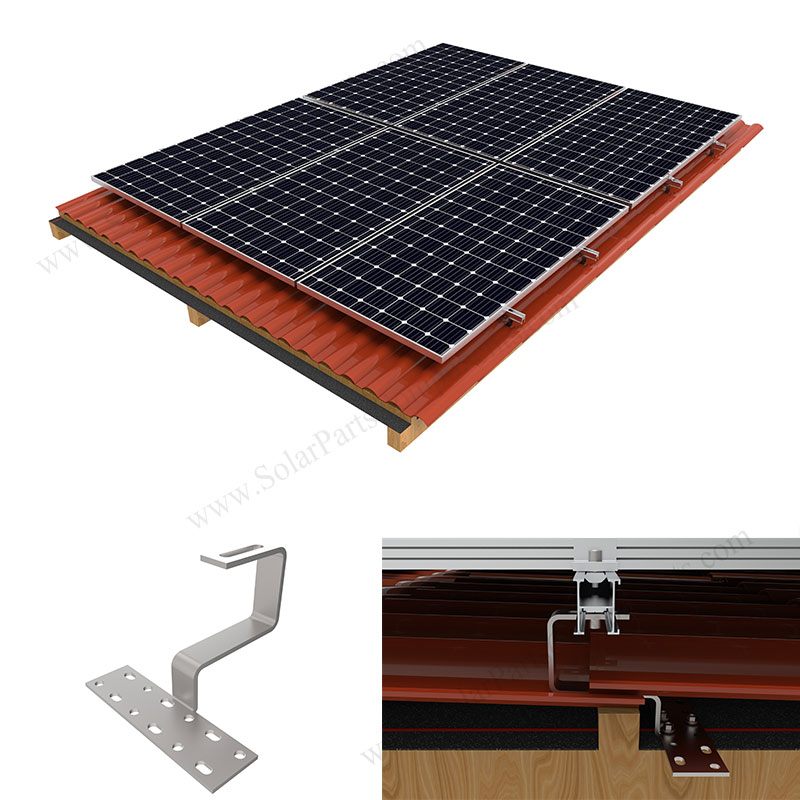

Solar racking for tile roof with high-quality stainless steel roof hooks, it is suitable for most types of tile roofs.
Bottom installation and non-adjustable devices can be used to meet special installation requirements.
Feature of solar racking system for roof, SPC-RF-IK07-DR:
1. Installation is easier, without cutting tiles;
2. Excellent aesthetics to ensure the beauty of the roof;
3. Strong corrosion resistance, made of stainless steel;
4. It can be used on many Roman tile roofs;
5. One of the cost-effective installation accessories;

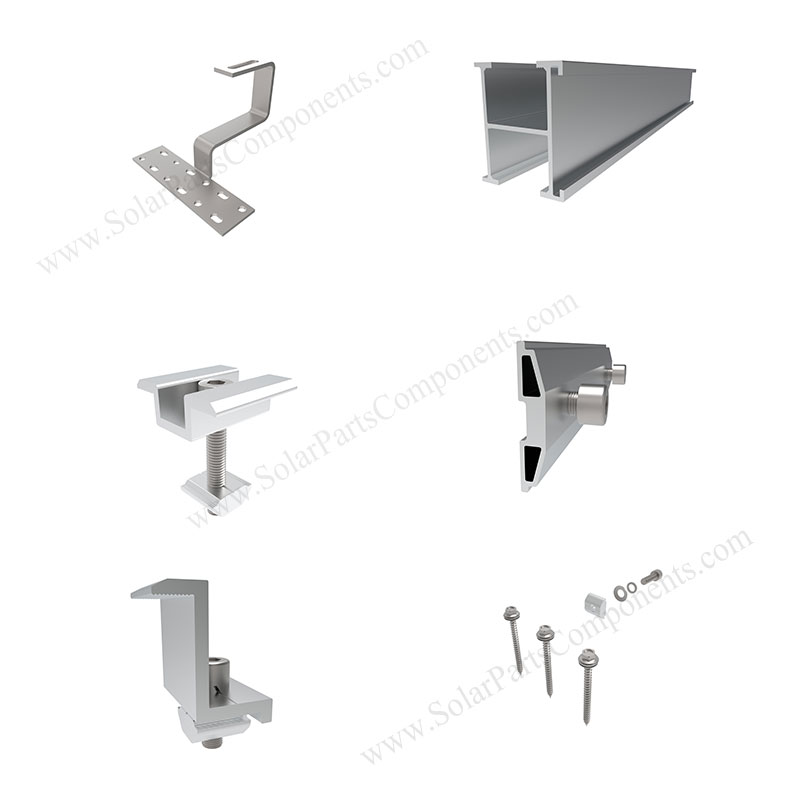

Parts and Components of solar racking system for curved tile roof, SPC-RF-IK07-DR:
-screws & nut;
The solar racking system for curved tile roof provides the necessary structural support for the installation of solar panels. The hook is carefully designed to provide maximum flexibility when designing and planning tile roof solar system installations. Our tile roof installation components make installation easy and fast, thus saving labor costs and time.
Using SPC products can save time, save money and provide high-quality installation every time. The solar mounting system provides a cost-effective way of installation, which can be installed quickly and easily! All system components are made of high-grade anodized aluminum and stainless steel. Fasteners and pull ring nuts are configured to save additional parts purchase. All these advantages save you labor costs and time.
If you have any needs, please feel free to contact us: www.solarpartscomponents.com.
|Solar racking system for roof|
|Item type:||solar racking for tile roof|
|Installation Site:||Tile Roofing 0 °~ 60°|
|Profile Material:||SUS304 Stainless Steel, Aluminum Rail|

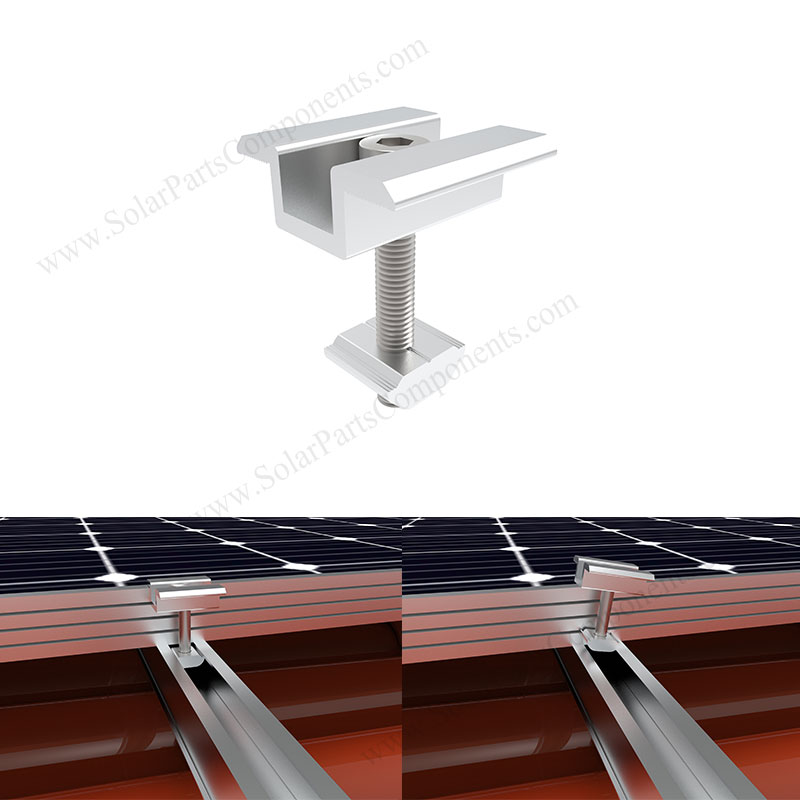

|Fasten Parts:||Stainless Steel / Aluminum T Sliding Nut|
|Wind Load:||60 m / s|
|Snow Load:||1.4 KN / M2|
|PV Modules:||Framed, Frameless|
|Module Orientation:||Portrait and Landscape|
|JIS C 8955: 2011|
|International Building Code IBC 2009|
|California Building Code CBC 2010|
|Designed Lifespan||25 years|
|Inner:||Bubble bag+inner box+Carton|
|Outer:||Wooden Box, Steel Pallet, MDF, etc|
Installation Manual for Solar Roof Mounting System, SPC-RF-IK07-DR
Solar Roof Mounting System-SPC-RF-IK07-HR

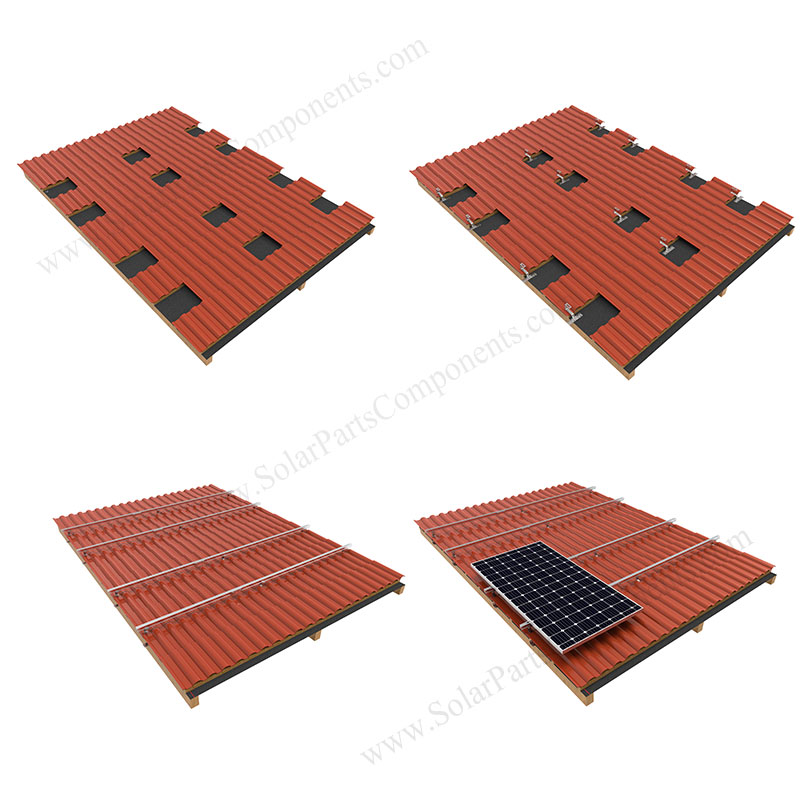

Stainless steel hook installation steps
