Solar Rooftop Mounting Systems
- Product Type: Roofing Mounting Systems with tile brackets
- Product Model:SPC-RF-IK04-DR
- Material: Stainless Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Portait or Landscape
- Application: Roman / Spanish / Curved / Clay roofs

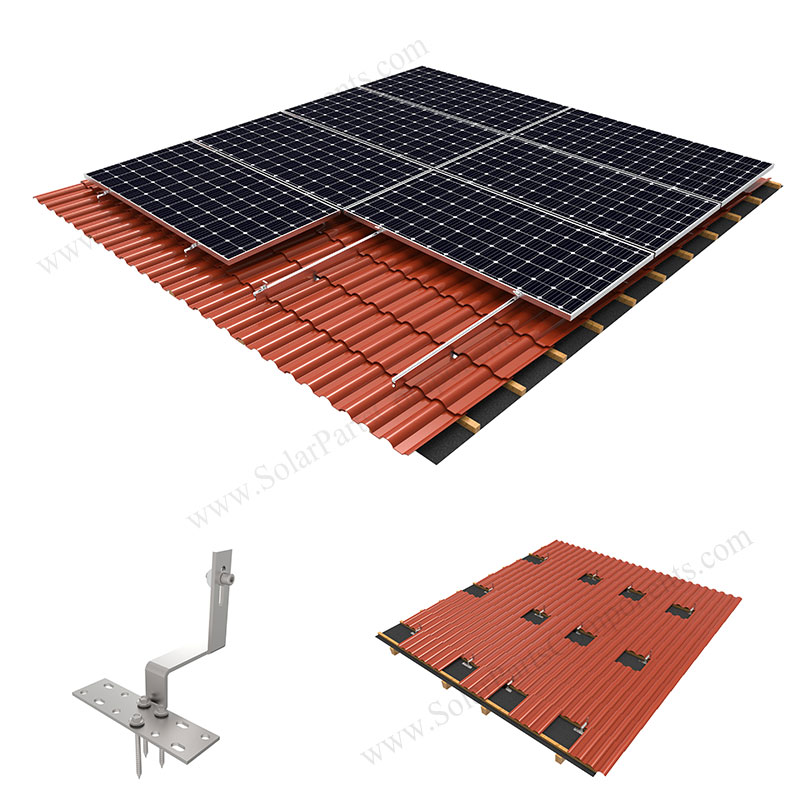

Solar roof mounting system with tile hooks (SPC-RF-IK04-DR) are one of the important accessories of tile roof mounting system, providing a fully functional, safe and solid photovoltaic module mounting system. This new type of installation component saves the need for other tools and parts during the solar installation system, reduces installation time and reduces installation costs.
Our hook for tile roof installation system is specially designed for tile roof installation and can be safely used for photovoltaic system installation. The non-adjustable system also ensures the best protection of the roof, flexible use of wood screws and the highest cost efficiency. Its uniqueness is that it can be directly installed on the wooden beam supporting the tile roof, and it can be installed quickly without causing damage to the tile roof, which is safe and firm.
Solar panel roof mounting system with tile hooks is a fast-installed roof solution and one of the important components for tile roof installation.
The solar roof racking system with tile hooks are one of the important accessories for Clay/Roman/curved tile roof installation, and a cost-effective solution.
This is the best solution for Clay/Roman/curved tile roof attachments, with a matching flashing design.
feature of this solar roof racking system with tile hooks SPC-RF-IK04-DR:
1. Streamlined design, easy to use and easy to install;
2. Universal Clay/Roman/curved tile roof hook design;
3. The surface of the stainless steel hook is sandblasted;
4. Use with standard wood screws;
5. Non-adjustable side mounting base;
6. Solar panel roof mounting system with tile hooks with 10 years’ warranty;

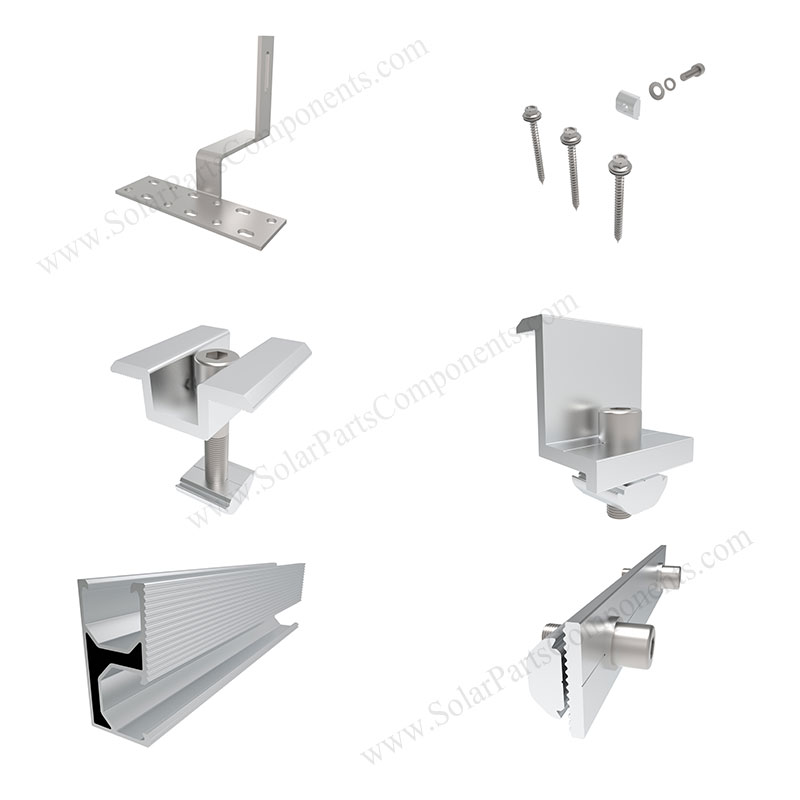

Installation procedures for this pv roof installation with tile brackets:

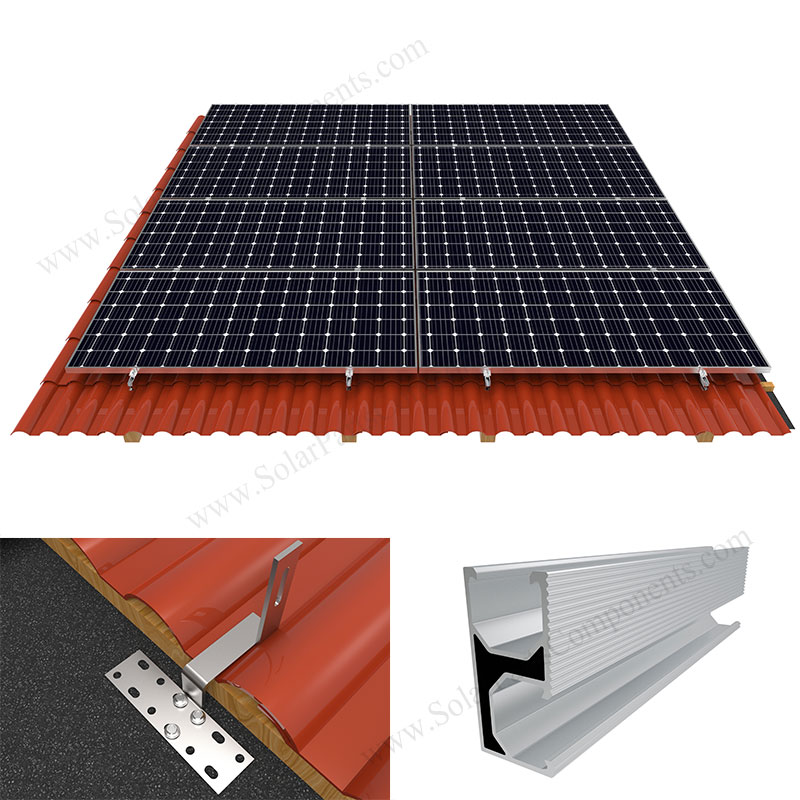

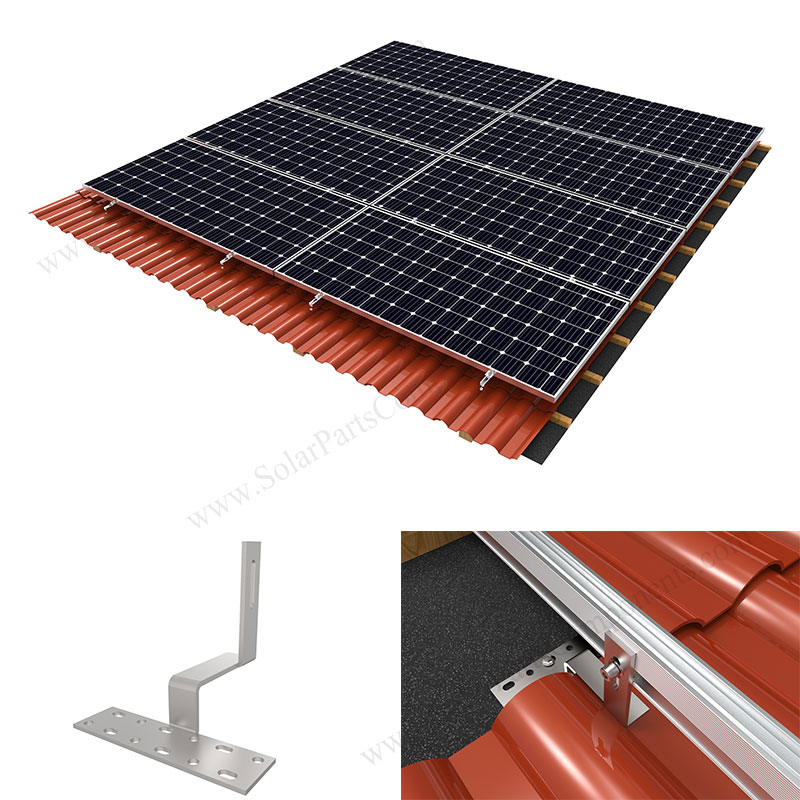

– Put solar roof hook on wooden beam;
– Connecting tile brackets with Aluminum rail;

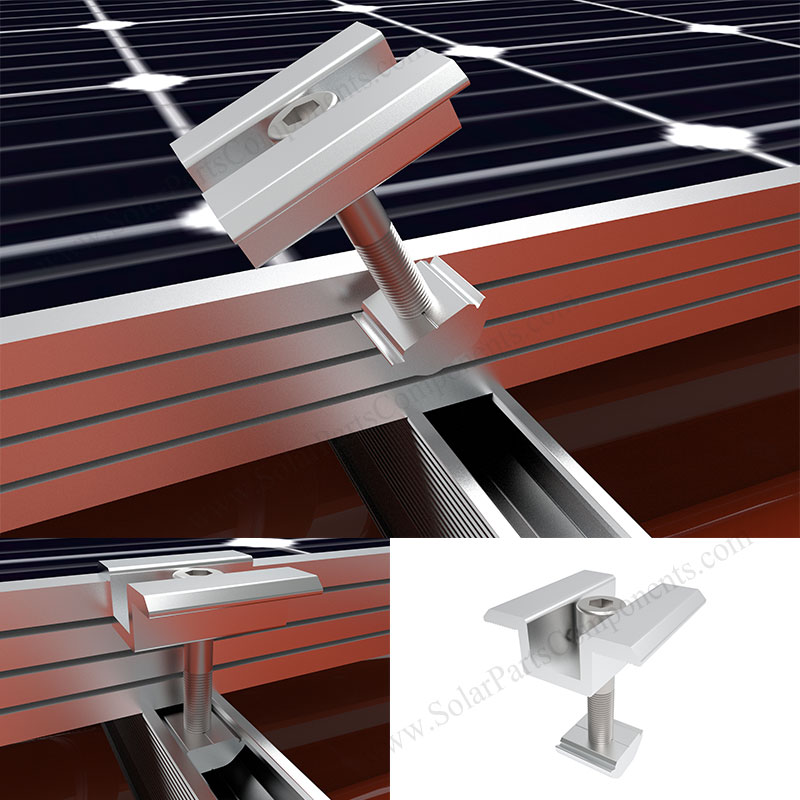

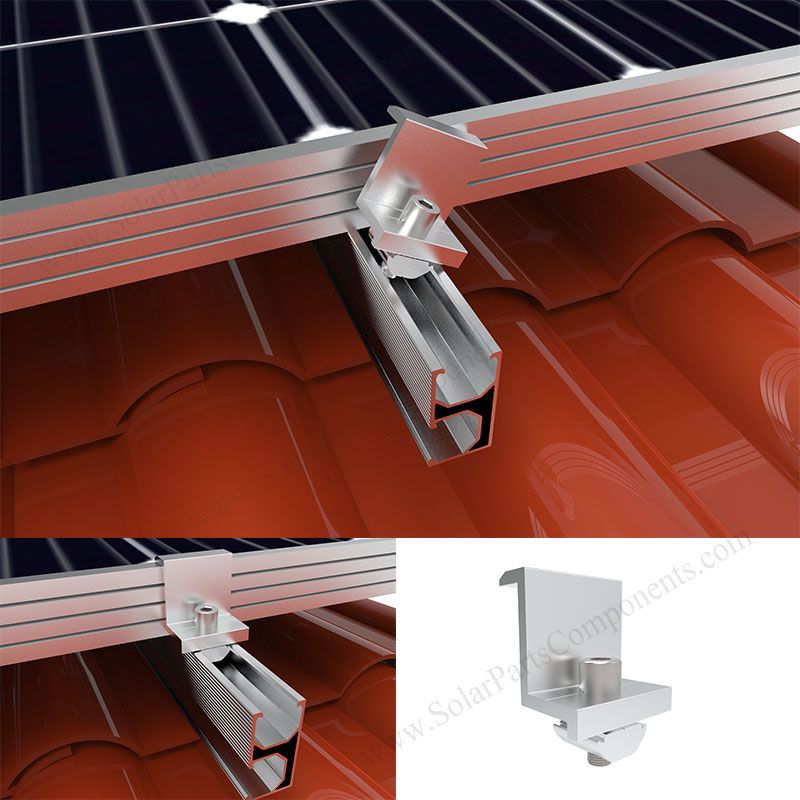

– Fixing end & mid clamps with PV modules;
Pv roof installation with tile brackets specially designed to increase the strength of the tile hook can be easily installed on the Clay/Roman/curved tile roof operation. The hook is made of high-quality 304 stainless steel to ensure corrosion resistance. Lightweight waterproof panel and matching wood screws can realize quick and convenient installation.
The tile roof mounting system hook is very suitable for our tile roof installation system, and saves the need for additional tools and installation time! For a solar accessory solution that is both economical and easy to use, please choose a durable tile roof mounting hook from www.SolarPartsComponents.com.
|Solar Roof Mounting System With Tile Hooks|
|Item type:||Solar Rooftop Tile Mounts|
|Installation Site:||Tile Roofing 0 °~ 60°|
|Profile Material:||A2 Stainless Steel, Aluminum Rail|
|Fasten Parts:||Stainless Steel / Aluminum T Sliding Nut|
|Wind Load:||60 m / s|
|Snow Load:||1.4 KN / M2|
|PV Modules:||Framed, Frameless|
|Module Orientation:||Portrait and Landscape|
|JIS C 8955: 2011|
|International Building Code IBC 2009|
|California Building Code CBC 2010|
|Designed Lifespan||25 years|
|Inner:||Bubble bag+inner box+Carton|
|Outer:||Wooden Box, Steel Pallet, MDF, etc|
