Solar Mounted for Curved Tile Roofing
- Product Type: Roof Mounting Systems with Tile Bracket
- Product Model:SPC-RF-IK06-DR
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2

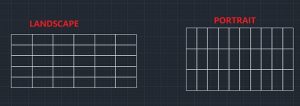

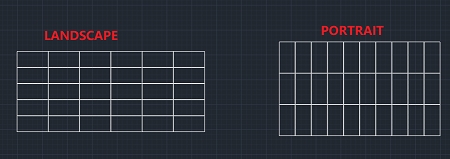

- Solar Module Orientation: Portait or Landscape
- Application: Pitched tile roof
Product Description:
This solar mounting system with tile hook (Model:SPC-RF-IK06-DR) can be fast and simple to installation.
The key advantage of this bracket is super long base for roof rafter which can offer much strong strength for whole racking.
Good aesthetics design with SUS304 stainless steel material make this roof tile hooks robust.
This solar mounted for curved tile roofing is quick installation, flexible operation, cost-effective with 25 years’ up lifespan.
Feature of this solar mounting system for tile roof:
1. Super big hook base;
2. Height adjustable for use curved tiles;
3. Side mounted rails comply;
4. Extremely geology, snow load, wind speed adaptive;
5. Manufacturer direct of mounting accessories and whole racks;

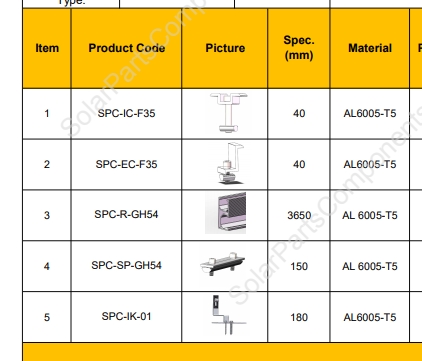

Parts and Components of solar panel mounts for roofing, SPC-RF-IK06-DR:
– Aluminum Rails;
– Rail splice;
– solar tile hooks SPC-IK-06;
– pv mid clamps / end clamps;

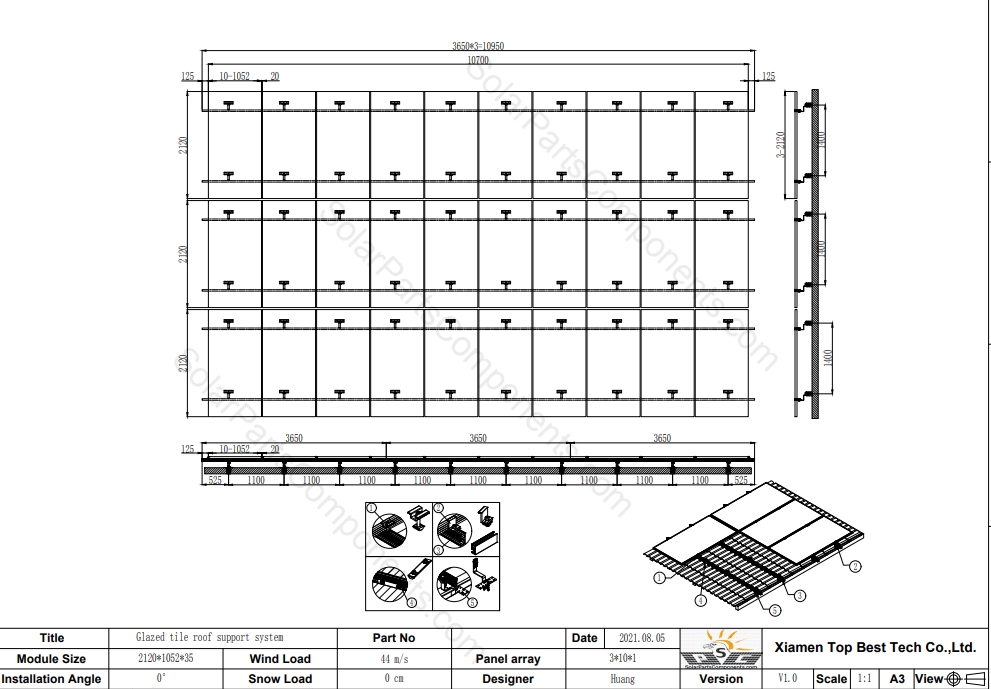

Installation of solar mounted for curved tile roofing:
– Remove tile from roofing;
– Drive lag screws with tile hook to rafter;
– Base flashing is option for water leading prevent;
– Seat and cover tile back;
– Install rails to hook arms;
– Fix solar panels on rails with clamps;
SPC solar offer full series of height adjustable / non-adjustable hook brackets for residential / commercial PV tile rooftops.
Welcome to small set of solar panel mounting kit for tile roof from www.SolarPartsComponents.com, we can offer comprehensive installing solutions for your job.
Brief Descriptions: | |
Solar mounting system for tile roof | |
Item type: | solar mounts for tile roof |
Type: | SPC-RF-IK06-DR |
Installation Site: | Tile Roofing 0 °~ 60° |
Profile Material: | A2 Stainless Steel, Aluminum Rail |
Fasten Parts: | Stainless Steel / Aluminum T Sliding Nut |
Color: | Anodized Silvery |
Wind Load: | 60 m / s |
Snow Load: | 1.4 KN / M2 |
PV Modules: | Framed, Frameless |
Module Orientation: | Portrait and Landscape |
Standards: | AS/NZS 1170 |
DIN 1055 | |
GB50009-2012 | |
IBC2009 | |
TUV | |
JIS C 8955: 2011 | |
International Building Code IBC 2009 | |
California Building Code CBC 2010 | |
Warranty | 10 years |
Designed Lifespan | 25 years |
Packing Details: | |
Inner: | Bubble bag+inner box+Carton |
Outer: | Wooden Box, Steel Pallet, MDF, etc |
