Stand Seam Kliplok Metal Roofing Clamps SPC-CK-14
- Product Type: solar metal roofing mount clamp
- Product Model: solar-stand-seam-metal-roofing-clamps-brackets-spc-CK-14
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Stand Seam Klip-Lok Metal Roof PV Installation
Product Description :
Tin zinc iron roofing is very common in the building material, Photovoltaic solar panels array with metal roof have a huge market .

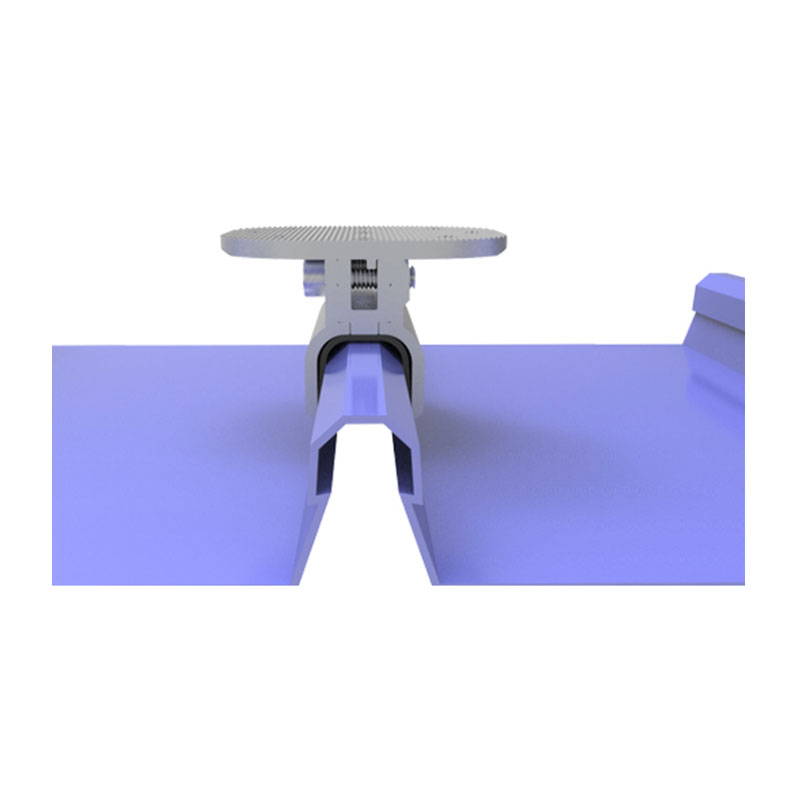

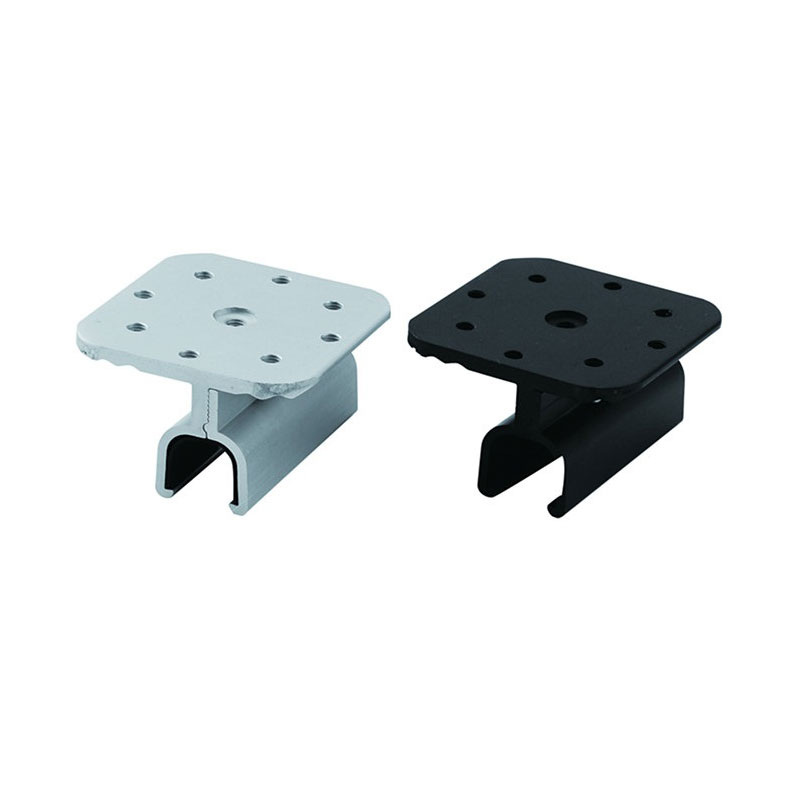

SPC-004 stand seam / Klip Lok metal roofing clamps can fits iron standing seam profile well. Fasten with stainless steel hardware, our clamps can attach to metal roof firmly with strong strength.
Our solar stand seam metal roofing clamps SPC-004 is light in weight , easy attaching to seam profile.
We design this SPC-004 seam bracket with good stability but not necessary penetrate zinc roofing structrue .
Waterproofing solar panel stand seam clamps SPC-004 is suitable for zinc , tin, iron metal roofs with our zero-penetrating design .
Our solar panel Klip Lok bracket spc-004 is robust, labor effective, time saving .
- Quick connected to alum rails, beautiful, safe ;
- No damaging and piercing , ensure water drain proof after installed ;
- Strong but light in weight design for seam clamp SPC-004 ;
- Cooling metal roofs in hot summer days ;
Parts and Components for Kliplok / Stand Seam Metal Roof clamps spc-004 :
(a) AL 6005 – T5 aluminum seam clamp ;
(b) two sets of SUS 304 Hex bolts, nuts and washer.
If you’re interested in solar mounting system, we’d love to discuss with you about more and answer any questions you might have. As a professional manufacturer of PV mounting system, SPC is a great option for you.
Click here for more details and information:
|Brief Descriptions :|
|Solar Mounting Clamps and Brackets for Stand Seam Metal Roofing SPC-CK-14|
|Item type:||Solar Metal Roof Brackets|
|Type :||Solar Roofing Mounting Clamps|
|Installation Site :||Stand Seam Metal Roof|
|Profile Material :||Aluminium 6005- T5+ SUS 304|
|Fasten Parts :||Stainless Steel|
|Color :||Silvery or according to customer requirements|
|Wind Load :||60 m / s|
|Snow Load :||1.4 KN / M2|
|PV Modules :||Framed, Frameless|
|Module Orientation :||Portait and Landscape|
|Standards :||AS/NZS 1170|
|JIS C 8955 : 2011|
|International Building Code IBC 2009|
|California Building Code CBC 2010|
|Designed Life Span||25 years|
|Packing Details :|
|Inner :||Bubble bag+inner box+Carton|
|Outer :||Wooden Box, Steel Pallet, MDF, etc|

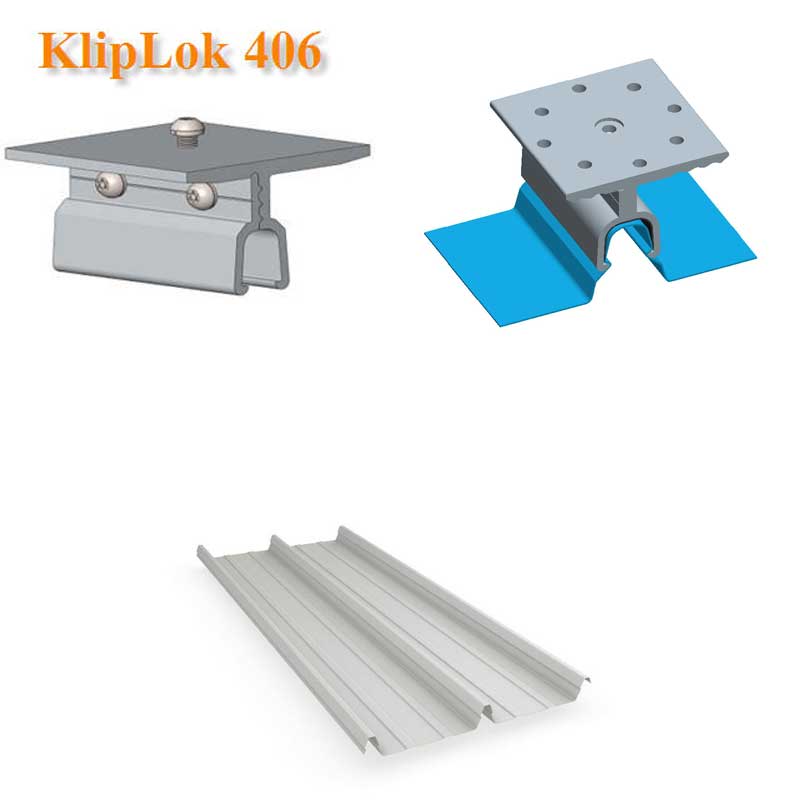

Kliplok 406 Metal Roofing Clamps for Solar Panel Mounting
Solar Parts & Components factory can manufacture many kinds of roof clamps for PV module installation .
Following is what we designed for Klip lop 406 model metal roof sheet .
Klip lop tin roof is a very popular for factory / wharehouse … facilities for easy installation and large scale size roof tops .
Our kliplop solar clamp can accommodate roof profile and offer a tight fit holding to roof ridges .
LYSAGHT KLIP-LOK® 406 is a kind of common metal roofing types in Australia, Vietnam , Thailand …
Feature of our klip lok 406 metal roof clamp :
– Non-penetrating, Quick fasten installation, Tensile Strength≥ 250N/MM2 ;
– Strong clip by 2 sets of hex bolts and nuts ;
– Flat & wide base on clamp top for rails and other clamps ;
– Anodized AL6005-T5 aluminum made, layer ≥ 12 μm;
– 406 model means 203 mm between each two ridges of roof sheet ;
– solar mounting clamp Warranty:10 years ;
– OEM, ODM service accepted;
Spare parts & Accessories for Kliplok 406 Metal Roofing Clamps :
1 Xkliplok 406 tin roof sheet clamp ;
2 X M8 X25 mm bolt ;
2 X hex nut;
2 X flat washer;
2 X spring washer;
Welcome to get more information of clip lok 406 clamp for installing solar panels on your metal sheet rooftop .

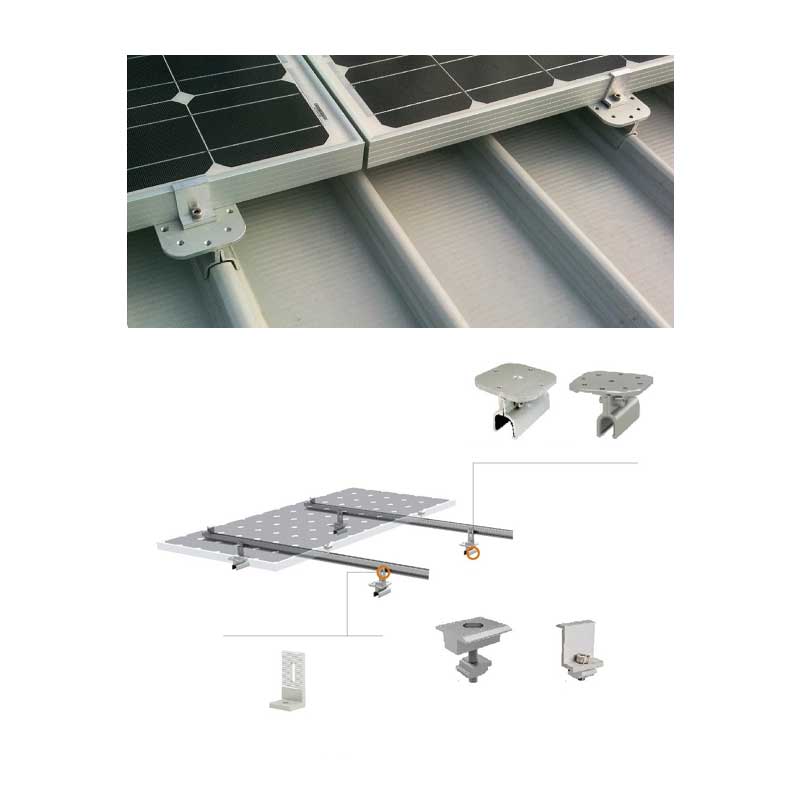

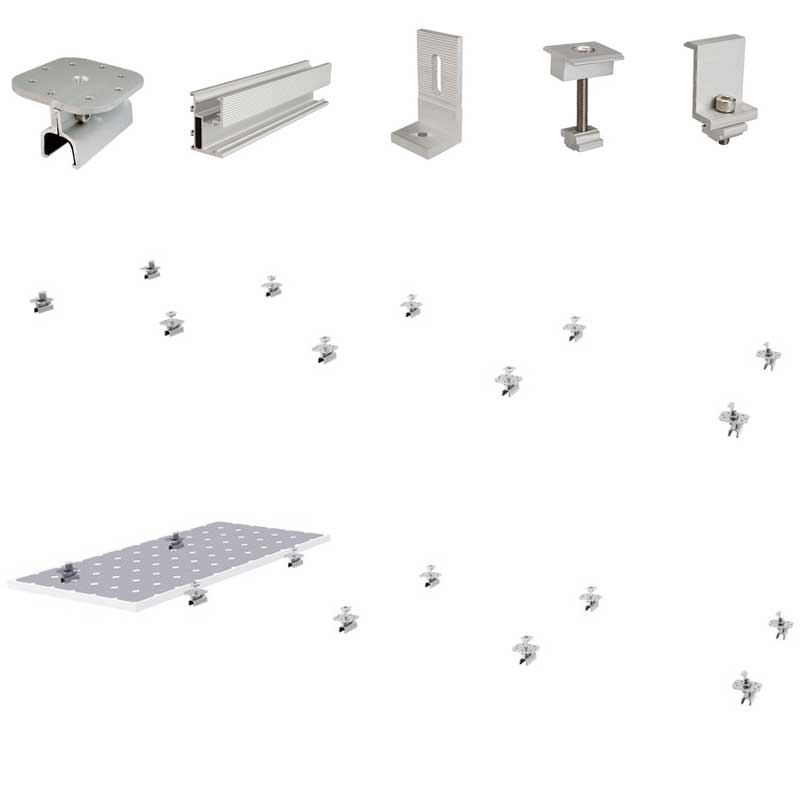

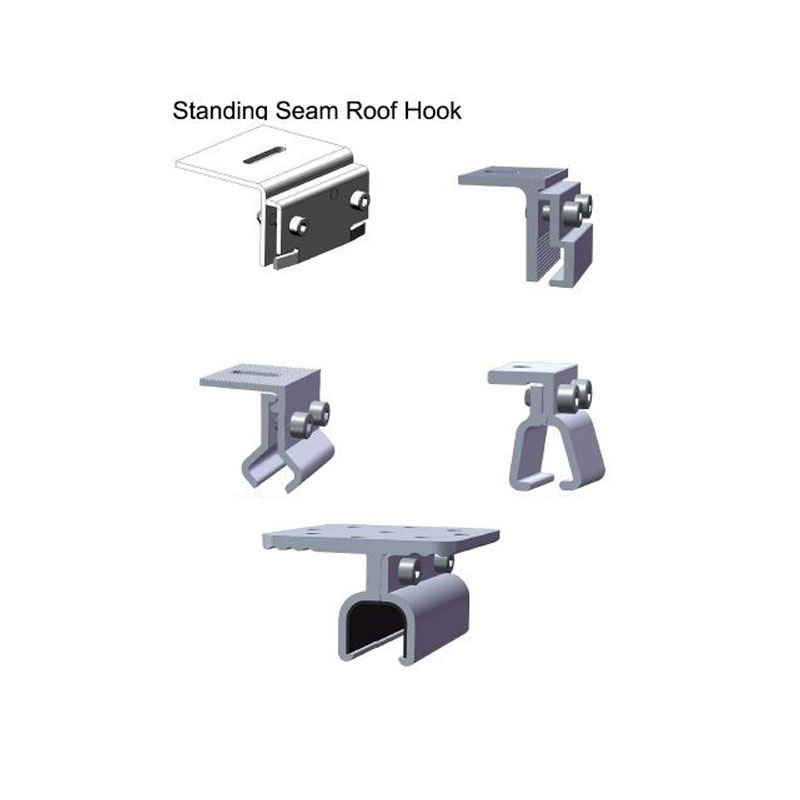

SPC also carry many other kinds of mounting clamps like below :
Feel free send your solar clamp drawings for our evaluation , we’ll come back with competitive prices .

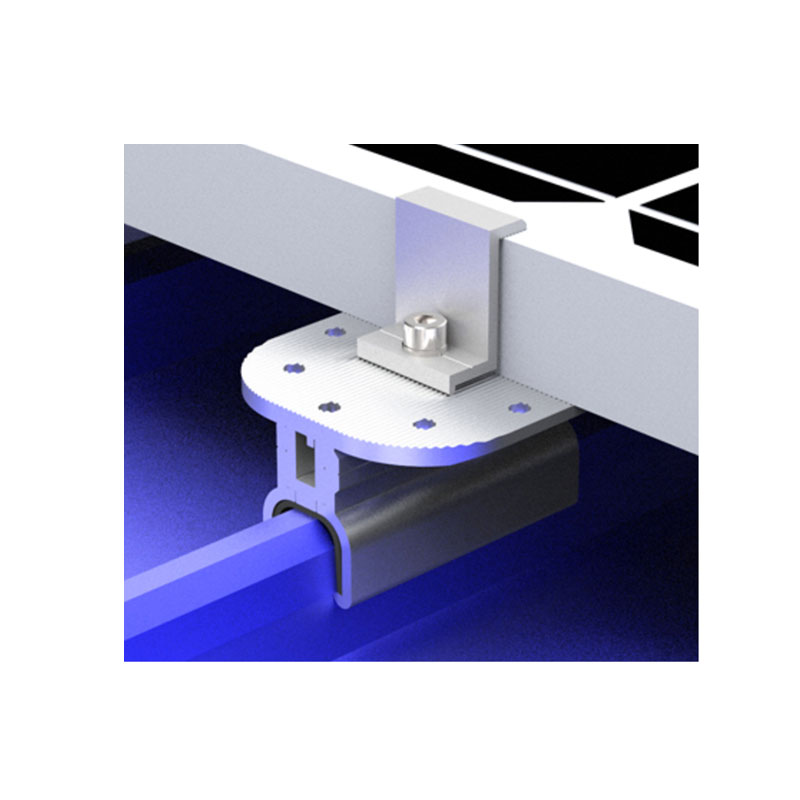

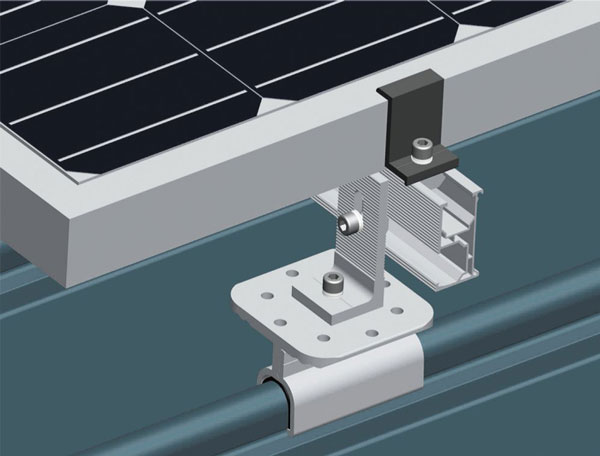

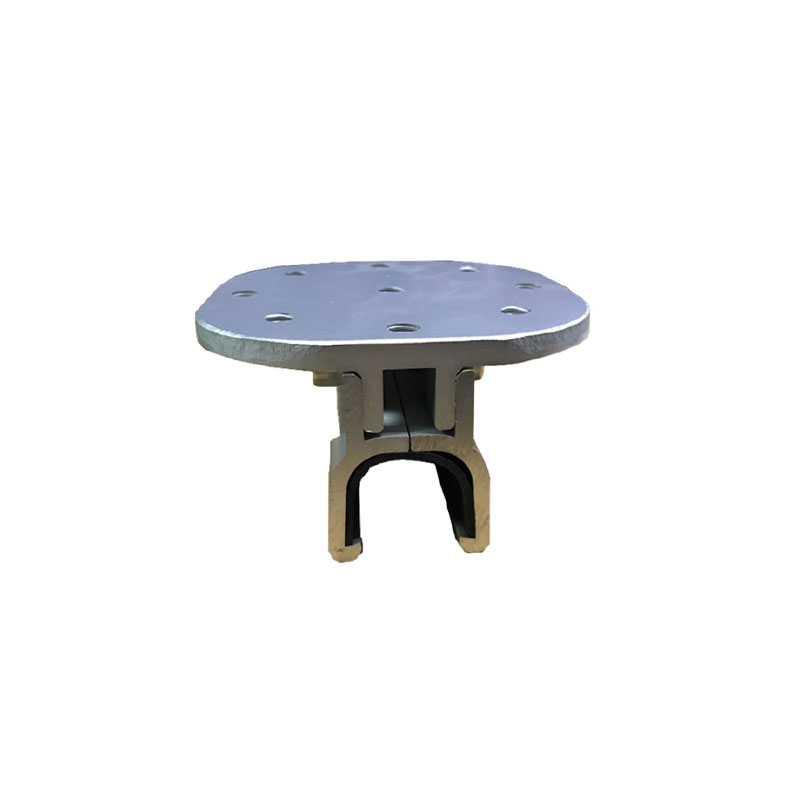

Solar Klip Lok Clamp SPC-004 for solar array

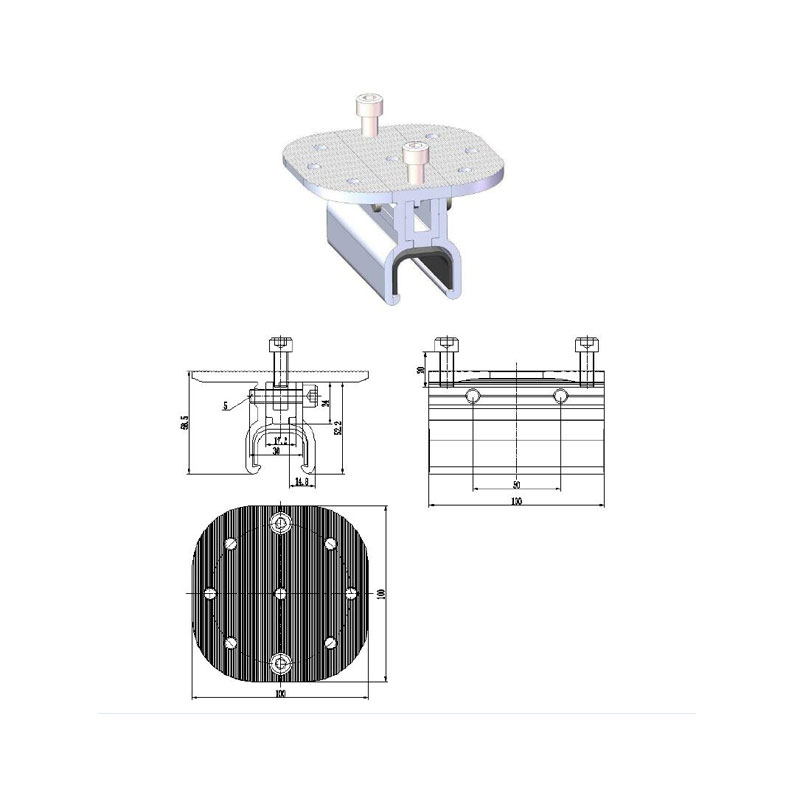

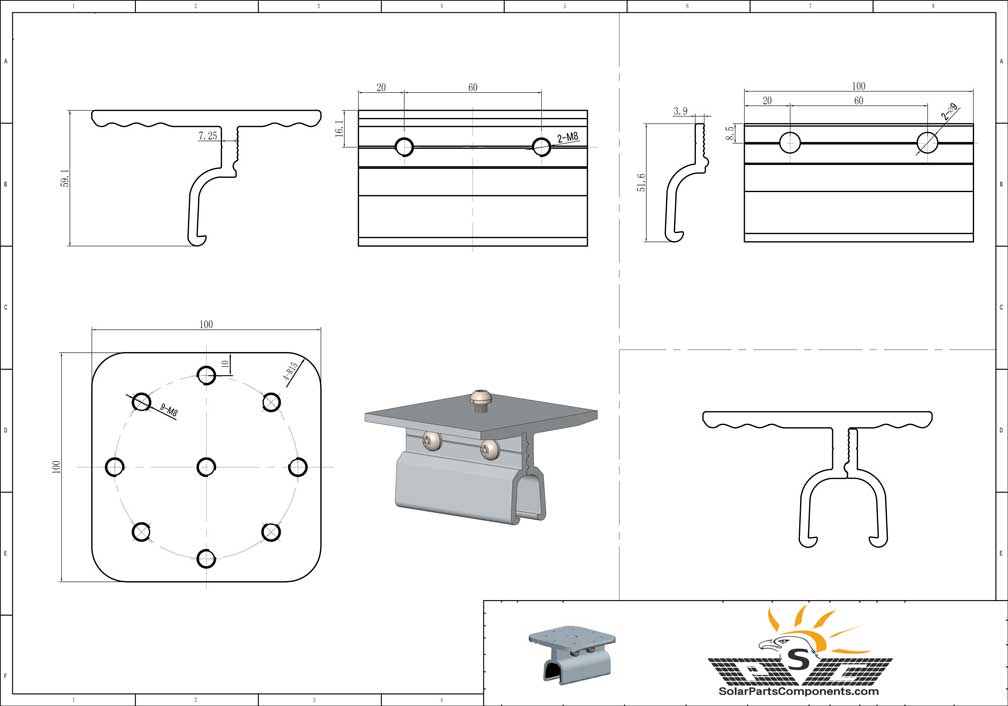

Solar Klip Lok Metal Roof Clamp Drawing Size Profile SPC-004
Can SPC help design rail free clamps for different metal roofing ?
with rich design experience,
Solar Parts & Components Factory can help design cost effetive brackets & clamps base on different roofing .

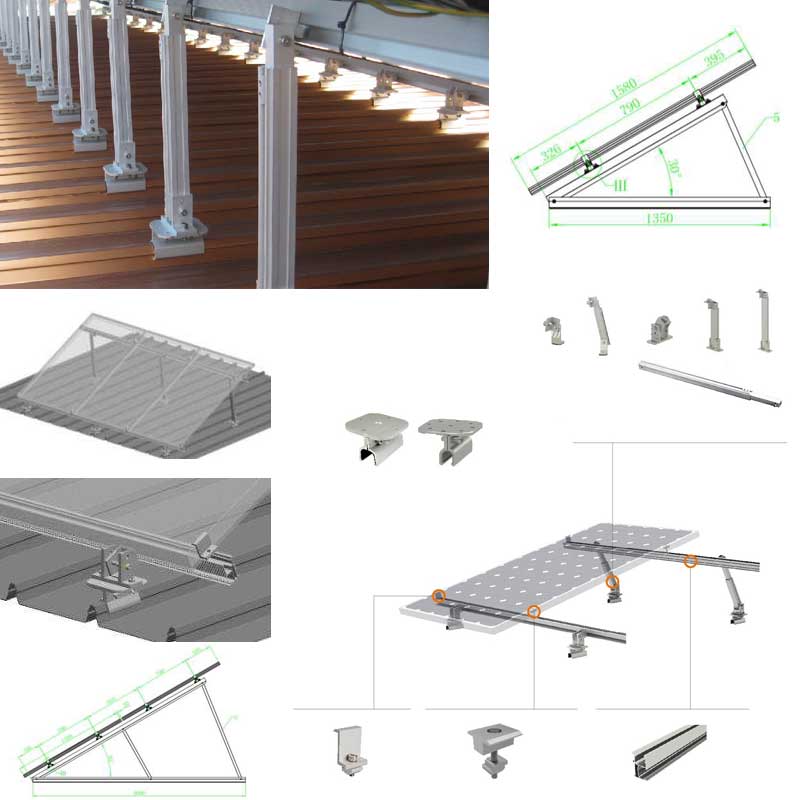

Following is one example we assists for one Vietnam client :
SPC solar carry wide ranges of railess clamps for your metal roofing
Clients have many options for our roofing clamps which can install your PV modules cost effectively .
