Standing Seam Metal Roofing Clamps SPC-CK-23
- Product Type: solar accessory and solar mount for metal roofs
- Product Model: Solar-Standing-Seam-Bulter-Metal-Roof-Clamps
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Seam Profile Metal Roofing PV module Installation
Product Description :
This metal rooftop standing seam clamp is designed for solar panel installation for tin / metal roofing .
The key advantage of our bulter roofing metal clamp is :
You don't need to penetrate metal roofs when installing PV modules, prevent damage of zinc tin roofs,Clamps are reusable if
necessary . In other word, this solar roof brackets attach solar panels directly to standing seam metal roofs without drilling .
Another advantage is : with this solar attachment and matched aluminum short rails, you don't need whole long aluminum rails ,
just by our 12″ long short rails. It can save mounting budget cost pretty well .
They also can be used for fixing signs / satellite dishes, street lamps, snow guard system … besides solar arrays .
Specification & features of standing seam metal roof hook SPC-IK-S04:
– Heavy-duty, non-penetrating structure clamp design ;
– Essential fasten hardware for stand seam roofing tops ;
– Pre-assembled / ready packing to job site is available ;
– Anti rust / anti deform / anti break down with high quality SUS304 & Aluminum components;
– Reduce total solar plant installation costs;
– Cost-optimized short aluminum rail structure ;
– 10 years quality warranty ;
Great & universal PV panel racking bracket choice for your Green power plant project without piercing PV modules .
Contact SolarPartsComponents.com for any questions on purchasing this product & tech supports .
| Brief Descriptions : | |
| Solar Mounting Components – Solar Panel bulter roofing metal clamp SPC-CK-23 | |
| Item type: | Solar Panel Mounting Clamps |
| Type : | Mounting Structure Parts |
| Installation Site : | Metal / Tin Roof |
| Profile Material : | AL 6005 – T5 Aluminum / SUS 304 |
| Fasten Parts : | Stainless Steel Bolts / Nuts |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN / M2 |
| PV Modules : | Framed, Frameless |
| Module Orientation : | Portrait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Life Span | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
Inquiry of Solar Standing Seam Metal Roof Clamps
Q:
we need seamless solar structure for our site.
we have 666 no of panels, pls find attached the details
A:
Yes, we have Solar Standing Seam Metal Roof Clamps .
Our clamp model is : SPC-S04.

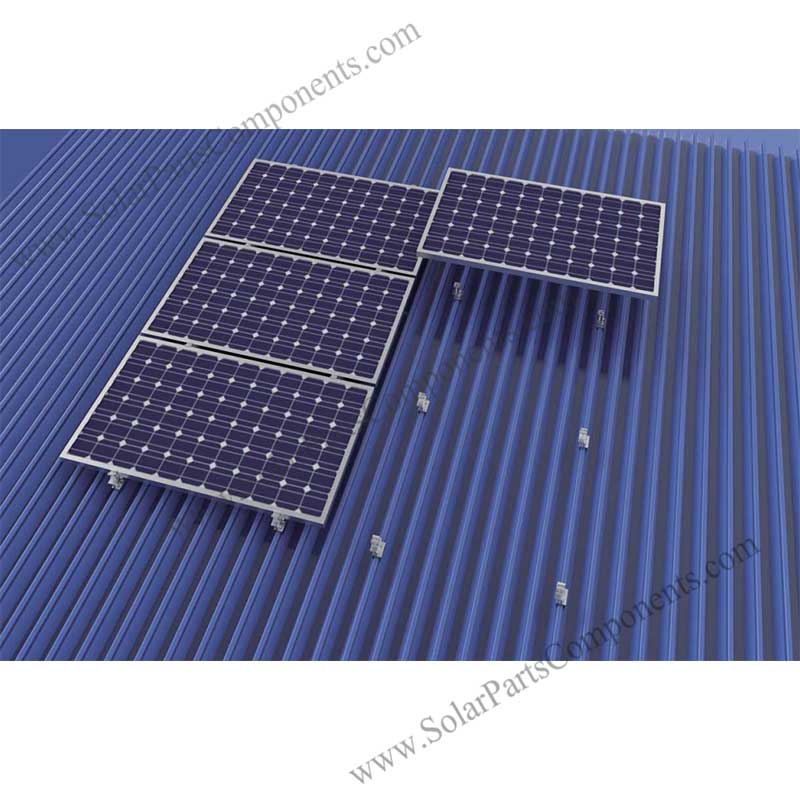

You can calculate total Quantity as layout sketch below :
If solar panels are array one by one it will only need two clamps .
Q:
our quantity is 1320 clamps as we have 666 panels , we also would like to check for rails ( solar structure nd u and z clamps)
attached is the info required. There is n snow here only wind load max 150 km/hr
pls quote for rail
A:
Our SPC-S04-Clamp is rail included .
You don't need to buy addtional rail, this is our unique technology, save mounting cost for you .
Q:
Ok thank you so much
Can u send me the clamp details pls
A:

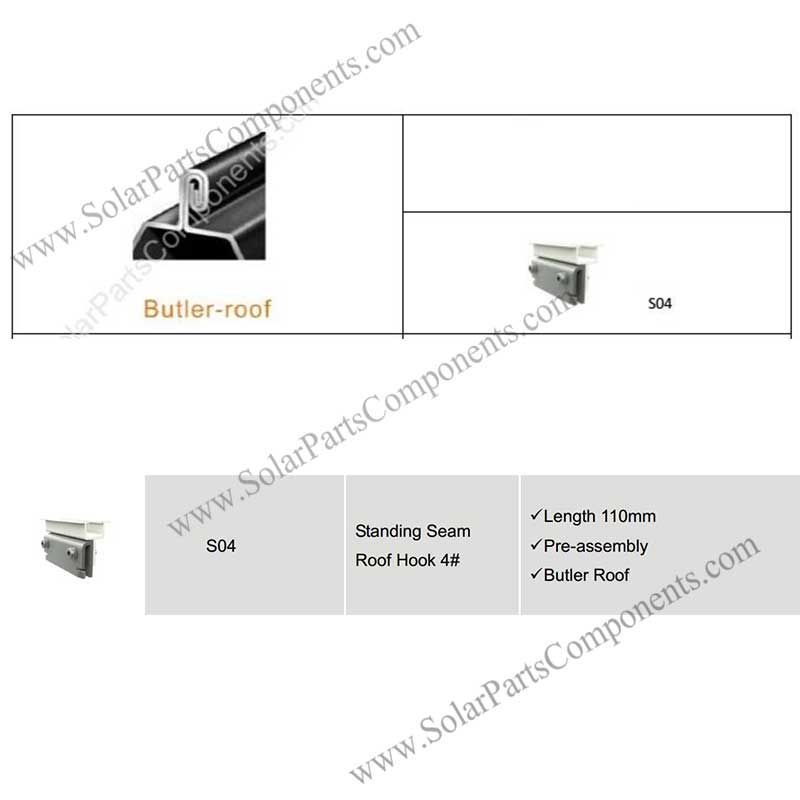

Please refer to instruction for our metal roof clamp series .
Our model is S04 for standing seam roof type .
You can buy samples from us first before place the order .
Q:
thanks for the details, pls check if this will be able to withstand a wind load of 150km/hr
also pls let me know how we can determine the no of clamps to be used,am attached my panels layout, and my roof dimensions
Solar Standing Seam Metal Roof Clamps
Inquiry of Solar Standing Seam Metal Roof Clamps
Q:
Dear sir,
we need seamless solar structure for our site.
we have 666 no of panels, pls find attached the details
A:
Yes, we have solar mounting clamp for standing seam metal roof .
Our clamp model is : SPC-S04.
Q:
Dear mama,
our quantity is 1320 clamps as we have 666 panels , we also would like to check for rails ( solar structure nd u and z clamps)
attached is the info required. There is n snow here only wind load max 150 km/hr
A:
The “U”-clamp is:
Standing Seam Metal Roofing Clamps
Thank you & just let me know Quantity details for them .
Q:
pls quote for rail
A:
Our SPC-S04-Clamp is rail included .
You don't need to buy additional rail, this is our unique technology, save mounting cost for you .
Q:
Ok thank you so much
Can u send me the clamp details pls
A:
Please refer to instruction for our metal roof clamp series .
Our model is S04 for standing seam roof type .
pv Standing Seam Metal Roofing Clamps
How do you install solar panels on a standing seam metal roof?
“How do you install solar panels on a standing seam metal roof? I have PV panel, 4 ft. square.What is your price for Solar Standing Seam Metal Roof Clamps？Thank you.”
“Thank you for your inquiry for our Solar Standing Seam Metal Roof Clamps.
Solar Standing Seam Metal Roof Clamps Factory
Frame of PV panel is 2″ thick.
The tilt angle of the roof is approx. 10 degrees – very low angle shed roof. I need to be able to raise the panel angle to approx. 60 degrees for the winter, or maybe more.
Delivery would be to zip code 78879. Price?”
“Well understanding.I have send our qotation about your solar panels standing seam roof mounting through your email.
Please kindly check, Thank you!”
Request quote for PV Mounting Clamps for Standing Seam Metal Roof
Q:
Dear Sir,
Request you to quote for PV Mounting Clamps for Standing Seam Metal Roof for our project.
Requirement is as below for fixing around 4000 PV Modules on “Metal Standing Seam Roof”
Also confirm that the selected items are suitable for the roof.
Aluminum Standing Seam Metal Roofing Clamps SPC-IK-CK23 – 8000 pieces
Aluminum End Clamp – 1000 pieces
Aluminum Middle Clamp – 7000 pieces
We don't want to use long rails. That will be an expensive solution.
S. Raman
Sr. Estimation Engineer
Adliya, Kingdom Of Bahrain
A:
Dear Raman
We ensure that “Metal Standing Seam Roof Clamp” you chose can fit your Standing Seam size.
As Requirement factory prices for Steel Standing Seam Metal Roofing Clamps / mid clamps / end clamps are sent by email to you
Thank you !
Have a nice day.
Best regards,
solar roof clamps Factory
Solar Standing Seam Metal Roof Clamps Factory
Q:
Hi,
size of Solar-Standing Seam Metal Roof Clamps
Q;
Yes this size is good for my roofing, please send me PI. I will arrange the payment.
A:
Thank you for your new order, please refer to the PI. just let me know when you arrange the payment.
Have a nice day!
Solar Standing Seam Metal Roof Clamps Factory
