Solar Roof Clamp & bracket for Trapezoid Kliplok / Klip Lok / Klip-lok Metal sheet roofs
Item : Solar Metal Roofing Clamps ;
Finishing : Anodized ;
Material : Aluminum AL6005-T5 ;
Total Size : 100 mm ( Length) × 100 mm ( Width ) × 58.5 (Height) /
4″ (L) × 4″ (W) × 2 1/4″ (H) ;
Top Plate Size : 100 mm × 100 mm /
4″ (L) × 4″ (W)

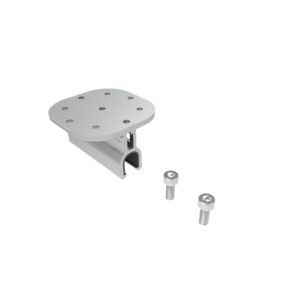

Matched Bolts, Screws, Nuts, Accessories for this kliplok metal roof clamp:
1)M8 x 30 mm Hexagon socket head cap screws (SUS 304) x 2 units ;
2) M8 x 20 mm Hexagon socket head cap screws (SUS 304) x 2 units .
3) EPDM pads x 4 pieces , Penetrate free for klip-lok roof surface with anti-corrosive EPDM pads .;
Weight : 414 (g) / 0.91 (lb) ;
Packing : 10 pcs / carton ;
Packing Size : 260 mm ×205 mm × 180 mm /
10 1/4″ × 8 1/8″ × 7 1/8″

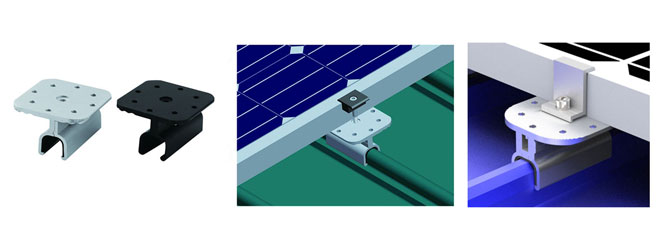

Best matched for kliplok 700 metal sheet profile , can be used together with L bracket for roof solar mounting systems .
Our Solar Parts & Components QC Team
stictly test following parameters of this Klip Lok Metal Sheet Roof barcket item before delivery:
Waterproof IP class , downward load test , uplifting test, snow and wind loading…
More models of our metal roof clamps are available from www.SolarPartsComponents.com
