Metal Roof Solar Clamps Without Drilling
- Product Type:Solar mounting brackets
- Product Model: Metal roof clamp
- Material: Aluminum +SS304
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Landscape / Horizontal
- Application: Standing seam roof
Product Description:

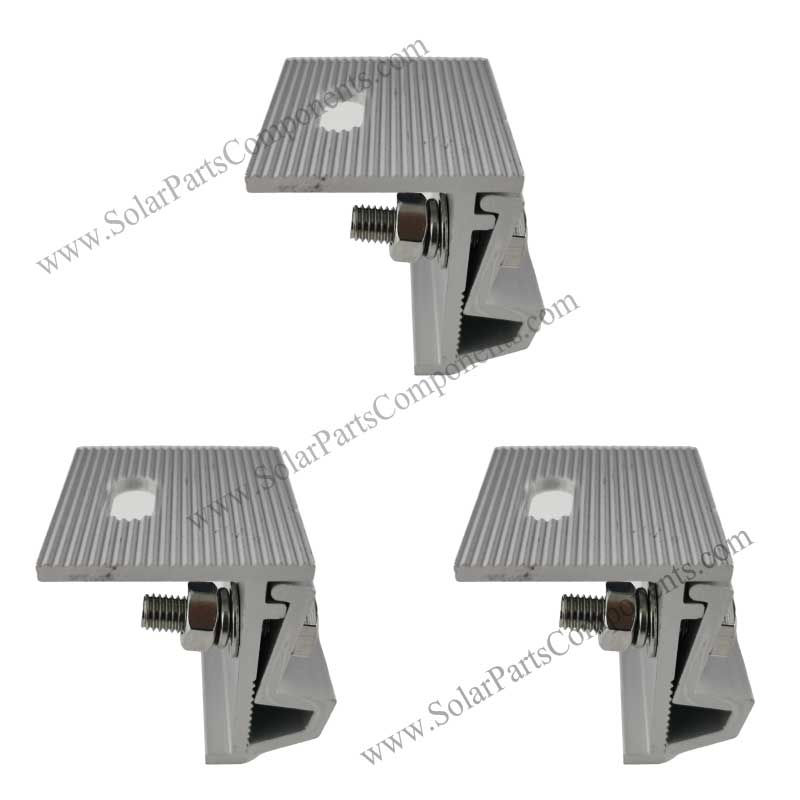

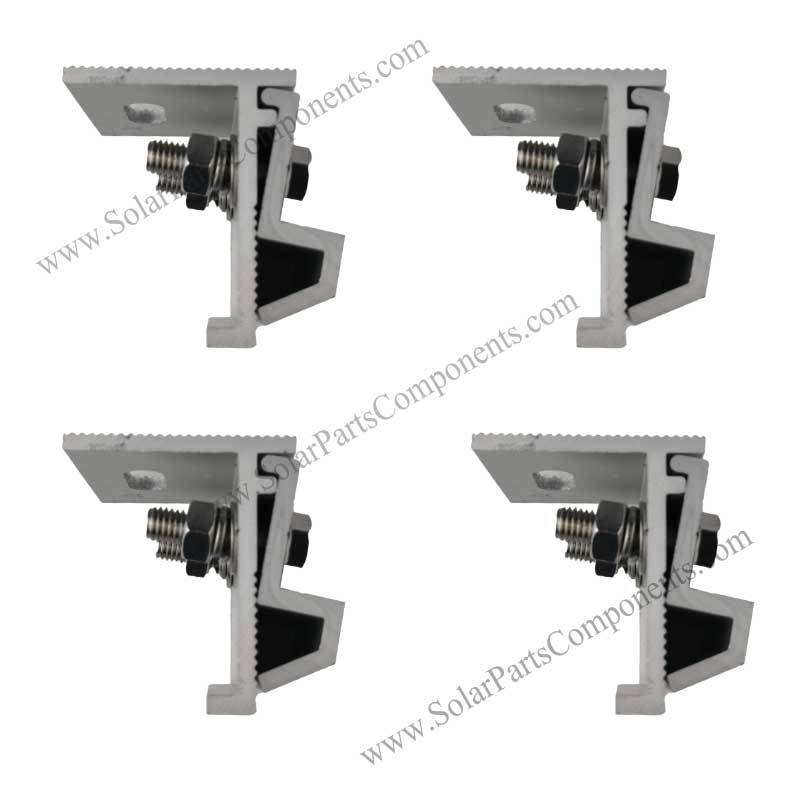

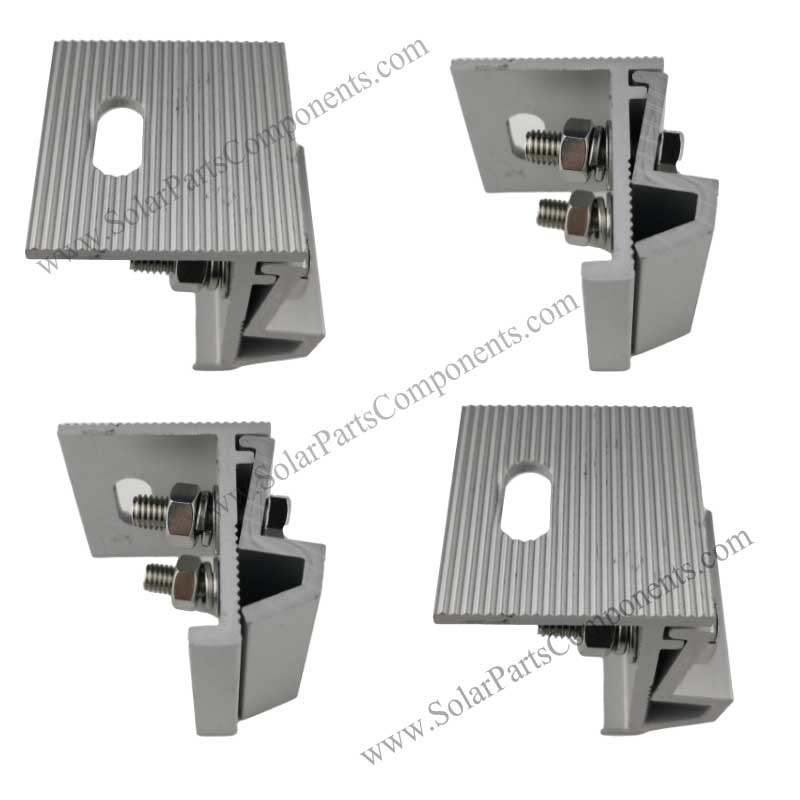

The solar panel metal roof clamps without drilling is applied to standing seam metal roof solar mounting system. Suitable for both commercial and industrial solar project. It can be pre-assembled and directly fixed on the roof without any drilling, protect the roofing well. Super easy and fast to be installed, saving on site installation time.

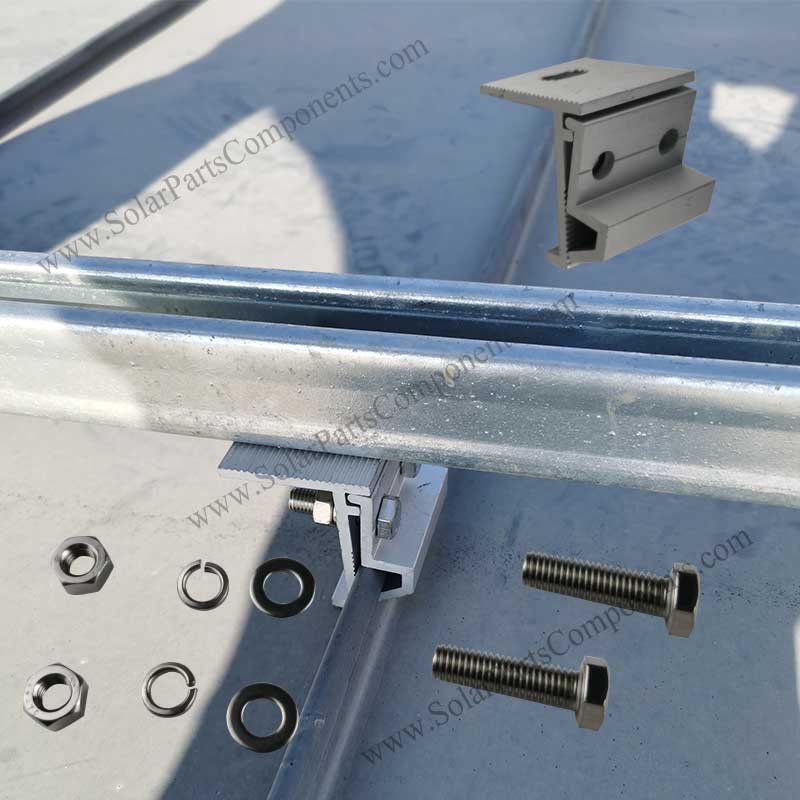

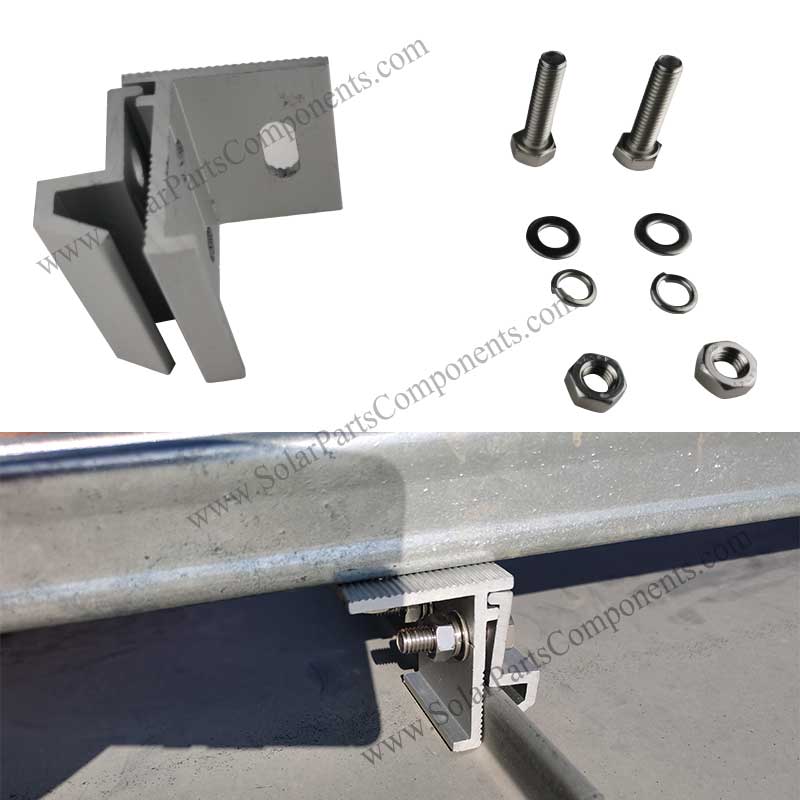

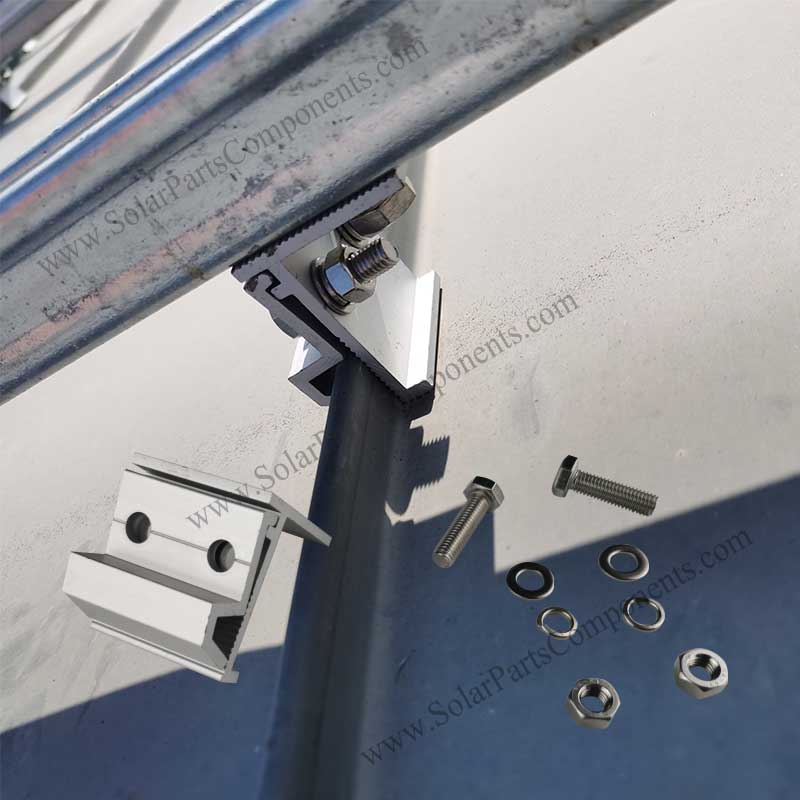

Metal roof solar clamps without drilling is an ideal solution for metal roof. The clamp clips on the crest of the standing seam roof, grasp tightly with the bolts and nuts, don’t need any drilling. It prevent the roof water leakage caused by drilling holes.
This metal roof clamps without drilling are made of high quality aluminum materials,high corrosion resistance. They are mounted to the crown of the roof profile and provides stable structure by connecting various mounting and rail systems.
Feature of solar panel metal roof clamps without drilling:
- Without drilling solution, leaking-avoid;
- Canquickly and easily be installed;
- Suitable for most standing seam metal roof;
- High corrosion resistance,durable and long life service;
- Reduce costs and save installation time;
- High pre-assembled.
It is important to choose the correct clamps for the specific roof type,our metal roof clamps are specially designed for each exact standing seam metal roof and roof profile to maximize the cost and holding strength ratios.
We are professional solar metal roof clamps manufacturer, provide a one-stop solution for metal roof solar mounting system with more than 10 years experience. Need more other types of metal roof clamps, please feel free to contact us: www.SolarPartsComponents.com
| Brief Descriptions: | |
| Solar Roof Mounting Bracket- Solar panel metal roof clamps | |
| Item type: | Metal roof solar clamps without drilling |
| Type: | Metal roof clamps without drilling |
| Installation Site: | Standing seam Rooftop |
| Profile Material: | Aluminum |
| Fasten Parts: | SUS304 Screws |
| Wind Load: | 60 m / s |
| Snow Load: | 1.4 KN / M2 |
| PV Modules: | Framed, Frameless |
| Module Orientation: | Portrait and Landscape |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag+inner box+Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
Solar panel Metal roof clamps for standing seam roof
Q:
Hi, I am looking for solar metal roof clamps for standing seam roof,without drill solution. My standing seam roof profile as below:
Metal roof clamps for standing seam roof
A:
Thank you for your inquiry on our standing seam roof solar mounting clamps.
Well understand your requirement. Please refer to our solar metal roof clamps without drilling.
solar panel metal roof clamp without drilling
Q:
That looks great, do you have in stock, send me 1000 set at first.
How about the price?
A:
Please check the Invoice, yes we have them in stock, they can be shipped in two days against payment.
solar panel metal roof clamp without drilling factory
Q:
Wire out, please arrange the shipment as soon as possible.
A:
Well received, thank you friend,the clamps will be shipped today. Will reach you around 5-7 work days later.
- Overview
-
Product Description:
The solar panel metal roof clamps without drilling is applied to standing seam metal roof solar mounting system. Suitable for both commercial and industrial solar project. It can be pre-assembled and directly fixed on the roof without any drilling, protect the roofing well. Super easy and fast to be installed, saving on site installation time.
Metal roof solar clamps without drilling is an ideal solution for metal roof. The clamp clips on the crest of the standing seam roof, grasp tightly with the bolts and nuts, don’t need any drilling. It prevent the roof water leakage caused by drilling holes.
This metal roof clamps without drilling are made of high quality aluminum materials,high corrosion resistance. They are mounted to the crown of the roof profile and provides stable structure by connecting various mounting and rail systems.
Feature of solar panel metal roof clamps without drilling:
- Without drilling solution, leaking-avoid;
- Canquickly and easily be installed;
- Suitable for most standing seam metal roof;
- High corrosion resistance,durable and long life service;
- Reduce costs and save installation time;
- High pre-assembled.
It is important to choose the correct clamps for the specific roof type,our metal roof clamps are specially designed for each exact standing seam metal roof and roof profile to maximize the cost and holding strength ratios.
We are professional solar metal roof clamps manufacturer, provide a one-stop solution for metal roof solar mounting system with more than 10 years experience. Need more other types of metal roof clamps, please feel free to contact us: www.SolarPartsComponents.com
- Specification
-
Brief Descriptions: Solar Roof Mounting Bracket- Solar panel metal roof clamps Item type: Metal roof solar clamps without drilling Type: Metal roof clamps without drilling Installation Site: Standing seam Rooftop Profile Material: Aluminum Fasten Parts: SUS304 Screws Wind Load: 60 m / s Snow Load: 1.4 KN / M2 PV Modules: Framed, Frameless Module Orientation: Portrait and Landscape Standards: AS/NZS 1170 DIN 1055 GB50009-2012 IBC2009 TUV JIS C 8955: 2011 International Building Code IBC 2009 California Building Code CBC 2010 Warranty 10 years Designed Lifespan 25 years Packing Details: Inner: Bubble bag+inner box+Carton Outer: Wooden Box, Steel Pallet, MDF, etc - Video
-
- FAQ
-
Solar panel Metal roof clamps for standing seam roof
Q:
Hi, I am looking for solar metal roof clamps for standing seam roof,without drill solution. My standing seam roof profile as below:
Metal roof clamps for standing seam roof
A:
Thank you for your inquiry on our standing seam roof solar mounting clamps.
Well understand your requirement. Please refer to our solar metal roof clamps without drilling.
solar panel metal roof clamp without drilling
Q:
That looks great, do you have in stock, send me 1000 set at first.
How about the price?
A:
Please check the Invoice, yes we have them in stock, they can be shipped in two days against payment.
solar panel metal roof clamp without drilling factory
Q:
Wire out, please arrange the shipment as soon as possible.
A:
Well received, thank you friend,the clamps will be shipped today. Will reach you around 5-7 work days later.
