PV Mounting Clamps for Trapezoid Metal Roofs
- Product Type: trapezoid metal roof clamps
- Product Model:SPC-CK-01
- Material: Aluminum
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Trapezoidal Metal Roofing Solar Panels Installation
This U shape aluminum extrusion clamp (SPC-CK-01) is designed for solar mounting installation for Trapezoidal type tin / metal roofing .
Our trapezoid metal roof panel clamp kits can save great cost for your solar roofing installation project, since they don't need whole
long aluminum rail columns, L foot bracket any longer . PV modules can directly fix on our U rail pieces .
The installing method: U rail clamp can be lay crossing over two / three ribs of metal roofs or U rail clamp can lay paralleled on each
trapezoid roofing rib (We call horizontal or vertical installation).
Specification & features of trapezoid metal roof attachment SPC-Metal-Roof-U-Clamp:
– Cost effective ;
– Waterproof for outdoor roofing application ;
– 6005-T5 aluminum made, anti-corrosion;
– Suitable for trapezoid / corrugated roofing type ;
– Fast installation ;
– Easy / fast to anchor brackets on flat / sloping roof frame ;
Our trapezoid Metal roofing bracket kit includes :
Additional components :
1) mid clamps ;
2) end clamps ;
3) grounding lugs;
4) cable clips;
5) grounding clips ;
Tailor-made solar panel mounting solutions can be offered by our project engineer whatever for trapezoidal and corrugated sheet
metal roofs .
More solar roof mounting solutions are available for our factory, 10 years up experience solar components supplier, good quality, competitive price. Welcome to purchase from us, more detail please feel free to visit our website: www.SolarPartsComponents.com.
|Brief Descriptions :
|Solar Mounting Components – trapezoid metal roof panel bracket SPC-IK-S04
|Mounting Constructure Parts
|Installation Site :
|Trapezoidal Metal / Tin Roofing
|Profile Material :
|Fasten Parts :
|Stainless Steel Bolts / Nuts
|Silvery or according to customer requirements
|Wind Load :
|60 m / s
|Snow Load :
|1.4 KN / M2
|PV Modules :
|Module Orientation :
|Portrait and Landscape
|JIS C 8955 : 2011
|International Building Code IBC 2009
|California Building Code CBC 2010
|Designed Life Span

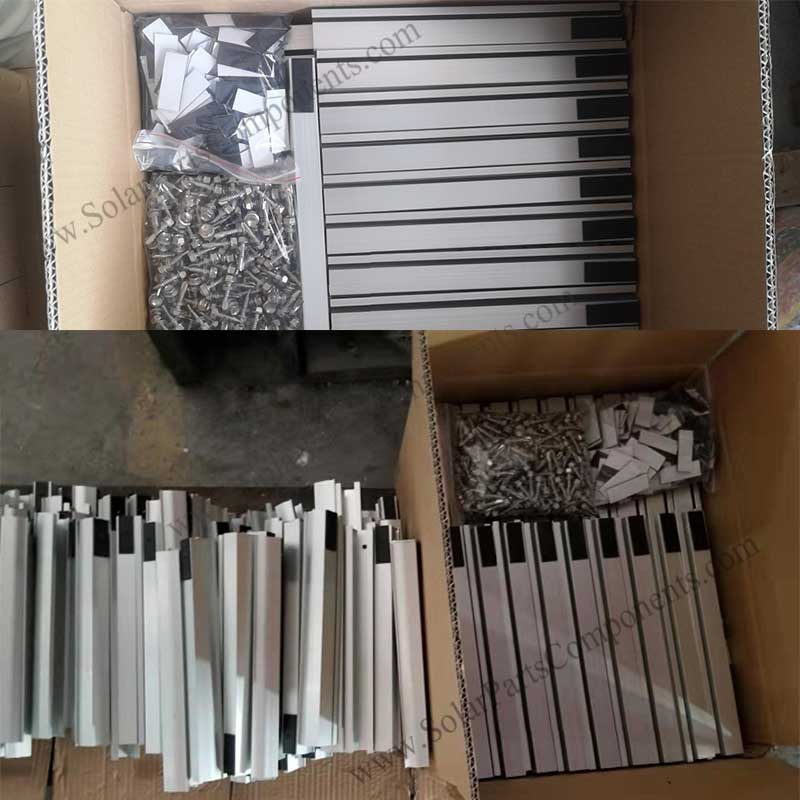

|Packing Details :
|Bubble bag+inner box+Carton
|Wooden Box, Steel Pallet, MDF, etc
Under what circumstances can Solar Trapezoid Metal Roof Rail Brackets be installed?
I would like to mount two 235watt panels to a corrugated roof.
I would also like to mount the panels without rails.
I would imagine I would need 6 of these to mount two panels.
Can you sell me that small a quantity?
This kind of clamp has some sizes.
Could you provide the drawing of the corrugated roof so that our engineers can match it?

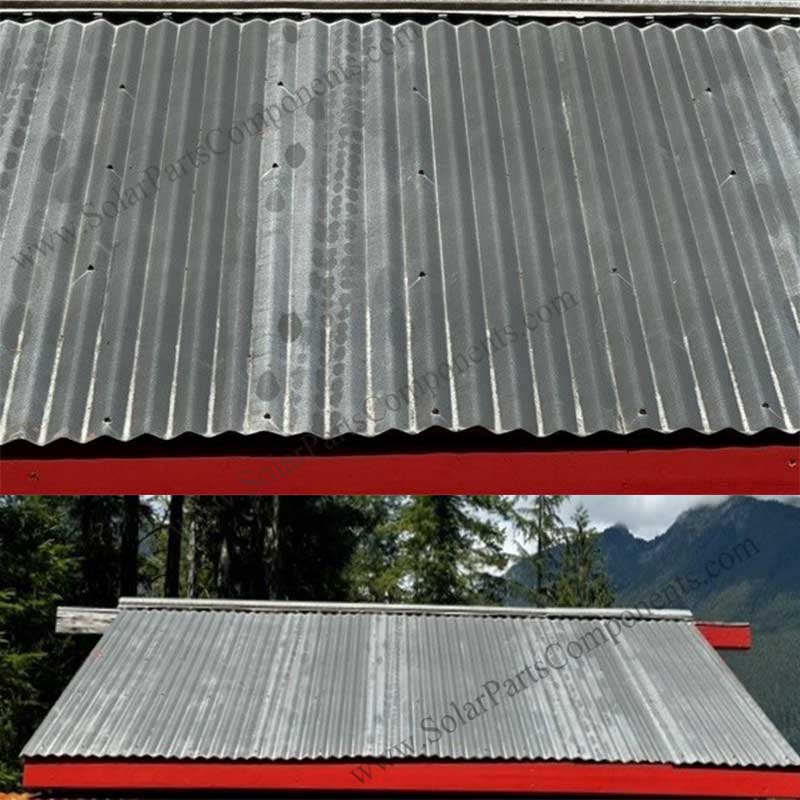

I've attached pictures.
The corrugate is glavanized steel.
The solar panels are Canadian and they are about 155 cm long.

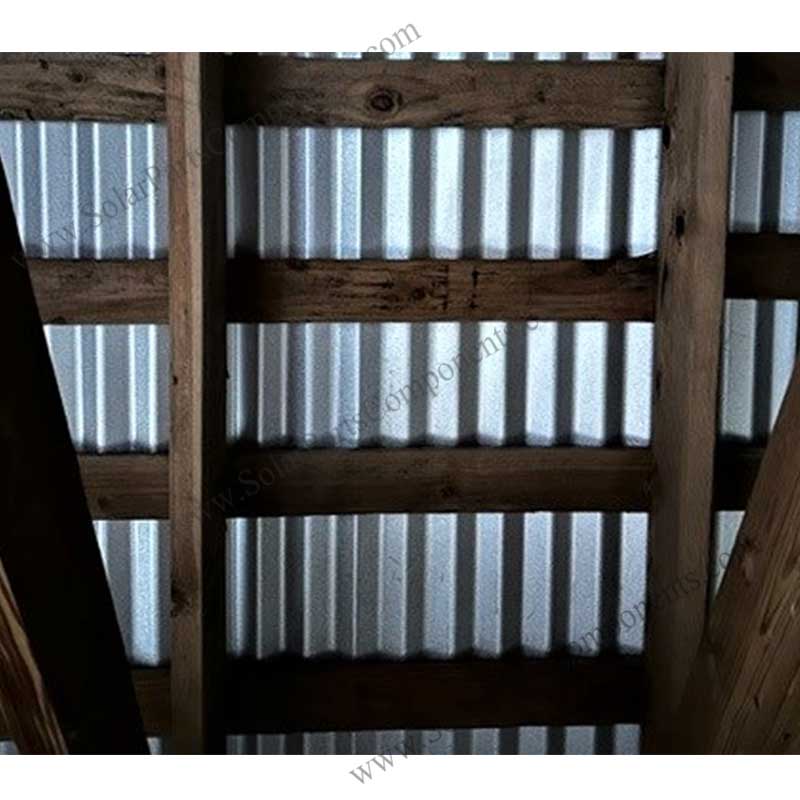

I include a picture of the inside of the roofing material.
I want to mount them next to each other on the metal roof oriented in the same that they are shown in the pictures.
Please let me know if I can answer any questions or send you more precise measurements.
According to the photos you provided, our engineers recomend the Solar Trapezoid Metal Roof Rail Brackets.
This looks great! Before I commit, can you show me an illustration of how my solar panels bolt onto the rails?
The installation method is simple, see the attachment for details.
Please refer the invoice.
Thank you very much.
What should you pay attention to when buying trapezoid metal roof panel clamp?
We are company from Poland, and we are very serious interested in possibility of purchase your products.
The first of all we are interested in your mounting mini rails purchase (trapezoid metal roof panel clamp kits ) designed for the metal roof solar mounting system.
We need the mini rails as the 30cm length. Please send us a clear technical drawings, with the all dimensions.
All other items are interesting for us too, but there are will be need for us later.
Please kindly inform us about possibility of cooperation with your company, and please inform us about the details such as below.
1.What kind of aluminium alloy is used for your products?
2.What of the time period is for warranty and for service life?
3.Can you send us any free sample for our acceptance?
4.What is the standard packaging for all elements separately?
5.What is the time of delivery?
6.What is the full purchase procedurę?
7.What kind of certificates do you have?
8.What are the payment terms?
9.What are the prices (CIF Hamburg – Germany ), and what discounts are possible?
10.What is the MQO for the trial order?
12.Are the epdm rubber pads used in your mini rails or not?
About the prices , please specify separately:
– for MQO and for the full sea container (20” and 40”)
Please inform us about the all questions in this matter.
Thank you for your inquiry, please see the attachment for more details.
Can this trapezoid metal roof panel clamp be used for our Tin roof mounting system?
Yes, our trapezoid metal roof panel bracket can be used for tin roof mounting system well.
We have a new project, the details as per the below.
PV module details: L=1.956m, W=0.992m, frame height= 40mm).
Tin roof mounting structure (1944 PV modules, 320Wp).
Roof top (minimum height is the lowest applicable, tilt angle: 10 degrees):
I need two options for the modules configuration: portrait & landscape, (1270 PV modules, 320Wp).
Design wind speed: 160km/hr.
Snow load: 1.2KN/m².
Materials shall be anodized Aluminum.
Warranty shall be at least ten years.
We found the model in your web Tin roof mounting system with U rail clamps maybe suitable for our application.
Senior Structural Design Engineer
Nice to recieve your new tin roof mounting project inquiry .
As per roof profile,
We recommend you using our Tin roof mounting system with U rail clamps for this job .
These U clamp can save rails and clamps , they can greatly save your mounting cost .
Please refer to following links for more details :
Tin roof mounting system with U rail clamps
We just export them to a Vietnam job which I send email to you.
Thank you !
Have a nice day.
Solar Parts Components Sales Team
Rail free solar metal roof clamp - U bracket
solar metal roof clamps U rail is very cost effective mounting solution for metal rooftops.
Tin Metal Roof Mounting Brackets Mounting Project with U clamp, 880 KW
More details kindly check >>>
Solar Trapezoid Metal Roof Rail Brackets - Mini U rail
This Solar Trapezoid Metal Roof Rail Brackets – Mini U rail is one of the most popular solution for trapezoid metal roof mounting system.Use this mini rail kit screw on the crown of the metal roofing, and attached the solar modules directly,then fasten by mid and end clamp. Easy and fast for installation, less components are needed, save both material cost and installation time.
Solar Trapezoid Metal Roof Mini rail kits manufacture factory, we provide more other turn-key solution for various types of metal roof solar mounting.Our regular length for this Mini U rail is 280mm, we also accept customzied size.
Welcome contact us for more details: www.solarpartscomponents.com
How to using this trapezoidal metal roofing brackets ?
More details kindly check >>>
Advantages of this rail-less sloped roof mounting clamp ?
Railless trapezoid metal roof panel clamp
I am looking at building ground mount PV system and want to find out
about pricing and shipping for item trapezoid metal roof panel clamp SPC-R001.
I need 6000 pcs at a minimum 8′ long. shipping to Keller, TX. I need other items but want to start with this.
Thank you for your inquiry on our trapezoid metal roof attachment SPC-R001.
Please refer to the attachment for the pricing for trapezoid metal roofing bracket.
