Solar Metal Roofing Installation – U Rail
- Product Type: Solar Panel Mounting Structure
- Product Model: SPC-RF-CK01-UR
- Material: Aluminium, SUS 304 Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Vertical or Horizontal
- Application: Tin / Metal Roof Top
Product Description :
This solar metal roofing mounting system with U-shape aluminum rails can be very cost-effective and lower down installation cost
for your PV module plant .
Our U Rail mounting structures are designed for Trapezoid / Tin / Metal roofs .

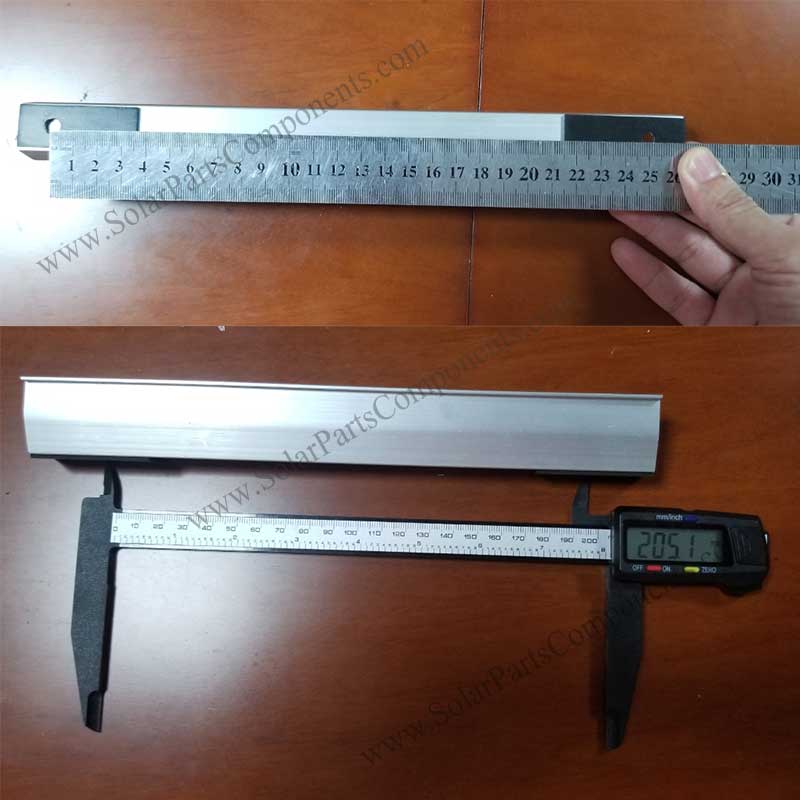

Our U shape rail can be cut in any length according to rib distances : 2 / 4 / 5 / 8 ribs …
U tray rails can mount frame / glass thin film PV modules well with our matched mid / end clamps .
Without continuous rail extrusion, save cost for mounting on trapezoidal metal sheets ;
Advantages & Features for this Tin Metal Roof Mounting System :
(1) Suitable for any trapezoid roof mounting configuration ;

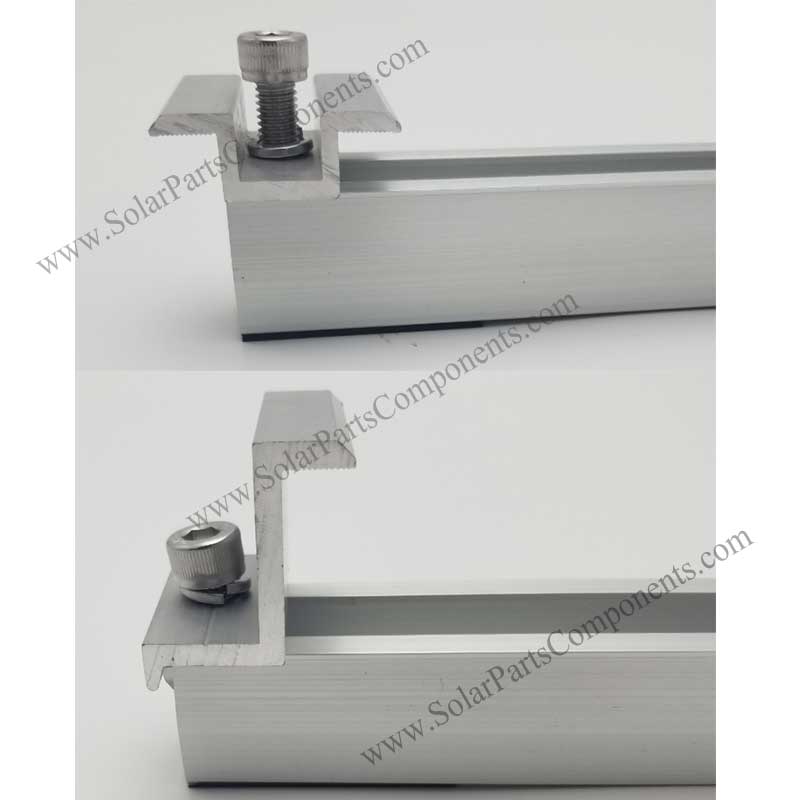

(2) U rail fasten clamp make your solar panel mounting on metal roofing a simple & easy-to-use solution ;
(3) Pre-assembling service available ;
(4) Clamp colors can be silvery / black ;
(5) One-Stop-Shop for your metal roofing PV mounting ;
(6) Anti-corrosion, waterproof structure ;
(7) No welding / cutting required ;

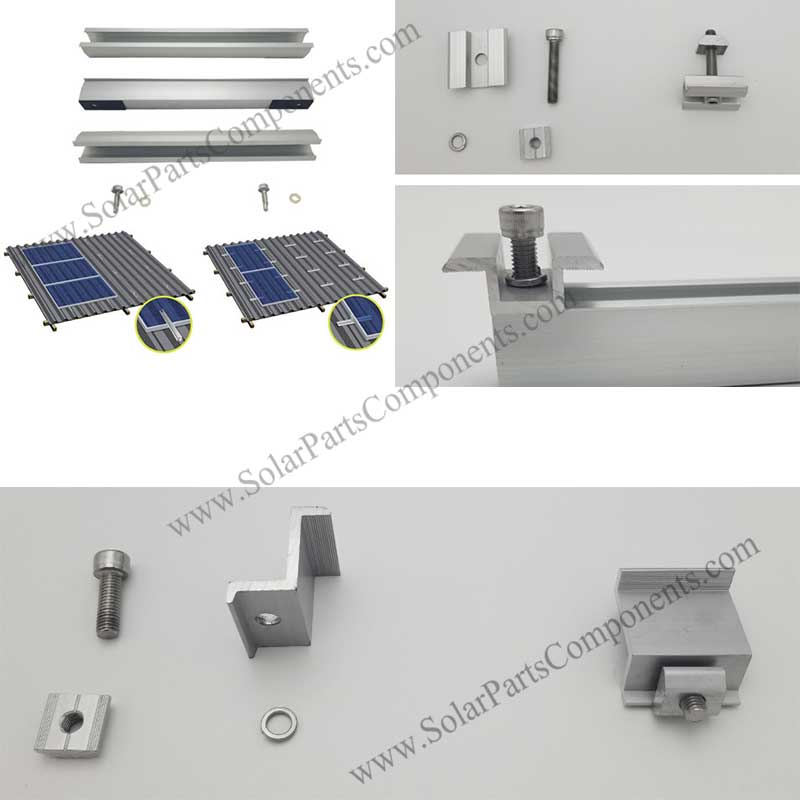

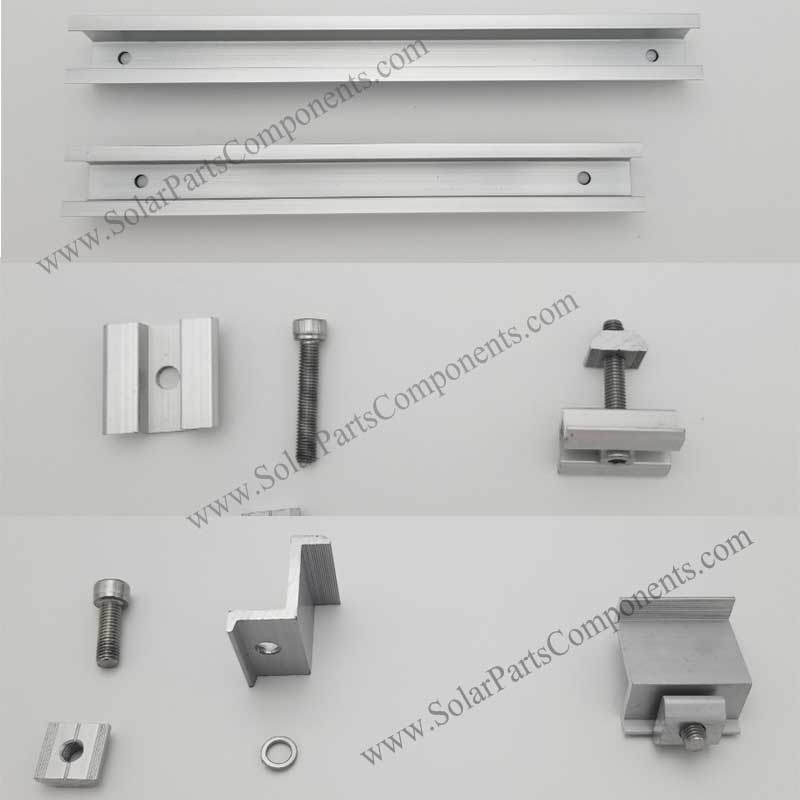

Parts and Components for this solar panel metal roofing rack mounting – U Rail :

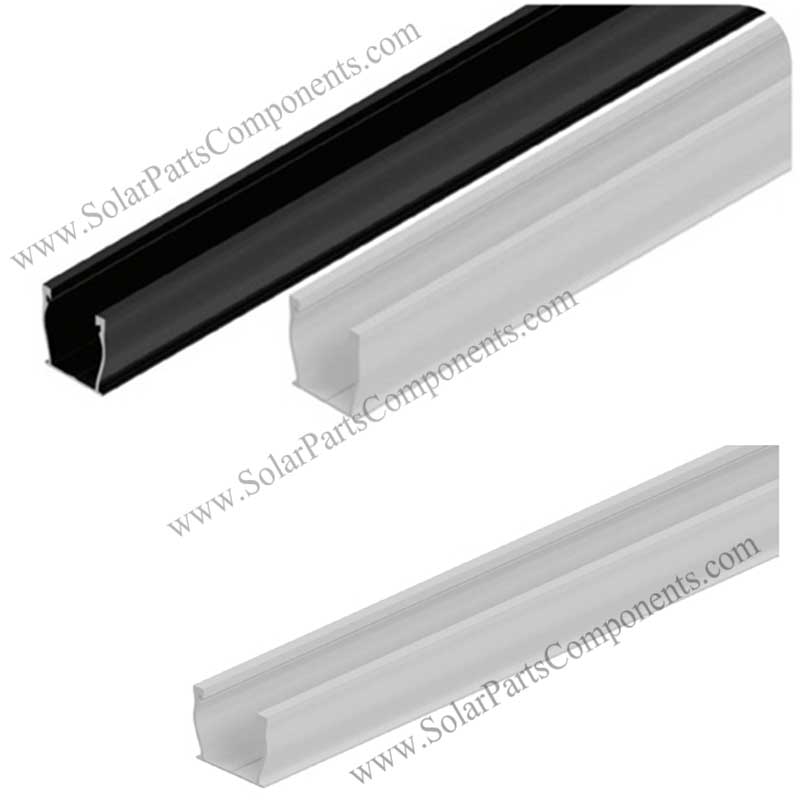

U-shape mounting rail ;
EPDM rubber pads;
middle clamp;
end clamp;
SUS 304 screws;
Install the solar modules according to the metal roofing panel mounting solution drawings and manual book :
| Brief Descriptions : | |
| U aluminum rail mounting systems for metal roofing top solar panel installation | |
| Item type: | Trapezoid Metal Roofing Mounting Systems |
| Technical Parameters : | |
| Type : | Tin Solar Panel Mounting Structure (SPC-RF-CK01-UR) |
| Installation Site : | Tin Trapezoid Metal roofs |
| Installation Angle : | 10° ~ 60° |
| Profile Material : | AL 6005 – T5 ( Anodized ) |
| Fasten Parts : | SUS 304 / A2-70 Stainless Steel |
| Small Components : | AL & Stainless Steel |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 60 m / s ( 130 mph ) |
| Snow Load : | 1.4 KN / M2 ( 30 psf ) |
| PV Modules : | Frame, Frameless |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
