Solar panel ground racking for slant places, SPC-GA-4H-W-EW-SN

Solar Slope Ground Mounts

Product Type: Ground Mounting Systems for Slope
Product Model:SPC-GA-4H-W-EW-SN
Material: Aluminium, Steel
Max Wind Load : 60 m/s
Max Snow Load : 1.4 KN / M ²
Solar Module Orientation: Portait or Landscape
Application: Ground

Contact by Email

PV Panel Mounting Systems for Slope Ground

PV module ground racking for slant places

Product Description:

Solar ground mounts for sloping terrain are using adjustable joints for angle adjustment.

Slant ground places are very common for outdoor area, this solar panel ground racking system can be used for tilting direction.

Features of this solar ground mounts for sloping terrain, SPC-GA-4H-W-EW-SN:

1. Anti-corrosive with anodized aluminum material;
2. 25 years’ duration;
3. No need to level land;
3. Adjustable tilt angle for ground mount racking;
4. Application: sloping hillside, ground places;

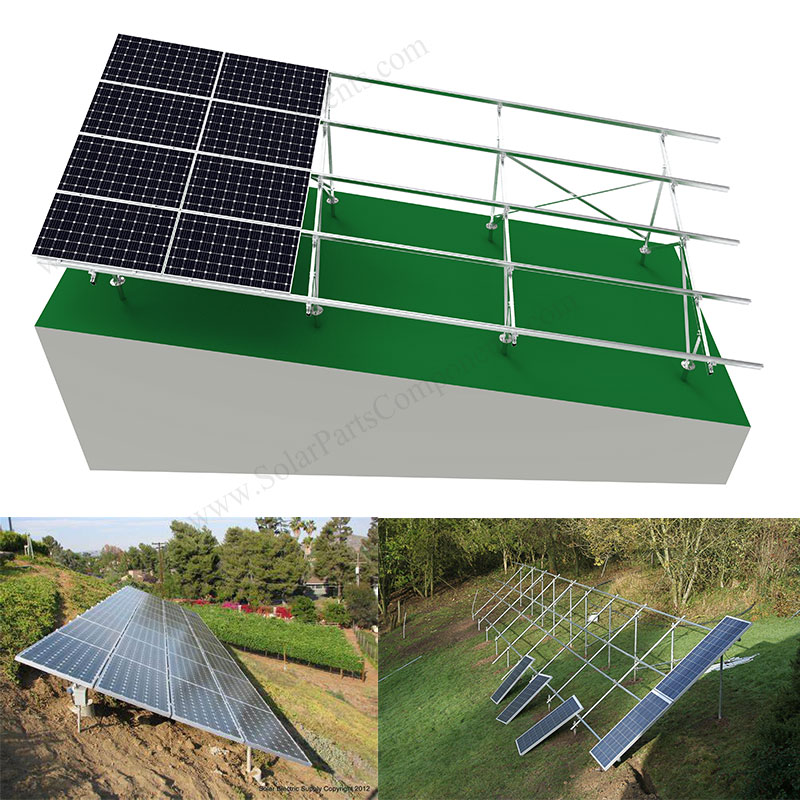

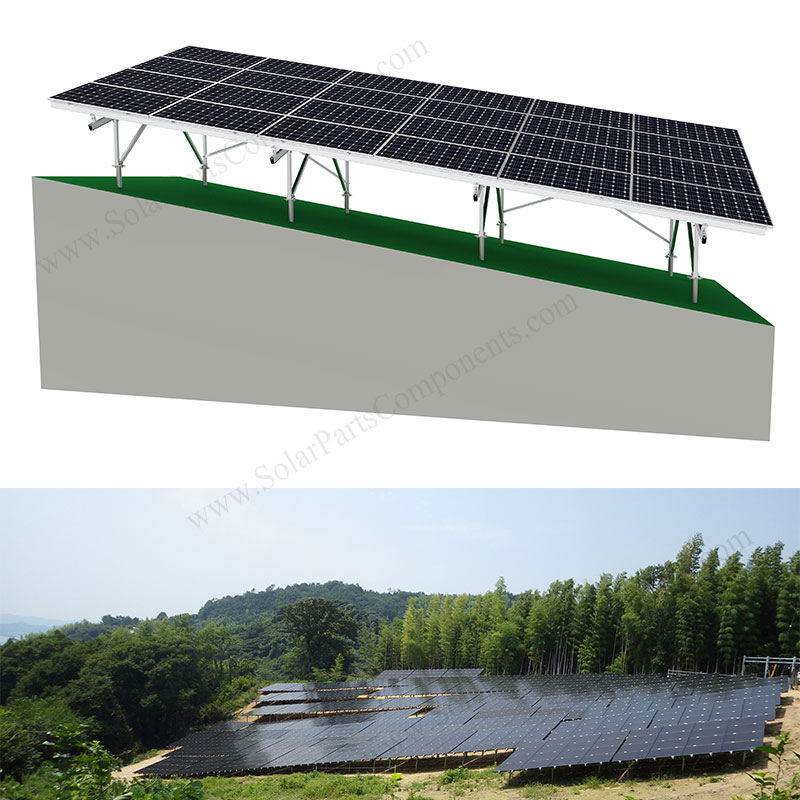

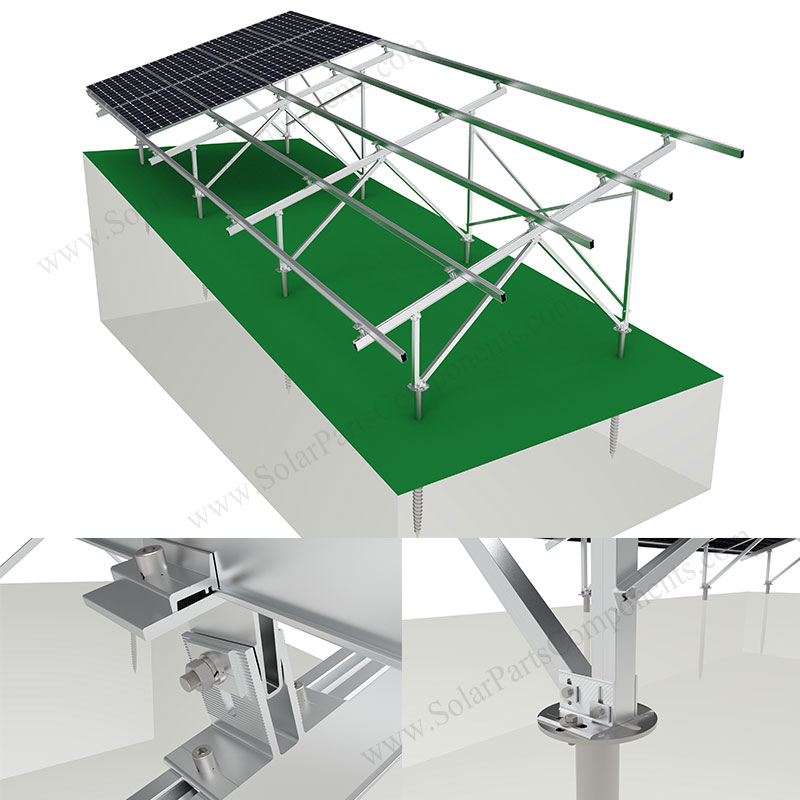

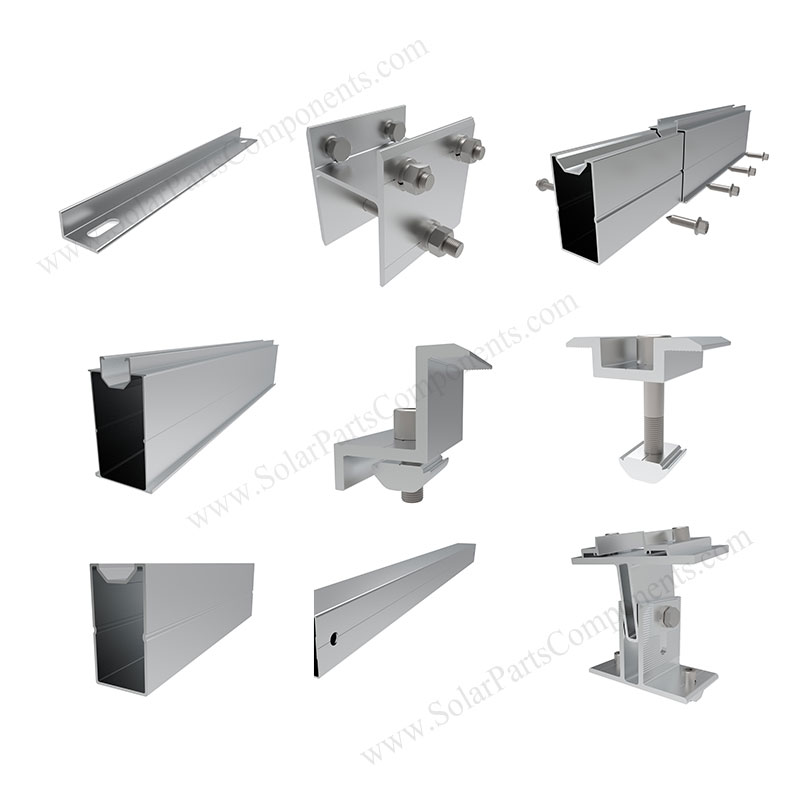

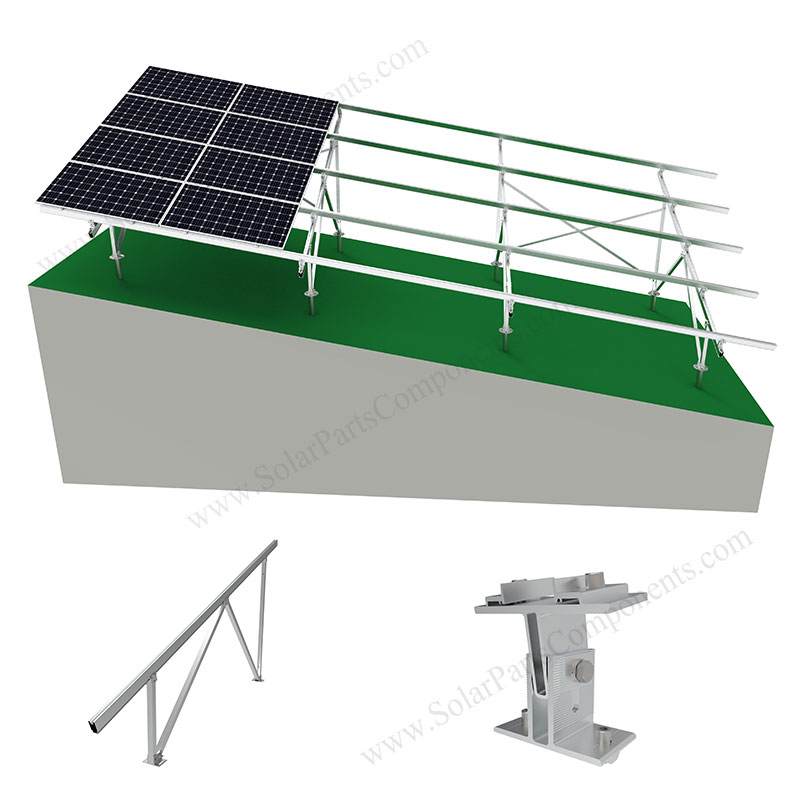

Parts and Components of solar panel ground racking for slant places, SPC-GA-4H-W-EW-SN:

– Horizontal aluminum rails;
– Lock clamps;
– Ground screw pipes;
– Support rod;
– Adapter;
– Mid / end clamps;

Simple and quick installation steps of PV mounting for slope ground:

(1) Install ground screws;
(2) Fix pre-assembled support beam on ground screws;
(3) Install revolving connectors and rails;
(4) Fasten pv module with inter and end clamps;

Welcome to choose SPC solar with reliable / good quality control / full support services for this PV mounting for slope ground.

Brief Descriptions:
Solar Panel Ground Mounting Systems for Slope Terrain
Item type:	Solar Ground Racking Structure
Type:	SPC-GA-4H-W-EW-SN
Installation Site:	Open Terrain
Profile Material:	Aluminum Alloy
Fasten Parts:	Anodized aluminum 6005 T5, stainless steel, Hot dipped galvanize steel
Color:	Silvery
Wind Load:	60 m / s
Snow Load:	1.4 KN / M²
PV Modules:	Framed, Unframed
Module Orientation:	Portrait and Landscape
Standards:	AS/NZS 1170
	DIN 1055
	GB50009-2012
	IBC2009
	TUV
	JIS C 8955: 2011
	International Building Code IBC 2009
	California Building Code CBC 2010
Warranty	10 years
Designed Lifespan	25 years
Packing Details:
Inner:	Bubble bag+inner box+Carton
Outer:	Wooden Box, Steel Pallet, MDF, etc

Ground Mounting Systems for Slope

Could you please communicate to me your detailed for slope grounds mounting accessories ??

Hello

Thanks for your offer of collaboration

Could you please communicate to me your pricelist for slope grounds mounting accessories ?

It would also be nice to have your catalogue of best-selling items.

Hello Karem,

Thanks for your email.

Yes ， our Solar Slope Ground Mounts is suitable for slope concrete roof or slope land solar PV projects, with strong wind load and snow load resistance. The system can achieve minor adjustment onsite with special design of Anchor Plate to adapt to different sites. The system can be adjusted from east-west and south-north direction with special connector design and attached our files are for your reference.

Slope Ground Mounting

Features

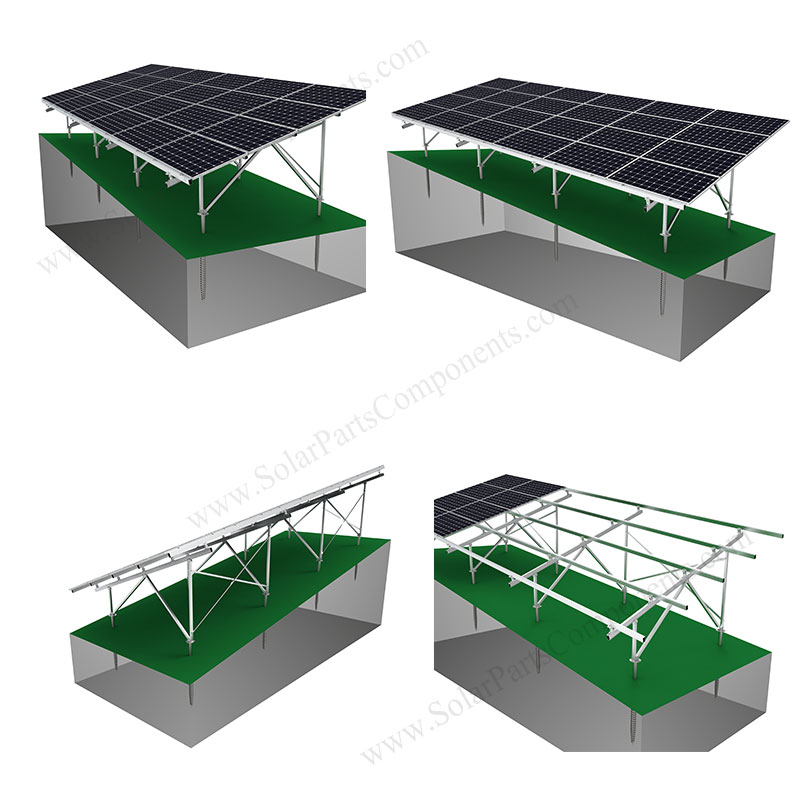

◆ Flexibility and Adjustability

The structure can be adjusted from east-west and south-north with special connector and with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.

◆ Foundations Match

Suitable for ground screw piles, concrete foundation and steel foundation.

We can support samples, any question, please feel free contact me.

Best regards,

How can we get the Slope Ground mounting system?

Dear Sir/Madam,

I am looking for a solar mount system for my 30-degree slope. How can we get the Slope Ground mounting system?I want to mount my panels to 45 degrees, so that’s 15 degrees from the slope surface.

The panels are 72 x Yingli YLM-J108, which are 1722 x 1134 x 30 mm.

There are to be two arrays: Portrait 2 x 9 panels x 4 arrays; or

Landscape 3 x 6 x 4; or even Landscape (4 x 4 + 4 x 5)x2 sets.

The wind load rating has to be 50 m/s, with minimal snow load.

I am hoping for the lowest possible ground clearance at the low end.

I would like to use ground screws but could consider rammed 76mm pipe.

I note you claim ASNZS1170.2 standard. Any certification?

I can accept delivery in Hong Kong (I have businesses there) but prefer

direct shipment to New Zealand. I can arrange shipping and install. I

assume you not have a NZ agent.

Please let me know your solution/quotation.

Regards,

Malcolm I’Anson

Dear Malcolm,

Thanks for your enquiry.

For the Slope Ground mounting system

Slope solar Ground system

We can support any array for the Slope Ground mounting system and this is a customized system, we can provide design and quotation according to your specific project.
Is your slope like this 15 degrees? Do you have a specific picture or drawing of the location? If we can clearly know the information of your installation site, we can provide you with better design solutions.

Is the total amount of this project 72pcs solar panel? Or is this just one of the arrays? For this type of system, it is usually used together with ground screws. If ground screw is used as the foundation, how deep do you plan to bury the ground screw in the soil?
Our bracket was widely used in Japan before, and it was designed according to the wind speed standard of ASNZS1170.2 standard and also can support Strength calculation report.

Finally, we can support whether the goods are sent to Hong Kong or New Zealand. We do not have an NZ agent yet, and we are actually looking for a partner in New Zealand. You can provide your port in New Zealand and we can check the shipping costs in Hong Kong and New Zealand for you.

Looking forward to further discussion.

Dear Doria,

Thanks for your email.

The slope is 30 degrees .
I want to incline the panels to 45 degrees, so that means 15 degrees relative to the 30 degree slope.
The slope is running north-south (not east-west).
72panels in total, split into two arrays, probably portrait 2 x 9x4each but could be landscape 3 x 6×4 each. 4 x 5 + 4 x 4-2sets could also be considered.
Ground screws probably 1600mm. The ground conditions are poor (uncontrolled fill) on top of glacial till. The till starts around 1 to 2.5 metres (TBC by test screws).
It’s a Very High Wind zone, so we’re expecting ground screws at about 1.25m centres.

There is a shortage of ground mounting systems for slopes, so there is a potential market in New Zealand which I may be interested to pursue in conjunction with installers if you have a solution for my current Slope Ground mounting system project.

Regards,

Malcolm I’Anson

Dear Malcolm,

Thanks for your reply.

For the Slope Ground mounting system, this is a customized system, we do not have inventory, and all are produced according to the order. Because your project only has 72pcs panels, we can only deal with it according to the sample. If it is a sample, it will cost about 0.2-0.25 $/w based on EXW Xiamen. Do you think this price is OK? If you think it is OK, please let me know, we will provide you with specific design and quotation.

Any question, please feel free contact me.

Dear Doria,

Thank you for writing.

Do you mean 0.25 x 72 x 415w? That would be US$7470, which is acceptable to me.

Regards,

Malcolm

Dear Malcolm,

In terms of scientific computing, your algorithm is correct. Please note this is the estimated average price per watt, which is subject to the specific design and quotation. Our engineers are designing, and I will quote for you and send you the information after the Slope Ground mounting system design is completed.

Dear Malcolm,

Please find attached quotation and design drawing for the Slope Ground mounting system project.

Slope Ground mounting design

Please note that the quotation is based on CIF Hong Kong, the inclination angle of the slope from south to north is 30 degrees, and the valid time is 7 days as bigger fluctuations in the cost of raw materials recently.

The following Hong Kong destination port charges are for your reference

CFS HKD220/RT

H/F HKD350/BL

DOC HKD680/BL

PCS USD10/CBM

GATE CHARGE: HKD780/BL

RELOANDING SHIPMENT： RELOADING FEE+GATE CHARGE: HKD780/BL

I also checked the shipping cost of the destination port of CHRISTCHURCH in New Zealand. If it is CIF Xiamen to CHRISTCHURCH, the CIF freight is about 640$

The following CHRISTCHURCH destination port charges are also for your reference

PORT SERVICE:NZD160W/M

DELIVERY ORDER:NZD100/BL

CAF:USD20W/M

PCS:USD10W/M

In the quotation, I only filled in the cost of CIF Hong Kong. We can support the above two ports.

You can choose and arrange according to your project, please let me know if you are sure which port.

Any questions, please feel free contact me.

Dear Doria,

Your quotation is acceptable.

Please provide your Strength calculation report you indicated you would provide.

If there is no problem, we will place the order next week.

Regards,

Malcolm

Looking for 100 KW solar slope ground racking system

Client:

Is it possible forr you to give i price for a 100kw ground mounting system. 250 solar panels. Monted in a slopy hillside.

Delivered in Norway.

Following is more info about this 100kw slope ground mount project:

(1)Information of your PV panels:

Dimension: 1754 mm Length x1054mm Width x30_mm Thickness,

Array: 50 Nos. in a row x 1 Nos. in a column;

Layout: Vertical

(2) How is weather there,such as wind speed and snow load?

<30 m/s anti-wind speed and 4,5 KN/m2 snow load.

(3) Ground slope angel & Mounting Tilt Angle 0-15 degrees ground. 22degres tilt angle

(4) Ground Clearance 1,5m

(5) Type of the ground:Clay/Sandy soil/Soft Rock… Soft rock

(6) Our company Name/website/address: ACS Sør AS ACS.as

Best regards
Henning Garathun-Kristiansen
Daglig leder+47 930 61 651
Nettside | E-post | Facebook

ACS Sør AS
Seljeveien 5
4580 LYNGDAL

Answer:

Dear Henning

Thank you for your inquiry for 100kw ground mounting system.

We devoted to manufacturing good quality solar panel mounting kits, accessories and more …

Our products covering solar panel mounting systems for roof / ground / carport … solar mounting hooks and brackets, solar lighting etc

Please refer to our initial design for your 100kW ground mounting system according your info.

Solar Panel Mounting Systems for Slope Ground

If need any modification please let us know.

Thank you and have a nice day!

SPC ground mounting factory

Client:

Does this work gound rock / mountain? It looks like earth screws.

We need to drill into rock.

If no, Thats OK. We can make a anchor.

Best regards
Henning Garathun-Kristiansen

Answer:

Hi Mr. Henning

Base on current requirements, you can take care of anchor by yourself.

the factory price without anchor and updated design as file attached.

Ground Mounting Systems for Slope

as well as BOM details for this 100 KW ground solar panel mounts for slope:

Solar Slope Ground Mounts BOM

We also offer freight to OSLO (Oslo, Norway) for your reference.

Solar Slope Ground Mounting Factory

What is a ground mount solar system for Slope ?

A ground mount solar system for Slope can be installed on uneven, hilly sites with relative ease

Arrays can be installed on slight, steady grades with posts deeper into the ground following the contour of the land. In some cases, due to the incline, the posts will appear the same length. Our company has the Solar Slope Ground Mounting System solutions for undulating terrain.

Our Solar Slope Ground Mounting System is a crowd favorite. Here is one case of the Solar Slope Ground Mounting System from our client:
