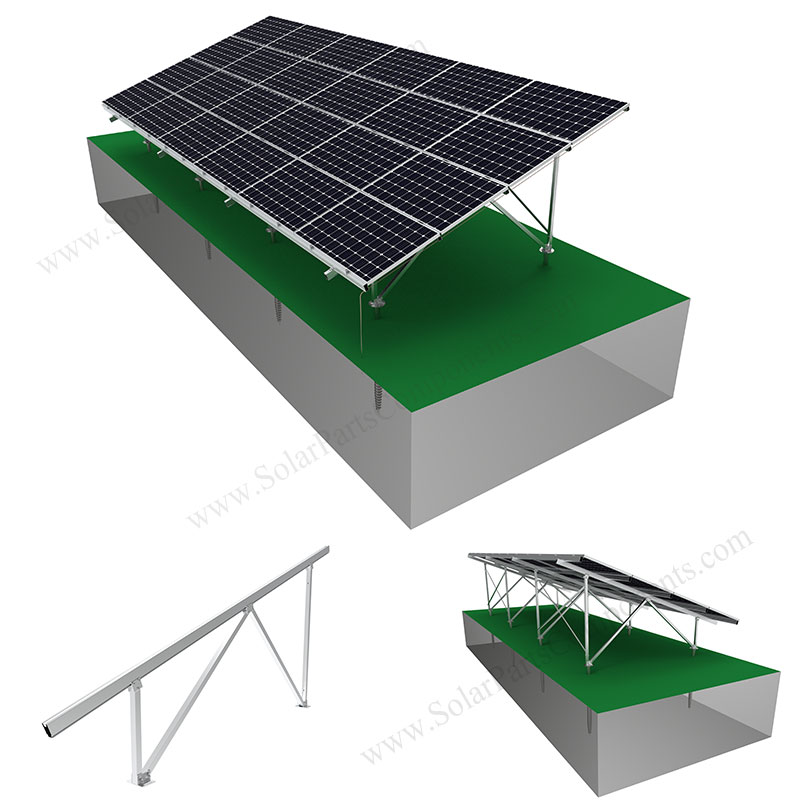

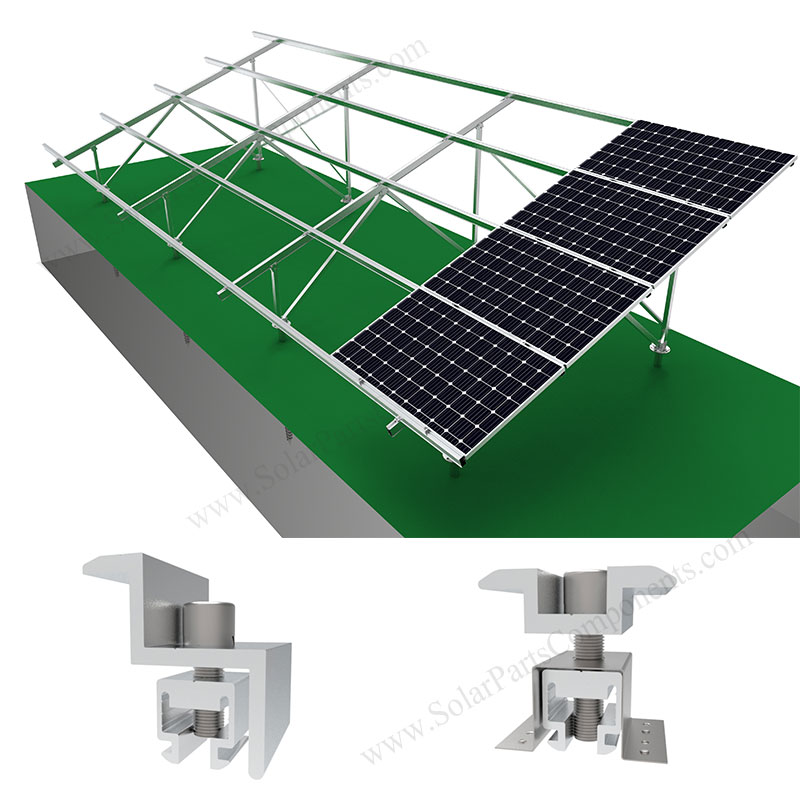

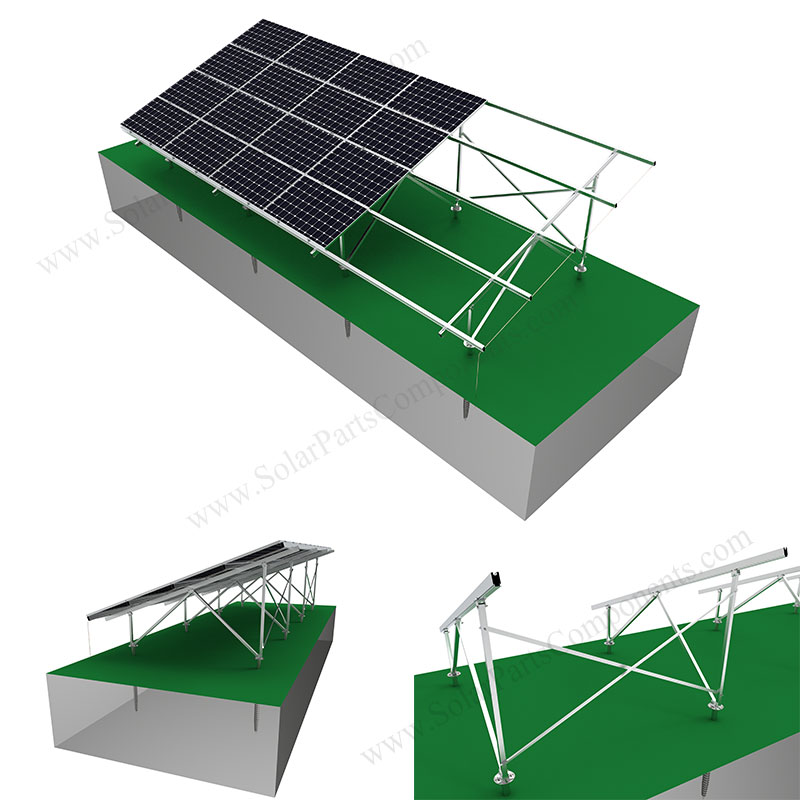

PV Ground Racks
- Product Type: Ground Mounting Structure
- Product Model: SPC-GA20-4H-CW
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Landscape / Horizontal
- Application: Ground
Product Description:
Solar panel ground mount racks are one of the basic structures of solar panels. According to the required materials and different wind and snow loads, we can choose different brackets for installation, and the best effect has been achieved. The solar ground mounting bracket is sturdy, durable, high-strength, and innovatively designed to use the bracket as a support.
The ground-mounted solar panel system is a photovoltaic installation system for ground applications. It provides many reasonable solutions for the ground-mounted system. It is a reliable choice for ground-mounted residential and commercial solar panel systems. We can install the solar panels in the best position under direct sunlight, and have flexible adjustment angles to maximize solar energy output.
The ground mount solar panel racks are important part of the solar installation system, which fixes the solar panel on the ground. The ground installation system is a reliable, comprehensive and feature-rich solar panel installation system. The installation system is fixed by high-quality brackets, including all components that support almost all ground installations.
Feature of ground mount solar panel racks, model SPC-GA20-4H-CW:
- High-quality components can improve corrosion resistance, strength and strength;
- Economical and practical installation, long service life;
- After pre-design and testing, to meet the installation requirements;
- Easy installation, low cost, suitable for almost all ground installation structures;
- Optimized the performance of wind and snow load resistance, can withstand greater pressure;
Solar panel ground mounting racks are designed for rapid installation and provide a safe and efficient installation structure for photovoltaic modules. The design of the bracket reduces the number of additional supports and simplifies the assembly process. The use of high-strength materials and corrosion-resistant hardware can ensure long-term practicality.
We provide a wide range of professional services, coupled with our good quality and affordable prices, to ensure that our installation system is durable. It also provides a complete engineering support system for the solar installation system, including installation instructions to help you complete each step of the installation. If you have any needs, please feel free to contact us: www.solarpartscomponents.com.
| Brief Descriptions: | |
| Solar Panel Ground Mounting Racks, SPC-GA20-4H-CW | |
| Item type: | PV Panel Ground Mounts |
| Type: | SPC-GA20-4H-CW |
| Installation Site: | Flat Ground |
| Profile Material: | Aluminum alloy 6005-T5 |
| Fasten Parts: | Stainless Steel |
| Color: | Silvery |
| Wind Load: | 60 m / s |
| Snow Load: | 1.4 KN / M2 |
| PV Modules: | Framed, Frameless |
| Module Orientation: | Landscape / Portrait |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag+inner box+Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
Manual book for groud mounts SPC-GA20-4H-CW
What is a suitable area for a Ground mount Solar system?
This Ground mount Solar system is a modular system for mounting large PV arrays in open areas. Made with high quality components, it allows easy to erect economical systems with long lifetimes. Ideal for small to medium sized PV plants where the cost of pile-driven supports is prohibitive or not possible.
ground mount solar system
Designed to maximise wind & snow loading whilst keeping costs to a minimum a complete structural analysis and design for the mounting system is provided upon receipt of details of installation site & location.

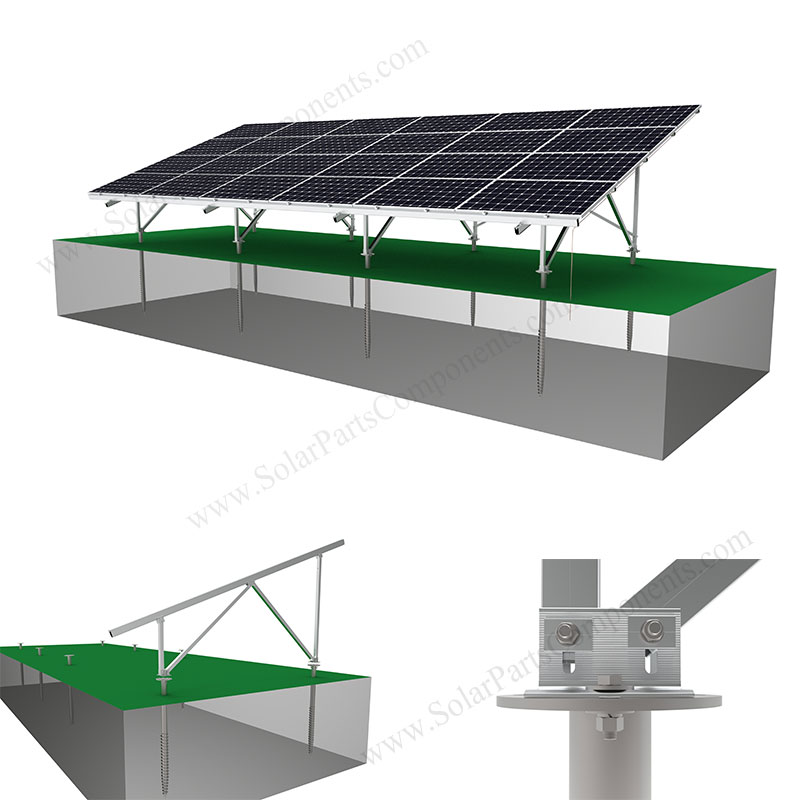

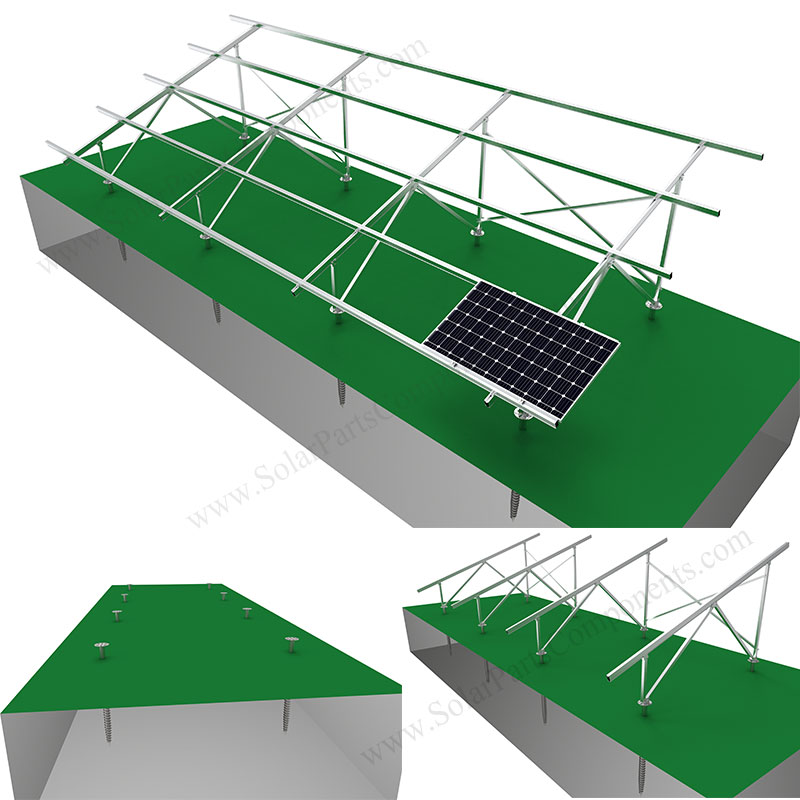

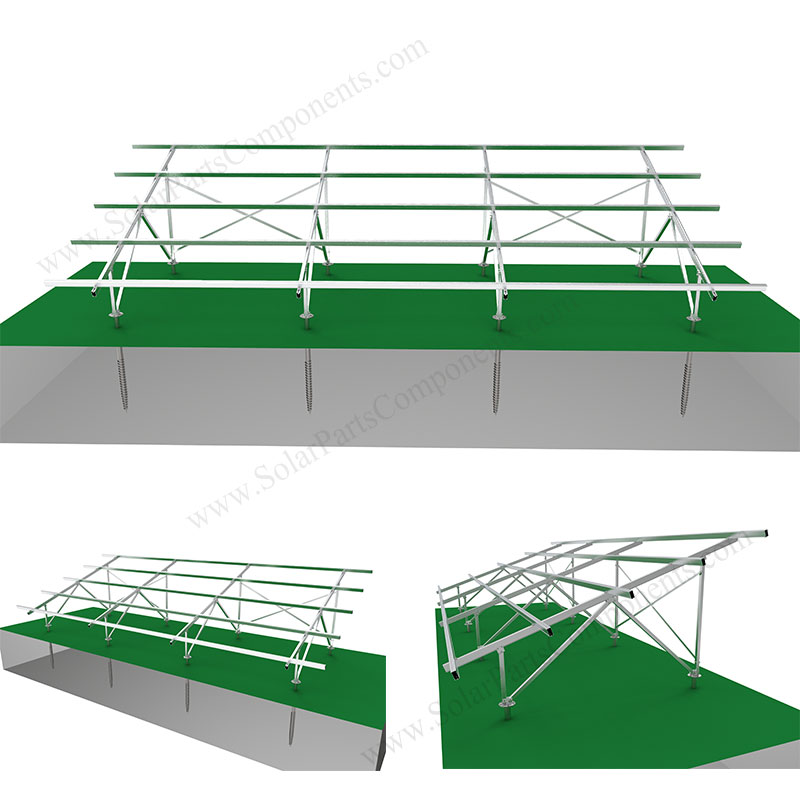

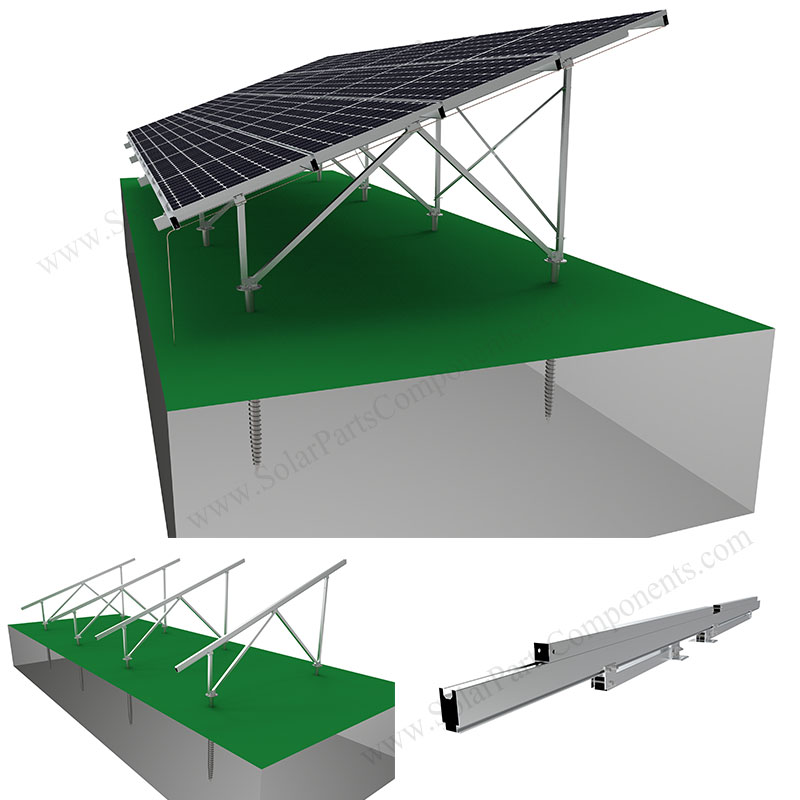

The Ground mount Solar system usually concrete strip foundations are used that can consist either of pre-cast concrete blocks or can be made on site. Other foundations are possible such as piles or screw in foundations depending upon ground conditions.
Solar ground mount foundations
Could you offer ground mount solar panel racks aluminum with ground screws?
Hello,
I am interested in your aluminium ground mount with ground screws for
my plant of 80 kWp. First of all, could you please describe me the full
manufacturing process in order to understand how the structure is
produced? Additionally, is the raw material virgin or recycled?
The ground mount structure is for my home solar system. I have 200 panels (size 1690x1046x40mm) and I think a good tilt angle is 30°.
Wind speed and snow load conditions are not extreme. Ground clearance can be considered of 500mm.
My nearest seaport is FOS port, France.
At the moment, I am going to buy for my household system,
but in the future I could imagine to buy PV panels and ground mount structure also for my company.
I am available for any further information.
Thank you and best regards,
Luca Benini
Dear Luca
Sure, we could offfer 80KW solar mounting kit,
The design and price offer is sent by email.
Thank you !
Best regards,
Ground mount solar panel racks aluminum manufacturer
