BIPV solar waterproof aluminum carport structure
- Product Type: BIPV solar waterproof aluminum carport
- Product Model: SPC-BIPVWAC
- Material: Aluminum alloy, ZAM275
- Max Wind Load : 60 m/s
- Max Snow Load : 3.6 KN / M 2
- Solar Module Orientation: Landscape / Horizontal
- Application: Unframed / Bifacial / Frameless modules
BIPV CARPORT Details:
This BIPV solar waterproof aluminum carport system is designed with high-strength aluminum alloy to ensure its safety while providing easy installation and beautiful appearance. The special structural design maximizes the space. Two cars are used as a unit or freely combined according to requirements. Waterproof design, 10-year warranty.
Advantages of our BIPV solar waterproof aluminum carport system :
- Highly pre-assembled to ensure easy installation and reduce labor costs
- The height and angle can be adjusted within a certain range
- Light material, easy to transport and install
- The layout of the system can be
Adjust according to the actual situation on site
Welcome to contact us anytime, our company website: www.solarpartscomponents.com
| Datasheet | |
| Description: | |
| BIPV double support steel waterproof carport | |
| NO.： | SPC-BIPVWAC |
| Product Type: | BIPV solar waterproof aluminum carport |
| Installation location: | open area |
| Installation angle: | 5-15 degrees |
| Material : | Al6005-T5 |
| Module: | Frame or Frame less solar Module |
| Warranty: | 10 Years |
| Lifetime: | 25Years |
| Orientation： | Landscape,Portrait |
| Wind speed： | 60 M/s |
| Snow load： | 3.6 KN / M2 |
| Height; | Above 2m |
| Standard: | AS/NZS1170 & DIN 1055 |
Inquiry for our waterproof solar carport for Household and commercial project
Good Afternoon,
Found your website want info on pv solar carport, I’m in Florida carport would need engineering, looking at a 12 kw system bi facial array like the looks of frameless panel, 125 mph hurricane wind zone, delivery to 32112 zip code.Include lead time and shipping time in quote.
aluminum solar carport project
We are working on a commercial project in Victorville, Ca, and are in need of solar carport framing. We have 2 carport structures needed approximately 43 ft by 100 ft and 20 ft by 100 ft. I have the plans to the project if needed. I am looking for pricing and lead times if this is something you can do. Thank you!
-Lana
How to install waterproof solar carport mounting structures
The installation of waterproof solar carport brackets mainly includes the following steps:
Preparation materials: Select appropriate waterproof pv mounting support materials, such as stainless steel, aluminum alloy, etc., based on the size and shape of the carport. At the same time, prepare corresponding waterproof materials, such as waterproof structure, waterproof coatings, etc.
Basic treatment: Clean the surface of the garage foundation to ensure that it is flat, clean, and free of impurities such as oil and dust. If there are dents or unevenness, repair or leveling is required.
waterproof solar carport installation
Installation bracket: Install the solar carport mounting bracket on the column or wall of the car shed according to the design drawings. Ensure that the bracket is securely installed and does not shake. For different types of brackets, the installation method may vary and needs to be installed according to specific requirements.
Laying waterproof structure: After the installation of the bracket is completed, start laying the waterproof structure parts. Fix the waterproof structure parts on the bracket according to the design requirements.
Install the roof: According to the design requirements, install the roof on the bracket. Ensure that the roof is firmly connected to the bracket and there is no shaking. Meanwhile, check if the roof is flat.
Acceptance inspection: After installation is completed, conduct a comprehensive inspection. Check if the bracket is firm and free from shaking; Whether the waterproof membrane is flat and leak free; Is the roof firm and free from shaking. If there are any problems, handle them in a timely manner to ensure the waterproof effect and safe use of the car shed.
waterproof solar carport
It should be noted that the installation of waterproof car shed solar panel brackets involves aspects such as building structure and waterproofing engineering, and needs to be completed by professional installation personnel. During the installation process, relevant safety regulations and operational requirements must be followed to ensure construction safety and quality.
Waterproof solar carport for car paking
Solar carport is a solution including aluminum structure and aluminum rails and aluminum fastener. With great flexibility ,the solar carport can be applicated for both commercial and residential areas. We have waterproof and non-waterproof for you, they are suitable for both framed and thin film modules in any size.
Solar waterproof carport
Waterproof solar carport system Features:
Project
Aluminum waterproof solar carport
BIPV solar waterproof aluminum carport Factoiry
BIPV solar waterproof aluminum carport Factoiry
BIPV waterproof aluminum carport Factoiry
2 parking spaces aluminum waterproof carport
Recently, more and more people come to inquire about 2 parking spaces aluminum waterproof carport for their own yard/home/school projects.
Q :Looking at a solar carport concept for two small short-term side by side rentals in Chanute Kansas. Looking at an approximate 7-8 KW DC system to offset local utilities and provide some degree of protection for two occupants vehicles. Appreciate your input.
2 cars solr carport
A: Regarding these questions, please refer to the following answers
Q: How many solar panels are needed for a waterproof carport with 2 parking spaces?
A: At least 15pcs solar panel is required.
2 cars waterproof carport design
Q: How much does it cost to build 2 parking spaces?
A: If the solar panel is not included and only the solar carport structure is provided, the price is approximately US$2850-3650US$. The price of a specific design depends on the wind loade and snow load of the project, the height from the ground as well as the design angle and carport type.
Aluminum Carport

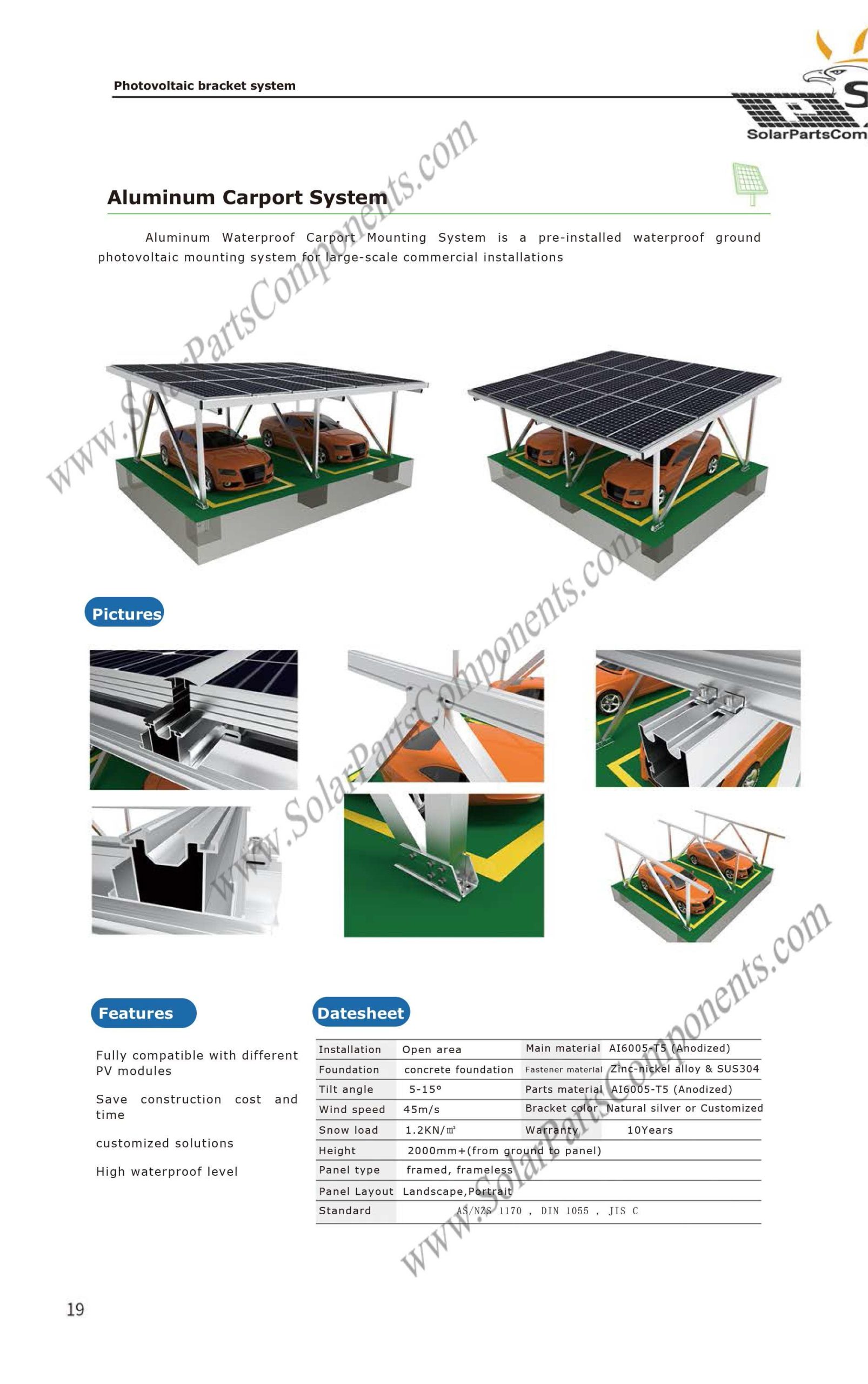

Aluminum Carport System
Aluminum Waterproof Carport Mounting System is a pre-installed waterproof ground photovoltaic mounting system for large-scale commercial installations.
Aluminum Waterproof Carport Mounting System is a pre-installed waterproof ground.
How do you waterproof a carport?
Tips for Waterproofing Your Metal Carport
Protective Barrier. The main part in a waterproof carport is the use of suitable gutters and water channel. The latest W-shaped aluminum alloy gutters and water channel are used in our BIPV Waterproof Solar Carport. Make our BIPV Waterproof Solar Carport achieve the purpose of comprehensive waterproofing.
Our waterproof carport is very popular with customers
bipv waterproof solar carport
Q;
Dear Sir,
My name is Puttiphorn Kulsawat, We are interested your product “BIPV waterproof Solar Carport”. Could you please send us an offer for the following requirement?
- Complete set of Solar Carport 2 Parking set
- Leak Water Proof system
- 2 parking lot
- Size (approximately) 6.4 x 5.1 m or 32 m2
- For solar panel 15-20 pcs/carport. ( 450-500 watts )
Please indicate : – unit price – net & gross weight
– freight charges – measurement
– port of loading – delivery time & payment term
Thank you for your kind co-operation and looking forward to receive your reply.
A:
Dear Puttiphorn,
Thank you for your interest in our BIPV Waterproof Solar Carport. Are you talking about below our aluminum waterproof carport?
Is this carport used by your company? Are you an end user?
Our carport systems of this kind are all customized and need to be designed and quoted according to specific project information.
Do you have specific project information?
For specific design and quote we need below input.
(1) How many panels do you plan to mount? _______Units;
(2) What’s the tilt angle? ____degree;
(3) What is your planned solar panel assembly block? ________Nos. in a row
(4) What’s the wind speed and snow load?
MAX ___m/s for wind speed and MAX ____KN/m2 for snow load.Please provide as much information as possible so that we can provide you with the design and quotation.
Looking forward to further discussion.
Q:
Dear Doria ,
Thank you for your email. We are end user. Our Technicianm Mr.Peeranan will provide the below information.
Dear Khun Peeranan,
Please provide the following information :
The minimum height from ground.
- How many panels do you plan to mount? _______Units;
(2) What’s the tilt angle? ____degree;
(3) What is your planned solar panel assembly block? ________Nos. in a row
(4) What’s the wind speed and snow load?
MAX ___m/s for wind speed and MAX ____KN/m2 for snow load.
Q:
Dear Doria,
The minimum height from ground. >> 2.5 m.
Panel size >> 2094x1133x35 mm. AE Solar 490w
Wind speed >> 36 m/s
Snow load >> NA
design tilt angle >> 5°
Panel layout >>
Best regards,
Peeranan P.
A:
Dear Puttiphorn,
Thanks for your information.
How big is your total BIPV Waterproof Solar Carport project? Is it 15pcs solar panel in total? If you install this amount, the cost will be very high. It is recommended to increase the number of carports or buy a full set.
Looking forward to further discussion.
Q:
Dear Doria ,
Actually, we have planned to order 94 set x 7.32kw = 690 kwatt. But we would like to order the first lot as sample. If everything is ok, we will place the order as plan.
Thank you.
A:
Dear Puttiphorn,
Thanks for your reply.
We can support sample. For samples, we also need at least 3 sets of 7.32kw so that we can provide design and quotation for your project. But you also know that this is customized according to specific projects, and the cost of samples will also be higher. Moreover, all the special brackets need to be shipped by sea. As far as samples are concerned, your sample production cost and sea freight cost will be relatively high.
If we directly design and quota 94 set x 7.32kw, then the price will be very different. My suggestion is to directly follow the entire design and quotation of 94 set x 7.32kw. If it is suitable, it will be more cost-effective to purchase directly together.
Our carport is very popular in Thailand, Malaysia and Indonesia.
A:
Dear Puttiphorn,
Please find attached quotation and design drawing for the BIPV Waterproof Solar Carport project.
solar carport drawing
There are 2 quotation: one is for 94 set x 7.32kw, another one is 3 sets x 7.32kw. The unit price of the sample is 1.5 times the price of the 94set carport. If you place an order for the rest of the carport after you get the sample, then we will give you the sample fee at the unit price of the entire 94 sets carport, and for the unit price of the sample is higher than 94 sets of carport, the cost will be deducted directly in your next order.
Any question, please feel free contact me.
Q:
Dear Doria ,
Thank you for your answer and information, We would like to place an order for this BIPV Waterproof Solar Carport.
N Type waterproof carport Solar Systems
N Type waterproof carport Solar Systems
2 cars waterproof carport
N Type waterproof carport Solar Systems is specially designed by our engineer and economical than others,all components are highly pre-assembled. Easy and simple to install. This carport system is developed for car park, offering a flexible,simple and affordable solution.Solar carports utilize existing parking areas to generate green power for home,commercial or industrial sectors.
2 cars waterproof PV carport
Features of the N Type waterproof carport Solar Systems:
*Fabricated with high quality aluminum alloy with excellent anodized coating,
which ensures long durability and high corrosion protection.
*Used full stainless steel components
*Flexible application capability for car park 1 car, 2 car, 4 car,10 car or more
*Apply steel sheet underneath the panels for water proof
*Design coming with water chute and conduit with excellent fit with the structure
Dawing of 2 cars N Type waterproof carport Solar Systems
solar waterproof aluminum carport
Do you want a aluminum waterproof solar carport at home?
Aluminum waterproof solar carport at home
Aluminum waterproof solar carport has excellent heat absorption and it’s easy installation, low cost. Deploy solarcaport in the factory park, business district, hospital, school and other areas can not only make full use of the original site, but also to provide green energy.
The aluminum waterproof solar carport is made of high-strength, aluminum alloy, which has higher aesthetics under the premise of ensuring safety and stability.
It’s pre-assembly to the maximum degree in our factory which effectively improves the construction progress and reduces the installation cost.
- Overview
-
BIPV CARPORT Details:
This BIPV solar waterproof aluminum carport system is designed with high-strength aluminum alloy to ensure its safety while providing easy installation and beautiful appearance. The special structural design maximizes the space. Two cars are used as a unit or freely combined according to requirements. Waterproof design, 10-year warranty.
Advantages of our BIPV solar waterproof aluminum carport system :
- Highly pre-assembled to ensure easy installation and reduce labor costs
- The height and angle can be adjusted within a certain range
- Light material, easy to transport and install
- The layout of the system can be
Adjust according to the actual situation on site
Welcome to contact us anytime, our company website: www.solarpartscomponents.com
- Specification
-
Datasheet Description: BIPV double support steel waterproof carport NO.： SPC-BIPVWAC Product Type: BIPV solar waterproof aluminum carport Installation location: open area Installation angle: 5-15 degrees Material : Al6005-T5 Module: Frame or Frame less solar Module Warranty: 10 Years Lifetime: 25Years Orientation： Landscape,Portrait Wind speed： 60 M/s Snow load： 3.6 KN / M2 Height; Above 2m Standard: AS/NZS1170 & DIN 1055 - FAQ
-
Inquiry for our waterproof solar carport for Household and commercial project
Good Afternoon,
Found your website want info on pv solar carport, I’m in Florida carport would need engineering, looking at a 12 kw system bi facial array like the looks of frameless panel, 125 mph hurricane wind zone, delivery to 32112 zip code.Include lead time and shipping time in quote.
aluminum solar carport project
We are working on a commercial project in Victorville, Ca, and are in need of solar carport framing. We have 2 carport structures needed approximately 43 ft by 100 ft and 20 ft by 100 ft. I have the plans to the project if needed. I am looking for pricing and lead times if this is something you can do. Thank you!
-Lana
How to install waterproof solar carport mounting structures
The installation of waterproof solar carport brackets mainly includes the following steps:
Preparation materials: Select appropriate waterproof pv mounting support materials, such as stainless steel, aluminum alloy, etc., based on the size and shape of the carport. At the same time, prepare corresponding waterproof materials, such as waterproof structure, waterproof coatings, etc.
Basic treatment: Clean the surface of the garage foundation to ensure that it is flat, clean, and free of impurities such as oil and dust. If there are dents or unevenness, repair or leveling is required.
waterproof solar carport installation
Installation bracket: Install the solar carport mounting bracket on the column or wall of the car shed according to the design drawings. Ensure that the bracket is securely installed and does not shake. For different types of brackets, the installation method may vary and needs to be installed according to specific requirements.
Laying waterproof structure: After the installation of the bracket is completed, start laying the waterproof structure parts. Fix the waterproof structure parts on the bracket according to the design requirements.
Install the roof: According to the design requirements, install the roof on the bracket. Ensure that the roof is firmly connected to the bracket and there is no shaking. Meanwhile, check if the roof is flat.
Acceptance inspection: After installation is completed, conduct a comprehensive inspection. Check if the bracket is firm and free from shaking; Whether the waterproof membrane is flat and leak free; Is the roof firm and free from shaking. If there are any problems, handle them in a timely manner to ensure the waterproof effect and safe use of the car shed.
waterproof solar carport
It should be noted that the installation of waterproof car shed solar panel brackets involves aspects such as building structure and waterproofing engineering, and needs to be completed by professional installation personnel. During the installation process, relevant safety regulations and operational requirements must be followed to ensure construction safety and quality.
Waterproof solar carport for car paking
Solar carport is a solution including aluminum structure and aluminum rails and aluminum fastener. With great flexibility ,the solar carport can be applicated for both commercial and residential areas. We have waterproof and non-waterproof for you, they are suitable for both framed and thin film modules in any size.
Solar waterproof carport
The solar carport is a garage with solar panels installed on the roof. Only composed of pillars and roof. The waterproof solar carport is equipped with waterproof components to guide rainwater to flow out and achieve the purpose of sheltering the rain and preventing water leakage.Waterproof solar carport system Features:
1.Waterproof and wind-resistance:Add wind deflectors,waterproof sheet and water channel to play the function of waterproof and wind-resistance.2.Easy Installation:Parts have been high pre-assembly on factory to save your installation time.3.Safety and Reliability:Check and test the structure strictly to against the extreme weather condition.4.Flexibility and Adjustable:Smart design reduce the difficulties of the installation on the most conditions.Project
Aluminum waterproof solar carport
BIPV solar waterproof aluminum carport Factoiry
Q:I am building a BIPV solar waterproof aluminum carport. I would like the waterproof framing system, perhaps compatible with two-sided solar panels. Roughly the dimensions are 16 x 20‘.for each carport array, totally 180 carprot arrays. I’m wondering if you could send me the schematics on such a thing so I can get them on my drawing for permitting. Please, I would like the water proof system, and the bracketing for solar panels.. thank you!
BIPV solar waterproof aluminum carport Factoiry
A:Hi Mr. Saccomanno, thank you for your inquiry from our BIPV solar waterproof aluminum carport Factoiry.Please refer to our design for your waterproof carport system.
BIPV waterproof aluminum carport Factoiry
Q;Thank you for your reply. I am totally interested in your BIPV waterproof carport system. I’ll be willing to do the framing underneath and show you the schematics of what I have for now, but we want to check out your schematics to add it to our drawings. it is a residential place the tilt angle will be 30°, there is no snow. It gets windy in the area a couple Pacific storms my address is 95 Bodega Ave., Petaluma, CA 94952. You can Google Earth that area. I am going to be the builder. I look forward to putting together your system with a Frankland battery and probably two-sided solar cells I don’t know the exact configuration exactly what I’m going to buy yet.2 parking spaces aluminum waterproof carport
Recently, more and more people come to inquire about 2 parking spaces aluminum waterproof carport for their own yard/home/school projects.
Q :Looking at a solar carport concept for two small short-term side by side rentals in Chanute Kansas. Looking at an approximate 7-8 KW DC system to offset local utilities and provide some degree of protection for two occupants vehicles. Appreciate your input.
2 cars solr carport
A: Regarding these questions, please refer to the following answers
Q: How many solar panels are needed for a waterproof carport with 2 parking spaces?
A: At least 15pcs solar panel is required.
2 cars waterproof carport design
Q: How much does it cost to build 2 parking spaces?
A: If the solar panel is not included and only the solar carport structure is provided, the price is approximately US$2850-3650US$. The price of a specific design depends on the wind loade and snow load of the project, the height from the ground as well as the design angle and carport type.Aluminum Carport
Aluminum Carport System
Aluminum Waterproof Carport Mounting System is a pre-installed waterproof ground photovoltaic mounting system for large-scale commercial installations.
Aluminum Waterproof Carport Mounting System is a pre-installed waterproof ground.
How do you waterproof a carport?
Tips for Waterproofing Your Metal Carport
Protective Barrier. The main part in a waterproof carport is the use of suitable gutters and water channel. The latest W-shaped aluminum alloy gutters and water channel are used in our BIPV Waterproof Solar Carport. Make our BIPV Waterproof Solar Carport achieve the purpose of comprehensive waterproofing.
Our waterproof carport is very popular with customers
bipv waterproof solar carport
Q;
Dear Sir,
My name is Puttiphorn Kulsawat, We are interested your product “BIPV waterproof Solar Carport”. Could you please send us an offer for the following requirement?
- Complete set of Solar Carport 2 Parking set
- Leak Water Proof system
- 2 parking lot
- Size (approximately) 6.4 x 5.1 m or 32 m2
- For solar panel 15-20 pcs/carport. ( 450-500 watts )
Please indicate : – unit price – net & gross weight
– freight charges – measurement
– port of loading – delivery time & payment term
Thank you for your kind co-operation and looking forward to receive your reply.
A:
Dear Puttiphorn,
Thank you for your interest in our BIPV Waterproof Solar Carport. Are you talking about below our aluminum waterproof carport?
Is this carport used by your company? Are you an end user?
Our carport systems of this kind are all customized and need to be designed and quoted according to specific project information.
Do you have specific project information?
For specific design and quote we need below input.
(1) How many panels do you plan to mount? _______Units;
(2) What’s the tilt angle? ____degree;
(3) What is your planned solar panel assembly block? ________Nos. in a row
(4) What’s the wind speed and snow load?
MAX ___m/s for wind speed and MAX ____KN/m2 for snow load.Please provide as much information as possible so that we can provide you with the design and quotation.Looking forward to further discussion.
Q:
Dear Doria ,
Thank you for your email. We are end user. Our Technicianm Mr.Peeranan will provide the below information.
Dear Khun Peeranan,
Please provide the following information :
The minimum height from ground.
- How many panels do you plan to mount? _______Units;
(2) What’s the tilt angle? ____degree;
(3) What is your planned solar panel assembly block? ________Nos. in a row
(4) What’s the wind speed and snow load?
MAX ___m/s for wind speed and MAX ____KN/m2 for snow load.
Q:
Dear Doria,
The minimum height from ground. >> 2.5 m.
Panel size >> 2094x1133x35 mm. AE Solar 490w
Wind speed >> 36 m/s
Snow load >> NA
design tilt angle >> 5°
Panel layout >>
Best regards,
Peeranan P.A:
Dear Puttiphorn,
Thanks for your information.
How big is your total BIPV Waterproof Solar Carport project? Is it 15pcs solar panel in total? If you install this amount, the cost will be very high. It is recommended to increase the number of carports or buy a full set.
Looking forward to further discussion.
Q:
Dear Doria ,
Actually, we have planned to order 94 set x 7.32kw = 690 kwatt. But we would like to order the first lot as sample. If everything is ok, we will place the order as plan.
Thank you.
A:
Dear Puttiphorn,
Thanks for your reply.
We can support sample. For samples, we also need at least 3 sets of 7.32kw so that we can provide design and quotation for your project. But you also know that this is customized according to specific projects, and the cost of samples will also be higher. Moreover, all the special brackets need to be shipped by sea. As far as samples are concerned, your sample production cost and sea freight cost will be relatively high.
If we directly design and quota 94 set x 7.32kw, then the price will be very different. My suggestion is to directly follow the entire design and quotation of 94 set x 7.32kw. If it is suitable, it will be more cost-effective to purchase directly together.
Our carport is very popular in Thailand, Malaysia and Indonesia.
A:
Dear Puttiphorn,
Please find attached quotation and design drawing for the BIPV Waterproof Solar Carport project.
solar carport drawing
There are 2 quotation: one is for 94 set x 7.32kw, another one is 3 sets x 7.32kw. The unit price of the sample is 1.5 times the price of the 94set carport. If you place an order for the rest of the carport after you get the sample, then we will give you the sample fee at the unit price of the entire 94 sets carport, and for the unit price of the sample is higher than 94 sets of carport, the cost will be deducted directly in your next order.
Any question, please feel free contact me.
Q:
Dear Doria ,
Thank you for your answer and information, We would like to place an order for this BIPV Waterproof Solar Carport.
N Type waterproof carport Solar Systems
N Type waterproof carport Solar Systems
2 cars waterproof carport
N Type waterproof carport Solar Systems is specially designed by our engineer and economical than others,all components are highly pre-assembled. Easy and simple to install. This carport system is developed for car park, offering a flexible,simple and affordable solution.Solar carports utilize existing parking areas to generate green power for home,commercial or industrial sectors.
2 cars waterproof PV carport
Features of the N Type waterproof carport Solar Systems:
*Fabricated with high quality aluminum alloy with excellent anodized coating,
which ensures long durability and high corrosion protection.
*Used full stainless steel components
*Flexible application capability for car park 1 car, 2 car, 4 car,10 car or more
*Apply steel sheet underneath the panels for water proof
*Design coming with water chute and conduit with excellent fit with the structureDawing of 2 cars N Type waterproof carport Solar Systems
solar waterproof aluminum carport
Do you want a aluminum waterproof solar carport at home?
Do you want a aluminum waterproof solar carport at home?Check out this recently installed residential solar carport project in Europe! Featured with all-aluminum waterproof solar canopy, the system has proven to be the ideal solution with multiple benefits, producing clean energy while being a protective shed! The test report proved that our aluminum carports #solarmounting is suitable for installation.
Aluminum waterproof solar carport at home
Aluminum waterproof solar carport has excellent heat absorption and it’s easy installation, low cost. Deploy solarcaport in the factory park, business district, hospital, school and other areas can not only make full use of the original site, but also to provide green energy.
The aluminum waterproof solar carport is made of high-strength, aluminum alloy, which has higher aesthetics under the premise of ensuring safety and stability.
It’s pre-assembly to the maximum degree in our factory which effectively improves the construction progress and reduces the installation cost. - Leave Message
-
