Solar Module Ground Racks
- Product Type: Ground Mount Racking
- Product Model: SPC-CA-4H-PCW
- Material: Aluminium, Carbon Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Landscape / Horizontal
- Application: Ground
The pillar support solar mounts system (SPC-CA-4H-PCW )provides a multi-pole configuration with greater ground clearance and seasonal adjustability. You can adjust the position of the solar panels according to the season. Provide a bracket system with high wind speed and heavy snow rated load to meet the wind and snow resistance requirements of many regions and ensure the safety of the installation system.
It Provide high-performance all bracket materials to ensure long-lasting durability and a service life of more than 25 years. All components are pre-cut and pre-drilled for simple pre-assembly on site, which improves installation efficiency and saves installation time and labor costs.
The pillar solar mounting system is a new type of installation using C-shaped steel single pole, which provides a flexible option for versatility and scalability, which can be adapted to any configuration and any terrain.
Feature of this pillar ground mounts model: SPC-CA-4H-PCW
1. The ground installation system uses C-shaped steel pole as the main material, which has strong corrosion resistance;
2. The ground solar installation system has the characteristics of convenient installation and low cost;
3. Applicable to most ground installation structures;
4. Optimized the anti-wind and snow performance to achieve the best design plan;
5. Can withstand greater support pressure;
Choosing this pillar solar racking system to install solar energy can generate more solar energy than traditional ground-mounted systems. The ground-mounted systems can achieve good results whether they are used in commercial or industrial applications.
We provide the best solar system solutions for your ground-mounted solar projects. Ground-mounted solar systems are ideal for most low-profile applications. All of our bracket systems can provide professional design for your specific project. If you have any needs, please feel free to contact us: www.solarpartscomponents.com.
| Brief Descriptions: | |
| Single Pillar Ground Mounts, SPC-CA-4H-PCW | |
| Item type: | Photovoltaic Ground Racking |
| Type: | SPC-CA-4H-PCW |
| Installation Site: | Flat Ground Terrain |
| Profile Material: | Aluminum alloy 6005-T5 / Galvanized Steel |
| Fasten Parts: | Stainless Steel |
| Color: | Silvery |
| Wind Load: | 60 m / s |
| Snow Load: | 1.4 KN / M2 |
| PV Modules: | Framed, Frameless |
| Module Orientation: | Landscape / Portrait |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag+inner box+Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
How to install ground mounts SPC-CA-4H-PCW
More details for our ground racking system, SPC-CA-4H-PCW:
solar pole ground mount racking project from Indonesia
Solar pole ground mount racking project
solar pole ground rack
The solar pole ground rack allows you to choose the best tilt angle in the south-facing direction. The standard ground bracket is constructed with a fixed tilt angle to meet various options for ground installation.
This pole ground mounting bracket series are sturdy, adjustable in height and easy to assemble. We have designed a ground-mounted solar mounting system with the highest assembly without compromising the integrity of the structure. We design home-scale and commercial floor mounts for optimal performance in all soil and weather conditions. We offer a variety of basic options to suit your ground conditions as a solution.
We got inquiry from Sungrow Indonesia
They currently preparing a ground mount project in Indonesia and I would like to ask about your preference when choosing between Single Pole Ground Mount system (SPC-CA-4H-PCW)
Please find our project details :
(1)
What is your pv panels dimension? 2000mm Length x 992mm Width x 35mm Thickness
Weight : 22.5 kg
This array is for one table. There are 1038 tables with 60,204 modules.
(2)
What’s the ground clearance. 800 mm
(3)
What’s the nearest seaport to your company ? Likupang Port
(4)
How is weather there, such as wind speed and snow load?
wind speed
V500 : 39.9 m/s
V50 : 32.1 m/s
And – KN/m2 snow load.
(5) How about the orientation the solar panels :
Portrait, 5o tilt
(6) What’s the foundation ?
Concrete foundation
Length underground : 1000 mm
Length above ground : 400 mm
(7) How about the array for these 48 solar panels ? 6X8 / 4X 12 …
2*29
*Additional info:
Soil type : Clay
Installation way : Clamp + Rail
Special design requirement : Aluminium Double Post Mounting
Regards,
Nadilla Mentari
Project Civil Engineer
Sungrow Indonesia.
After discussion, our engineer recommend use single pole structure (Carbon Steel in material).

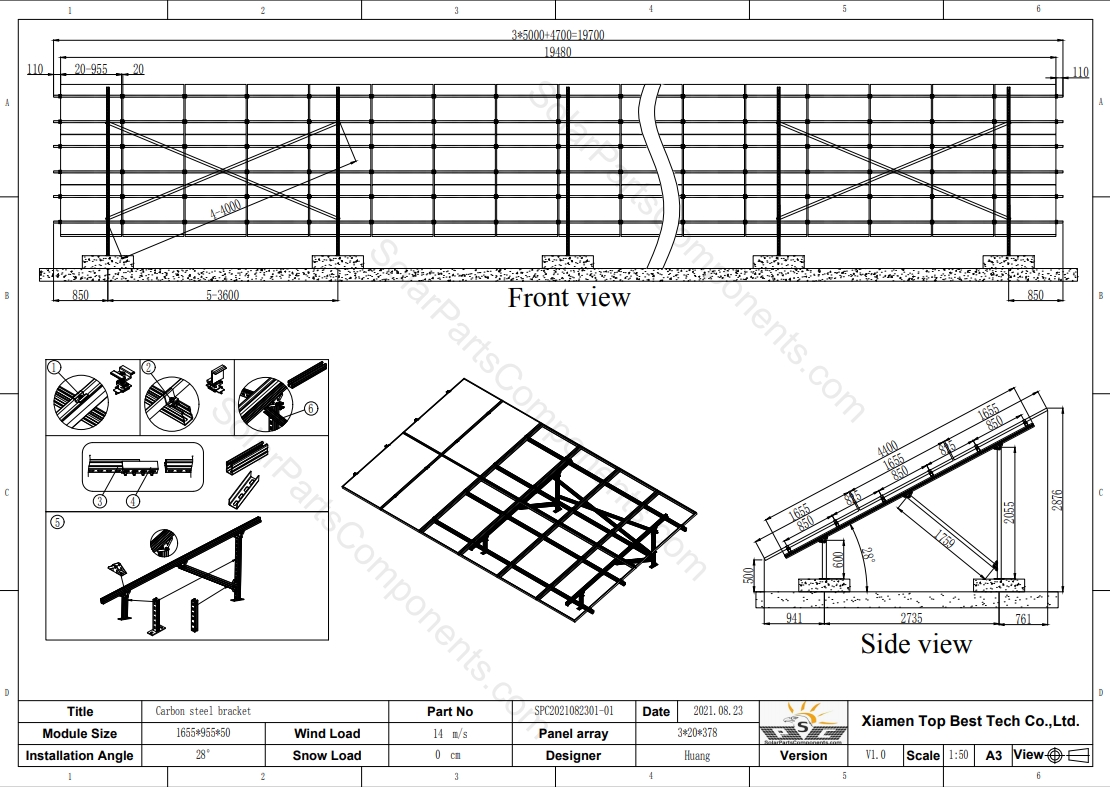

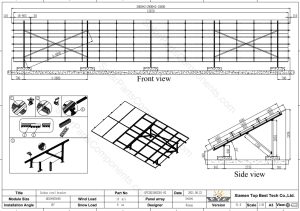

solar pole ground racking system design
Solar panel pole ground racking is an efficient and exquisite design, suitable for medium, small and large ground installation systems. The system uses standard modular high-assemblies, optimizing materials while being flexible and minimizing the footprint of the system.
solar panel pole ground racking BOM
Feature:
1. Install larger photovoltaic systems and save more costs;
2. The solar system installed on the ground allows you to maximize your thermal potential;
3. You can choose the sunniest place to install solar panels;
4. Use the existing open space for ground support installation to maximize the open space;
5. The rack is the basis of solar panels, and the selected installation type will affect the overall performance of the system;
The solar pole ground racking system can be installed in a sunny area, and you can adjust the tilt angle to maximize power output throughout the season. The steeper angle of inclination can capture more power in winter and can also drop snow off the panel.
SPC is a manufacturer of solar stents and modules. We have been providing services to the solar energy industry, and its streamlined solar mounting design is durable and exceeds the expected lifespan of solar projects. We provide solar installation solutions with industry-leading prices and the fastest installation time. If you have any questions, please feel free to contact us: www.solarpartscomponents
- Overview
-
The pillar support solar mounts system (SPC-CA-4H-PCW )provides a multi-pole configuration with greater ground clearance and seasonal adjustability. You can adjust the position of the solar panels according to the season. Provide a bracket system with high wind speed and heavy snow rated load to meet the wind and snow resistance requirements of many regions and ensure the safety of the installation system.
It Provide high-performance all bracket materials to ensure long-lasting durability and a service life of more than 25 years. All components are pre-cut and pre-drilled for simple pre-assembly on site, which improves installation efficiency and saves installation time and labor costs.
The pillar solar mounting system is a new type of installation using C-shaped steel single pole, which provides a flexible option for versatility and scalability, which can be adapted to any configuration and any terrain.
Feature of this pillar ground mounts model: SPC-CA-4H-PCW
1. The ground installation system uses C-shaped steel pole as the main material, which has strong corrosion resistance;
2. The ground solar installation system has the characteristics of convenient installation and low cost;
3. Applicable to most ground installation structures;
4. Optimized the anti-wind and snow performance to achieve the best design plan;
5. Can withstand greater support pressure;Choosing this pillar solar racking system to install solar energy can generate more solar energy than traditional ground-mounted systems. The ground-mounted systems can achieve good results whether they are used in commercial or industrial applications.
We provide the best solar system solutions for your ground-mounted solar projects. Ground-mounted solar systems are ideal for most low-profile applications. All of our bracket systems can provide professional design for your specific project. If you have any needs, please feel free to contact us: www.solarpartscomponents.com.
- Specification
-
Brief Descriptions: Single Pillar Ground Mounts, SPC-CA-4H-PCW Item type: Photovoltaic Ground Racking Type: SPC-CA-4H-PCW Installation Site: Flat Ground Terrain Profile Material: Aluminum alloy 6005-T5 / Galvanized Steel Fasten Parts: Stainless Steel Color: Silvery Wind Load: 60 m / s Snow Load: 1.4 KN / M2 PV Modules: Framed, Frameless Module Orientation: Landscape / Portrait Standards: AS/NZS 1170 DIN 1055 GB50009-2012 IBC2009 TUV JIS C 8955: 2011 International Building Code IBC 2009 California Building Code CBC 2010 Warranty 10 years Designed Lifespan 25 years Packing Details: Inner: Bubble bag+inner box+Carton Outer: Wooden Box, Steel Pallet, MDF, etc - Downloads
-
How to install ground mounts SPC-CA-4H-PCW
More details for our ground racking system, SPC-CA-4H-PCW:
- FAQ
-
solar pole ground mount racking project from Indonesia
Solar pole ground mount racking project
solar pole ground rack
The solar pole ground rack allows you to choose the best tilt angle in the south-facing direction. The standard ground bracket is constructed with a fixed tilt angle to meet various options for ground installation.
This pole ground mounting bracket series are sturdy, adjustable in height and easy to assemble. We have designed a ground-mounted solar mounting system with the highest assembly without compromising the integrity of the structure. We design home-scale and commercial floor mounts for optimal performance in all soil and weather conditions. We offer a variety of basic options to suit your ground conditions as a solution.
We got inquiry from Sungrow Indonesia
They currently preparing a ground mount project in Indonesia and I would like to ask about your preference when choosing between Single Pole Ground Mount system (SPC-CA-4H-PCW)
Please find our project details :
(1)
What is your pv panels dimension? 2000mm Length x 992mm Width x 35mm Thickness
Weight : 22.5 kgThis array is for one table. There are 1038 tables with 60,204 modules.
(2)
What’s the ground clearance. 800 mm(3)
What’s the nearest seaport to your company ? Likupang Port(4)
How is weather there, such as wind speed and snow load?
wind speed
V500 : 39.9 m/s
V50 : 32.1 m/s
And – KN/m2 snow load.(5) How about the orientation the solar panels :
Portrait, 5o tilt(6) What’s the foundation ?
Concrete foundation
Length underground : 1000 mm
Length above ground : 400 mm(7) How about the array for these 48 solar panels ? 6X8 / 4X 12 …
2*29*Additional info:
Soil type : Clay
Installation way : Clamp + Rail
Special design requirement : Aluminium Double Post MountingRegards,
Nadilla Mentari
Project Civil Engineer
Sungrow Indonesia.After discussion, our engineer recommend use single pole structure (Carbon Steel in material).
solar pole ground racking system design
Solar panel pole ground racking is an efficient and exquisite design, suitable for medium, small and large ground installation systems. The system uses standard modular high-assemblies, optimizing materials while being flexible and minimizing the footprint of the system.
solar panel pole ground racking BOM
Feature:
1. Install larger photovoltaic systems and save more costs;
2. The solar system installed on the ground allows you to maximize your thermal potential;
3. You can choose the sunniest place to install solar panels;
4. Use the existing open space for ground support installation to maximize the open space;
5. The rack is the basis of solar panels, and the selected installation type will affect the overall performance of the system;The solar pole ground racking system can be installed in a sunny area, and you can adjust the tilt angle to maximize power output throughout the season. The steeper angle of inclination can capture more power in winter and can also drop snow off the panel.
SPC is a manufacturer of solar stents and modules. We have been providing services to the solar energy industry, and its streamlined solar mounting design is durable and exceeds the expected lifespan of solar projects. We provide solar installation solutions with industry-leading prices and the fastest installation time. If you have any questions, please feel free to contact us: www.solarpartscomponents
