Solar Panel Mounting Systems
- Product Type: Roof Mounting Systems for Clay Tiles
- Product Model: SPC-RF-IK02-DR
- Material: Stainless Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Portait or Landscape
- Application: Rooftop
SPC designs and manufactures high-quality solar mounting with tile roof hooks. Whether it is a small or large project, a standard model or a tailor-made system, we can meet your needs. Our installation solutions are particularly efficient and durable, with high load-bearing capacity. Stainless steel components provide high corrosion resistance. Most components can be pre-assembled, quickly installed, and strong compatibility, so they are value for money. We will provide structural certification for all roof systems.
Whether it is a small or large project, a standard model or a tailor-made system, we can meet your needs. In the solar industry, we have our own factories with high quality and reasonable prices to provide the best service.

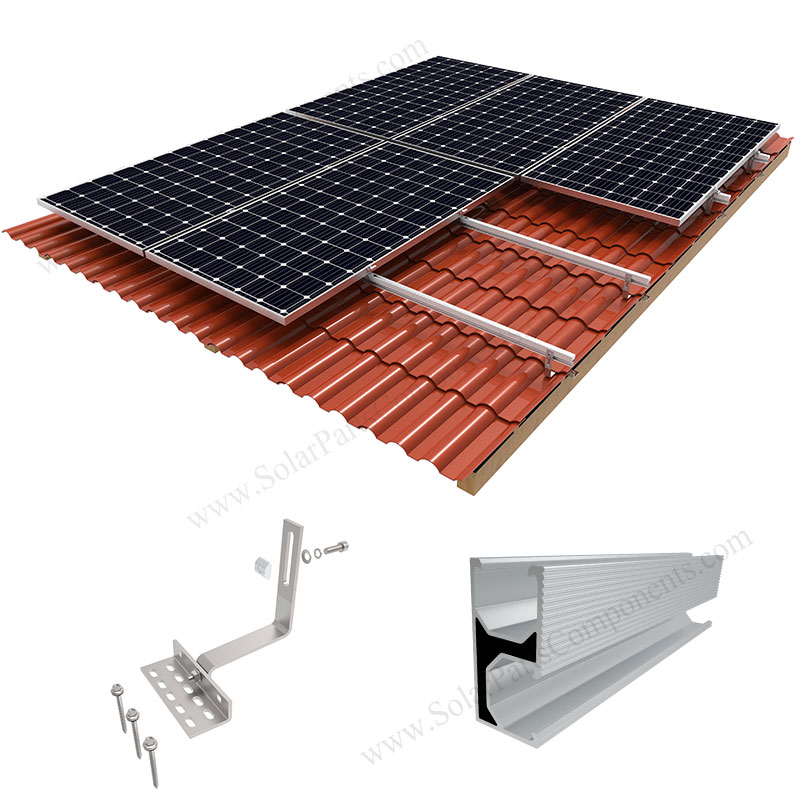

solar roof mounting system with roof hooks are used in tile roof residential and commercial solar projects. The system can achieve a stable and firm connection between the roof support structure and the solar module through the modular patented installation structure design. The pre-assembled kit can save on-site installation time and cost.
Feature of Solar roof mounting with roof hooks, SPC-RF-IK02-DR:
1. All have strong and durable characteristics;
2. Stainless steel materials have extremely high corrosion resistance;
3. The module can be fixed in place to ensure the normal operation of the device;
4. Strict quality management;
5. High compatibility and wide product range;

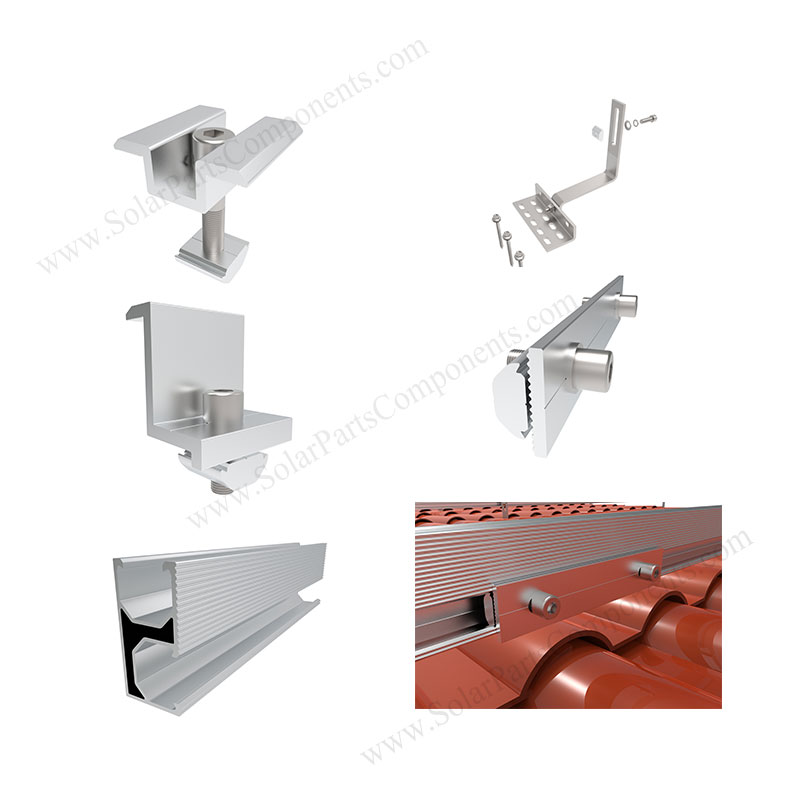

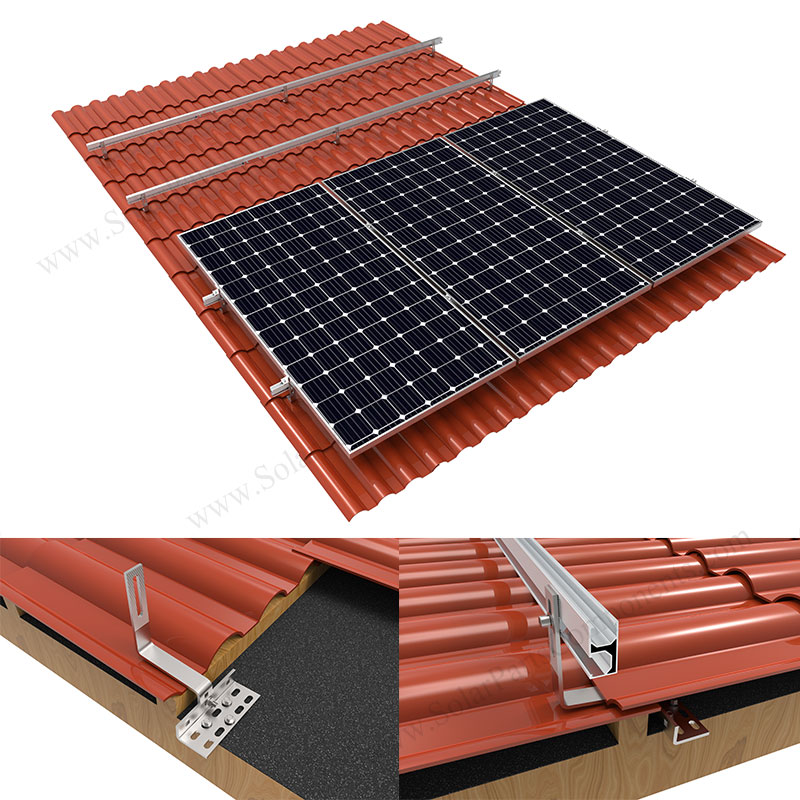

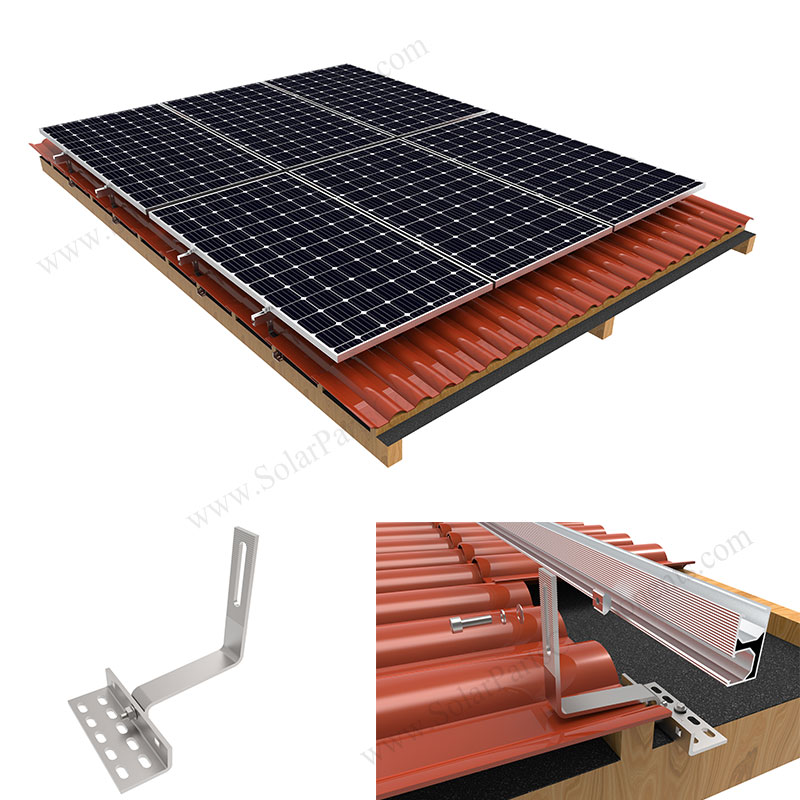

The shape of solar panel roof racking with tile hooks allows it to be installed between tiles. An aluminum rail is fixed on the roof hook, and then the beam is fixed to the aluminum guide rail with bolts. The beam is adapted to the height of the module frame, and its shape allows the solar module to be inserted and no longer need to be tightened. In order to achieve the purpose of waterproofing, we design a water baffle that matches the hook, which is perfectly combined.
The PV mounting system (Model: SPC-RF-IK02-DR) can ensure the service life of the solar modules. The frame is made of aluminum and stainless steel, which is 100% corrosion-resistant. The system can be installed in a low position easily and quickly, and can withstand all forces due to wind and snow loads.
|Solar Panel Racking System for Clay Tile Rooftop|
|Item type:||PV Module Tile Roofing Mounts|
|Installation Site:||Tile Roofing 0 °~ 60°|
|Profile Material:||Aluminum Alloy|
|Fasten Parts:||Stainless Steel / Aluminum T Sliding Nut|
|Wind Load:||60 m / s|
|Snow Load:||1.4 KN / M2|
|PV Modules:||Framed, Frameless|
|Module Orientation:||Portrait and Landscape|
|JIS C 8955: 2011|
|International Building Code IBC 2009|
|California Building Code CBC 2010|
|Designed Lifespan||25 years|
|Inner:||Bubble bag+inner box+Carton|
|Outer:||Wooden Box, Steel Pallet, MDF, etc|
Installation Manual for Solar Roof Mounts SPC-RF-IK02-DR
Solar Tile Roof Mounts With Brackets
Solar Roof Mounting System-SPC-RF-IK02-DR

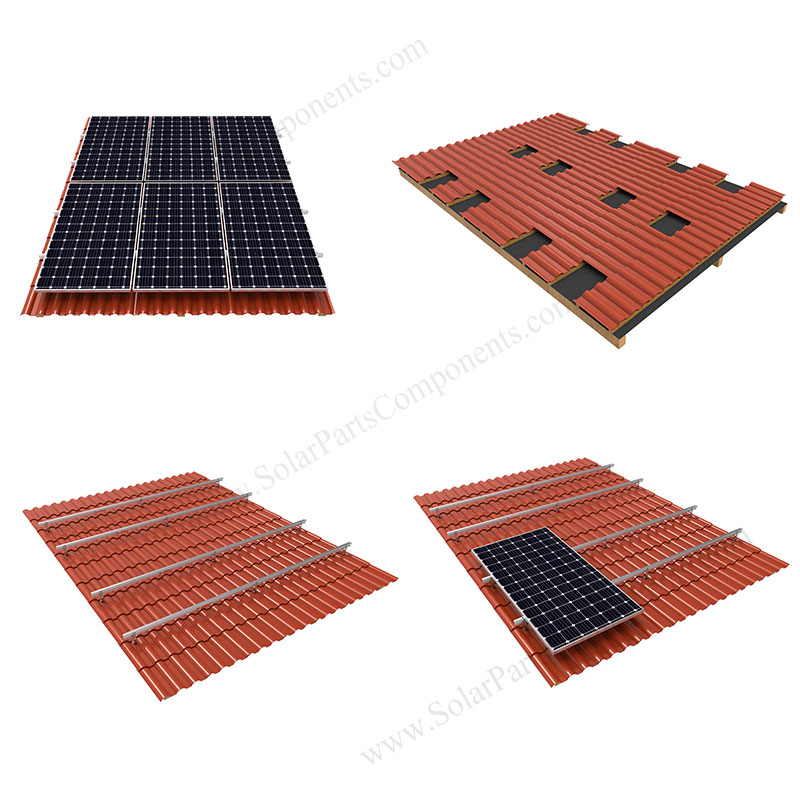

Solar Roof Mounting System-SPC-RF-IK02-DR installation steps
More details kindly check >>>
