The grounding clip of the solar panel is used for grounding each module and the guide rail.
We design different grounding clips for different choices.
Each grounding clip has its unique use.
They are suitable for our aluminum rails and different grounding clips.
Designing different pinholes to pierce the oxide layer of the aluminum rail is simple, convenient, and quick to install, and is the most important part of the photovoltaic system.
- Bond the photovoltaic module to the solar mounting structure;
- 304 stainless steel;
- The special teeth on the conductive sheet are embedded in the anodized aluminum;
- Quick installation;
Installation Instruction for solar grounding clip #20:
solar grounding clip#20 is designed to fit most aluminum rail.
- Take out the solar grounding clip
- Installed on the rail, used to pierce the anodized layer on the surface of the rail
- Lead the lightning current from the solar module to the rail
If you’re interested in solar mounting components or solar system, we’d love to discuss with you about more and answer any questions you might have. As a professional manufacturer of PV mounting system, SPC is a great option for you.
Click here for more details and information:
|Item type:||Solar Grounding Clip #20|
|Installation Site:||Aluminum rail|
|Product Module:||PV module grounding clips for solar panel 6F|
|Profile Material:||SUS 304 Stainless Steel|
|Application||Solar Mounting Project|
|Color:||Silvery or according to customer requirements|
|Module Orientation:||Portrait and Landscape|
|Designed Lifespan||25 years|
|Unit weight:||150(g)/0.33 [lb] /100pcs|
|Carton size:||550×210×185mm [21 3/4″ ×8 1/4″ ×7 1/4″]|
|Carton weight:||5,050 (g)/11.13[lb] /CTN (3000 PCS / CTN)|

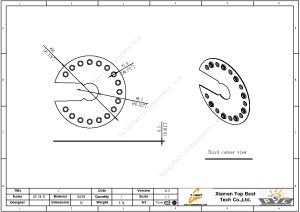

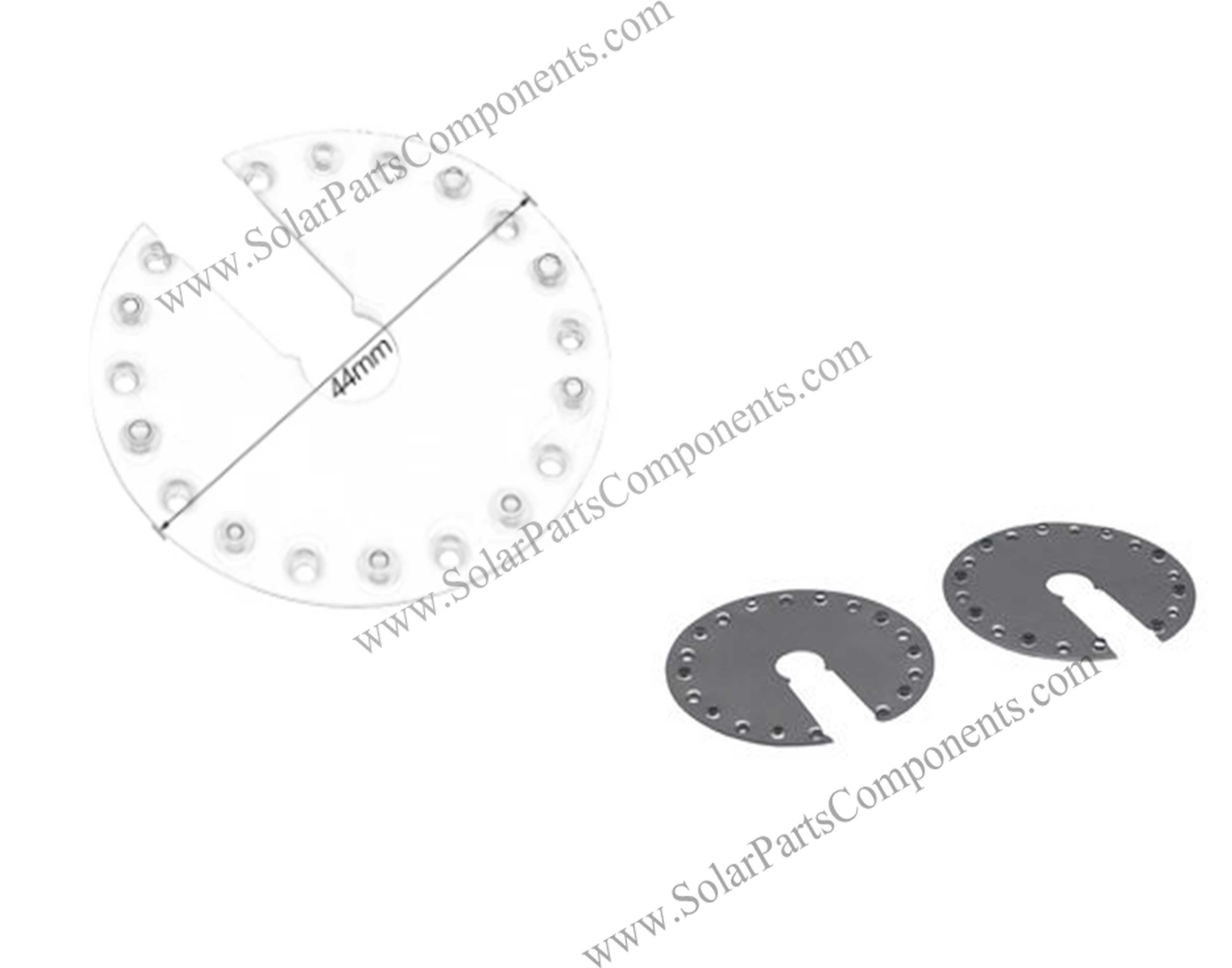

Drawing & Size for SPC-GW-20
How can I buy solar grounding clip for PV module SPC-GW-20?
Looking SIMPLE & SMART, cost effective solution for PV module GROUNDING CLIPS.
Advise for End Clamp and Mid Clamp,
Our Project Glimpse as follows,
· Metal sheet mounting
· Total Strings – 228nos.
· Total No. of Pv Modules – 3334 nos.
Select the right model for end clamp and mid clamp and send us sample for our client approval.
Please provide us the best price (CIF Bahrain) with good delivery terms.
Please advise which one is suitable to our solar mounting system.
Is it necessary to keep two grounding clips in all mid clamps (panel top & bottom) between two solar panels?
Please send any installation videos for easy understanding.
Please send us the this grounding clip samples as soon as possible.
As well, give us your best attractive price for the supply of both items as per our solar design system which was explained to you in detail.
Added, request you to send samples for ” SOLAR GROUNDING CLIPS ” for the same project. Sent details in whatsapp / email.
We don’t have any permanent account with any freight forwarders.
Please send your samples in door to door courier.
Kindly note our address as follows,
Techmaaxx Projects and Services wll
Kingdom of bahrain
Mobile – 00973 35645888
May you and your whole family be safe & happy everyday.
I have replied all related information about this solar grounding clip for PV module SPC-GW-20 through email.
For any clarification, please contact in whatsapp / email for response.
Awaiting for your reply at the earliest.
SPC solar sales team

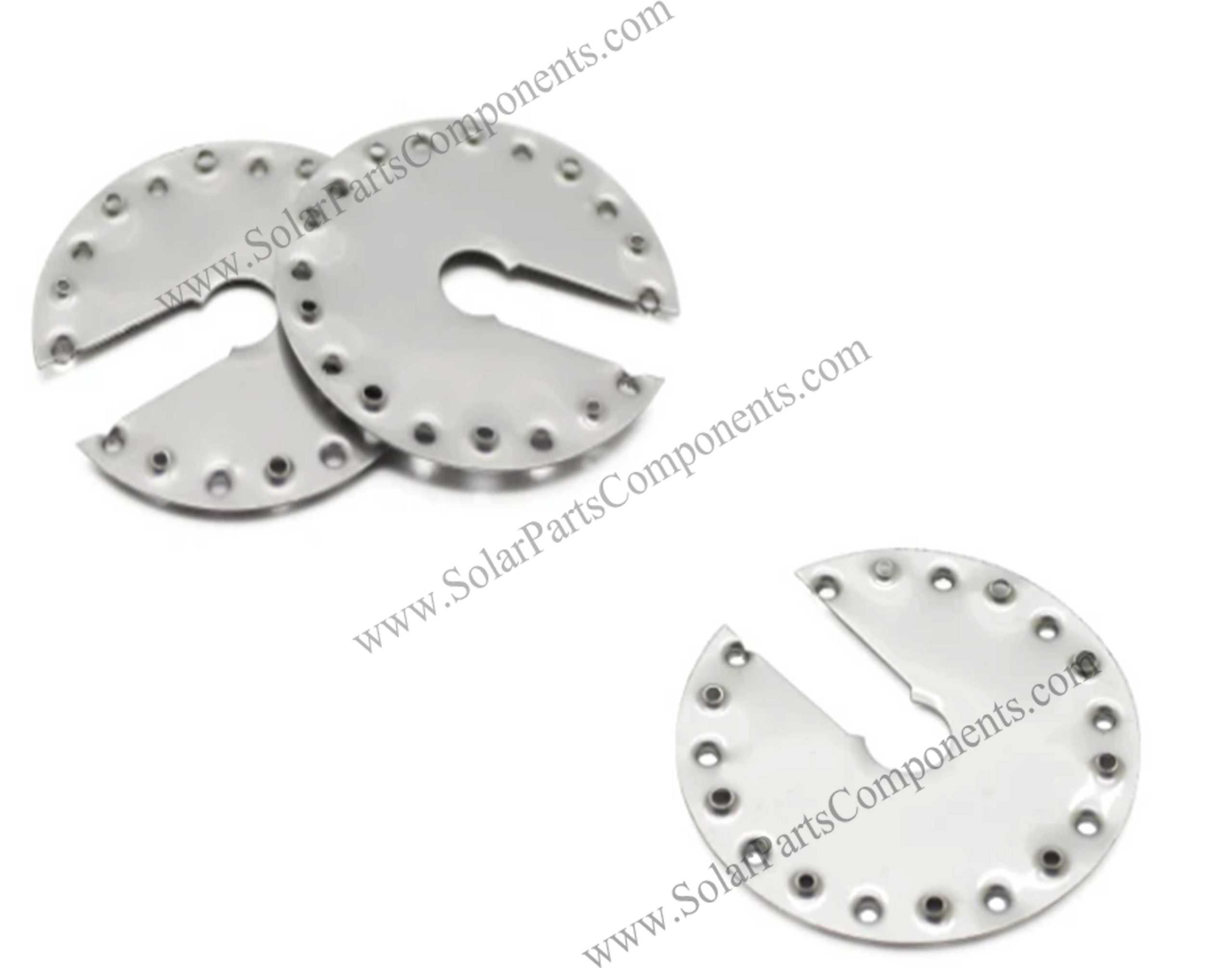

stainless steel solar grounding clip for PV module
Use this high-quality ground clip to pierce the oxide layer on the aluminum rail surface to prevent lightning attacks.
