Solar electrical earthing clips good quality
- Product Type: Solar mounting component
- Product Model: SPC-GW-29
- Material: Stainless steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Landscape / Horizontal
- Application: Solar panel installation
Product Description:
The material of solar electrical earthing clips is stainless steel, which has a superiority of corrosion resistance. The component plays an important role as conductor of electricity and make the whole system perfectly. It can be suitable for all kinds of weather, even if the rainy day. And it is necessary for solar panel mounting installation. The grounding clip is an essential component for the PV panel installation. The teeth of the PV electrical earthing clips are so sharp that can pierce the surface of the aluminum rails with processed anodized and guarantee the smooth flow of electricity. We can offer various grounding clips for you to choose to apply for your rails and your solar modules. It should be used with other components like mid clamps to construct the whole solar mounting system perfectly and works without any doubt. Once installed on rails, extra electricity on module will be distributed from solar module to rail. As for electrical connection, the quantity of solar earthing clips is very important and needs to be guaranteed.
Features of solar electrical earthing clips:
- Has a good performance of corrosion resistance to ensure the life span;
- Safe to be used as a conductor of electricity;
- Widely application for the solar panel installation;
- Factory directly and high cost effective.
- Provides various grounding clips to choose to fit the panel modules and aluminum rails.
Our solar panel electrical earthing clips is designed for PV mounting grounding system. We provide various kinds of solar panel earth clamps for your options. All of them are with high quality and cost effective. Hope that our products will meet your satisfaction.
Any special require, please contact us. SPC will design the most appropriate solution for you.
Click here for more details:
| Brief Descriptions: | |
| Solar mounting components- solar electrical earthing clips | |
| Item type: | Solar mounting components |
| Type: | SPC-GW-29 |
| Installation Site: | Solar panel |
| Profile Material: | Stainless steel SUS304 |
| Fasten Parts: | Anodized Aluminum |
| Color: | Natural |
| Wind Load: | 60 m / s |
| Snow Load: | 1.4 KN / M2 |
| PV Modules: | Framed, Frameless |
| Module Orientation: | Landscape / Portrait |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag+inner box+Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
Size and drawing for solar electrical earthing clips SPC-GW-29
size and drawing for solar electrical earthing clips
Inquiry of Solar electrical earthing clips.
Q:
Hi,
I would like to enquire about the following product: SPC-GW-29
Do you have a datasheet?
A:
Appreciated for inquiry of cable clip: SPC-GW-29.
May I know how you will use it?
Perhaps we can provide more suitable Solar Grounding Clip products according to your needs.
Q:
Thank you for the email, we are supporting a client in implementing a solution to address the equipotential bonding requirements of their ground pv installation.
Their approved configuration is shown below:

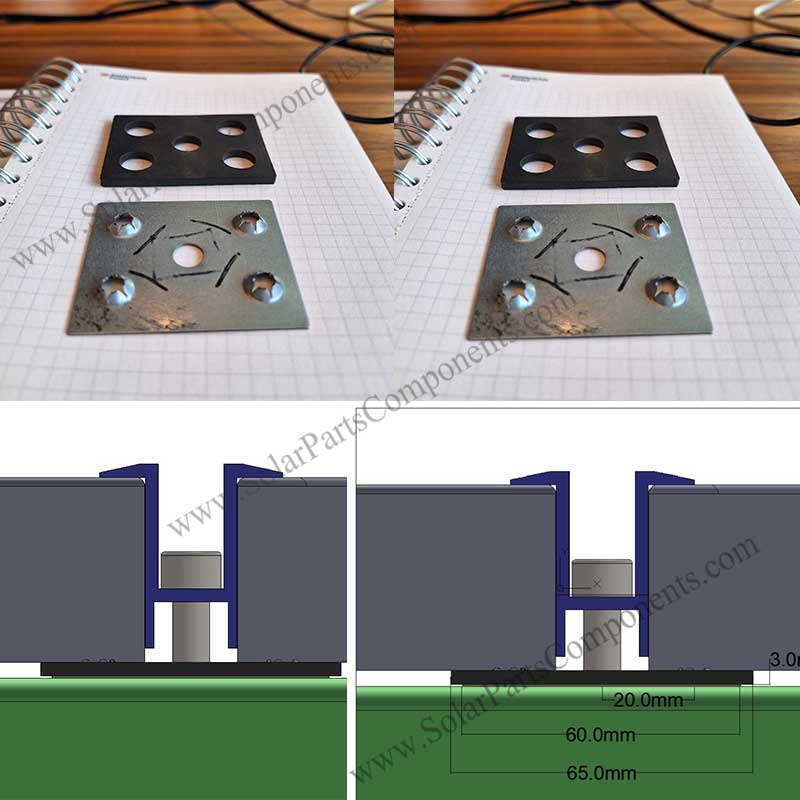

The plate sits on the purlin flange and mates with the underside of the module frame. When the module clamp is tightened, the perforations bite into the anodising. The EPDM insulating plate is to prevent galvanic corrosion.
Do you have something like this?
Solar electrical earthing clips 1
A:
Thank you for your early reply!
Perhaps you can provide relevant drawings?
We can customize it according to the drawings.
How much quantity is required?
Q:
Unfortunately, I don’t have drawings.
A:

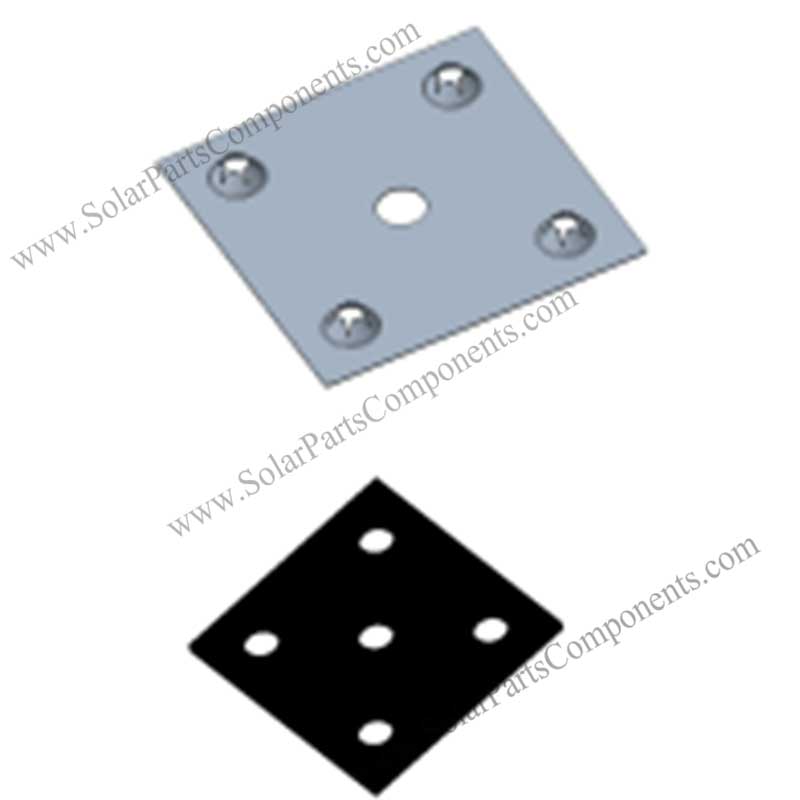

Based on the information you provided, our drawings are as follows, please confirm.
FYI
Solar electrical earthing clips
Please don’t hesitate to let me know if you have any questiton.
Q:
Thank you for your email.
PLEASE quote me the price.
Solar electrical earthing clips factory
Q:
Hi, I notice that you are solar electrical earthing clips factory.
Do you have the right type of earthing clips can fit my rail.
Solar electrical earthing clips factory
A:
Hi, nice to get your inquiry on our solar electrical earthing clips.
According your rail demension, we recommendate our model SPC-GW-29
Solar electrical earthing clips factory 1
Q:
It looks great, I need 70000 Nos. to Perth,
Western Australia. Please quote me best price with shipping cost.
A:
Please refer to our quotation as the attachment.
Thank you.
SPC Sale Team.
