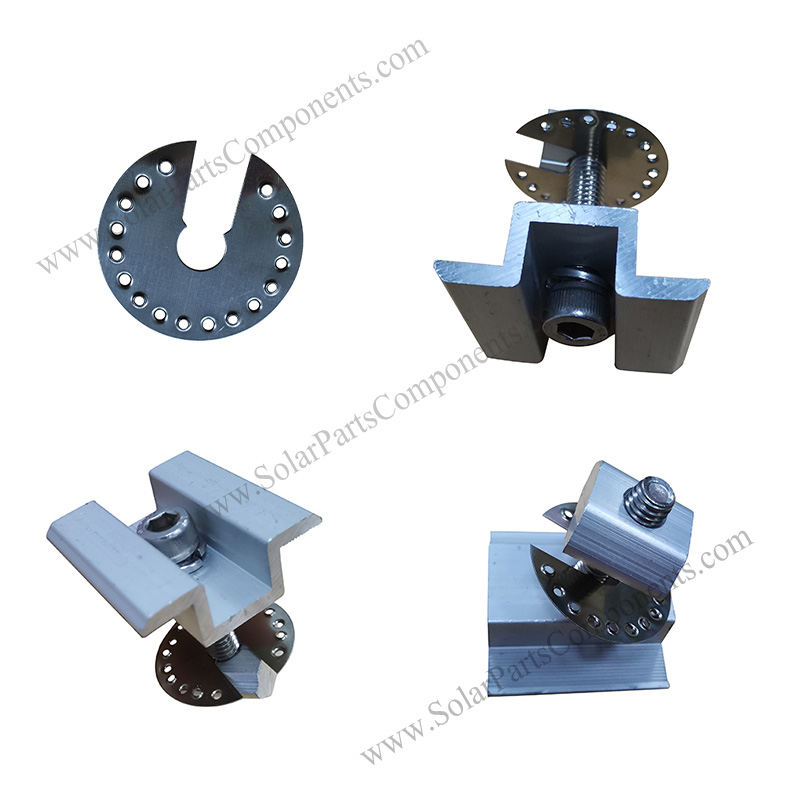

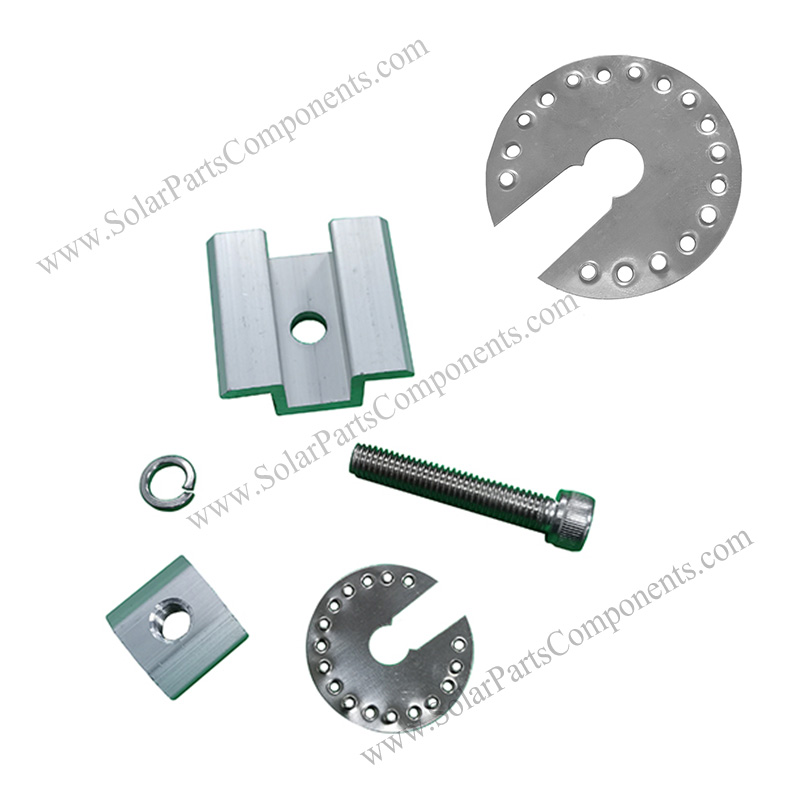

The solar grounding clip for PV module solves the need for more expensive grounding methods and greatly reduces the amount of labor and material during installation. During installation, the grounding clamp is located at the fixed point between the photovoltaic module and the mounting rail. The dedicated teeth of the ground clamp are embedded in the anodized aluminum rail.
The innovative design eliminates the need to connect the ground wire to each individual module and eliminates the need for surface treatment of anodized aluminum components. This electrical clamp is very important for grounding. It connects the PV module to the ground through a guide rail to ensure electrical safety.
The solar panel grounding clip for racking system can protect the solar mounting system equipment, and can provide continuous grounding on the solar system installed on the roof/ground. The general-purpose conductive sheet has multiple holes that can penetrate the surface of the aluminum rail and produce good conductivity.
Feature:
1. Many types, accept customization;
2.High quality stainless steel grounding clip;
3. Use with most aluminum rails;
4. One of the important accessories of solar mounting system;
5. Suitable for PV module with frame /frameless;
Stainless steel solar panel grounding clip is designed to pierce the anodic oxide film between the aluminum rail of the solar mounting accessory and the solar photovoltaic panel to make the solar mounting frame conductive. The universal conductive sheet has ribs in one circle, which can penetrate the anodized film on the surface of the anode aluminum rail, thereby terminating the grounding path through the rail. This will make the solar system more space-saving, which is a necessary installation for the installation of solar panel systems Components.
We are a manufacturer of solar hardware accessories. We have our own factory. Grounding clips are our best-selling products. We have more than 20 types of conductive sheets, and customization is also acceptable. If you have any needs, please feel free to contact us: www.solarpartscomponents.com.
