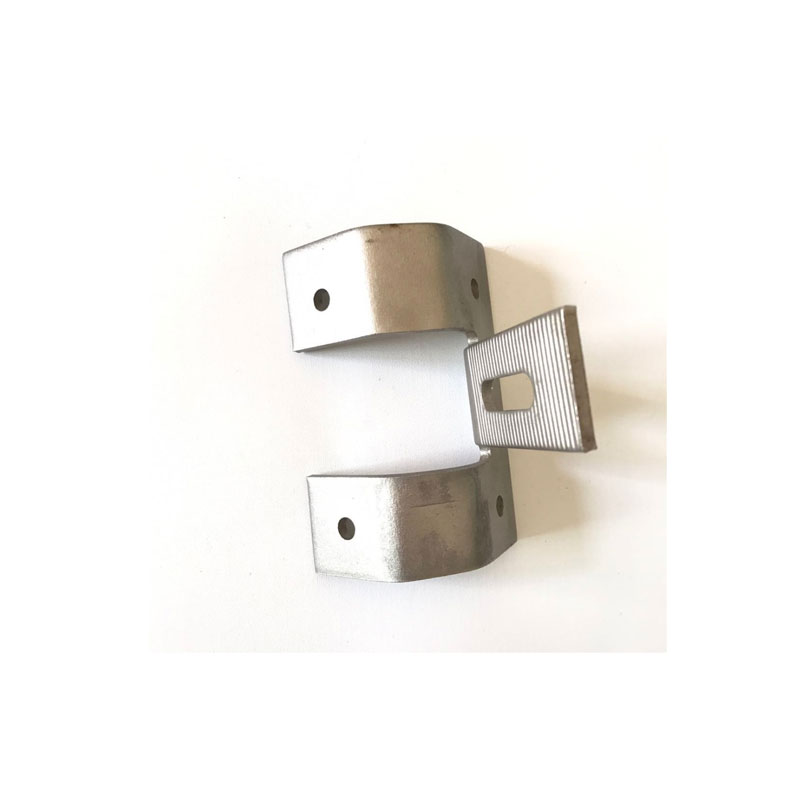

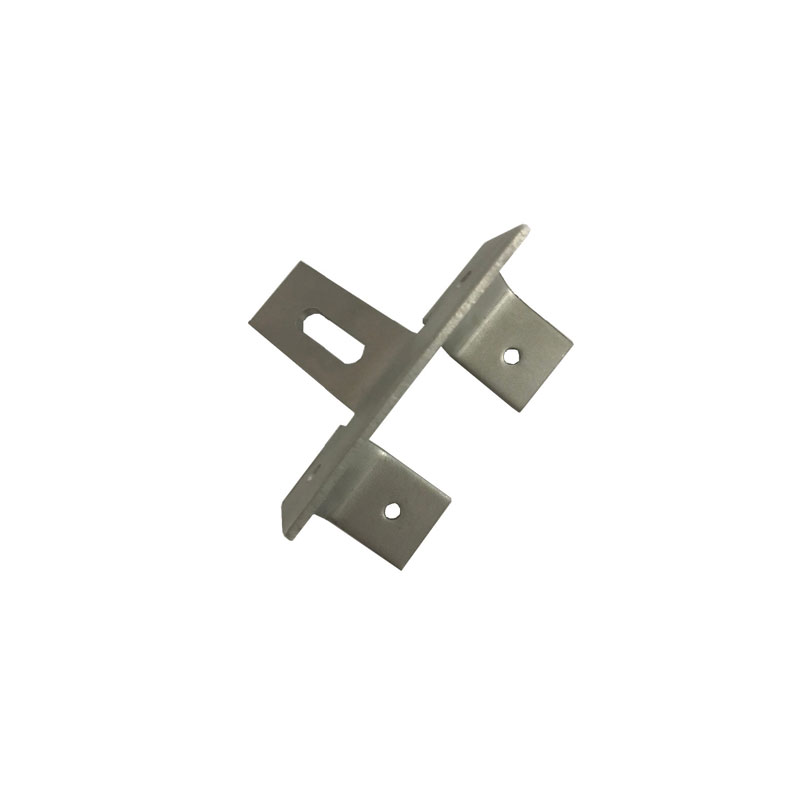

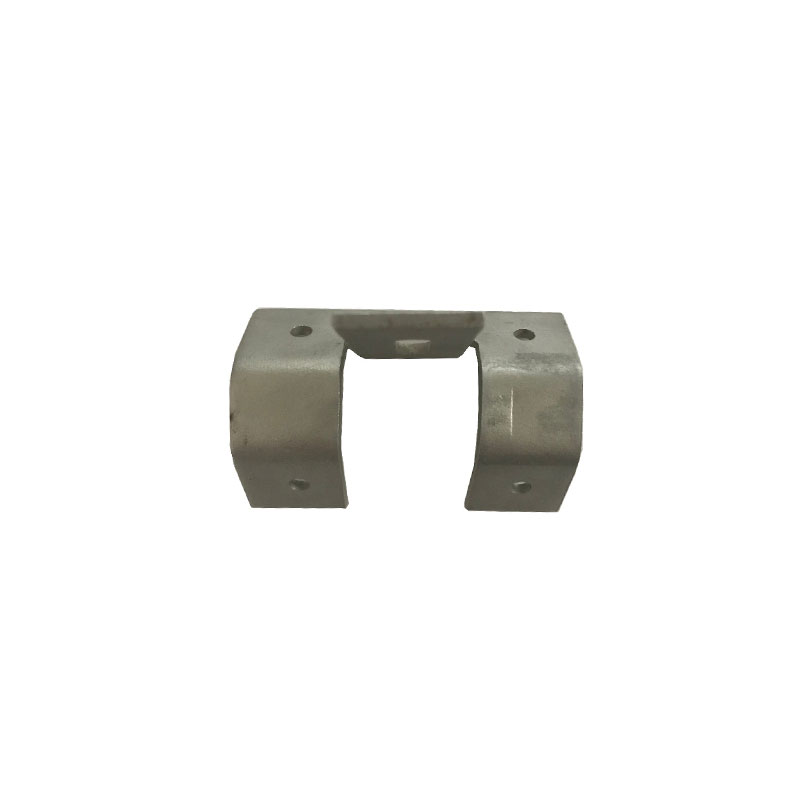

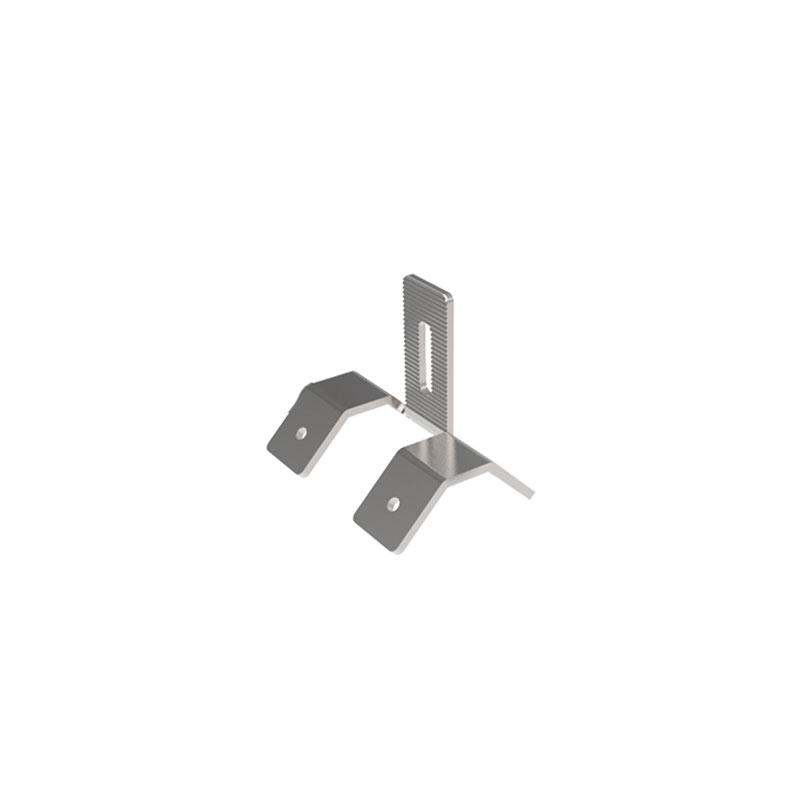

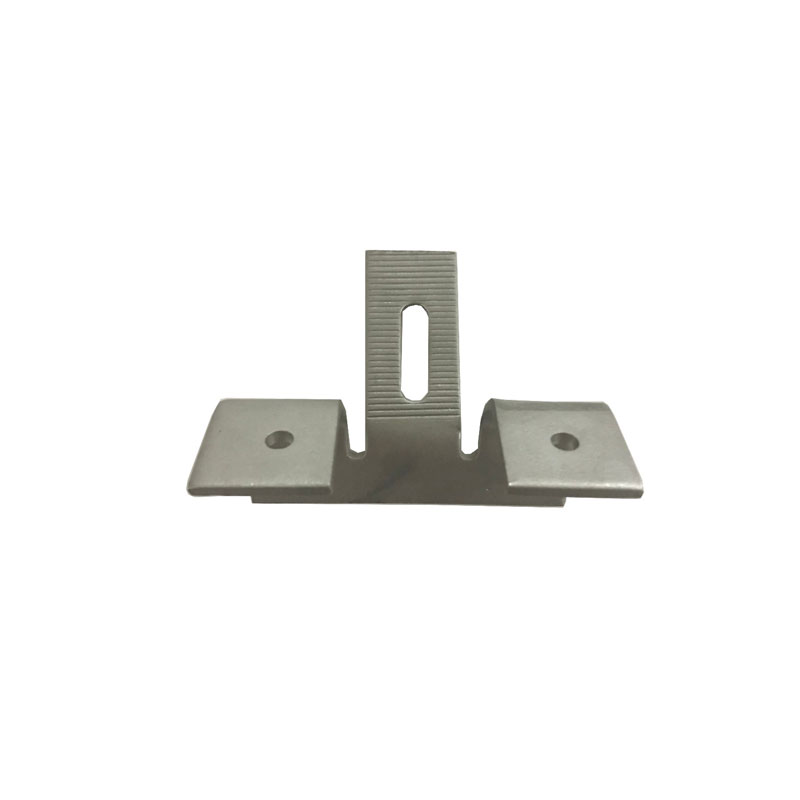

Solar Metal Roof Clamps for Corrugated Tin Zinc Roofing, Side Mounting
- Product Type: solar corrugated metal roof mounting clamps
- Product Model: SPC-CK-03
- Material: Stainless Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Tin Zinc Metal Roofing Solar Panels Installation
Product Description :
This side mounting clamps are designed for corrugated, zinc, tin roofing solar panenl installation.
Corrugated metal roofing is a very common panels for roof construction, it’s anti-rust , easy installing and colorful for appearance .
Our solar side mounting clamp is widely applied for this kind of zinc sheet materials.
Perfect matched for tin roof profile, our metal roof brackets are simply and quickly fixed to panels by 4 pieces of screws .
And the general cost is competitive with our simple and innovative structure .
As there are several models of corrugated metal roofs, we only produce the most common ones .
Please offer precise roof drawings before purchase our solar clamps in big volume .
We offer four pieces of gaskets, they can be attached beneath tin metal ridges which can help against rain water from go through screws holes of zinc roof clamps. A piece of good adivce is using water proof sealant
caulking around screws during installing these solar clamps .

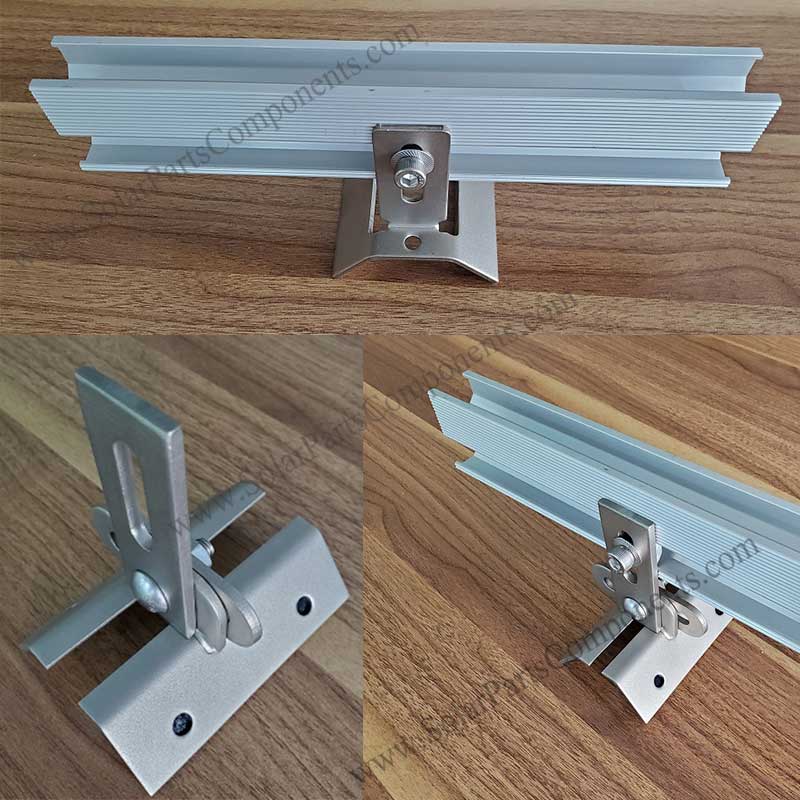

With our professional solar mounting kits, installers can easily fix aluminum rails with vertical part of clamps well .
Advantages :
- Firm and strong structure with thick stainless SUS 304 steel ;
- Quick installation with our screw kits ;
- Ten Years Quality Warranty , Twenty-five Years Life cycle.
- Factory direct, fast delivery for regular models in our warehouse .

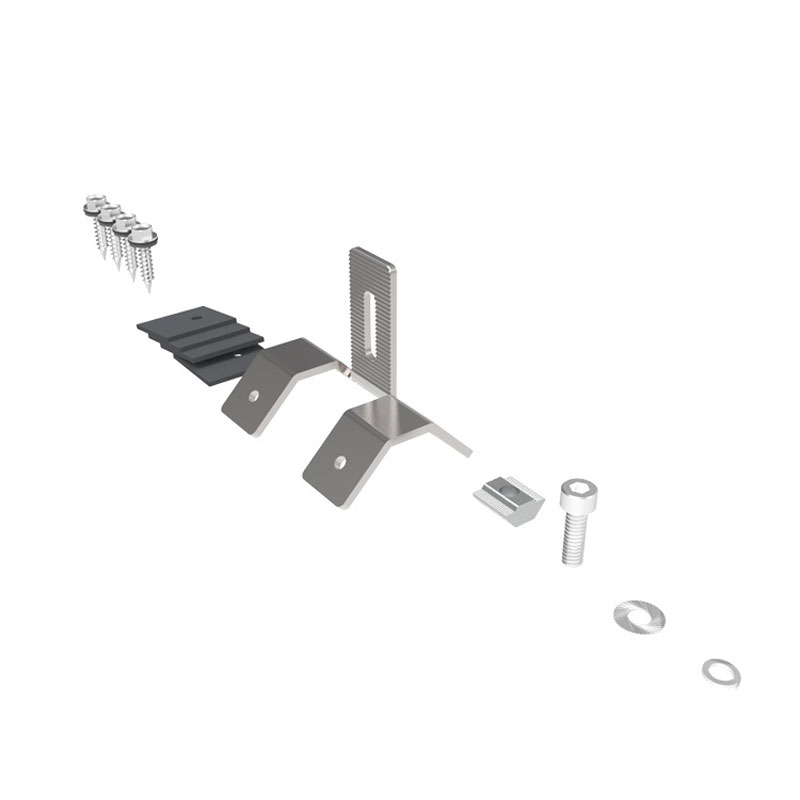

Parts and Components for Corrugated Metal Roof clamps, Side Mounting for Solar Panels :
a) One piece of solar sode mounting corrugated metal roof clamp ;
b) 4 pieces of rubber gaskets ;
c) 4 pieces of stainless steel screws ;
d) one set of solar mounting kits for rail . (Optional)
Brief Descriptions : | |
Solar Metal Roof Clamps for Corrugated Tin Zinc Roofing, Side Mounting | |
Item type: | Solar Metal Roof Brackets SPC-CK-03 |
Type : | Solar Metal Roofing Side Mounting Clamps |
Installation Site : | Corrugated Metal Roofing |
Profile Material : | Aluminium 6005- T5+ SUS 304 |
Fasten Parts : | Stainless Steel |
Color : | Silvery or according to customer requirements |
Wind Load : | 60 m / s |
Snow Load : | 1.4 KN / M2 |
PV Modules : | Framed, Frameless |
Module Orientation : | Portait and Landscape |
Standards : | AS/NZS 1170 |
DIN 1055 | |
GB50009-2012 | |
IBC2009 | |
TUV | |
JIS C 8955 : 2011 | |
International Building Code IBC 2009 | |
California Building Code CBC 2010 | |
Warranty | 10 years |
Designed Life Span | 25 years |
Packing Details : | |
Inner : | Bubble bag+inner box+Carton |
Outer : | Wooden Box, Steel Pallet, MDF, etc |
solar Trapezoid metal roof hook , sided installation for solar panel modules
Metal Sheet Solar Mounting Clamp, sided installation

solar Trapezoid metal roof hook side installation
Metal roof clamp for solar pv mounting system
Metal roof clamp for solar pv mounting system is is suitable for roofs with trapezoidal metal roofs, ensure the beauty of the roof.

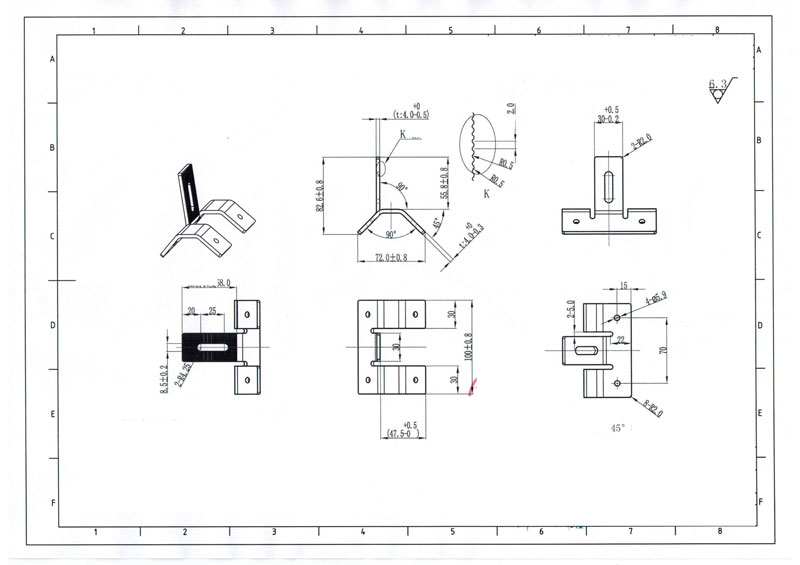

Drawing for this Solar Corrugated Metal Roofing Clamp, Side Mounting
Size & Profile detail for this Side Mounting Metal Sheet Solar Roof Clamps
What is the features of this solar corrugated metal roofing clamp?
Features of this side mounting clamp, SPC-CK-03:
1.Massive spot;
2.Ten-year warranty;
3.Smooth surface without burr;
4.Anti-seismic and anti-pressure.
