Side Mounting solar roof clamps for Corrugated / Tin / Sandwich / Zinc / Metal sheet roofing
Item : Solar Corrugated Metal Roofing Clamps, Side Mounting ;
Finishing : Sandblasting ;
Material : SUS 304 Stainless Steel ;
Total Size : 100 mm ( Length) X 71.7 mm ( Width ) X 82.8 (Height) /
4″ (L) X 2 3/4″ (W) X 3 1/4″ (H) ;
Trapezoid Section Size: a: 30 mm , b : 71.7 mm , h : 18.9 mm /
a: 1 3/16″ , b : 2 13/16″ , h : 3/4″
Rail Slot Size : 8.5 mm X 33.5 mm /
5/16″ X 1 5/16″

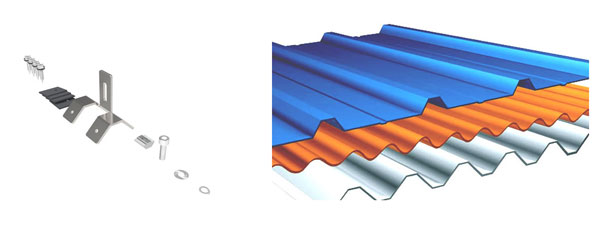

Matched Bolt & Nut Size:
1) Inner Hex Head Allen Bolt M8 mm X 25 mm ;
2) M8×13 Ribbed Lock washers (SUS304) x 1 ;
3 ) D8 Spring washers ( SUS 304 ) x 1;
4) M8 T sliding nut ;
Mounting Screw Slots Size : Φ 6.0 – 7.0 mm
Matched Screw Size:
1) 6.3*25 Timber screws ( 20# dacromet ) x 4 ;
2) EPDM x 4 ;
Weight : 348 (g) / 0.77 (lb) ;
Packing : 200 pcs / carton ;
Packing Size : 540 mm ×220 mm × 200 mm /
21″ X 8 3/4″ X 7 3/4″
Our Solar Parts & Components QC Team
stictly test following parameters of this Side Mounted Metal Sheet Roof Clip item, Side mounted before delivery:
Waterproof IP class , downward loading test , uplifting test, snow and wind loads …
More models of our sandwich tin composition roof brackets are available from www.SolarPartsComponents.com
