Solar Metal Roof Clamps for Corrugated Tin Zinc Roofing, Side Mount
- Product Type: solar corrugated metal roof mounting clamps
- Product Model: Solar-Corrugated-Tin-Zinc-Metal-Roof-Clamp-Side-Mount
- Material: Alum, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Tin Zinc Metal Roofing Solar Panels Installation
Product Description :
The corrugated metal roofing clamp is designed for side mount, easy of installation and good stability .
This Solar side mount clamp is great for corrugated, zinc, tin metal roofing construction .
Very easy for roofer to install the clips, solar panels, wire cables together with other solar parts and components .
Side mount tin metal roofing clamps are also suitable for retrofits , dipping some mastic when screwing can be water-resistant .

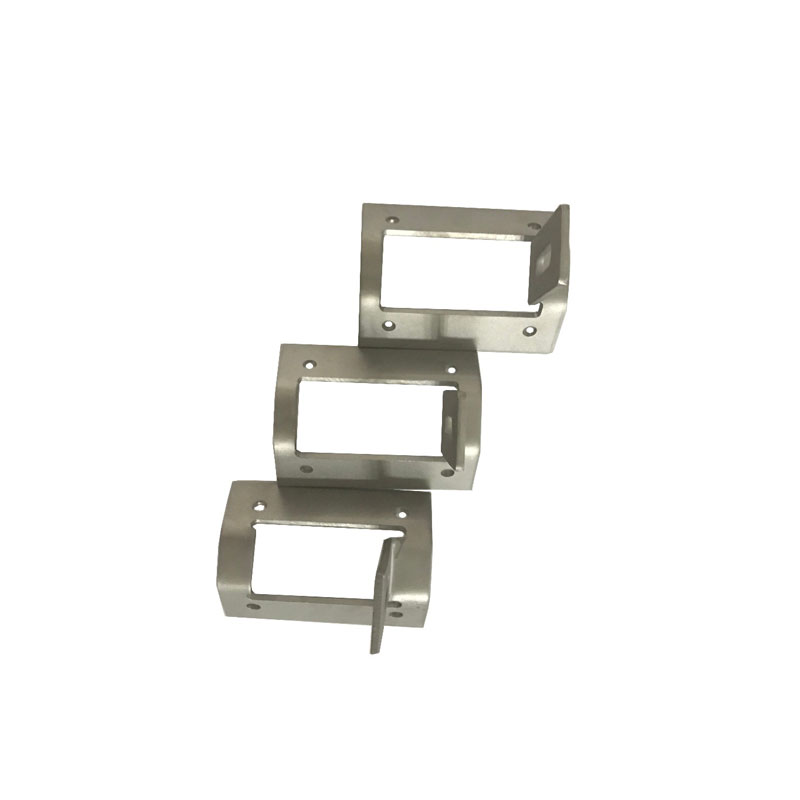

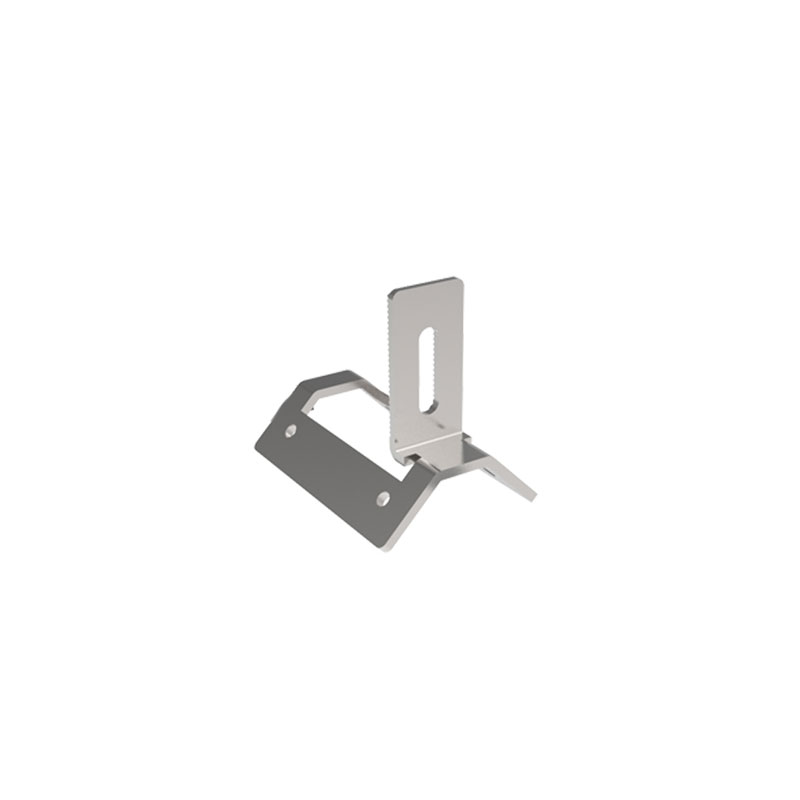

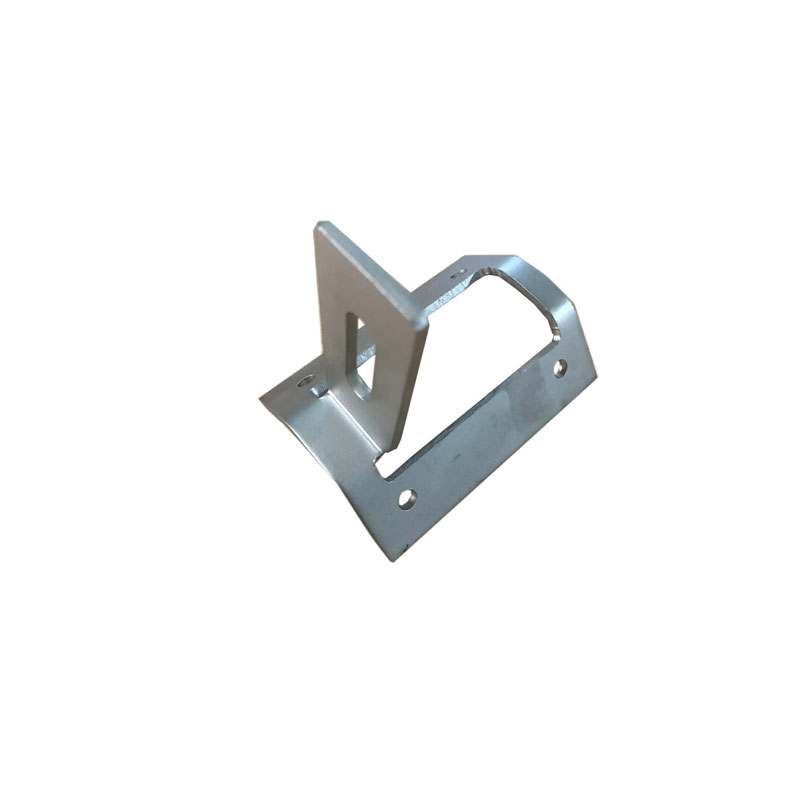

This solar clamp is straddled over two sides of metal roof ridges, it’ s made of SUS 304 stainless steel .
The corrugated metal roofing clam is designed to attaching PV module directly to corrugaged, tin, zinc metal roof .
This clamp is Side mounted for Trapezoidal Corrugated Metal Roofs, cost-effective, easy to use.
This corrugated metal roofing bracket comes with four pieces of adhesive rubber sealant pads , make sure weather proof after solar panel project installed .
(1) Easy installation without collapsing old metal roofing ;
(2) Low cost and effective comparing traditional corrugated metal roof clamps ;
(3) Economical designed by using high quality stainless steel material ;
(4) Leak proof with rubber pads .

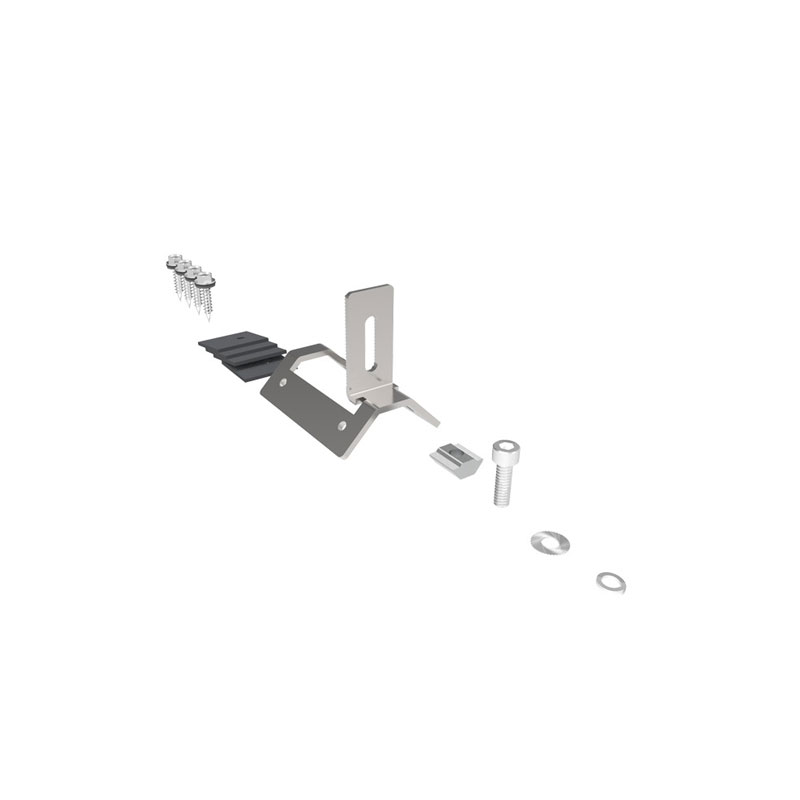

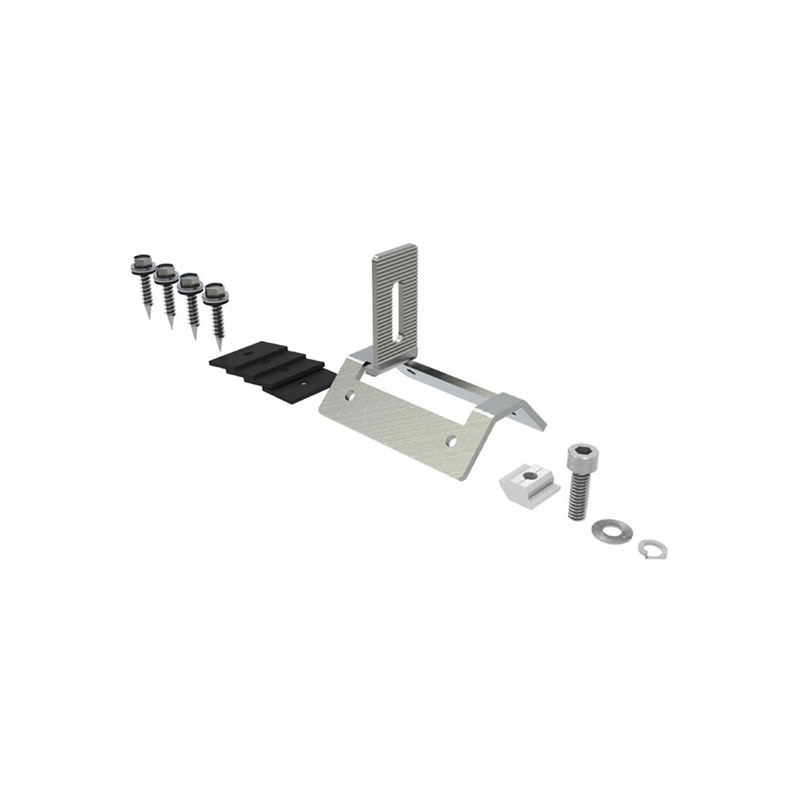

Parts and Components for Side Mount Corrugated Metal Roof clamps for Solar Panels :
a) One piece of solar side mount corrugated metal roof clamp ;
b) 2 pieces of rubber gaskets ;
c) 4 pieces of 304 steel screws ;
d) one set of solar mounting kits for rail . ( Optional )
|Brief Descriptions :|
|Solar Metal Roof Clamps for Corrugated Tin Zinc Roofing, Side Mount|
|Item type:||Solar Metal Roof Brackets|
|Type :||Solar Roofing Side Mount Clamps|
|Installation Site :||Corrugated Metal Roofing|
|Profile Material :||Aluminium 6005- T5+ SUS 304|
|Fasten Parts :||Stainless Steel|
|Color :||Silvery or according to customer requirements|
|Wind Load :||60 m / s|
|Snow Load :||1.4 KN / M2|
|PV Modules :||Framed, Frameless|
|Module Orientation :||Portait and Landscape|
|Standards :||AS/NZS 1170|
|JIS C 8955 : 2011|
|International Building Code IBC 2009|
|California Building Code CBC 2010|
|Designed Life Span||25 years|

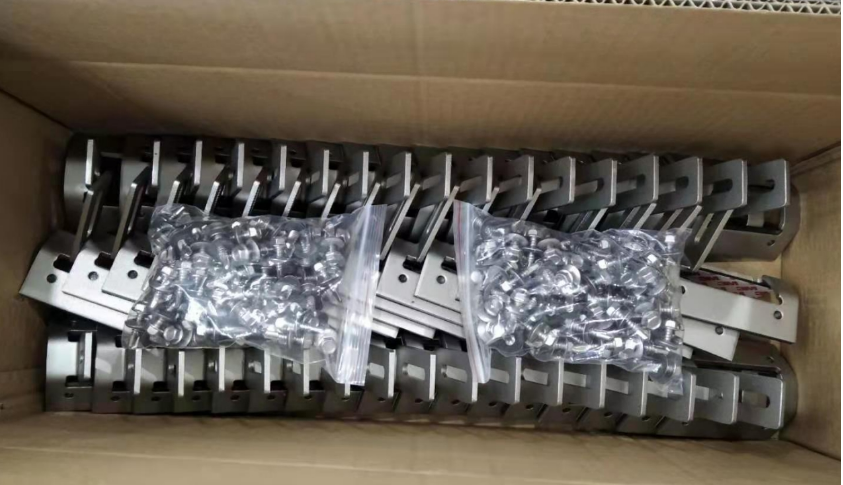

|Packing Details :|
|Inner :||Bubble bag+inner box+Carton|
|Outer :||Wooden Box, Steel Pallet, MDF, etc|
Metal roof clamp / hook / bracket , side mounted for PV module Installation
Metal Sheet Solar Mounting Clamp, side mounting installation
Solar Panel Trapezoid Metal Roof Clamp Series
Solar Panel Trapezoid Metal Roof Clamp Series, side mounted or bottom mounted :
Drawing for this Side Mounted trapezoid, tin, sandwich, zinc, corrugated metal roof clamps
Drawing for Side mount Solar Metal roof clamps – trapezoid, tin, sandwich, zinc, corrugated roofing type
Solar Trapezoid Metal Roof Clamps Side Mount Size Profile
Size & Profile for one side mount trapezoid metal roof clamp,
