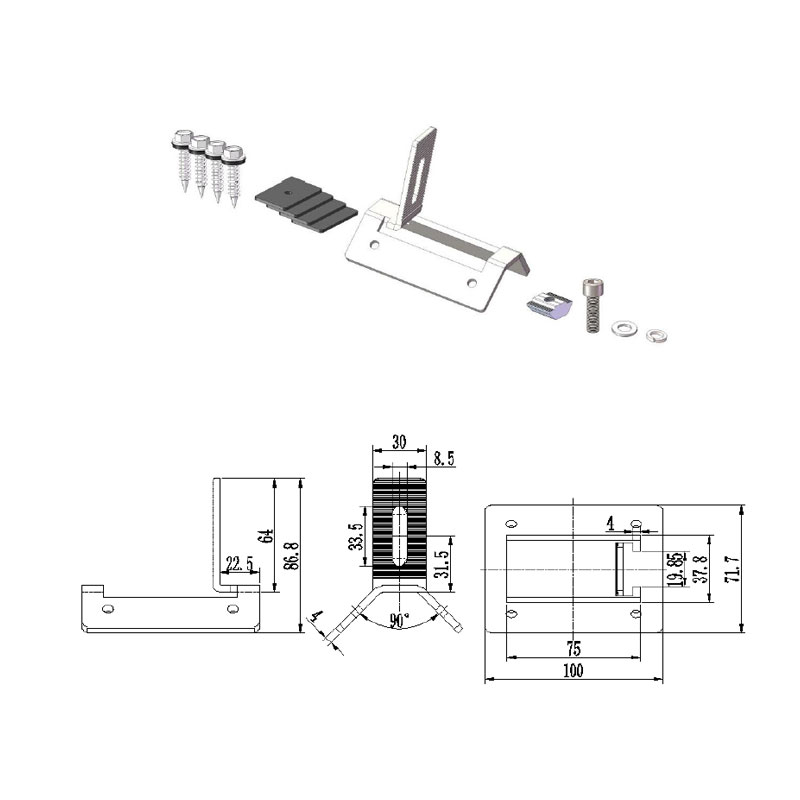

Drawing ,Size & Profile detail for this Side Mount Trapezoid Metal Sheet Solar Roof Bracket

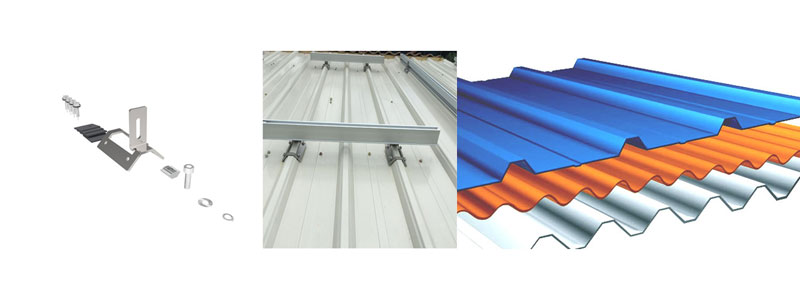

Side Mount Solar Roof Clamps for Trapezoid /Tin / Sandwich / Zinc / Corrugated Metal sheet roofs
Item : Solar Trapezoid Metal Roofing Clamps, Side Mount;
Finishing : Sandblasting ;
Material : Stainless Steel SUS 304 ;
Total Size : 100 mm ( Length) × 71.7 mm ( Width ) × 86.8 (Height) /
4″ (L) × 2 3/4″ (W) × 3 7/16″ (H) ;
Trapezoid Section Sizes: a: 30 mm , b : 71.7 mm , h : 18.9 mm /
a: 1 3/16″ , b : 2 13/16″ , h : 3/4″
Rail Slot Size : 8.5 mm × 33.5 mm /
5/16″ × 1 5/16″
Matched Bolts & Nuts Size:
1) Inner Hexagonal Head Allen Bolt M 8 mm × 25 mm ;
2) M 8 ×13 Ribbed Lock washers ( SUS 304 ) × 1 pcs;
3 ) D 8 Spring washers ( SUS 304 ) x 1 pcs;
4) M 8 T sliding nuts ;
Matched Screw Sizes:
1) 6.3 × 25 Timber screws ( 20# dacromet ) x 4 pcs;
2) EPDM pads x 4 pcs;
Weight : 348 (g) / 0.77 (lb) ;
Packing : 200 pcs / carton ;
Packing Size : 540 mm ×220 mm × 200 mm /
21″ × 8 3/4″ × 7 3/4″
Our Solar Parts & Components QC Team
stictly test following parameters of this Side Mount Trapezoid Metal Sheet Roof barcket item before delivery:
Waterproof IP class , downward load test , uplifting test, snow and wind loading…
More models of our trapezoid tin composition roof clamps are available from www.SolarPartsComponents.com
