Solar Panel Carport Mounting Design, 14 KW United States, Residential Structure
PV modules are very suitable for outdoor home yard application as well as car garage and carport .
Residential solar carport structure is a little different with commecial case.
Since it’s designed for family unit , there are only several vehicles for each family the carport size usually is smaller .
Single column or two column pole structure are enough for 2 – 4 cars .

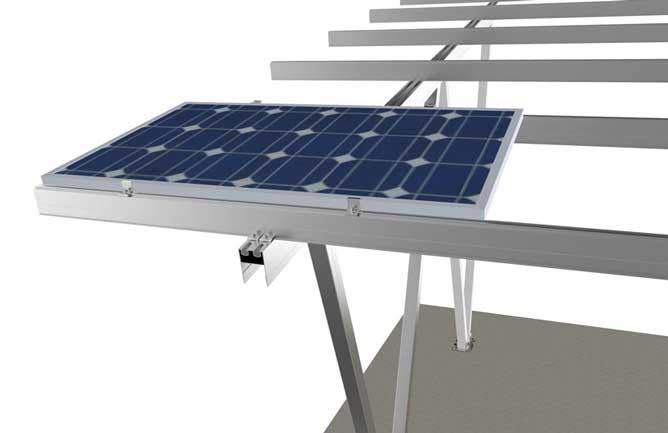

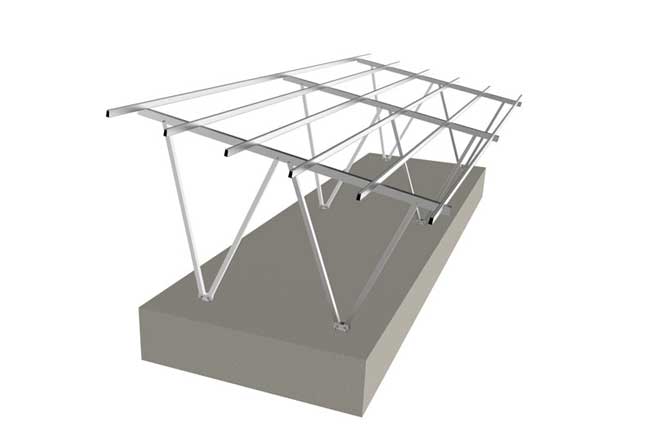

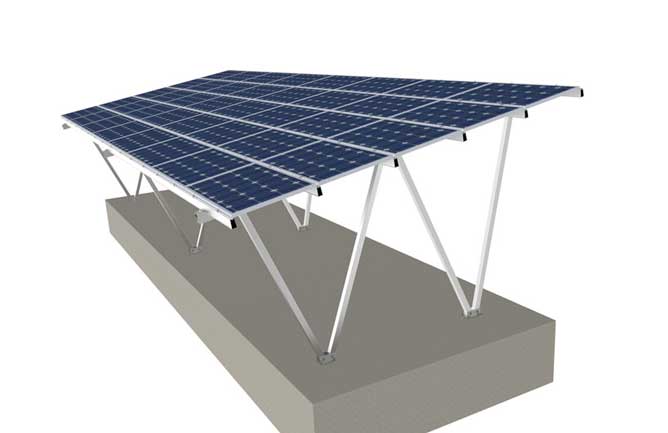

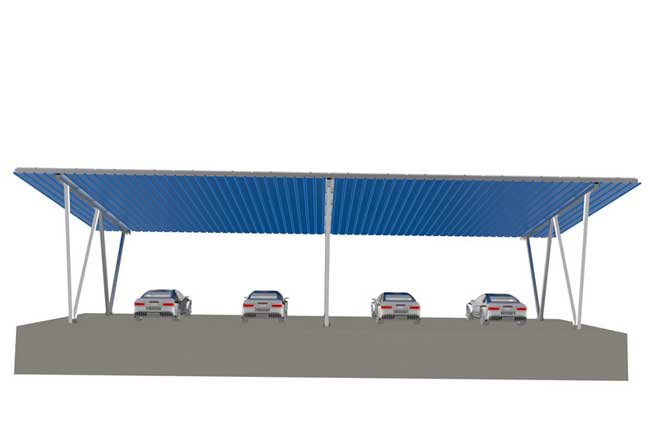

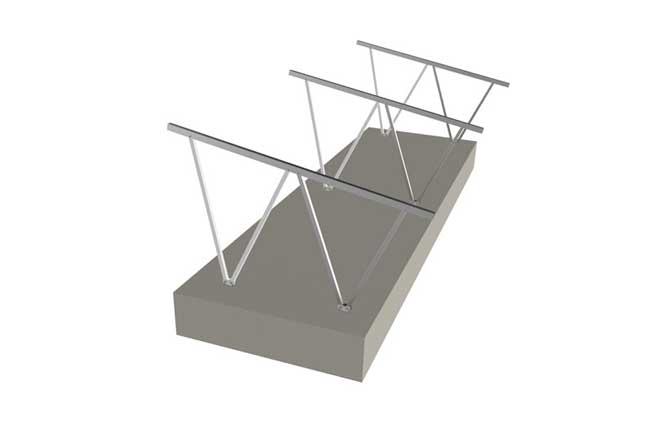

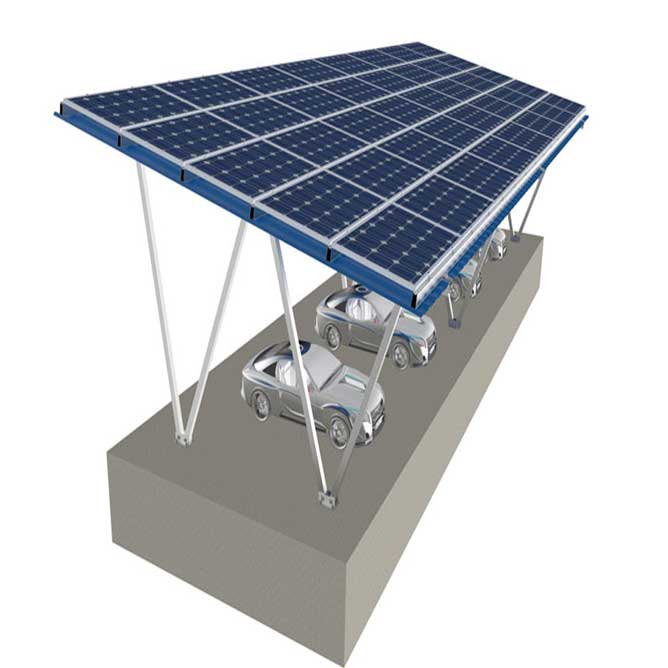

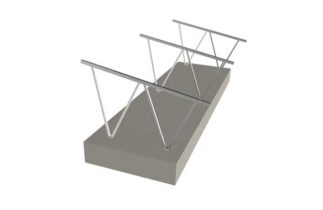

Following is one of our design sketch for one US family with four cars .

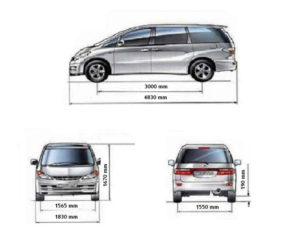

(1) As normal standard car size is :
Max 500 cm in length , Max 200 cm in width , Max 200 cm in height ;

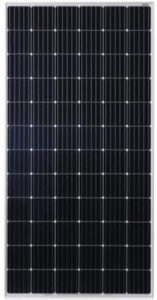

(2) Solar Panel Parameters:
Power range：350-365W
Max. system voltage：1500V
Dimention：1954 x 990 x 40 mm
Frame thickness：40 mm
Glass thickness：3.2 mm
Cable length：1150 mm
(3) Checklist as following :
– Project name : Residental Carport -1.4KW-MI ;
– Project address : 1868 METAMORA RD, OXFORD, MI, 48371, UNITED STATES ;
– Module type : 350W~370W, Mono-crystalline PV Module ;
– PV module orientation : Landscape 76.93 x 38.98 x 1.57 in;
– Layout : 5 rows x 8 columns , quantity 40 pcs ;
– Tilt angle 10 degree ;
– Design wind speed : 60m/s ;
– Vertical snowfall : 1.6 KN/m2 ;
Welcome get more details from www.SolarPartsComponents.com for this carbon steel solar mounting system .
