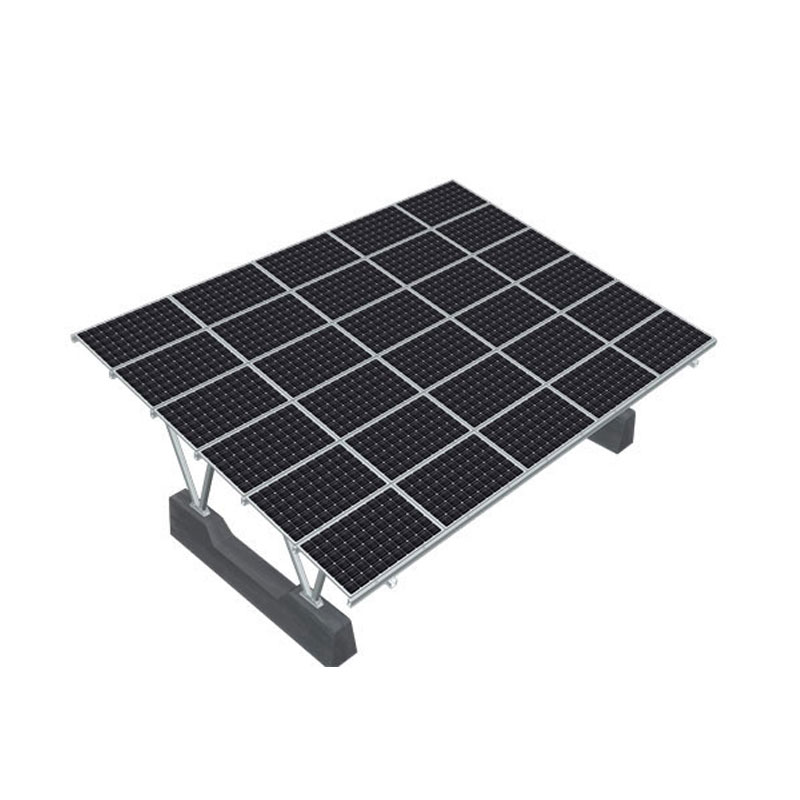

Solar Carport Mounting Systems
- Product Type: Solar Panel Mounting Systems for Carport
- Product Model:Carport-Solar-Mounting-Systems
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Portait or Landscape
- Application: Carport, garage, canopy
Product Description :
This solar pole mounting system is designed for any PV ground field in both open or rough terrain.
The tilt angle can be from 15 degree to 60 degrees.
With our pre-assembled aluminium clamps and rails can be easy and quick installation .
We using high quality anodized alum components and hot-dip galvanized stell for rails that can be great anticorrosion.
This solar pole mounting system is suitable for framed or frameless solar panels, the orientation can be transverse or vertical.
Our standing packing for solar pole mount kit is air bubble bag inside and carton box ouside.
Cartons will have wooden or steel pallet as customers requirement.
Good quality, sturdy and cost-effictive pole mounting kit is a must for PV solar panels on ground field .
Our post ground mounting system can be piled one to two meters deep into the ground.
By using scew poles, you can mount beams, rails and clamps simply .
Ground Solar Pole Mounting System can be quick installed on a single pole, it’s stable, durable …Our professional design team can help your project successful : wind, snow, earthquake load …
Our solar system has be calculated precisely with structural mechanics and QA strictly.
Our anti-corrosion for Aluminum alloy Al6005-T5 & Stainless steel 304 & Hot galvanized steel can last at lease 20 yrs lifespan.
Advantages :
- Quick Installation : pri-assembled, packed classified solar pole mounting ;
- Wide Application : any ground terrain with kinds of carbon steel screws ;
- Compatibility : Framed PV , Frame-less PV solar panels ;
- Well QC : Optimized design , 20 Years’ corrosion resistant , premium alum and steel materials, organized time delivery ;
- 10 years’ quality guarantee, 25 years’ design life span .
Parts and Components for this solar mounts system:

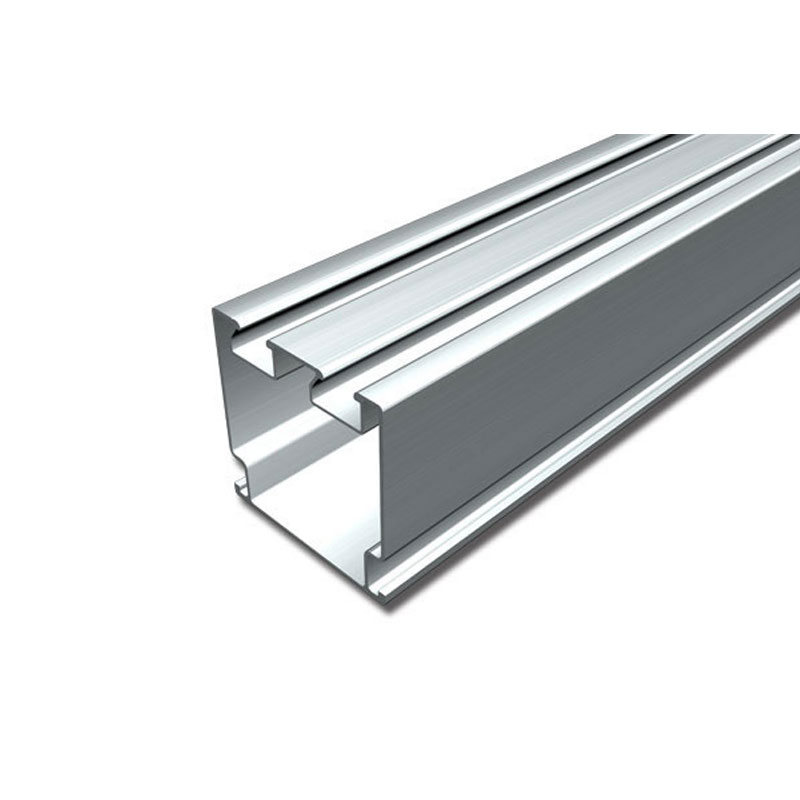

Alum Mid Clamp; Alum End Clamp; Alum C Clamp, Alum Rail, Alum Rail Splice, Girder, Beam connector, Beam,

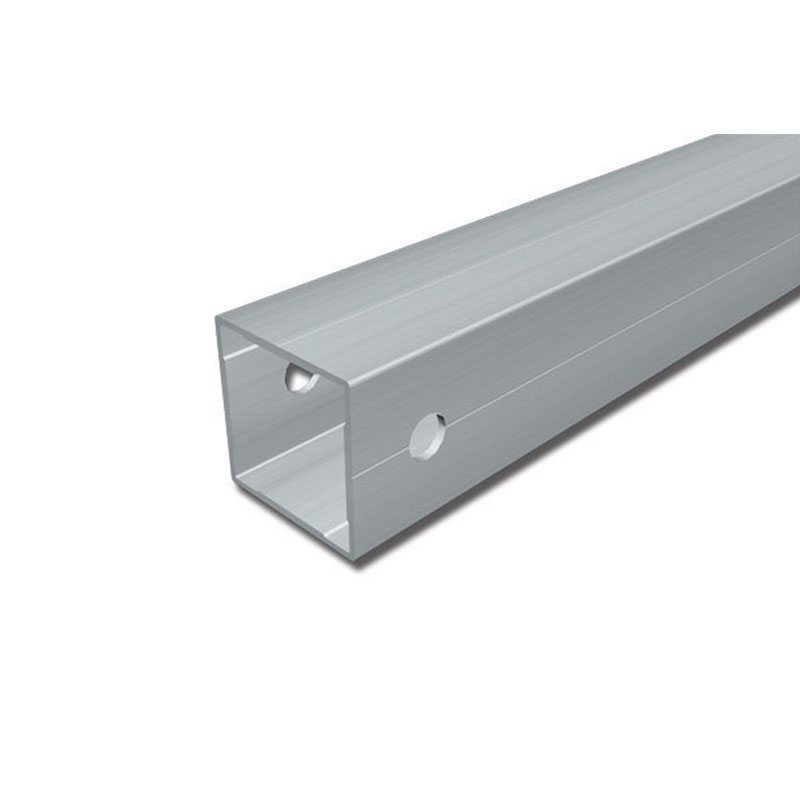

Adjustable Tube Connector, Ajustable Pole, Splice for post, Quadrate Post.

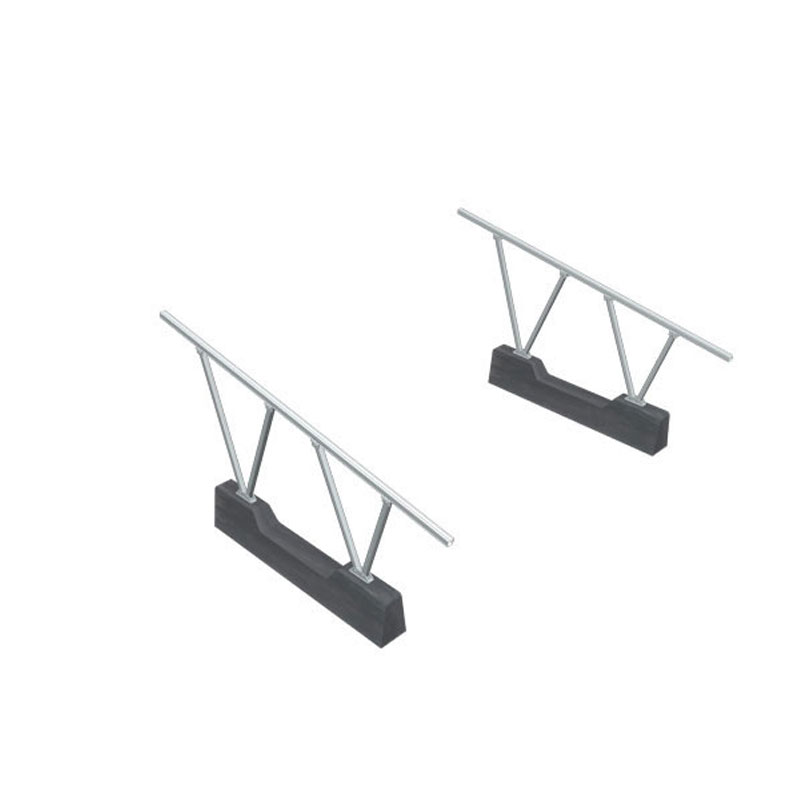

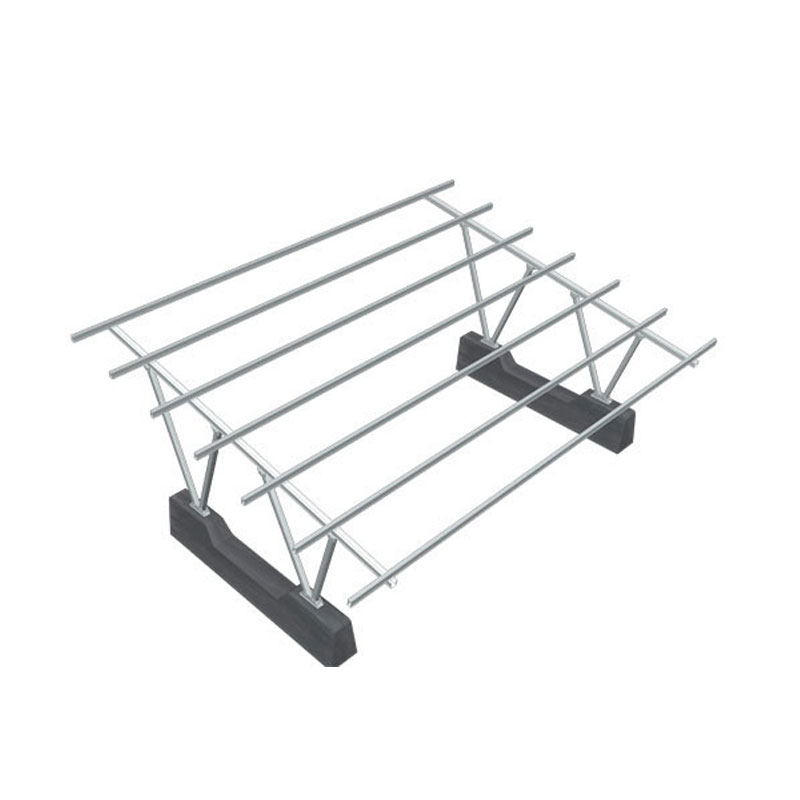

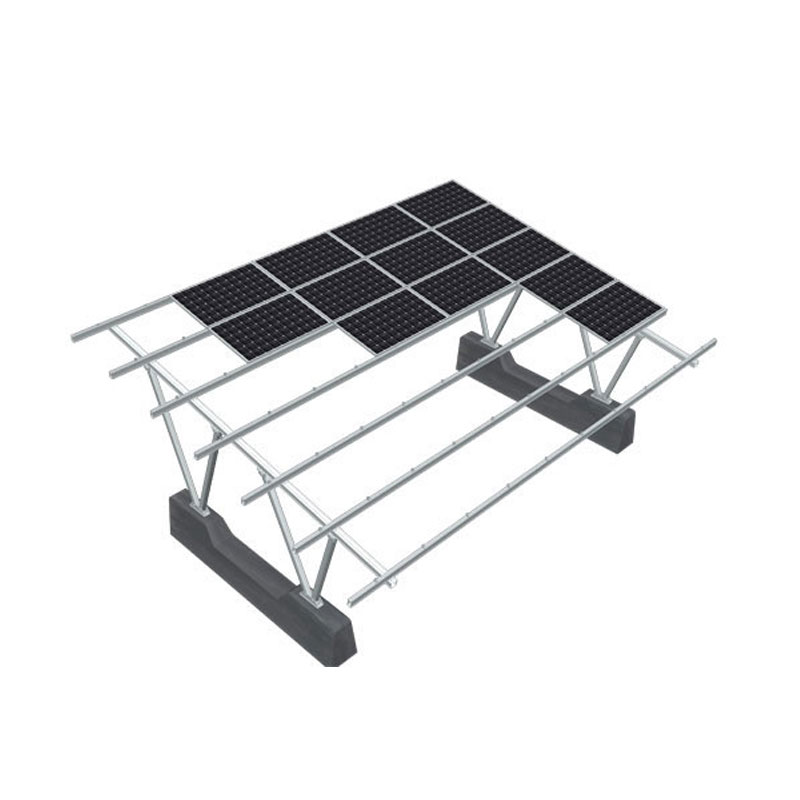

Carport Solar Mounting Systems Installation Components
| Brief Descriptions : | |
| Good quality solar panel mounting systems, kits and structure for carports … | |
| Item type: | Solar Mounting Systems |
| Technical Parameters : | |
| Type : | Carport solar mounting system |
| Installation Site : | Carport |
| Installation Angle : | 5° ~ 20° |
| Profile Material : | AL 6005 – T5 ( Anodized ) |
| Fasten Parts : | Aluminum / Stainless Steel |
| Small Components : | AL 6005 – T5 ( Anodized ) |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN / M2 |
| PV Modules : | Framed, Frameless |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
800KW Carport Solar Mounting in Argentina
Q:
Hello, William Chen
Thank you for your attention at SNEC, Shanghai Solar Expo, where we had the opportunity to see your products
We have read your catalog the roof mounting system for photovoltaic panels, and we would be interested in offering your products in our country to our customers, we believe that it is a good market for your products.
Allow me to introduce myself with a brief review of our company
We are a technology-based company with 28 years of experience in southern Argentina, which develops EPC services for the energy sector, providing solutions to the oil and construction industry.
In these moments we are dedicated to introduce in our market innovative solutions with great technological impact in renewable energies
With Base in Patagonia Argentina its area of influence and in large industrial areas throughout the country.
It is our interest to take contact with you to develop your products in our country and include them in our ongoing projects.
We firmly believe that we can be competitive in our market with your products
Waiting for your news.
Sincerely Alejandro
A:
Hi Alejandro
Nice to receive your email .
I am also very glad to do business with you .
Please refer to our new digital catalogue :
https://www.solarpartscomponents.com/images/SPC-Catalogue.pdf
Let me know how can I assist with you for solar mounting project ?
Thank you !
Q：
Hello William,
Thank you for your prompt response, we are very happy to have contacted you, as your products are an important alternative for our projects.
We would like to provide us with all the information such as certifications, and approvals to analyze with our customs agent
If you have already sent to Argentina, it would be very useful, what documentation was required.
We sincerely appreciate your support.
Best regards
Alejandro
A:
Hi Alejandro
Hope everything goes well .
If you have any coming projects , feel free let me know .
We would very like to seek the way to be your qualified supplier with years of experience , satisfying services .
Thank you !
Q:
Hello William,
thank you for your prompt response, if we are developing several projects, I tell you one of them that we are designing a parking of vehicles, Carport Solar Mounting to mount porticos where they will mount solar panels of 355W 1995x992x40, for a total of 800 kw.
Carport Solar Mounting projects

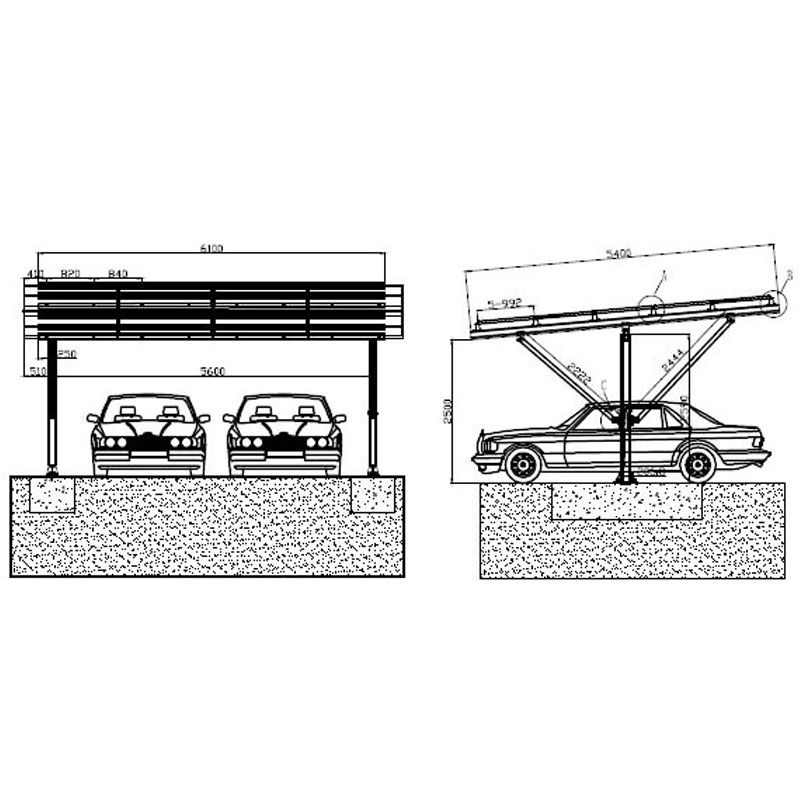

The parking is two vehicles facing (as the attached photo) of 12Mts wide, detailed below the dimensions of the porticos
Lot 1: 12 x 8, quantity1 = 96m2
Lot 2: 12 x 22, quantity1 = 264m2
Lot 3: 12 x 28, quantity1 = 336m2
Lot 22: 12 x 32, quantity10 = 3.840m2
Lot 5: 12 x 28, quantity1 = 336m2
Lot 6: 7 x 44, quantity2 = 616m2
total area to be covered = 5,488m2
This parking area will allow to cover the parking lots of the cars and generate energy.
We would be interested to quote us all the structure, columns, pillars, roof mounting, ground mounting, and structure to support the panels.
Waiting for your response as soon as possible.
grateful for your valuable help
Have a nice day.
Alejandro
A:
Dear Alejandro
Nice to receive Carport Solar Mounting enquiry .
The solar panel installing orientation is portrait , rights ? (As photo given)
What’s the tilt angle for these carport structure ? If not specify, we use 30 degree for design .
The photos you given is 6 units of solar panels wide but what you need is 12 units of solar panels wide ?
Please advise .
Thank you !
Q:
Hello William,
Have you received my mail?
We are presenting a preliminary project estimating approximate costs, once approved this, we will develop in detail the Carport Solar Mounting.
For now we need to have an approximate idea in this type of projects the cost / W of the complete structure with panel fixings.
We are interested that the columns are fixed to the ground screws (spiral Pile), to avoid making concrete foundations
It would be very helpful to have that information, or some example to estimate the costs
The roof of CARPORT (parking) has 36 rows x 6 columns of panels placed portrait, angle of inclination 15 º to 30 º to be defined, with a total of 192 panels.
There are 14 CarPorts, of equal length and 3 of ditth length all add up to a total of 3.133 panels
Your assistance would be very helpful
We appreciate your cooperation
Alejandro
A:
Hi Alejandro
The price I qouted yesterday $0.13-$0.2 per watts is only price for mounting structures only which ground screws are not included .
If you need ground screws included, the factory price for mounting structure is USD $0.15-$0.22per watts .
The prices above are not including solar panels .
Thank you !
Q:
Hello William,
Thanks for your price.
This price is acceptable to us, please provide us with specific design and quotation so that we can move forward with this Carport Solar Mounting project.
grateful for your valuable help
Have a nice day.
Alejandro

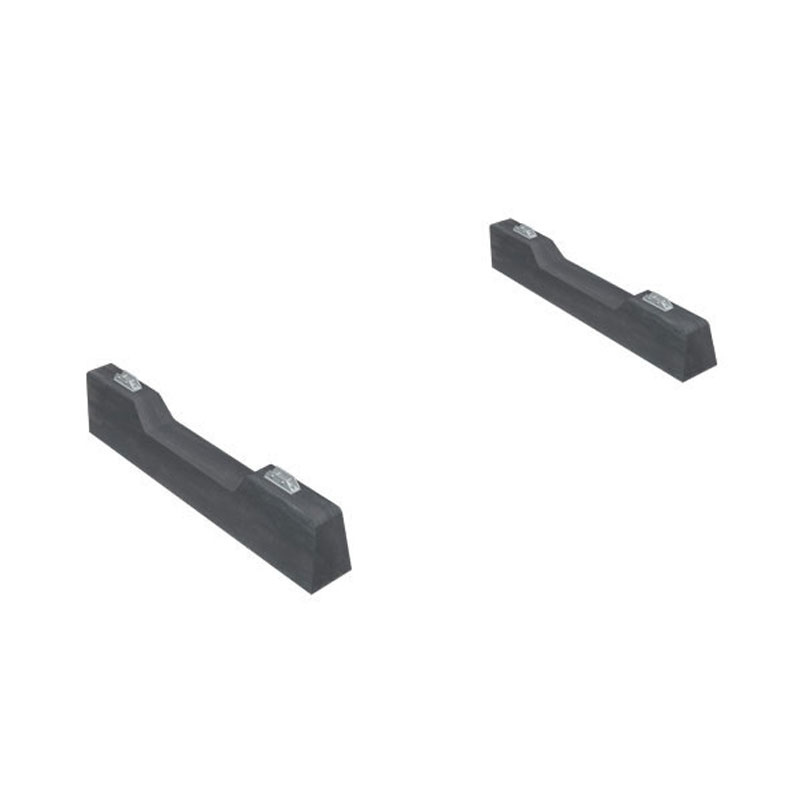

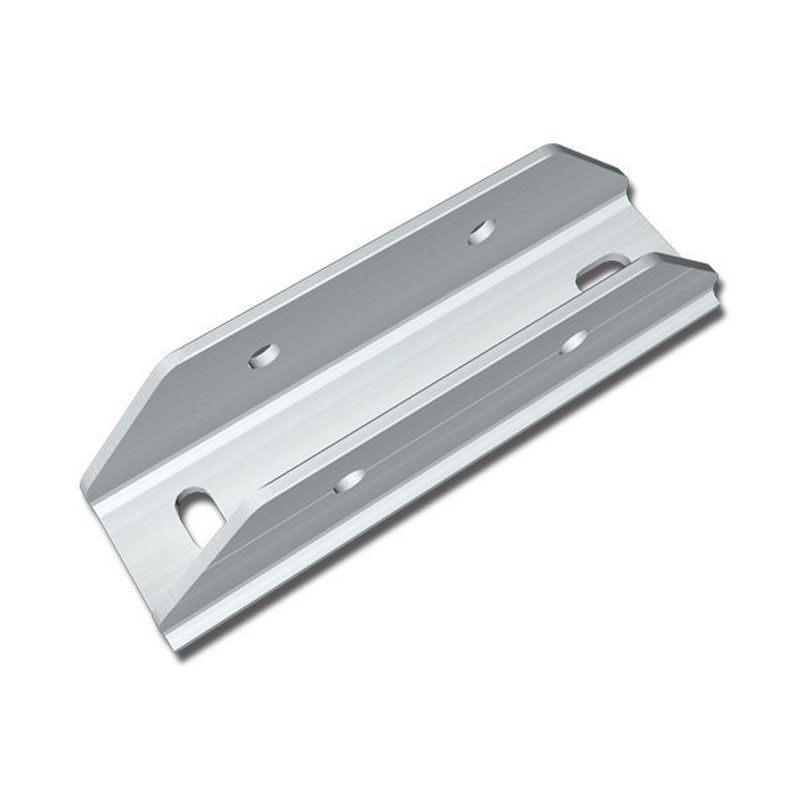

solar carport mounting base types
do you have solar carport frame for our home ?
Today we got an inquiry from Orlando Florida area which need PV module carport frames ,
I am looking for specs on the carport type solar frames.
spacing of up rights on 14″ centers.
array would be 4 to 5 rows stacked on top of each other and 8 panels across
I would like to support it with three 14 foot tall 6x6x 1/4 thick alu uprights.
Our engineer offer 7/24 supports for each valued customer .
More details, kindly check >>>

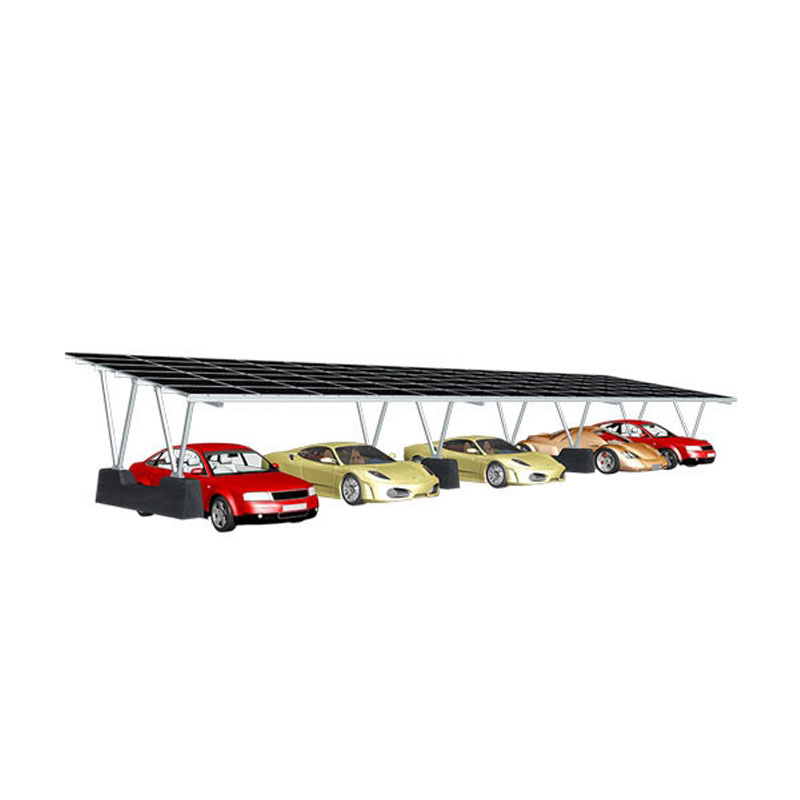

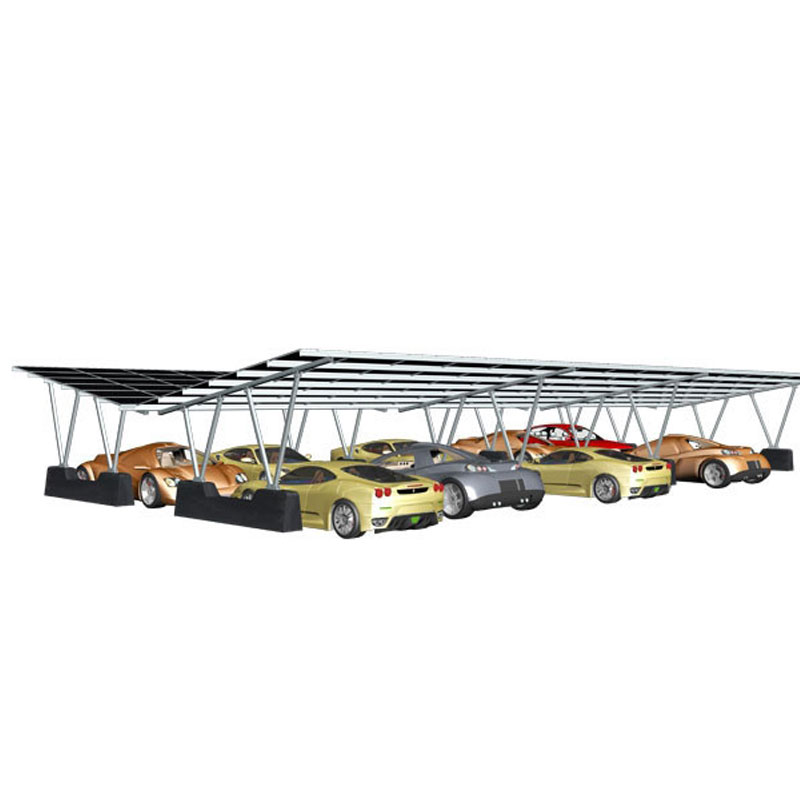

Solar Carport Mounting System Introduction
Aluminum Carport Installation System
Installing solar PV modules as shelter roofing for carports is a very good solution .
It can offer clean energy for vehicles .
Features of this Aluminum Carport Installation System :
– Pre-assembled before shipping ;
– Can be power station for renewable energy vehicles ;
– Safe & reliable for 60 m / s for wind speed / 1.4 KN/Square meter MAX ;
– 10 years warranty and 20 years life span ;
Solar Carport Mounting System
Solar Parts & Components Factory can flexible design rows for power plant requirements .
Such as following : single row arrangements .
PV module Carport System
To know more details of our solar panel carport system, please contact us by [email protected]
Solar Panel Carport mounting design, 4 cars , USA
Aluminum solar panel carport designs, residential outdoor, 4 vehicles,14 KW, USA
More details, kindly check >>>
Carport Mounting Systems Project , 13 Wp , Brazil
Carport solar mounting system, Aluminum Racking, 13 KW, Brazil project
Features of Solar Carport Mounting Installing Solution
Aluminum Solar Carport Mounting Installation System
This solar pv module carport mounting system is designed for both residentian or commercial carpark .
A wonderful PV carport can offer both shade and generate sun power energy, like ” kill two birds with one stone” .
Advantages of PV solar carport installation:
– Efficient usage of current ground car park space, Just upgrade , not conflict ;
– Value-added for your PV module canopy / carport with renewable energy technology;
– Different layout and sizes designed available for best tilt-angle orientation for your parking lots;
Installing PV module on surfaces of your parking canapy enable using green energy from your own home / factory /
business facility …
Welcome to get more information of our innovative carport mounting solution from www.SolarPartsComponents.com
carport solar mounting system solution aluminum
residential / commercial carport solar mounting structure
Popular solar carport mounts nowadays
More and more people choose solar panel carports now,
for the abvious advantages for GREEN Energy Saving .
Want to install a solar carport frame
I want to install a solar carport frame.
size 6m x 3m
This will replace existing garages which have a concrete base so will not need your concrete platform.
Initially I need one unit with ability to expand to five (15m x 6m)
I can supply photos and plan drawings of the site as required.
Our talented sales person assists from beginning always,
They need more specific info for more accurate quotation .
thank you
Michael
