BIPV steel waterproof carport
- Product Type: Building Integrated PV carport
- Product Model: SPC-BIPVDC
- Material: 5-15 degrees
- Max Wind Load : 60 m/s
- Max Snow Load : 3.6 KN / M 2
- Solar Module Orientation: Landscape / Horizontal
- Application: Frame solar Module
BIPV waterproof solar carport system is a new waterproof parking solution with good waterproof function.
The design is cost-effective while providing shade from the sun and rain, and can power not only charging stations, but also nearby businesses, homes or public spaces.
Advantages of our BIPV steel waterproof carport :
- Structure waterproof with high waterproof performance
- Design according to the site and make reasonable use of the area
- Can be customized to meet customer requirements
- Stable and sturdy, can withstand high wind speed and snow load
Welcome to contact us anytime, our company website: www.solarpartscomponents.com
| Datasheet | |
| Description: | |
| BIPV double support steel waterproof carport | |
| NO.： | SPC-BIPVDC |
| Product Type: | Building Integrated PV carport |
| Installation location: | open area |
| Installation angle: | 5-15 degrees |
| Material : | ZAM275 & Steel |
| Module: | Frame solar Module |
| Warranty: | 10 Years |
| Lifetime: | 20 Years |
| Orientation： | Landscape,Portrait |
| Wind speed： | 60 M/s |
| Snow load： | 3.6 KN / M2 |
| Height; | Above 2m |
| Standard: | AS/NZS1170 & DIN 1055 |

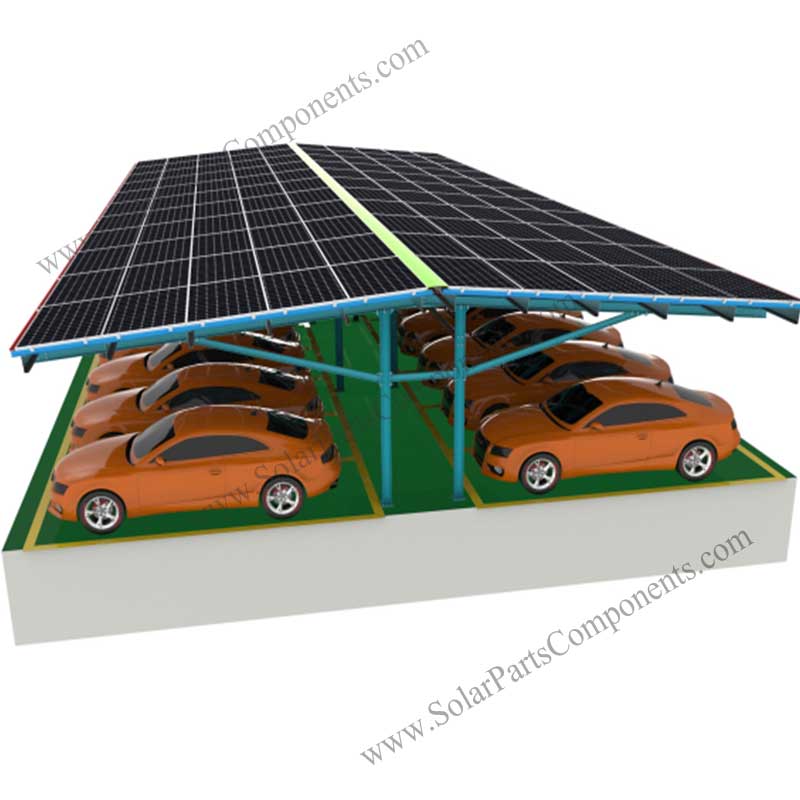

BIPV Steel Waterproof Photovoltaic carport
BIPV Steel Waterproof Photovoltaic carport is a highly versatile and economical ground carport photovoltaic support system suitable for the construction of commercial power stations and the needs of various enterprises and institutions for this type of electricity. This system adopts high-strength carbon steel material photovoltaic bracket, and the surface is treated with high-quality hot-dip galvanizing, which has strong corrosion resistance and is suitable for various natural environments. The system adopts a modular design to provide single parking spaces, double parking spaces, and even rows of parking spaces, which are easy to adjust.
Most of the photovoltaic carports are of modular design, which can be used alone or in combination, which is easy to expand, ranging from a few parking spaces to as many as hundreds of parking spaces, which is more flexible. If ordinary photovoltaic modules are used, the overall cost is low. If the installed capacity is large, the rate of return is high and the payback period is short.
BIPV Waterproof Steel Carport
This BIPV Steel Waterproof Photovoltaic carport Solar Mounting System is suitable for large-scale commercial installation and other civil installation with good waterproof performance, while obtaining power generation benefits to protect the vehicle.
It is a highly pre-assembly system. While protecting the vehicle from rain, snow, wind and frost damage, it can also provide power generation benefits, which can be used for electric bicycles, electric vehicles and so on.
The design can be carried out according to the actual situation of the project, providing different arrangement directions and inclination, such as single-car space and double-car space design.

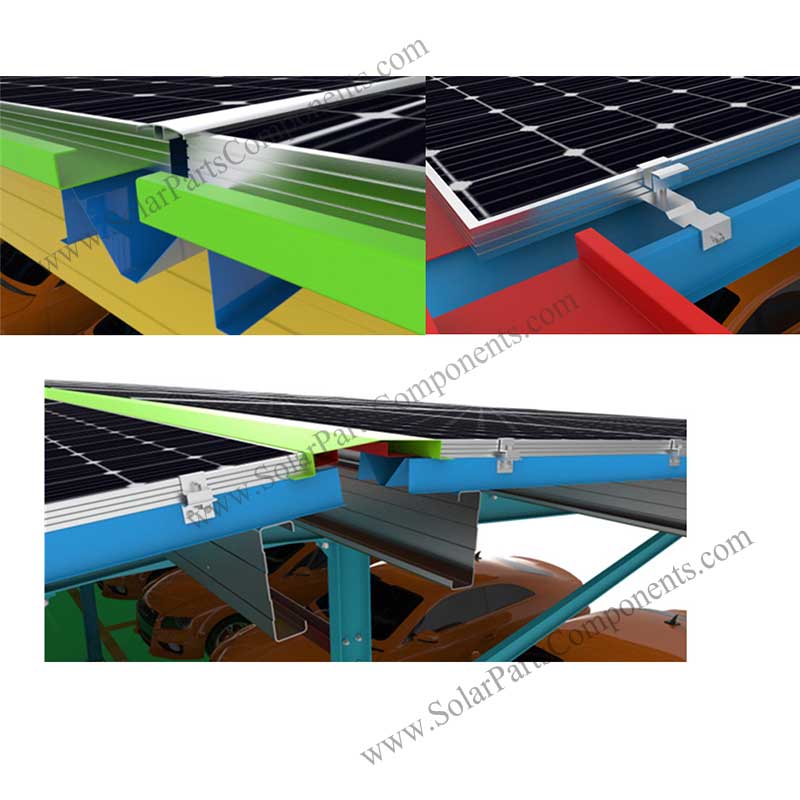

The assembly of the water guide beam and the tight waterproof adhesive strip, so as to achieve the waterproof effect.
Reasonable design according to the location, effectively improve the utilization of space.
BIPV Waterproof Steel Carport system
- Overview
-
BIPV waterproof solar carport system is a new waterproof parking solution with good waterproof function.
The design is cost-effective while providing shade from the sun and rain, and can power not only charging stations, but also nearby businesses, homes or public spaces.
Advantages of our BIPV steel waterproof carport :
- Structure waterproof with high waterproof performance
- Design according to the site and make reasonable use of the area
- Can be customized to meet customer requirements
- Stable and sturdy, can withstand high wind speed and snow load
Welcome to contact us anytime, our company website: www.solarpartscomponents.com
- Specification
-
Datasheet Description: BIPV double support steel waterproof carport NO.： SPC-BIPVDC Product Type: Building Integrated PV carport Installation location: open area Installation angle: 5-15 degrees Material : ZAM275 & Steel Module: Frame solar Module Warranty: 10 Years Lifetime: 20 Years Orientation： Landscape,Portrait Wind speed： 60 M/s Snow load： 3.6 KN / M2 Height; Above 2m Standard: AS/NZS1170 & DIN 1055 - Leave Message
-
- FAQ
-
BIPV Steel Waterproof Photovoltaic carport
BIPV Steel Waterproof Photovoltaic carport is a highly versatile and economical ground carport photovoltaic support system suitable for the construction of commercial power stations and the needs of various enterprises and institutions for this type of electricity. This system adopts high-strength carbon steel material photovoltaic bracket, and the surface is treated with high-quality hot-dip galvanizing, which has strong corrosion resistance and is suitable for various natural environments. The system adopts a modular design to provide single parking spaces, double parking spaces, and even rows of parking spaces, which are easy to adjust.
Most of the photovoltaic carports are of modular design, which can be used alone or in combination, which is easy to expand, ranging from a few parking spaces to as many as hundreds of parking spaces, which is more flexible. If ordinary photovoltaic modules are used, the overall cost is low. If the installed capacity is large, the rate of return is high and the payback period is short.
BIPV Waterproof Steel Carport
This BIPV Steel Waterproof Photovoltaic carport Solar Mounting System is suitable for large-scale commercial installation and other civil installation with good waterproof performance, while obtaining power generation benefits to protect the vehicle.
It is a highly pre-assembly system. While protecting the vehicle from rain, snow, wind and frost damage, it can also provide power generation benefits, which can be used for electric bicycles, electric vehicles and so on.
The design can be carried out according to the actual situation of the project, providing different arrangement directions and inclination, such as single-car space and double-car space design.
The assembly of the water guide beam and the tight waterproof adhesive strip, so as to achieve the waterproof effect.
Reasonable design according to the location, effectively improve the utilization of space.
BIPV Waterproof Steel Carport system
