Solar Ground Mounting System Concrete Base
- Product Type: Ground Racking System
- Product Model:SPC-CC-4H-W
- Material: Carbon steel,Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Portait or Landscape
- Application: Open Ground
Product Description
Concrete foundation ground mounting system is a kind of popular racking type for open area.
This SPC-CC-4H-W type design of galvanized steel structure can support photovoltaic panels with fixed angle.
Even temperature of this concrete base system can offer better efficiency of power generation.
These concrete based PV mounting systems are workable for both flat and sloped terrain condition.
Project Information for Design & Quotation
To provide an accurate design and quotation for your concrete foundation solar mounting system, please share the following project details:
- Solar panel dimensions: Length × Width × Thickness (mm)
- Total number of solar panels: ______ units
- Required tilt angle: ______°
- Panel arrangement: ______ panels per row
- Site conditions: Maximum wind speed ______ m/s; maximum snow load ______ kN/m²
Once we receive these details, our engineering team can prepare the mounting system layout and quotation based on your project requirements.
Features of this concrete based ground mounting systems SPC-CC-4H-W
1. Good air flow and cool off for PV for ground mounted PV modules;
2. Well maneuverability, great power output annually;
3. Modular and pre-assembled design and manufacturing;
4. Suitable for both large / small scale solar panel power project;
5. Tilt angle can be 15 / 30 / 45 / 60 Deg;
Parts and Components for galvanized steel ground racking system SPC-CC-4H-W
– Pre-assembled Structure;
– Rail;
– Rail Splice;
– End clamp;
– Mid clamp;
– Rail clamp;
– End caps;
The mounting installation of SPC-CC-4H-W Model is very easy and labor effective.
Hop dipped galvanized carbon steel mounting structure can stand for more than 25 years.
SPC engineer team and factory can assist you every ground mounting system robust, long lifespan but save your money and bill.
| Brief Descriptions: | |
| Solar Panel Mounting Systems – Solar Concrete Base Ground Mounting System | |
| Item type: | Solar Racking Structures |
| Type: | SPC-CC-4H-W |
| Installation Site: | Open Terrain Ground |
| Profile Material: | Galvanized Steel |
| Fasten Parts: | Hot dipped galvanize steel, stainless steel, aluminum |
| Color: | Galvanized |
| Wind Load: | 60 m / s |
| Snow Load: | 1.4 KN / M2 |
| PV Modules: | Framed, Unframed |
| Module Orientation: | Portrait and Landscape |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag+inner box+Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
Solar Ground Mount Racking – Common Technical & Order FAQs
1. Q: Can I adjust ground clearance height after installation?
A: No.We recommend confirming the required ground clearance before installation to avoid extra on-site labor and rework.
2. Q: Do you supply concrete blocks together with the racking system?
A: We supply only steel / aluminum racking hardware; concrete blocks are sourced locally by buyer to reduce sea-freight cost.
3. Q: Can I mix framed and unframed solar panels on this mounting?
A: SPC‑CC‑4H‑W is designed primarily for framed PV modules. Unframed glass panels require special customized clamping sets and must be verified with our engineering team before order placement. Mixing framed and unframed panels on the same array is not recommended due to different clamping pressure and safety requirements.
4. Q: Can I buy only partial components like rails or clamps instead of full set?
A: Yes, we sell separate spare components including rails, mid clamps, end clamps, base brackets and fasteners. Minimum order quantities apply for individual parts. Please send your component list and panel specs for a separate quotation.
Inquiry of Solar Panel Ground Mounting Systems
Q:
To get an exact quote from you. I am sending you more details on what I need for the ground mount option.
- The size of the solar panels will be approximately 1640 X 992 X 40 mm
- Total of 8 mono solar panels. 60 cells
- Each panel is 280W
- Panels to be placed 2 up / vertical and 4 accross / horizontal
- There is no snow here in the Bahamas or issue with strong winds. Only during storms we have strong winds. So maybe use 40 – 50 for wind load
- I want the ground screw option
- Lowest height from the ground to be approximately 24 inches
- I probably will go with 25 degree angle
- The location is close to the ocean so maybe aluminum is better
Please reply at your earliest convenience.
A:

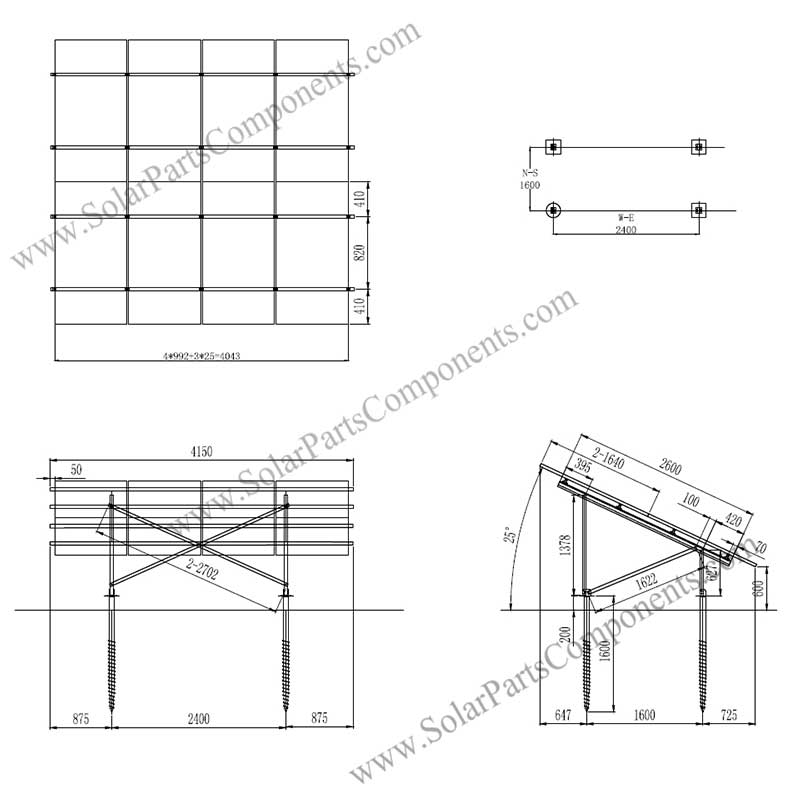

Please refer to our design sketch for your requirements .
Can I know how much quantities (Sets) you will need for this solar mounting project ?
I will give you FOB prices in the next email .
Thank you !
Q:
Thanks for your email. However I would prefer the panels positioned in opposite direction to what you have. On this design, you have the panels in landscape position. I would prefer to have them in the portrait position.
A:
Please refer to new drawing as 4 portrait solar panel by 2 rows arrangement .
Can I know how much sets you would need ?
I would give you our fob xiamen price base on quantities .
Thank you & look forward to business with you !
Inquiry of Solar Panel Ground Mounting Systems
Need information of solar ground mount solutions SPC-CC-4H-W
Question:
Would like pricing information on SPC-CC-4H-W and other ground mount solutions.
We will need for 20 arrays consisting of 20-25 panels each, the soil is sandy. We will probably not adjust angle for winter/summer unless it is easy and cost effective to do so.
The panels we have are here SanTan Solar T Series 250W – SanTan Solar Store SanTan Solar Wholesale Solar Panels
| City | Punta Gorda FL 33982 | ※ Length(mm) | 1650 | |||||
| Nation | US | ※ Width(mm) | 992 | |||||
| Postcode | 33982 | ※ Thickness(mm) | 35 | |||||
| ※ Basic wind speed (m/s) | 30m/s | ※ Power(Wp) | 320 | |||||
| ※ Basic snow pressure (kN / ㎡) | 0 | Weight(kg) | 10 | |||||
| Latitude | 29 | longitude | 82 | |||||
These arrays will face directly south and in line so we need to account for space in between, you can use google maps to see the approximate location.
Will be planning on a total of 40-80 total arrays depending on how the first 20 perform.
Please let me know if you need anything else or any other details.
For shipping we can use LCL by sea.
Best Regards,
Jeff Harthoorn
Answer:
Dear Jeffrey
Appreciated for your kind inquiry about our SPC-CC-4H-W ground mount solutions.
Please refer to our initial design and list for 2X25 panels as you required.
Thank you !
solar ground mount solution sales team
Need to buy galvanized steel mounting structure for concrete base
”
I need 100 of this rail
And i need 300 pcs of steel rail
C shape steel,4m length
Ialready buy inverter
And i need to add mounting system in the rest of the space,
41X41mmX 2mm Thickness,Length 4m
HDG steel rail, 65u coating thickness
Please in your quotation mention the HDG steel rail and base bracket
and could you please quote me the 145mm height instead of 70mm for the base bracket
More purchase details as below:
HDG mounting component list
Thank you,
Mohamad
”
”
Pricelist with packing info for these HDG solar mounting components are sent by email.
Solar Parts Components Factory
”
