Solar Pole Ground Mounting Systems
- Product Type: Ground Mounting Systems for Single Pole
- Product Model: SPC-PC-2HX2-W
- Material: Carbon steel,Aluminium, Stainless Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Portait or Landscape
- Application: Ground Terrain
Product Description:
Mounting solar panels on a pole is a very common and flexible racking for DIY or home owners,
they can attach pv modules to almost any space whatever flat or slope grounds.
The top of the pole mounts is a kind of solar panel arrays which install on a single pole.
They can be one unit, 2 units or several units photovoltaic modules, MAX up to 24 units.
Top pole racking system (also called TPM top of pole mounts) are made of heavy-duty galvanized steel,
cost effective and durable for outdoor uses.
Features of this solar panel pole ground mounting systems SPC-PC-2HX2-W:
1. Application: backyard, rural mountains, desert, remote location…
2. Manually adjustable angles can be added;
3. Simple and versatile to matching any sizes of solar panels;
4. Compact packing sizes and convenient for shipment;
5. Sound, independent top-of-pole solar panel mounts method outdoor;
6. No measuring required, easy operation for DIY;
If your rooftop is not under great orientation for sun shine, pole mount structure is a great choice to avoid occupying home space and roof warranty.
Hand-operated solar tracker can be added if clients need to adjust some fixed angles and maximize solar power for this pole mount solar panel rack system.
Mounting solar panels to top of pole is a great sturdy, dependable racking solution.
Feel free contact our SPC solar engineer to customized pole ground mounting system based on your local wind / snow / soil / hurricane conditions.
| Brief Descriptions: | |
| Solar Panel Mounting Systems – Solar Pole Ground Mounting System | |
| Item type: | Solar Pole Racking Structures |
| Type: | SPC-PC-2HX2-W |
| Installation Site: | Open Terrain Ground |
| Profile Material: | Galvanized Steel |
| Fasten Parts: | Hot dipped galvanize steel, stainless steel, aluminum |
| Color: | Galvanized |
| Wind Load: | 60 m / s |
| Snow Load: | 1.4 KN / M2 |
| PV Modules: | Framed, Unframed |
| Module Orientation: | Portrait and Landscape |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag+inner box+Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
Enquiry of 346 sets solar Pole Ground Mounting
Q:
Dear Sirs,
We have a contract on hand for
Stand-alone solar Pole Ground Mounting in Aluminium or hot deep galvanised steel
For 1 or 2 Solar panels
Calculated for max 200KM/ wind speed
For ground mounting
Please quote alternatively
Only the solar Pole Ground Mounting for mounting on top of a 3” pipe ( 87,5mm Outer diameter)
Complete inclusive mast or Pipe hot deep galvanised steel
Similar to below picture
solar Pole Ground Mounting
The quantities and measurements are as follow
| Item | Structure Watt | No of Panels | Size | Quantities |
| 1 | 100 | 1 | 1215x554x35 mm | 3 |
| 2 | 130 | 1 | 1500x668x35 mm | 2 |
| 3 | 160 | 1 | 1500x668x35 mm | 95 |
| 4 | 100 | 2 | 2 x 1215x554x35mm | 138 |
| 5 | 130 | 2 | 2 x 1500x668x35 mm | 73 |
| 6 | 160 | 2 | 2 x 1500x668x35 mm | 35 |
Please quote:
Delivery Terms: FOB Sea Port, Alternative CIF Kampala Uganda
Delivery Time: Please advise
Volume and Weight: please advise volume and weight
Payment Terms: Please advise
Warranty: 90 days
Best regards,
Joanna Krawczyk
A:
Dear Joanna
Nice to receive enquiry about our solar Pole Ground Mounting .
Some details need your advice .
(1)
“Please quote alternatively
Only the bracket for mounting on top of a 3” pipe ( 87,5mm Outer diameter)
Complete inclusive mast or Pipe hot deep galvanised 6 Meter high”
You need two prices offer ,
one is for bracket only ;
the other is bracket with steel pipe whole set prices, right ?
(2)
“The quantities and measurements are as follow
| Item | Structure Watt | No of Panels | Size | Quantities |
| 1 | 100 | 1 | 1215x554x35 mm | 3 |
| 2 | 130 | 1 | 1500x668x35 mm | 2 |
| 3 | 160 | 1 | 1500x668x35 mm | 95 |
| 4 | 100 | 2 | 2 x 1215x554x35mm | 138 |
| 5 | 130 | 2 | 2 x 1500x668x35 mm | 73 |
| 6 | 160 | 2 | 2 x 1500x668x35 mm | 35 |
The size above are solar panel dimensions , our inner size of bracket should fit these solar panels well . Right ?
(3)
Please quote:
Delivery Terms: FOB Sea Port, Alternative CIF Kampala Uganda
Delivery Time: Please advise
Volume and Weight: please advise volume and weight
Payment Terms: Please advise
Warranty: 90 days
You need two prices:
one is FOB xiamen ,
the other is CIF Uganda, right ?
Thank you !
Q:
Dear William,
Thank you for your prompt reply.
Below you will find answers for your questions :
(1)
You need two prices offer ,one is for bracket only ;the other is bracket with steel pipe whole set prices, right ? CORRECT
(2)
The size above are solar panel dimensions , our inner size of bracket should fit these solar panels well . Right ? CORRECT
(3)
one is FOB xiamen ,the other is CIF Uganda, right ? CORRECT
Looking forward to hearing from you soon !
Best regards,
Joanna Krawczyk
A:
Dear Joanna,
Thanks for your kindly reply.
Attached quotation and design drawing is for your reference.
The solar Pole Ground Mounting is Galvanized Steel material and They can be one unit, 2 units or several units photovoltaic modules, MAX up to 24 units with cost effective and durable for outdoor uses. The delivery time is about 15-20 days. Please check our quotation, design and system first.When is your project expected to start construction? Can you share your project plan with us?
Looking forward to further discussion.
Q:
Dear William,
Thank you for your offer.
The solar Pole Ground Mounting looks great but some installation details need to be confirmed. The quote was beyond our budget and our company required further communication and discussion. We expect to start construction in 3 months if everything goes well. So please give us a discounted price.
Inquiry of Solar Panel Pole Ground Mounting Systems
Q:
want to ground mount 144 panels with the dimension of!
Dimensions (inches): 79.09′ x 48.50′ x 1.93
have a very large area to install that is flat within 5 degrees.
want to use the Solar Panel Pole Ground Mounting Systems.SPC-PC-2HX2-W
We have no snow and the maximum wind is 60 miles per hour would use a 12 to 24 panel system per around mount depending on the lowest net cost for the144 panels
A:
Nice to know your plan for mounting 144 panels.
The model SPC-PC-2HX2-W you chose is one of the cost-effecitve solution.
May I know what is the requirement for the ground clearance.
And what is your nearest sea port or delivery address?
I will let our engineer check out the design and BOM price for you with freight cost for your reference.
Feel free add my whatsapp for quick communication
Q:
Six feet of ground clearance. San Francisco.
A:
Thank you for your patient.

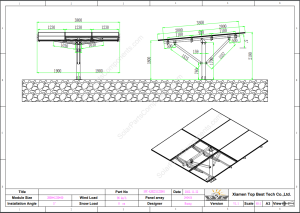

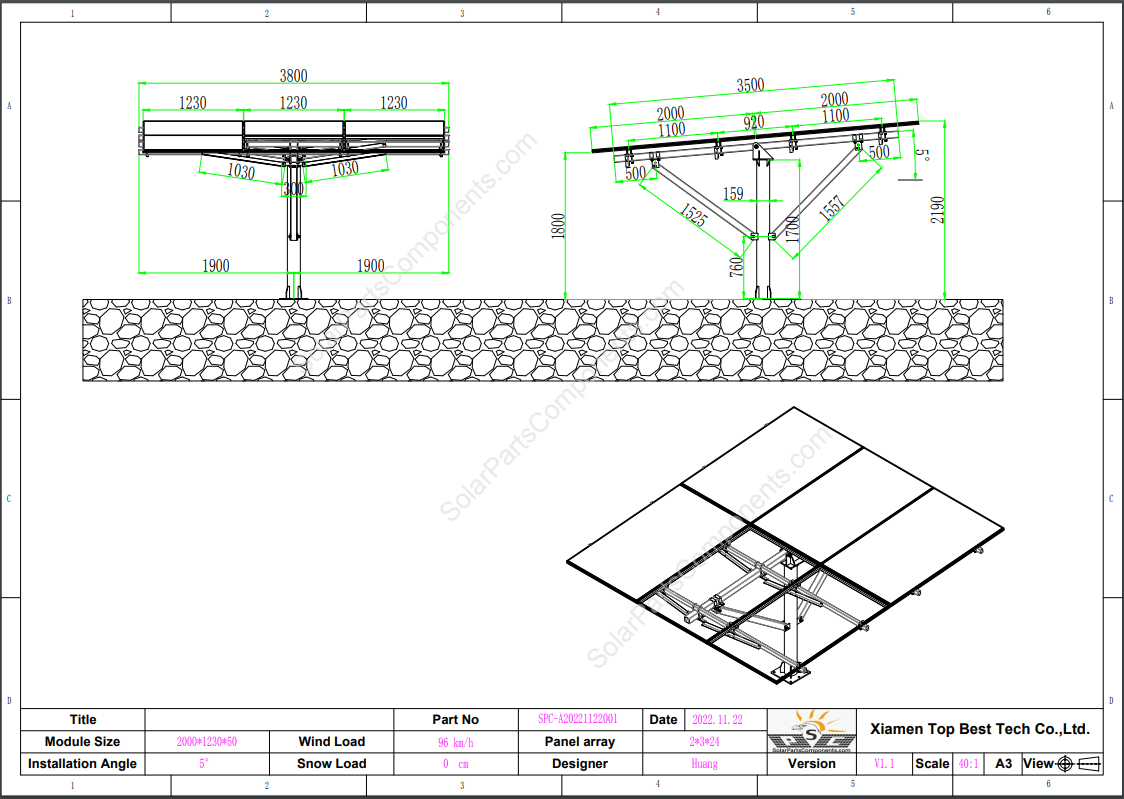

Please refer to our intial design for your ground mount for 144 panels
Our engineer recommend layout with 2×3 panels.
If there need any modification, just let us know.
Thank you, HAPPY THANKSGIVINGN DAY!
Q:
Thank you!
That’s great!
Solar Panel Pole Ground Mounting Systems
Solar Panel Pole Ground Mounting Systems factory
Q:
Hi, I am looking for ground mount system: Solar Panel Pole Ground Mounting Systems.
Waiting soon answer.
A:
Nice to know you are looking for mounting solar panels on a pole.
Would yoou please share me the details, kindly fill our checklist as file attached.
Q:
Total is 1.2MW for this project, detail information please see the attached of the checklist.
A:
Thank you for your infomation, please refer to our design for your solar panel pole ground mounting systems
Solar Panel Pole Ground Mounting Systems
Q:
It looks well. waiting for next details.
S:
I have sent BOM price with freight cost to your email,please kindly check.
Thank you.
Can you mount a solar panel on a pole with model: SPC-PC2HX2-W?
Solar Panel Pole Ground Mounting Systems
C:
Hi, I am interested in your Solar Panel Pole Ground Mounting Systems.
we will install 1200 (100W) panels(26-9/16*35-13/16*1-3/16) in Hendersonville, solar panel array 12 panels in a row, I’d like to use post hole diggers and concrete.
S:
Can I know the
- Array: ________Nos. in a row x________Nos. in a column for these 12 pieces of solar panels?
- Height from the ground clearance;
3.Tilt angle;
4.Is there any requirements of wind speed and snow pressure?
_ m/s anit-wind speed and___KN/m2 snow load.
C:
- 6 panels x 2 in a row, total of 100 rows.
- It would be good to have the bottom of the panels about 2′ above the ground.
- Tilt Angles: 15 degrees (March-August) & 60 degrees (Sept.-Feb.)
- The ground is sandy/clay with some rocks. The ground slopes downward toward the south (direction of the panels) at about 8 degrees or 14%.
- The ground snow load is 15 psf and wind load is 70mph (ultimate)
I’d like two quotes:
1st Quote – Ground Mounting System: each row of the panels in landscape layout (i.e. 216″ wide by 53″ tall with space between rows for shading)
2nd Quote – Solar Pole Ground Mounting Systems: each row of the panels in portrait layout (i.e. 159″ wide by 72″ tall)
Let me know if you need any further information. Thanks.
S:
Well understand, please refer to our designs for both solutions as your required.
Please let me know if need any modification.
C:
Perfect. I prefer to the Pole Ground Mounting Systems,Please provide the quote and shipping cost to the Charlston, SC port. Thank you.
S:
I have sent BOM price with freight cost to your email,please kindly check.
Thank you.
Solar Panel Pole for Ground Mounting Systems
“Greetings Mr William
Solar Panel mast Pole for Ground Mounting Systems
”
”
solar ground racking system with single pole
