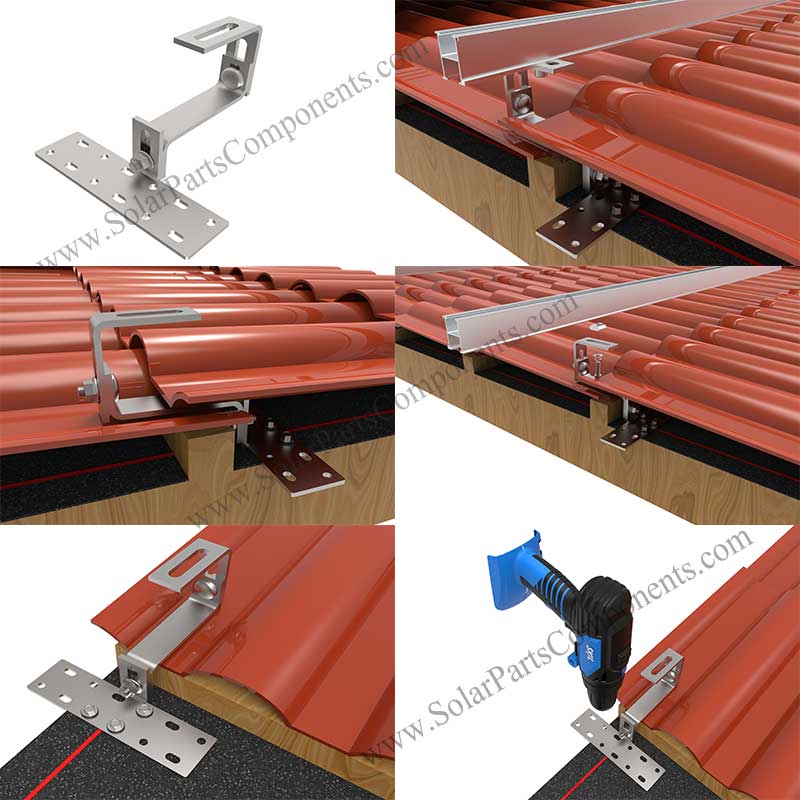

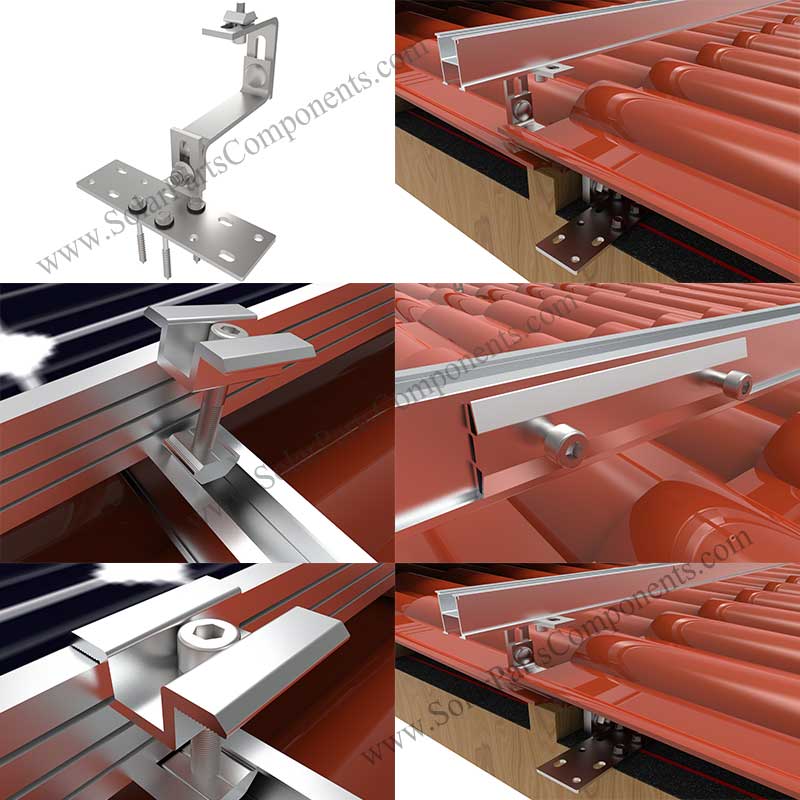

Double adjustable PV tile roof hook is stainless steel 304, the product has the characteristics of corrosion resistance, high hardness, beautiful appearance.
The lower part of the hook has an adjustable range of 16mm, and the upper part has an adjustable range of 42mm.
Only three ST6.3*80 wood screws are needed to fix the hook during installation.
The upper part of the hook is installed on the No. 8 stainless steel hook with M8*25 clamp bolt assembly.
Double adjustable PV tile roof hook is specially designed for the installation of solar glazed tile roof.
The hook is double adjustable, can adjust the height of the hook base and upper arm.
To adapt to the thickness of glazed tile and edge, installation height can be flexibly adjusted, the product has a wide range of applicability.
Double adjustable PV tile roof hook supplier through strict selection of high-quality 304 stainless steel material, product processing in strict accordance with industry standards for processing forging.
Products with high strength, corrosion resistance advantages, free from the impact of bad weather, can be used for solar installation in different climate regions.
Double adjustable PV tile roof hook factory installation method is simple and convenient, and the small parts of its products are pre-assembled in the factory, which saves a lot of assembly time and on-site labor costs.
As long as the hook is placed in the correct installation position, it can be fixed with three ST6.3*80 wood screws.
1. Double adjustable;
2. Stainless steel, corrosion resistance, high hardness;
3. Widely used in glazed tile roofs;
4. Pre-assembly method, easy installation.
SPC specializes in the production of solar support installation system accessories for more than ten years, the products are directly sold by the manufacturer, the source manufacturer, the price is cheap, there are a large number of spot, can be shipped in time.
Our products are made of 304 stainless steel, and have a special surface process treatment, the metal surface is not easy to be oxidized, delaying the corrosion rate of the metal.
In the mold design, manufacturing and production process of each link are actively specialized, continuous innovation, with strong design and development capabilities and manufacturing capabilities.
