Universal roof hooks for double adjustable

Description：

Universal roof hooks for double adjustable are specially designed for solar mounting system installation, suitable for solar panel installation process on glazed tile roof.

This dual adjustable hook can accommodate installations of different thicknesses by adjusting the height of the top and bottom.

The products are strictly selected from high-quality materials, and the production process is strictly implemented in accordance with industry standards.

Product Data:

1. SUS304 material;
2. Total weight 0.83KG;
3. Including hook base plate, hook middle handle, upper handle, M10*25 screws, SUS304 flange nut M10.



Features :

1. Strict control of product quality;
2. Pre-installed packaging, complete accessories;
3. Double adjustable structure, both top and bottom can be adjusted;
4. It has a wide range of applications, and the thickness range of the tile surface is adjustable.



Details :

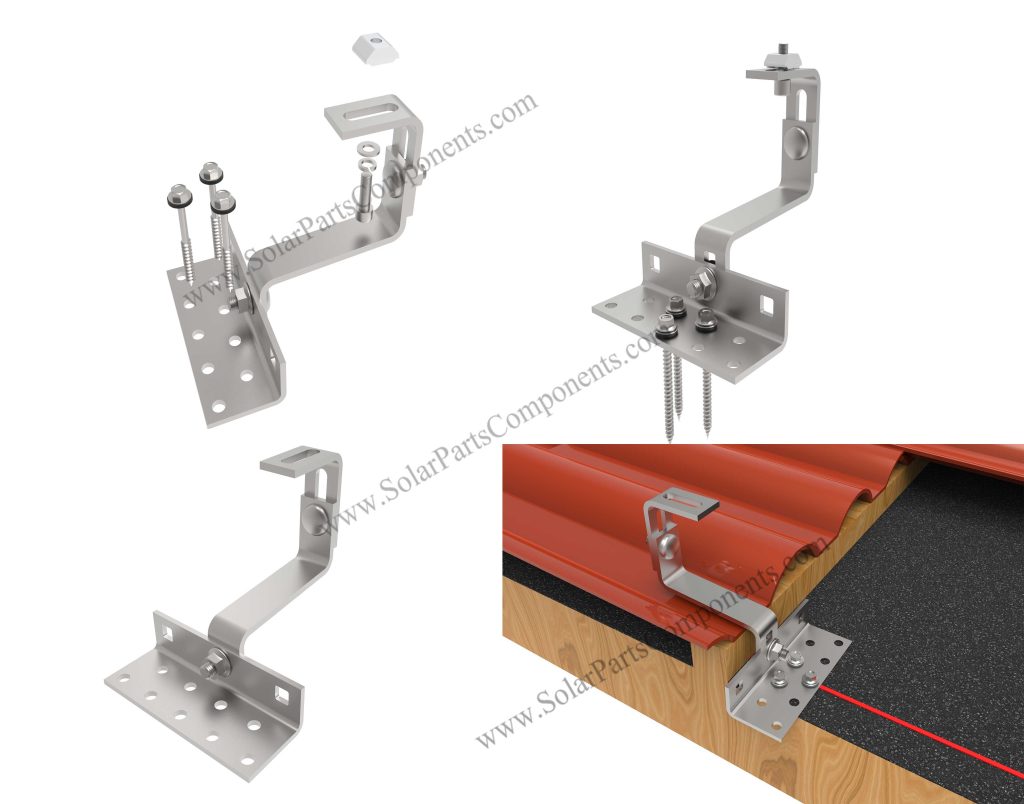

Universal roof hooks factory are one of the most popular options for solar system installations today thanks to their top and bottom adjustable features. The top of the hook has an adjustable range of 55mm and the bottom has an adjustable range of 10mm, and the height can be adjusted according to the on-site installation situation (tile thickness), with low limitations and a wide range of applications.

Double adjustable roof hook supplier products are made of high-quality stainless steel 304 material in the manufacturing process, strictly abide by the process standards, and are processed and forged layer by layer. The finished products have undergone strict quality inspection and control, and the quality can stand the test.

Universal roof hooks for double adjustable components are pre-installed and packaged, which is easy to operate at the installation site, which can save a lot of installation time and labor costs.

Installation method:

First, find the installation position above the main beam, place the hook on the installation point and fix it with an electric drill and three ST6.3*80 wood screws according to the hole position, the upper part of the hook will be exposed outside the tile;

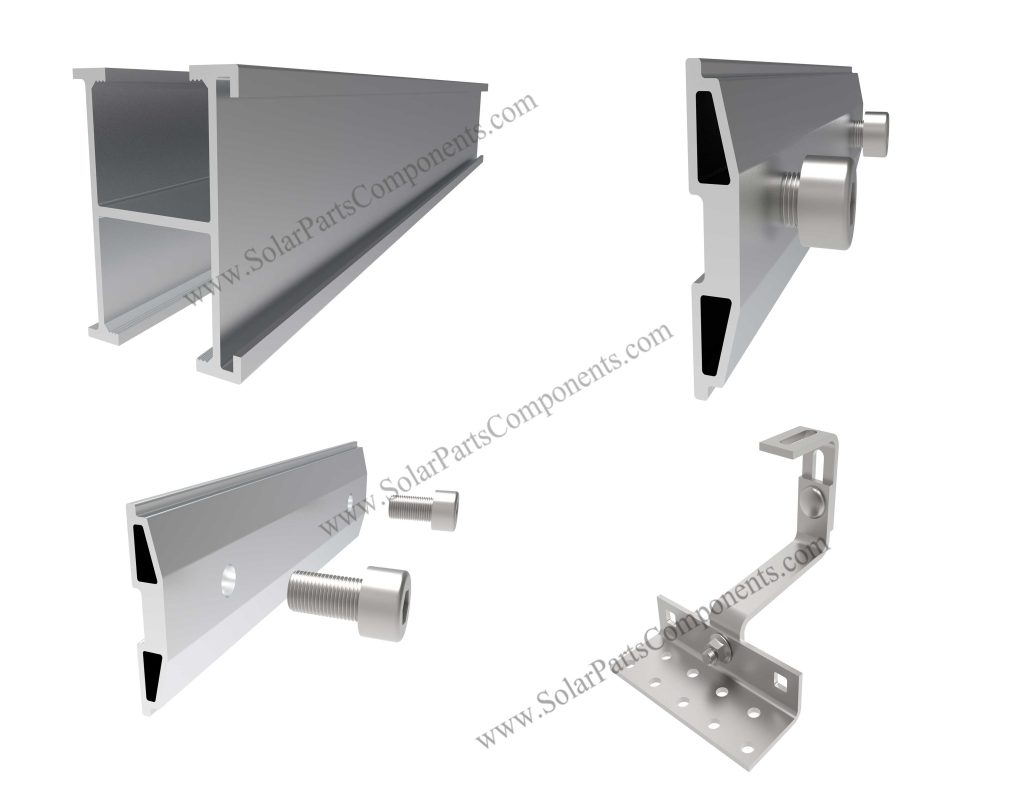

Then use the M8*25 block bolt assembly to install the H-shaped track on the hook;

Secondly, the track is connected to the track with connectors;

Then, the installation sequence of solar panels can be from left to right, from bottom to top;

Finally, it can be locked with medium clamp and end clamp.
