Tile roof hook #04 installation
Installation instructions for stainless steel hook #04:

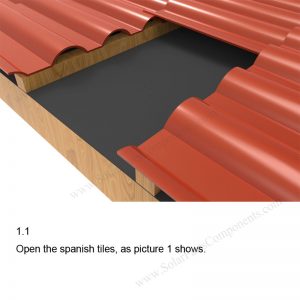

1.1 Open the spanish tiles, as picture 1 shows.

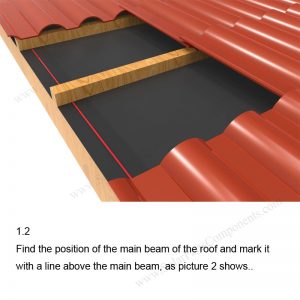

1.2 Find the position of the main beam of the roof and mark it with a line above the main beam, as picture 2 shows.

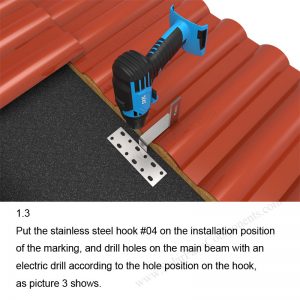

1.3 Put the stainless steel hook #04 on the installation position of the marking, and drill holes on the main beam with an electric drill according to the hole position on the hook, as picture 3 shows.

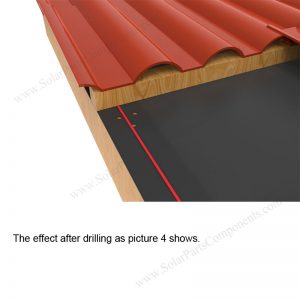

The effect after drilling as picture 4 shows.

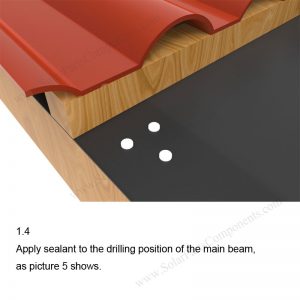

1.4 Apply sealant to the drilling position of the main beam, as picture 5 shows.

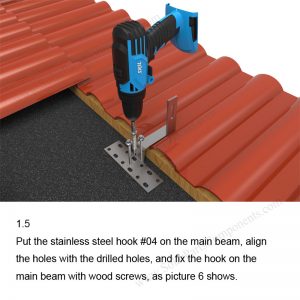

1.5 Put the stainless steel hook #04 on the main beam, align the holes with the drilled holes, and fix the hook on the main beam with wood screws, as picture 6 shows.

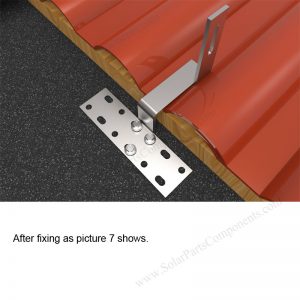

After fixing as picture 7 shows.

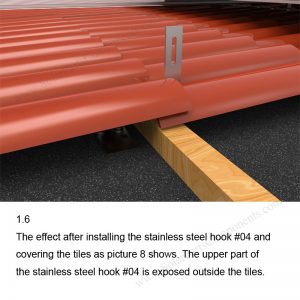

1.6 The effect after installing the stainless steel hook #04 and covering the tiles as picture 8 shows. The upper part of the stainless steel hook #04 is exposed outside the tiles.

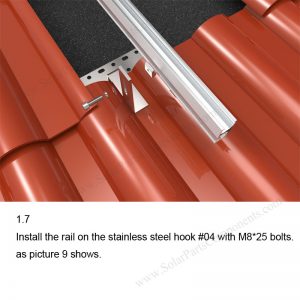

1.7 Install the rail on the stainless steel hook #04 with M8*25 bolts. as picture 9 shows.

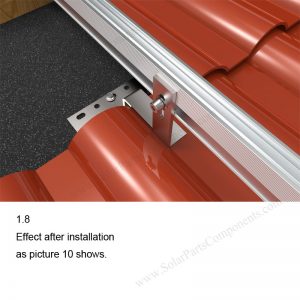

1.8 Effect after installation .as picture 10 shows.
