Solar Triangle Bracket Mounting Systems
- Product Type: Solar Mounting Systems for Flat Terrain
- Product Model:SPC-TR15-NR-U1000
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Portait or Landscape
- Application: Flat roof / flat ground
Product Description:
Triangle brackets for solar panel mounts are very easy and versatile for both flat roof / pitch tin roof / concrete roofing…
Foldable design can help reducing freight cost and packing sizes with preassembling triangle brackets.
Strength analysis report can be rendered base on local climate standard.

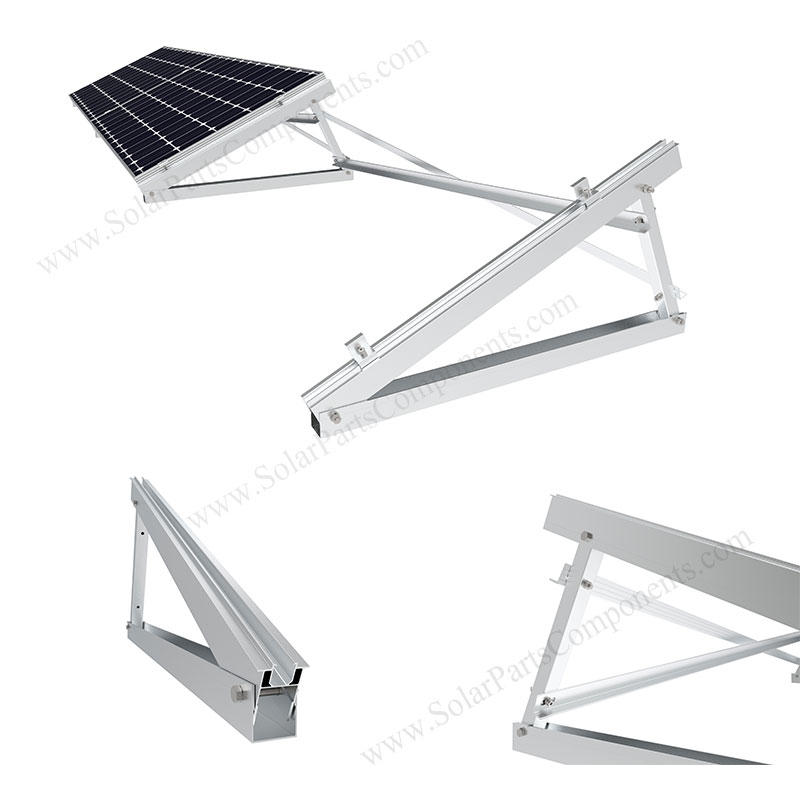

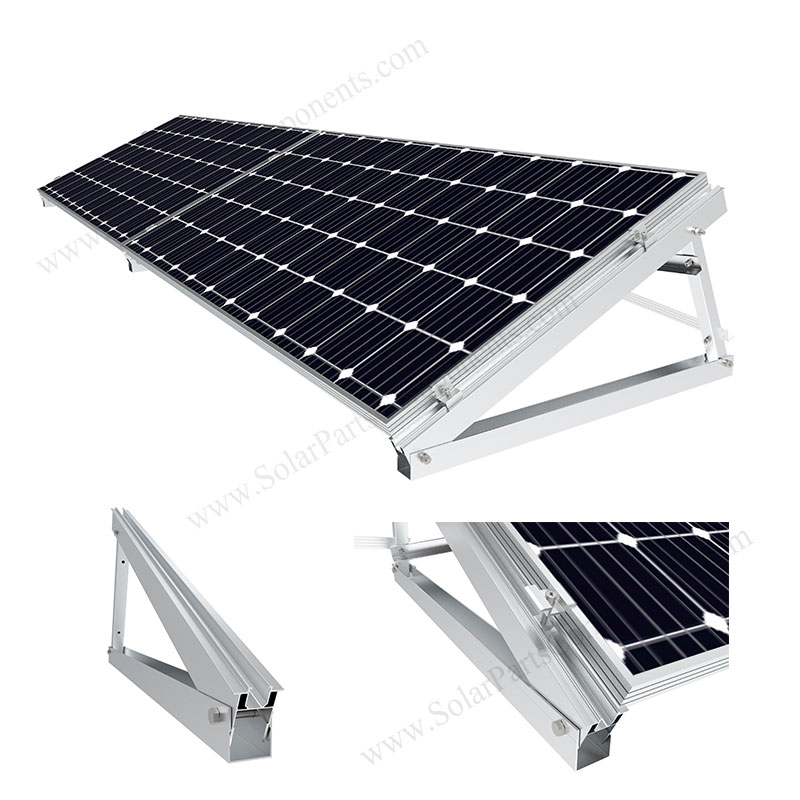

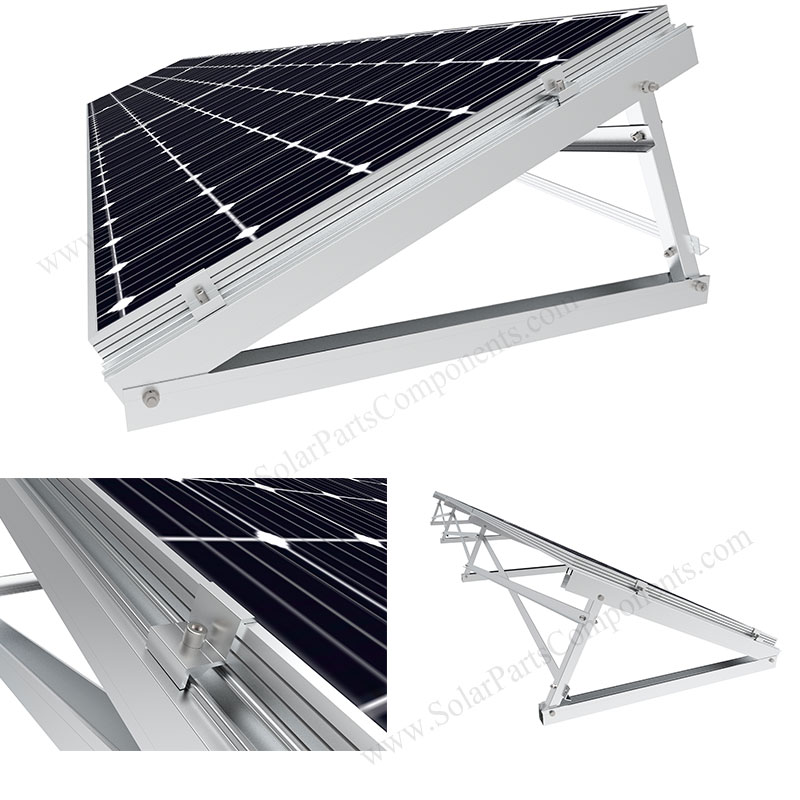

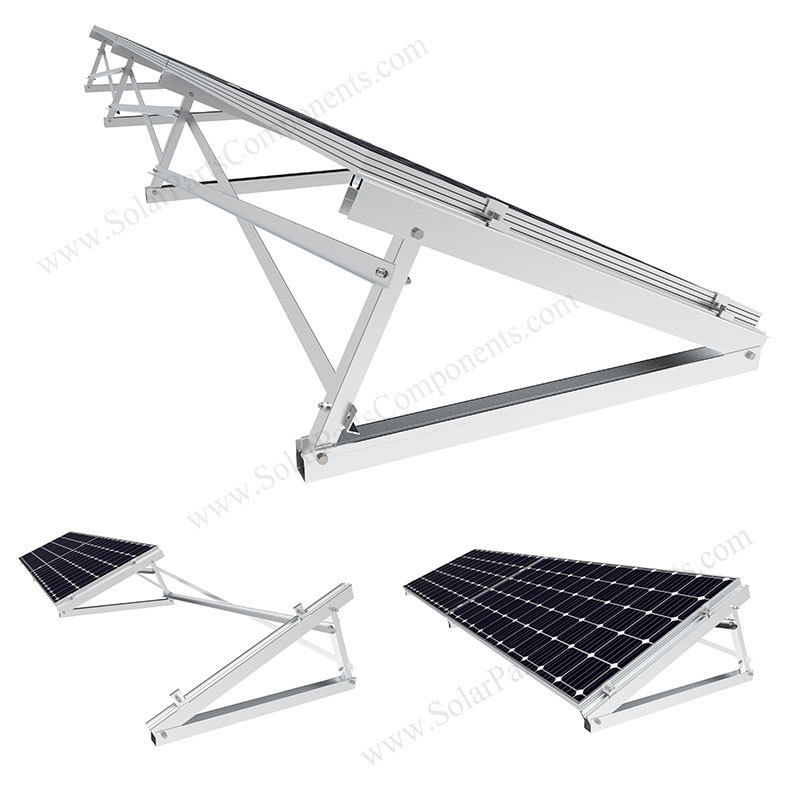

Features of this aluminum triangle bracket for solar mounts, SPC-TR15-NR-U1000:
– Folding bracket packing before shipping;
– Fixed angle optional: 10°,15°,20°,25°,30°…
– Application: flat residential / industrial roof, flat ground, boat, rv …
– No on-site cutting, welding required, quick pv installation;
– Best tilt angle and highest solar power investment return;

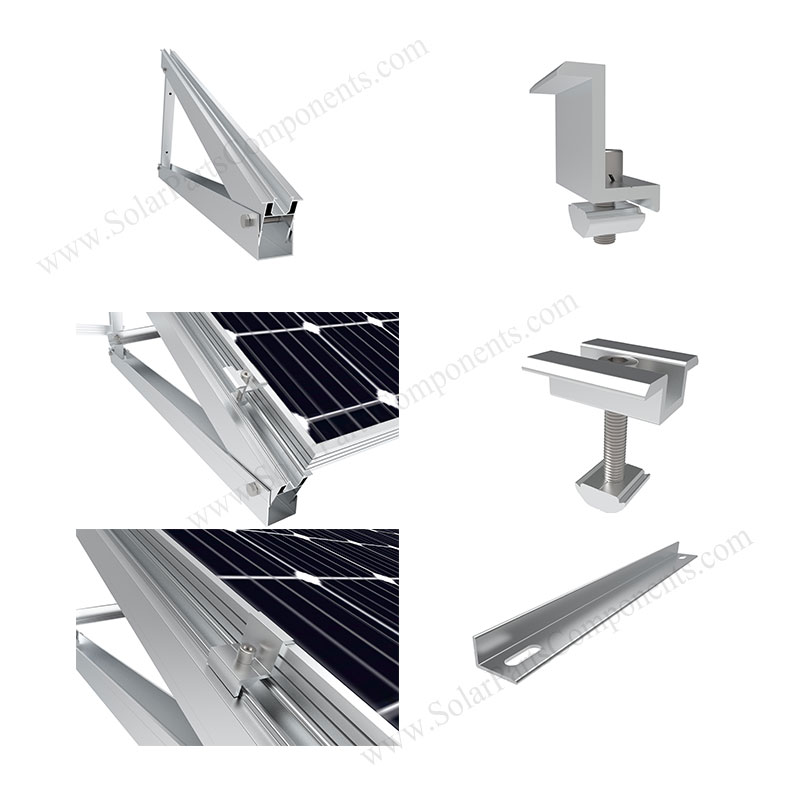

Parts and Components for solar triangle bracket mount:
– Aluminum alloy rail;
– Triangle Frame;
– Rail splice;
– Mid / end clamps;
– Bolts / screws;
Simple and quick installation steps for solar folding triangle bracket system, SPC-TR15-NR-U1000:
(1) Open pre-assembled tripod bracket;
(2) Fix brackets with expansion bolt / tap screws;
(3) Install aluminum rails;
(4) Install PV modules;
Welcome to purchase triangle bracket kit with fix angle: 15° / 30° / 45°… for your pv module mounts.
Customized fixed angle available for best solar panel mounting installation, simple and cost-effective.
| Brief Descriptions: | |
| Solar Mounting Systems – Triangle Bracket Racking | |
| Item type: | Solar Panel Mounts |
| Type: | SPC-TR15-NR-U1000 |
| Installation Site: | Flat Roofing / Ground 10°/15°/25°/30°/35° customized |
| Profile Material: | Aluminum Alloy |
| Fasten Parts: | Stainless Steel / Aluminum T Sliding Nut |
| Color: | Anodized Silvery |
| Wind Load: | 60 m / s |
| Snow Load: | 1.4 KN / M2 |
| PV Modules: | Framed, Frameless |
| Module Orientation: | Portrait and Landscape |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag+inner box+Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
The most economical Solar Panel Triangle Bracket structure
The whole Triangle Bracket structure is made of aluminum and it can be on an concrete base or use ballast solution. The use of right and left sided triangles is very important especially if you decide to go into the assembly of a load structure. For this type of solution, L-type profiles are additionally used between the right and left sided triangles, which are then pressed with weights.
Our triangles can be cut so that you can set a slightly different angle to the sun. However, the majority of the surface of the country is located at an angle of 15 degrees.
Angle: 40×40 mm
Angle thickness: 3 mm
Triangle system
Characteristics:
• Trianglesupport 0-60 degrees.
• For mounting panels, photovoltaic modules on a flat roof or with a slight slope, as well as on a wall, facade.
• The design is made of aluminum corner 40x40x3.
• Structure ready for bolting, complete with a set of stainless steel bolts.
• Mounting holes are made in the corners.
Triangle Solar mounting

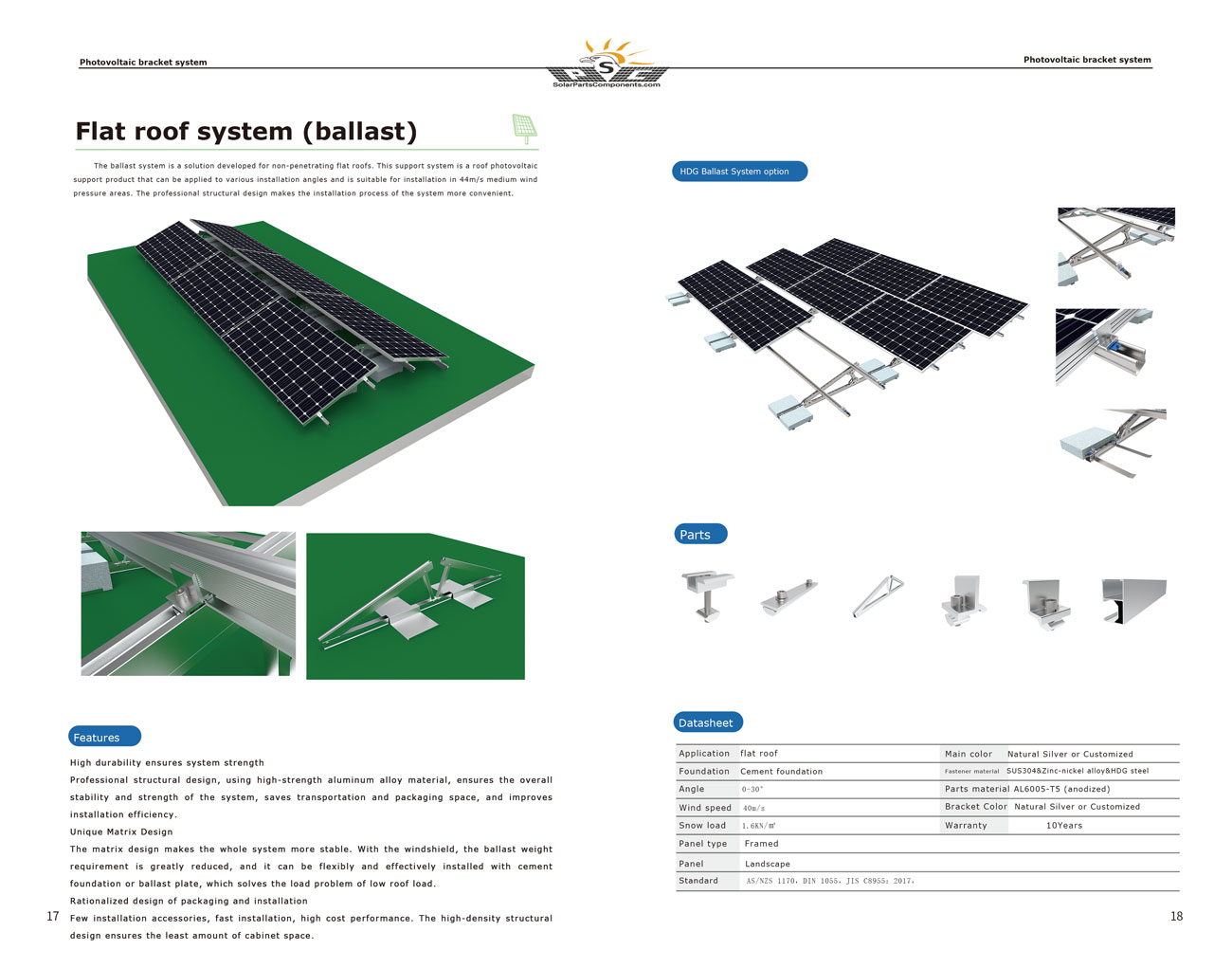

Solar Panel Triangle Ballasted Roof Bracket Mounting
Solar Panel Triangle Ballasted Roof Bracket Mounting is specifically engineered for non-penetration roofs, which secures the array without damaging the flat roof. This economical system requires no roof penetration and made from
lightweight and strong aluminum construction and come with pre-assembled components, they are just require few tools, it is quick and easy to install.
Solar Panel Triangle Ballasted Roof Bracket Mounting
Benefits of Solar Panel Triangle Ballasted Roof Bracket Mounting
1, Minimize Roof Space Limitation
The double -sided design of this ballasted mounting system let the solar module mounted in“shoulder by
shoulder” which maximize roof arrays due to no shading spaces, therefore it optimize high power production.
2, Minimize Orientation Limitation
It is specially engineered with double-sided configuration to ensure solar module to expose sunshine as long as
possible in any directions. It’s suitable for all orientations installations.
3, Fast Installation
It is highly engineered and simplified ballasted mounting system, which reduced number of components without
module carrier rail, just direct clamping with ballasted base and tighten the bolts, everything is been done.
4, Economical
The mounting structure is a cost effective mounting solution. The quantity of components can be required and
sold according to project specific calculations. The various components can be kept in stock to shorten time
between planning and installation.
5, Long lifespan
All mounting structural components are made of high class stainless steel and anodized aluminum alloy, their
high resistance to corrosion and complete recyclability, they are designed for twenty-year service life and backed by ten years warranty.
solar panel triangle bracket mounting: SPC-TR15-NR-U100 ?
Client:
Could you provide me with the installation details for the proposed solar mounting system and the respective costs?
SPC reply:
Yes, please refer to design and price as email I sent.
Client:
How many mounting brackets does a solar panel need SPC-TR15-NR-U1000?
Q:
Dear Janet,This is Mirko from Peru
How many mounting brackets does a solar panel need with the solar Panel Triangle Bracket Mounting: SPC-TR15-NR-U1000
Please send us a CIF quotation (Callao Port – Lima – Peru) for solar triangle bracket mount with a 15° ANGLE (similar model to the attached pictures)
solar triangle bracket mount
Number of 2*1m rigid panels to be considered: 800pcs.
Prices must include rack accessories.
Also include technical data sheets.
Thank you!
Best regards
A:
Hi Mirko, appreciated for your inquiry on our triangle bracket for solar mounts, SPC-TR15-NR-U1000
Well understand about your 800 pcs panels solar mounting.
Please refer to our desin and BOM of brackets below:
Panel Triangle Bracket Mounting design
Panel Triangle Bracket Mounting BOM
Need any change, kindly let me know.
If they are workable, I quote you price with freight cost for you in next email.
Thank you.
Solar Mounting Systems for Flat Terrain
Solar Mounting Systems for Flat Terrain
”
Greetings,
I would like to purchase the below system
Product Type: Solar Mounting Systems for Flat Terrain
Product Model:SPC-TR15-NR-U1000
Material: Aluminium
How much does it cost? For 30 panels for Panel size 2182*1029 mm
The location is Alhasa, Saudi Arabia.
BR,
Abdulmohsen
”
Dear Abdulmohsen
Base on Flat Terrain Solar Mounting Systems information given,
Please refer to our design for this project.
(1) Landscape Array for 2182*1029*35 mm 30 PV panels;
Flat Terrain Solar Mounting Systems Landscape
(2) Portrait Array for 2182*1029*35 mm 30 PV panels;
Flat Terrain Solar Mounting Systems Portrait
Feel free let me know which is workable for you.
Thank you !
Solar Mounting Parts & Componets Supplier
Solar Panel Triangle Bracket for ground mounting
Solar Panel Triangle Bracket for ground mounting
Q:
Good morning,
Hope my email finds you well,
Kindly provide me with 2 price quotations urgently for 1521 Solar Panel Triangle Brackets for ground mounting at
the two wind speeds below,
Wind speed 1=160km/h
Wind speed 2=140km/h
…………………………………..
Panel weight=33.3kg
Tilt angle=24
Every 23panels have 26 concrete bases
Solar Panel Triangle Bracket for ground mounting
Kindly, provide us with the minimum possible Weight & Dimensions of the Concrete Foundation with the price
quotation.
Regards,
A:
Hi Ghadeer
Nice to get your inquiry for the Solar Panel Triangle Brackets, please refer to our design and BOM price for the trangle brackets which can meet both of your wind speed as your required.
Thank you.
Solar Panel Triangle Brackets Factory
