Solar Mounting Systems for Residential Roof
Solar panel mounting systems are widely accpeted for new buildings all over the world.
Goverments encourage local people to instal pv moudules and subsidy policy is given for green energy.
Following is one Australia home case for 100 units solar panels racking system.
Solar mounting systems for roofing
Original inquiry:
”
Hi Solar Part Components,

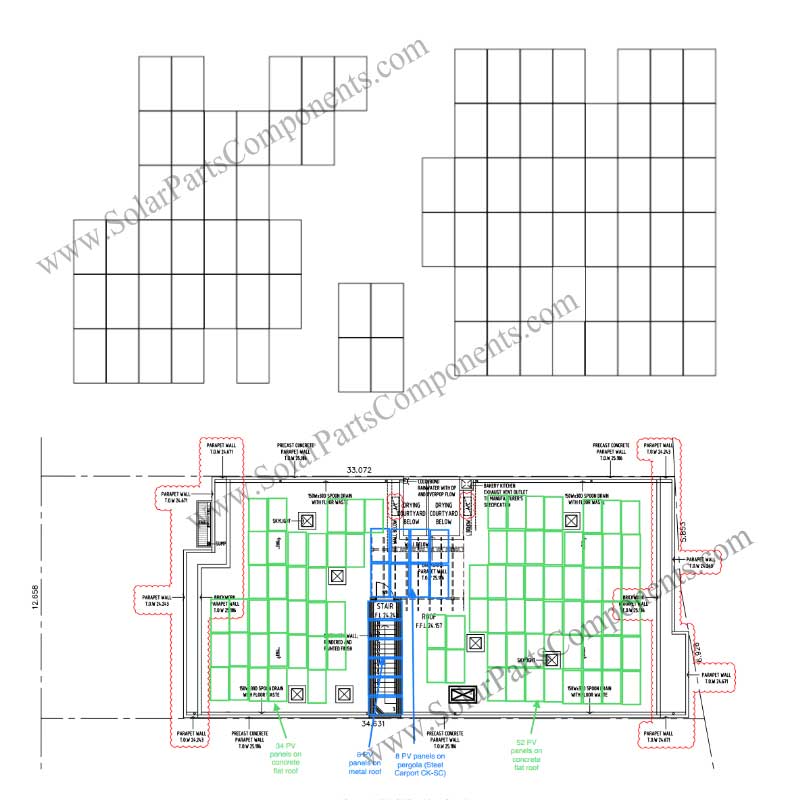

Enclosed please find copies of the proposed building plans which includes the roof plan that has incorporated the 100 numbers of PV panels layout for the proposed 30kW system.
Please note that there are 86 numbers of PV panels to be secured on the concrete flat roof, 6 numbers of PV panels to be mounted on the metal roof over the stair and 8 numbers of PV panels to be placed on the proposed Pergola.
– solar panel size:
HiKu PV Panel from Canadian,
solar dimensions 1765*1048*40mm
solar dimensions 1765*1048*40mm
Kindly provide me with the installation details for the proposed solar mounting system and the respective costs.
Also, please do note that the optimal tilt angle for the PV panel is 28 degrees in Perth, Western Australia. Please try to propose mounting system that is as close to the optimal tilt as possible.
Look forward to receiving your advice soon.
Thanks and kind regards,
Edwin Tay
“
With rich experience in solar power projects, our engineer release designed base on client’s requirements.

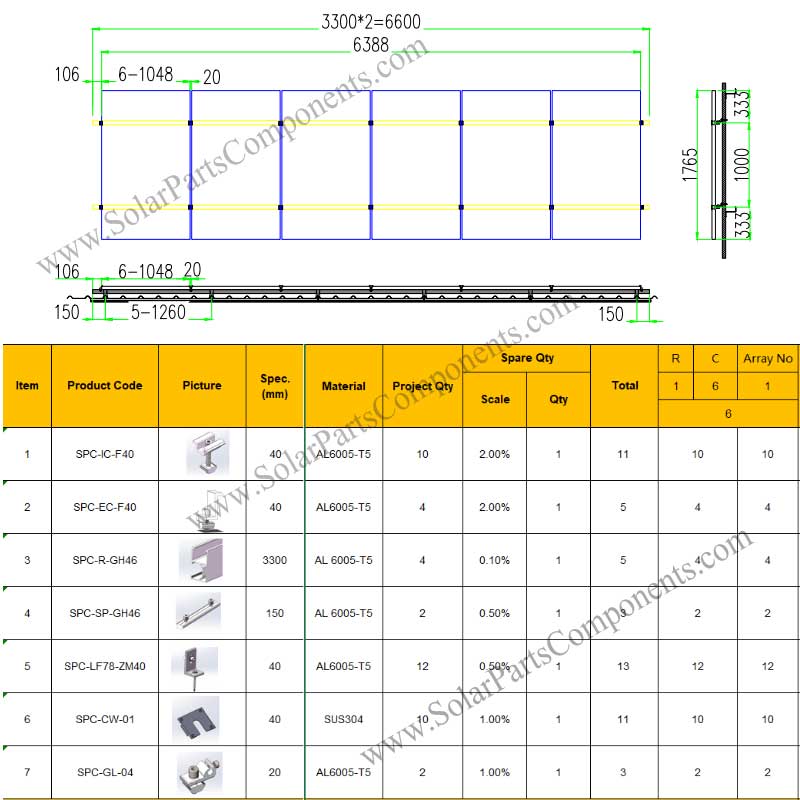

(1) 6 numbers of PV panels on the metal roof:
Solar Mounting Systems for metal roof
| Project No. | Metal Roof Solar Mounting Systems | Customer No. | 0 | Total Project(W) | 2280 | |||||||
| Ground Clearance(mm) | / | Array Amount: | 1 | Total Module Amount: | 6 | |||||||
| Installation Site: | / | Wind Speed(m/s:) | 35 | Snow Loading(cm): | 0 | |||||||
| Module Length (mm) | 1765 | Module Width (mm) | 1048 | Module Thickness(mm) | 40 | |||||||
| Module Power(W): | 380 | Module Weight(KG): | 27.2 | Pile Length(mm) | / | |||||||
| Tilt Angle: | 0 | Foundation Type: | Metal Roof | |||||||||
| Mounting System Type: | SPC-PA-0 | Array Orientation: | Landscape | |||||||||
| Item | Product Code | Spec. (mm) |
Material | Project Qty | Spare Qty | Total | R | C | Array No | |||
| Scale | Qty | 1 | 6 | 1 | ||||||||
| 6 | ||||||||||||
| 1 | SPC-IC-F40 | 40 | AL6005-T5 | 10 | 2.00% | 1 | 11 | 10 | 10 | |||
| 2 | SPC-EC-F40 | 40 | AL6005-T5 | 4 | 2.00% | 1 | 5 | 4 | 4 | |||
| 3 | SPC-R-GH46 | 3300 | AL 6005-T5 | 4 | 0.10% | 1 | 5 | 4 | 4 | |||
| 4 | SPC-SP-GH46 | 150 | AL 6005-T5 | 2 | 0.50% | 1 | 3 | 2 | 2 | |||
| 5 | SPC-LF78-ZM40 | 40 | AL6005-T5 | 12 | 0.50% | 1 | 13 | 12 | 12 | |||
| 6 | SPC-CW-01 | 40 | SUS304 | 10 | 1.00% | 1 | 11 | 10 | 10 | |||

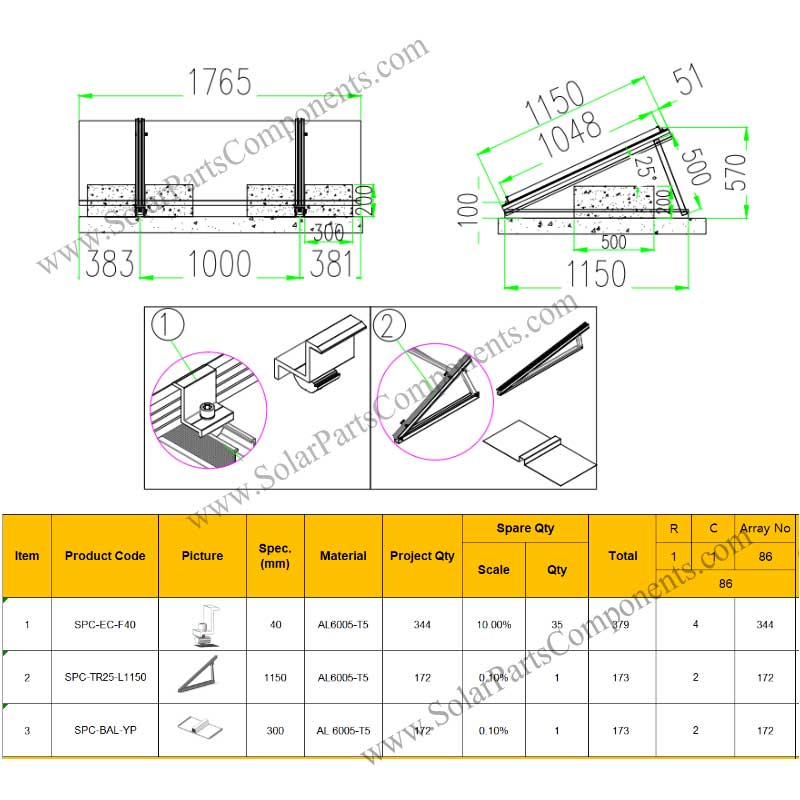

(2) Solar Mounting Systems for concrete flat roof, the concrete flat roof’s 86 numbers of PV Panels, solar panel triangle bracket mounting: SPC-TR15-NR-U100
The minimun length should be: 1150mm for end clamps,concrete block size: 500X200X300mm as design;
| Project No. | Flat Roof Solar Mounting Systems | Customer No. | 0 | Total Project(W) | 32680 | |||||||
| Ground Clearance(mm) | 100 | Array Amount: | 86 | Total Module Amount: | 86 | |||||||
| Installation Site: | / | Wind Speed(m/s:) | 35 | Snow Loading(cm): | 0 | |||||||
| Module Length (mm) | 1765 | Module Width (mm) | 1048 | Module Thickness(mm) | 40 | |||||||
| Module Power(W): | 380 | Module Weight(KG): | 27.2 | Pile Length(mm) | / | |||||||
| Tilt Angle: | 25 | Foundation Type: | Concrete Base | |||||||||
| Mounting System Type: | SPC-PA-25 | Array Orientation: | Landscape | |||||||||
| Item | Product Code | Spec. (mm) |
Material | Project Qty | Spare Qty | Total | R | C | Array No | |||
| Scale | Qty | 1 | 1 | 86 | ||||||||
| 86 | ||||||||||||
| 1 | SPC-EC-F40 | 40 | AL6005-T5 | 344 | 10.00% | 35 | 379 | 4 | 344 | |||
| 2 | SPC-TR25-L1150 | 1150 | AL6005-T5 | 172 | 0.10% | 1 | 173 | 2 | 172 | |||
| 3 | SPC-BAL-YP | 300 | AL 6005-T5 | 172 | 0.10% | 1 | 173 | 2 | 172 | |||
(3) Solar Mounting Systems for pergola: 8 PV Panels on roofing with proposed structure height of 2.4m & rear bracings.
| Project No. | Pergola Solar Mounting Systems | Customer No. | 0 | Total Project(W) | 3040 | |||||||
| Ground Clearance(mm) | 2400 | Array Amount: | 1 | Total Module Amount: | 8 | |||||||
| Installation Site: | / | Wind Speed(m/s:) | 35 | Snow Loading(cm): | 0 | |||||||
| Module Length (mm) | 1765 | Module Width (mm) | 1048 | Module Thickness(mm) | 40 | |||||||
| Module Power(W): | 380 | Module Weight(KG): | 27.2 | Pile Length(mm) | / | |||||||
| Tilt Angle: | 0 | Foundation Type: | Ground Screw | |||||||||
| Mounting System Type: | SPC-PA-0 | Array Orientation: | Portrait | |||||||||
| Item | Product Code | Spec. (mm) |
Material | Project Qty | Spare Qty | Total | R | C | Array No | |||
| Scale | Qty | 2 | 4 | 1 | ||||||||
| 8 | ||||||||||||
| 1 | SPC-IC-N40 | 40 | AL6005-T5 | 12 | 2.00% | 1 | 13 | 12 | 12 | |||
| 2 | SPC-EC-N40 | 40 | AL6005-T5 | 8 | 10.00% | 1 | 9 | 8 | 8 | |||
| 3 | SPC-R-H85 | 4500 | AL 6005-T5 | 4 | 0.30% | 1 | 5 | 4 | 4 | |||
| 4 | SPC-RC-C | 40 | AL6005-T5 | 32 | 2.00% | 1 | 33 | 32 | 32 | |||
| 5 | SPC-R-RN130 | 2900 | AL6005-T5 | 2 | 2.00% | 1 | 3 | 2 | 2 | |||
| 6-1 | SPC-L1-80×80 | 2045 | AL6005-T5 | 4 | 2.00% | 1 | 5 | 4 | 4 | |||
| 6-2 | SPC-L2-80×80 | 2400 | AL6005-T5 | 2 | 2.00% | 1 | 3 | 2 | 2 | |||
| 7-1 | SPC-AB-200 | 200 | AL6005-T5 | 2 | 0.10% | 1 | 3 | 2 | 2 | |||
| 7-2 | SPC-AB-300 | 300 | AL6005-T5 | 2 | 0.10% | 1 | 3 | 2 | 2 | |||
| 8 | SPC-ALA-L40 | 3310 | AL 6005-T5 | 2 | 1.00% | 1 | 3 | 2 | 2 | |||
| 9 | SPC-EB-M10*100 | M10*100 | SUS304 | 16 | 1.00% | 1 | 17 | 16 | 16 | |||
