Solar panel tile hooks SPC-Tile-Hooks-AC001, super sturdy to support Roman tile roofing structure .
90° Roman Tile Roof Hook Arm – 163.5 mm ～199.5 mm Height, lower adjustable range 36 mm , with proper screws, nuts and
slots for Roman / Clay / Spanish / curved tile roofing .
Model : SPC-Tile-Hooks-AC001
Item : Solar Tile Roof mounting Hooks ;
Finishing : Sandblasting;
Material : SUS 304 Stainless Steel ;
Total Size : 180 mm ( Long) × 161.5 mm ( Deepth) × 163.5 mm ～199.5 mm (Height) /
7 1/16″ (L) × 6 3/8″ (D) × 6 7/16″ ～ 7 7/8″(H) ;
Bottom End to Top End : 163.5 mm ～199.5 mm (Height) / 6 7/16″ ～ 7 7/8″;
Thickness : 5 mm ;
Rail Slot Size : 9 mm × 47 mm ( 3/8″ ×1 7/8″ );
Matched Bolts & Nuts Sizes:
1) SUS 304 Hexagon Head Allen Bolt M8 mm X 25 mm x 1 unit;
2) M8 x 13 Ribbed Lock washers ( SUS304 ) x 1 unit;
3 ) D8 Spring washers ( SUS 304 ) x 1;
4) M8 T sliding nut ;
Base Plate Size : 180 mm X 55 mm X 60 mm ( 7 1/16″ × 2 3/16″ × 2 3/8″ ) ;
Matched Bolt & Nut for plate and lower arm joint:
(1) SUS304 stainless steel Carriage bolt M10 mm X 25 mm x 1 unit ;
(2) SUS304 stainless steel hex flange nut x 1 unit ;
Mounting Screw Slots Size : 7.5mm X 13.5mm ( 6 holes ) & Φ 7.5 mm ( 6 holes )Cross Arrangement ; ;
Matched Screw Size: Hex Washer Head timber screws 6.3 mm (1/4″) x 80 mm ( 3 1/8” ) ( 20# dacromet ) x 4 Units ;
Weight : 777 (g) / 1.71 (lb) ;
Packing : 50 pieces / carton ;
Packing Size : 540 mm ×220 mm × 200 mm /
21 1/4″ × 8 11/16″ × 7 7/8″

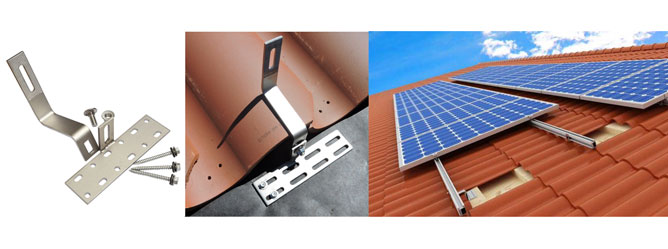

The Solar Tile Hook Model SPC-Tile-Hooks-AC001 is an stainless steel bracket fixed roof support used for curved caly roofing .
Our Solar Parts & Components QC Team
stictly test following parameters of this clay tile hooks SPC-Tile-Hooks-AC001 item before delivery:
Waterproof IP class , downward load test , uplifting test, snow and wind loading…

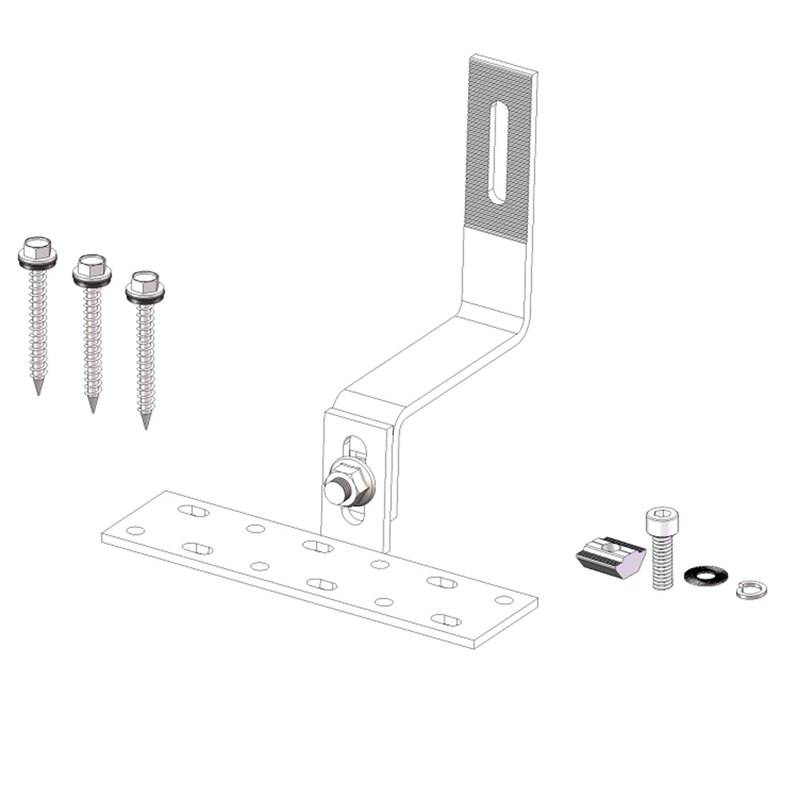

SUS 304 Solar side mounting tile roof hooks drawing, sizes, profile for Roman / Clay / Spanish / Curved tile roofing, adjustable .
More models of our solar panel roof hooks & brackets are available in www.SolarPartsComponents.com
