Solar Rooftop Mounting Systems
- Product Type: Roofing Mounting Systems with Tile Hooks
- Product Model:SPC-RF-IK03-DR
- Material: Stainless steel,Aluminium
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Portait or Landscape
- Application: Roofing
Product Description:
Solar panel tile roof hooks mount (SPC-RF-IK03-DR)is one of the important components of photovoltaic installation system. This product is a fixed ground installation system used to fix solar equipment on most tile roofs. Our products are roof hooks made of high-quality stainless steel. We can install the solar mounting system quickly and safely and can enjoy the high-efficiency returns that solar energy brings to us.
Our roof installation kit can provide simple installation solutions for various roofs. For different roof types, we design different hooks for you to choose from. The pre-installed components can easily fix it on the wooden beam. No need to drill or cut, installation is safe and reliable. Solar panels can be easily installed using our matching components.
Solar panel mounting system with tile roof hook is a high-quality component of a reliable, sturdy roof installation system. Rigorous testing of real-size roof panels can ensure the safety, compliance and structural integrity of photovoltaic installations.
Feature of this SPC-RF-IK03-DR solar roof mounting system:
1. Easy to install on most tile roofs which contains several components only for whole structure;
2. Support high wind and snow load with robust material;
3. Pre-assembled component design, labor effective;
4. For quick and easy installation;
5. Can match various solar panels;
6. Side mounted for both residential and commercial tile roof projects;
Our roof installation systems are fully tested and meet the standards. The innovative design of tile roof solar mounting racking brackets helps reduce installation time and eliminates safety risks and problems. The water baffle we designed to work with the hook can provide weatherproof. If it does break, you will not need to buy additional waterproof glue or other. Our components are easy to use and provide all roof screws/components needed to install to roof structural members.

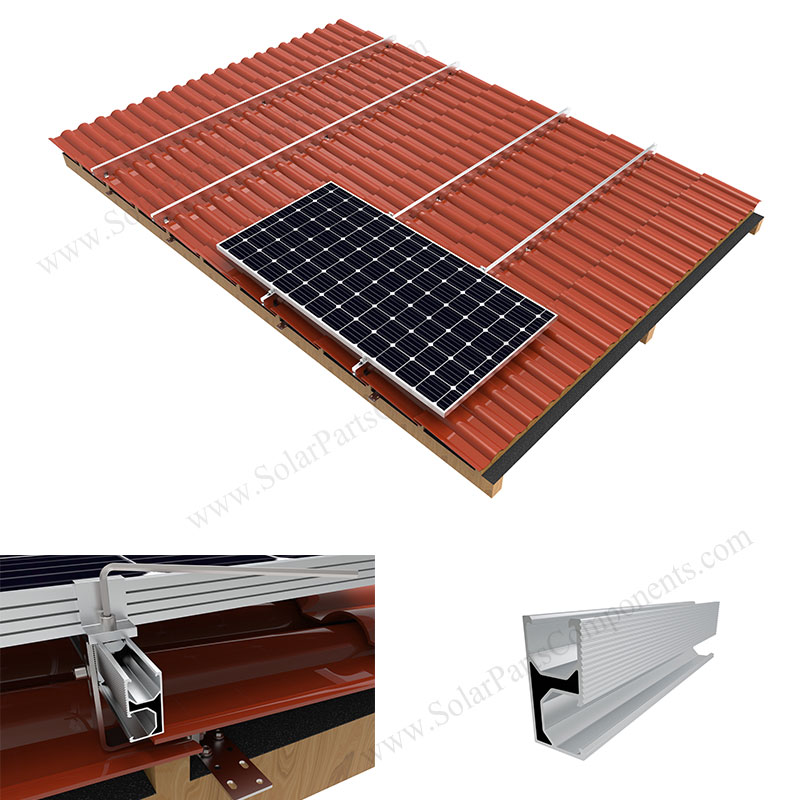

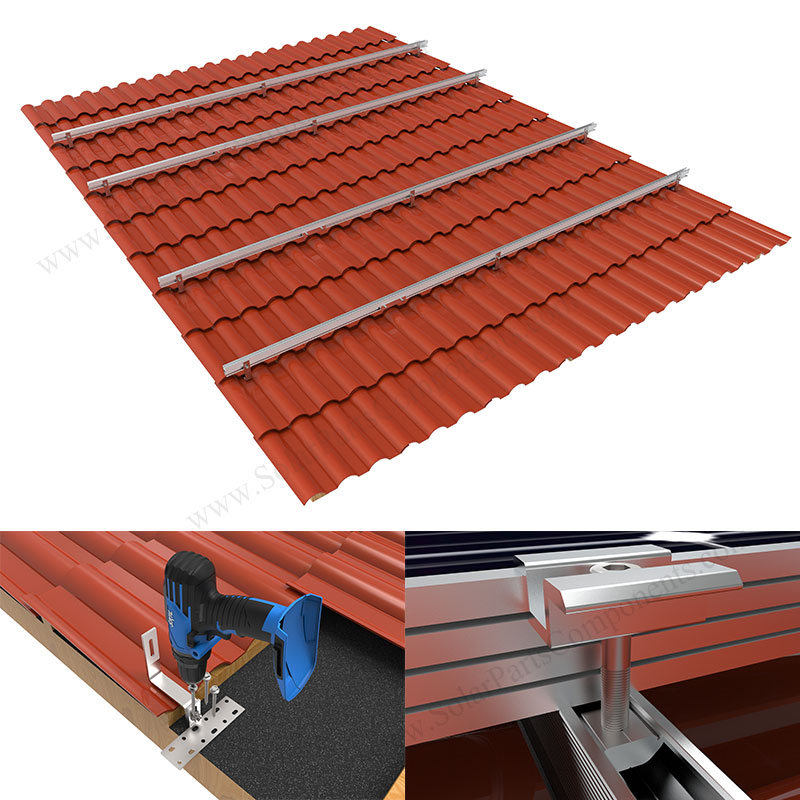

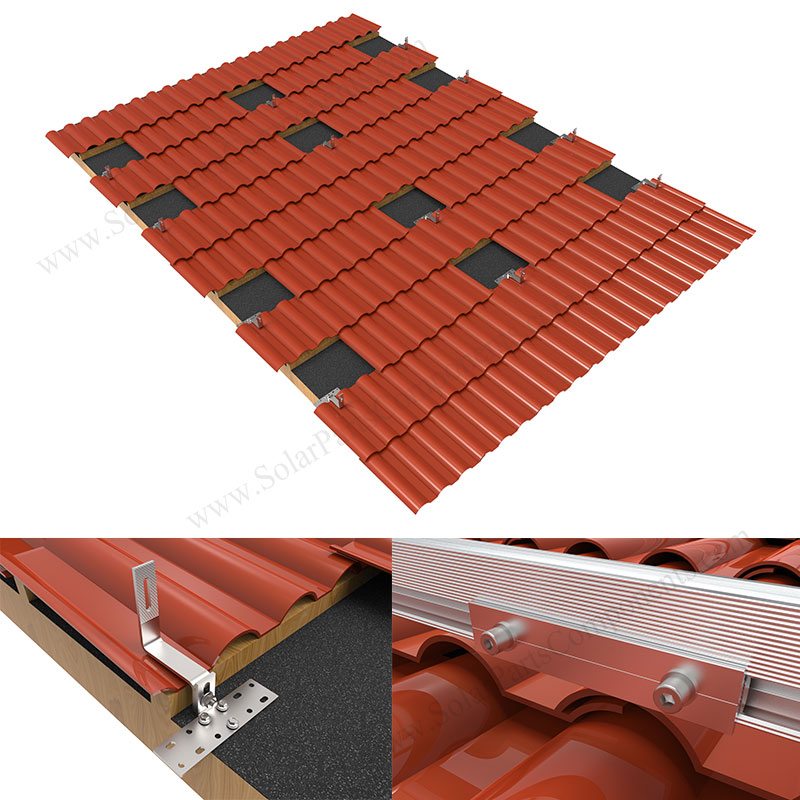

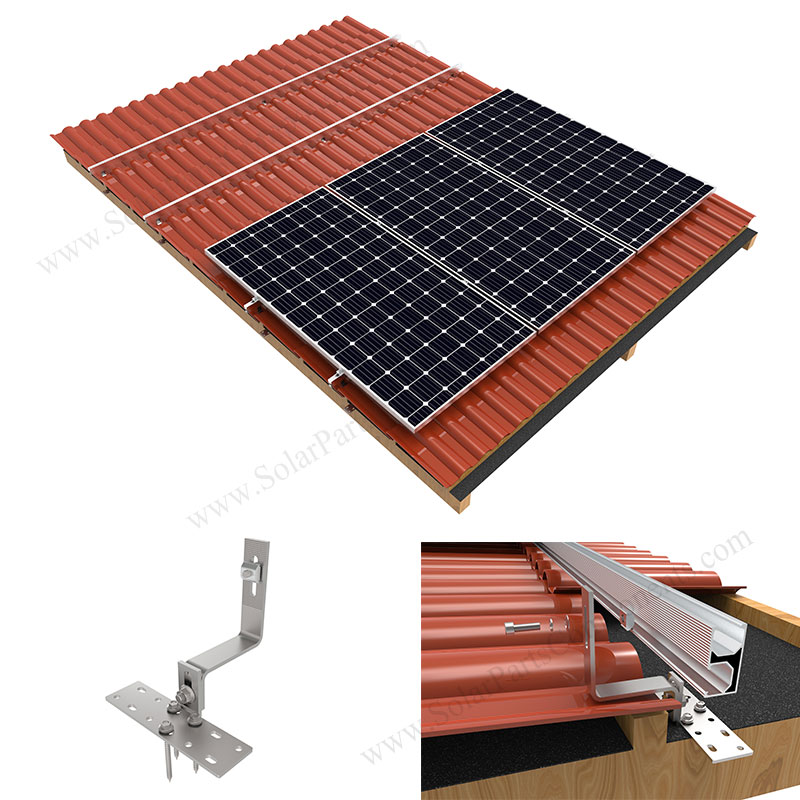

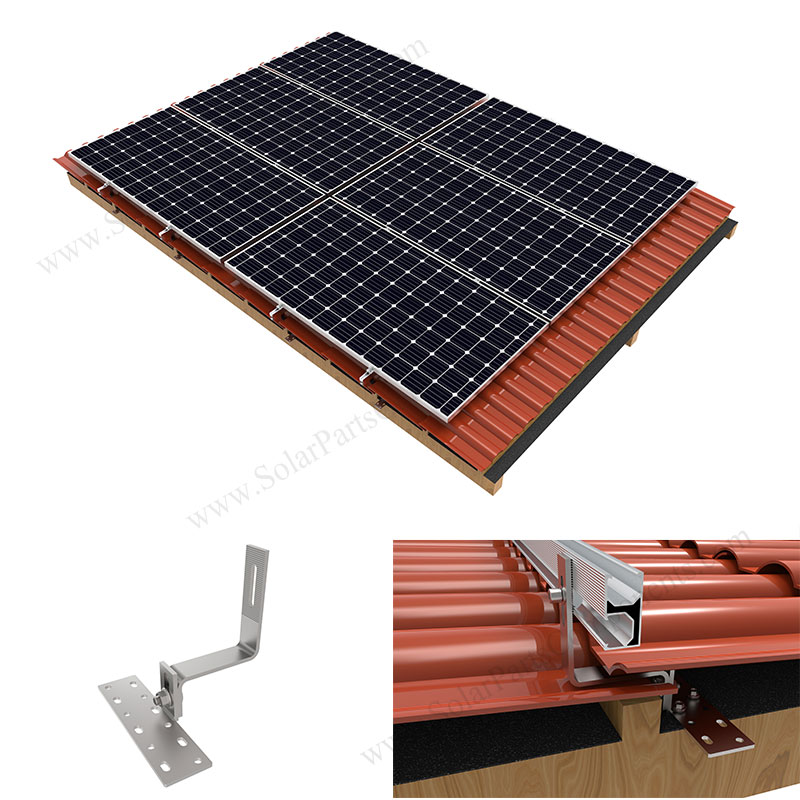

Installation procedures for this solar panel tile roof hook mount:

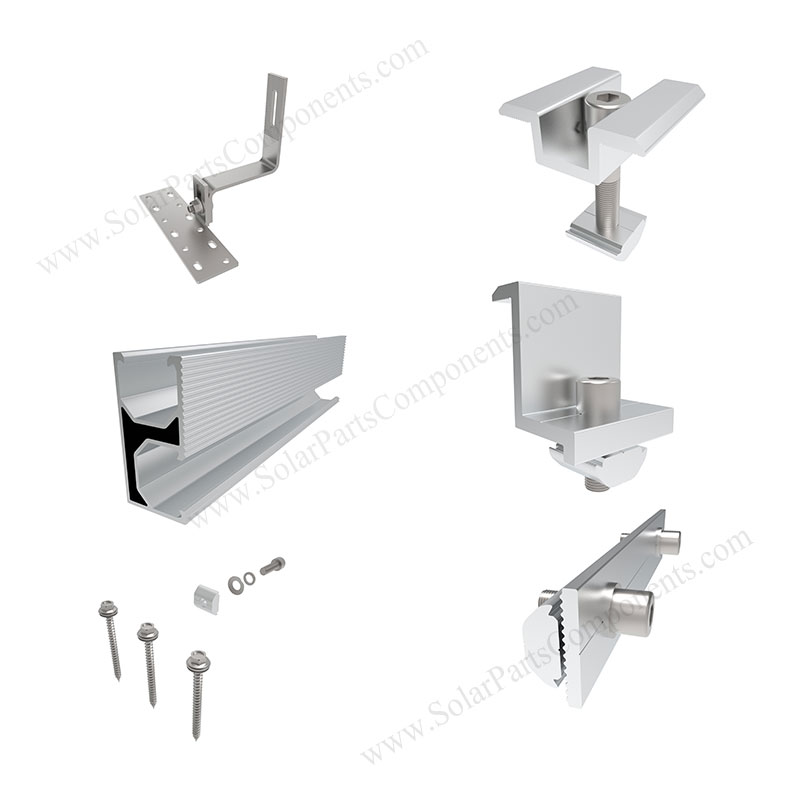

– Fix tile roof hook onto wooden beam;
– Connecting with Aluminum rail;
– Fixing end clamps;
– Fixing inter clamps;
Tile hook kit which made of stainless steel can be very stable and strong for PV module / aluminum rail and wood beam supports.
SPC solar offer full tile roofing solution with stainless steel hooks which have great performance in severe weather climatite.
Other roofing types like pantile / plain tile / slate tile / flat tile … roof racking systems also available.
The sturdy tile roof hook is the best solution for fixing the photovoltaic array to the tiled roof. If you need any other roof hooks, please feel free to contact us: www.solarpartscomponents.com.
| Brief Descriptions: | |
| Solar Panel Racking System for Tile Rooftop | |
| Item type: | Solar Tile Rooftop Mounts |
| Type: | SPC-RF-IK03-DR |
| Installation Site: | Tile Roofing 0 °~ 60° |
| Profile Material: | A2 Stainless Steel,Aluminum Rail |
| Fasten Parts: | Stainless Steel / Aluminum T Sliding Nut |
| Color: | Anodized Silvery |
| Wind Load: | 60 m / s |
| Snow Load: | 1.4 KN / M2 |
| PV Modules: | Framed, Frameless |
| Module Orientation: | Portrait and Landscape |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag+inner box+Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
Installation Manual for Solar Roof Mounts SPC-RF-IK03-DR
Solar Tile Roof Hook Mounting System

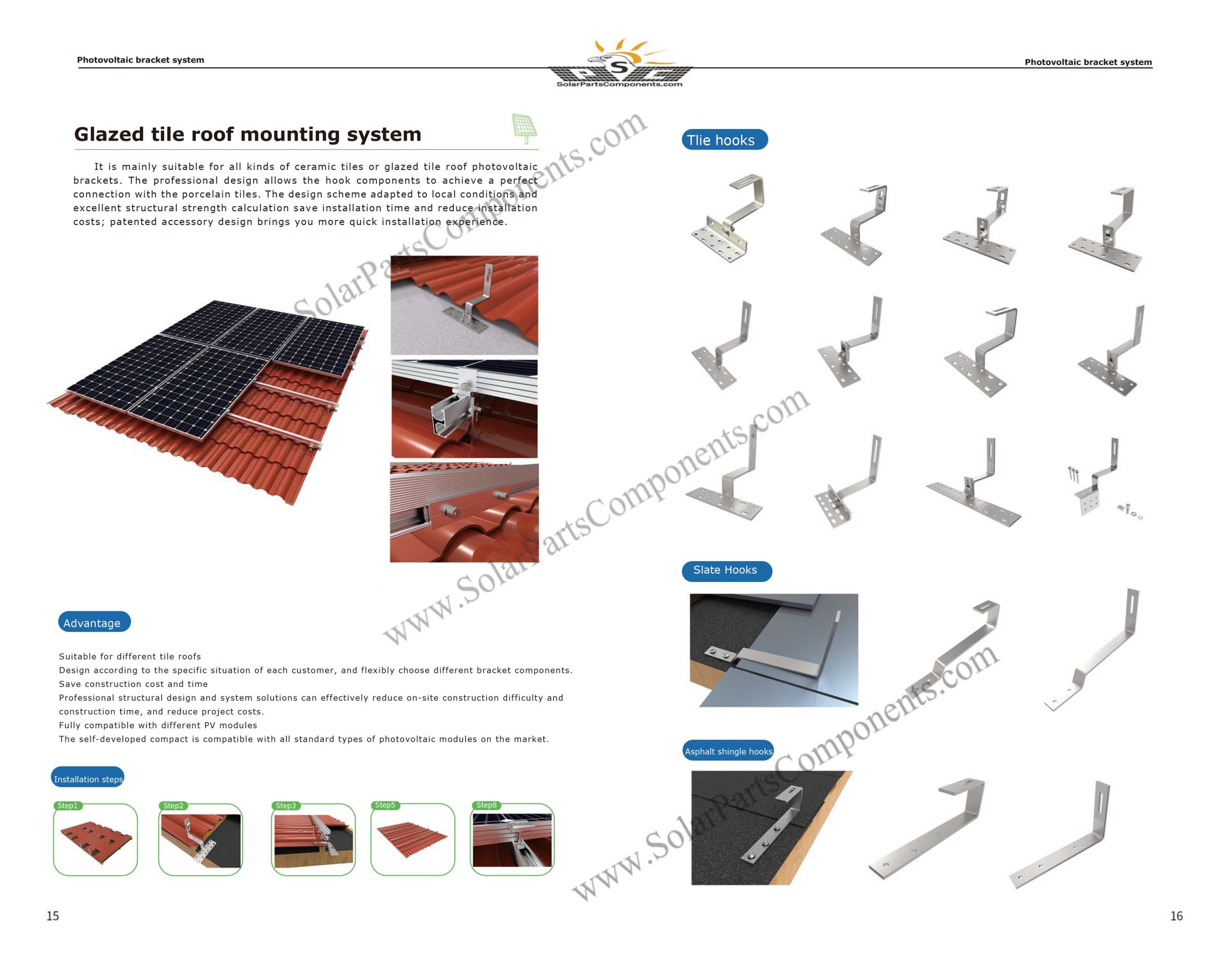

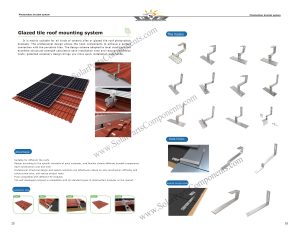

Glazed tile roof mounting system
It is mainly suitable for all kinds of ceramic tiles or glazed tile roof photovoltaic brackets. The professional design allows the hook components to achieve a perfect connection with the porcelain tiles. The design scheme adapted to local conditions and excellent structural strength calculation save installation time and reduce installation costs; patented accessory design brings you more quick installation experience.
Advantage
–Suitable for different tile roofs;
–Save construction cost and time;
–Fully compatible with different PV modules;
–Design according to the specific situation of each customer, and flexibly choose different bracket components;
–Professional structural design and system solutions can effectively reduce on-site construction difficulty and construction time, and reduce project costs.
Glazed tile roof mounting system
