Solar Panel Grounding washers for PV modules earthing Model: 7G

Mid Clamp Solar Mounting Components

Product Type: Solar Panel Mounting Systems Hardware
Product Model:Solar-Mounting-Components-Mid-Clamp
Material: Aluminium, Steel
Max Wind Load : 60 m/s
Max Snow Load : 1.4 KN / M ²
Application: Frame Solar Panels Installation

Contact by Email

Product Description :

Model : Solar-Panel-Grounding-Washer-7G

This Solar Panel Grounding Washer is worked as conductive plate for solar mounting earthing .

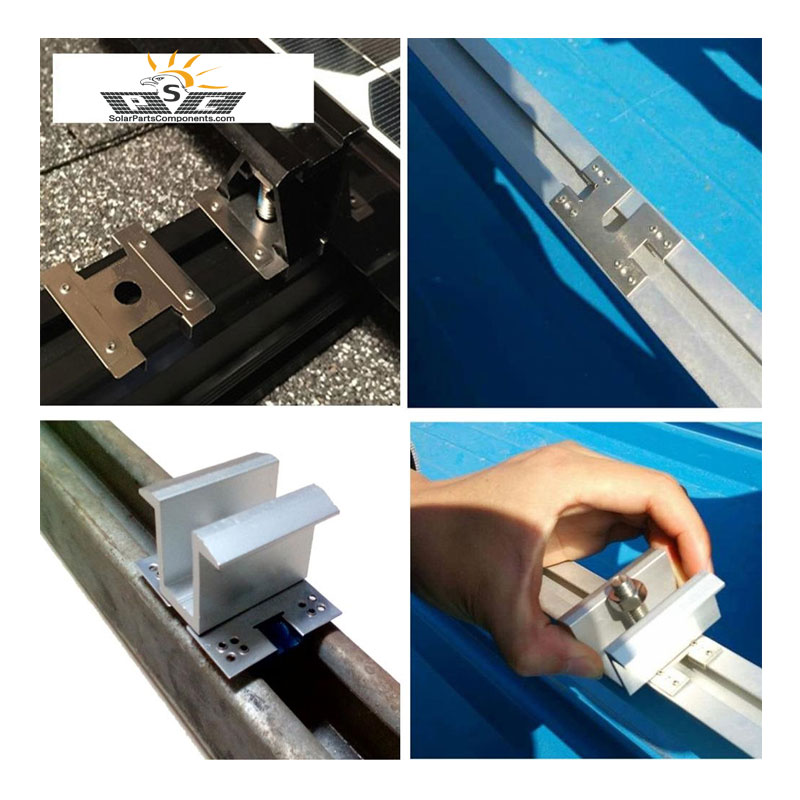

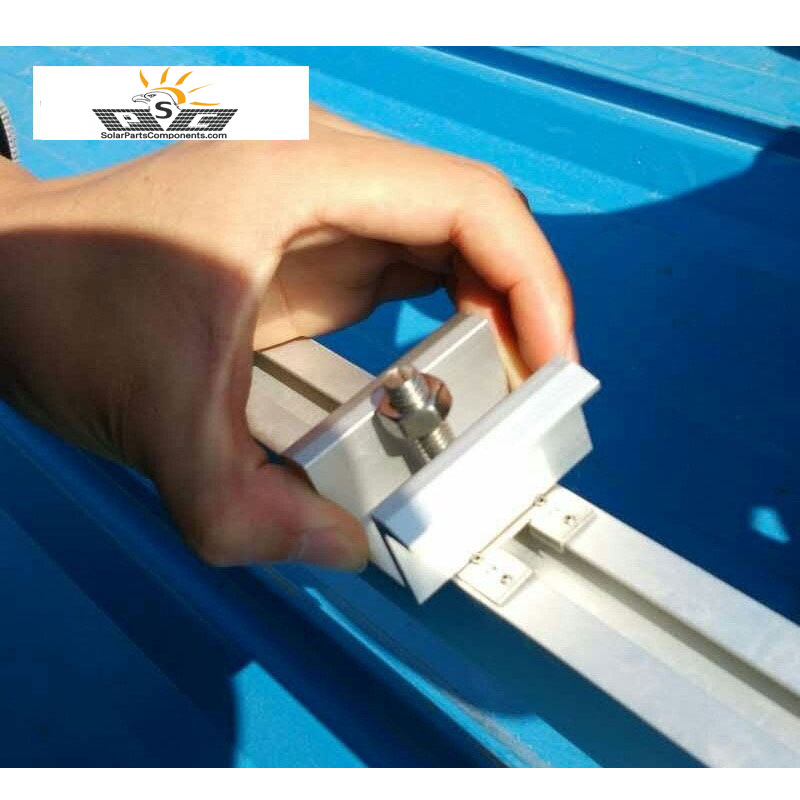

Model 7G grounding clips can bonded grounding lugs / mid clamps with solar panels , pierce with teeth tightly .

This PV ground electrical clip 7g can bond pv moduled and mounting structure, it’s so called module-to-racking earnthing .

Barbed grounding washer (Model 7G) can penetrate solar panels and aluminum rails , creat an electric path .

Advantages :

– Connecting between solar modules and aluminum rails for electric earthing ;
– Great convenient to sep up EGC ( Equipment Grounding conductor)system for solar panel installation ;
– Feature with fast & easy installation with our solan panel grounding washer (7G) ;
– Tin plated, rugged, gas tight , SUS 304 solar grounding clips ;
– Essential solar panel installation components protecting from lightning strike .

Our Solar Panel Grounding Washer 7G is designed for different kinds of solar grounding mounting system. We provide several kinds of solar panel grounding washers for your options. All of them are with high quality, high strength and cost effective. Hope that our products will meet your satisfaction.

Click here for more details: https://www.SolarPartsComponents.com

Brief Descriptions :
Solar Panel Grounding Washer for PV Modules 7G for earthing kits
Item type:	Solar Panel Mounting Clips
Technical Parameters :
Installation Site :	solar panel mounting
Profile Material :	SUS304 Stainless Steel
Color :	Polish milling
Wind Load :	60 m / s
Snow Load :	1.4 KN/M2
Module Orientation :	Portait / Landscape
Standards :	AS/NZS 1170
	DIN 1055
	GB50009-2012
	IBC2009
	TUV
	JIS C 8955 : 2011
	International Building Code IBC 2009
	California Building Code CBC 2010
Warranty	10 years
Designed Life Span	25 years
Packing Details :
Inner :	Bubble bag+inner box+Carton
Outer :	Wooden Box, Steel Pallet, MDF, etc

Drawing $Size for Solar Panel Grounding Washer SPC-GW-07

Drawing and size for Solar Panel Grounding Washer SPC-GW-07

Solar Panel Grounding Washer wholesale

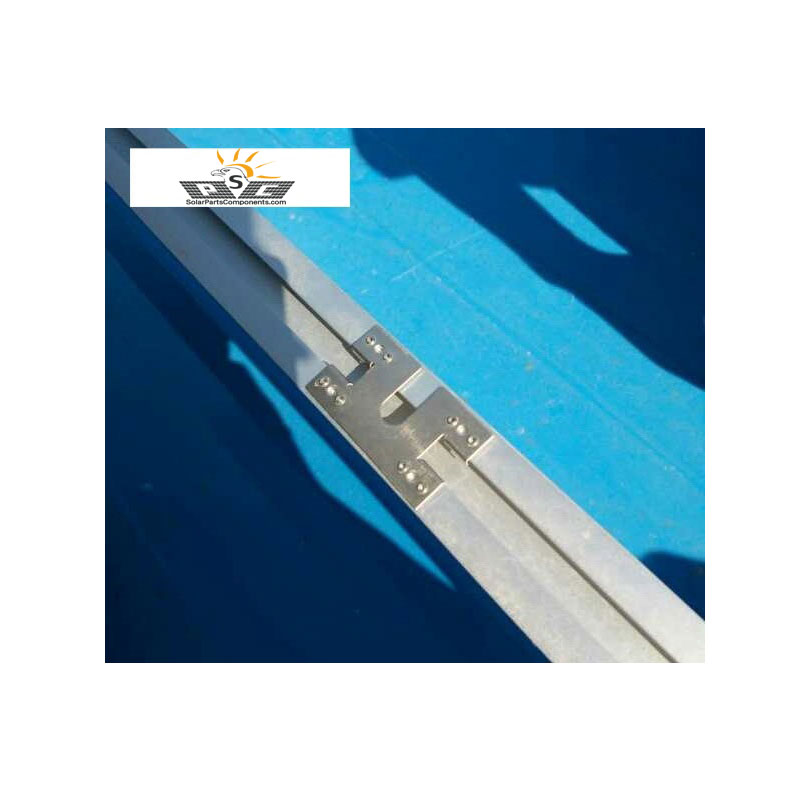

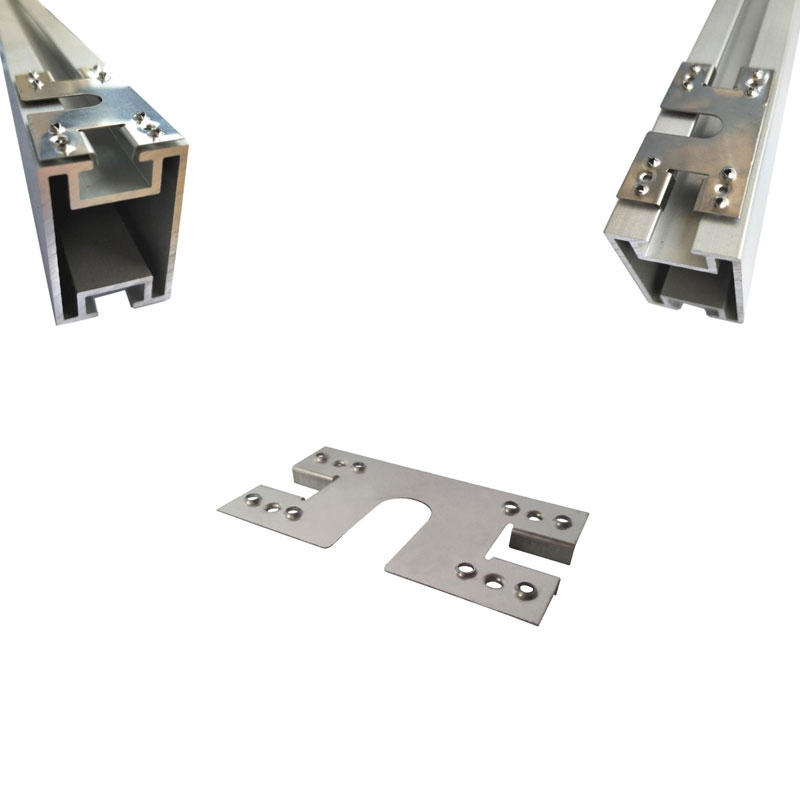

Stainless Steel Solar Panel Grounding Washer is used to bond the solar panel to the mounting rail for earthing purposes.
It is required between the solar panel and mounting rail at each point where the solar panel has been clamped to the mounting rail.
