Grounding Clips Solar Mounting Components
- Product Type: Solar Panel Grounding Clip
- Product Model: SPC-GW-03
- Material: Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Framed Solar Panels Installation
Product Description :
Model : Solar-Panel-Grounding-Clip-SPC-GW-03
This solar panel grounding clips are strictly comply with national standards can fit all PV modules .
PV earthing plates are made of sus 304 stainless steel and packed with carton / pallet .
Good quality PV panel grounding clips are vital for solar mounting systems . It will keep good electric conducting to earth grounded .
Usually One pair of mid clamp and end clamp just need one solar panel grounding clip .
Free technical support for using our PV earthing washer will be 24 / 7 service .
This solar grounding clips Model 3C can well bond PV modules to mounting systems .
Advantages
(1) Rugular grounding washers in stock with fast delivery ;
(2) All weather withstanding ;
(3) From beginning to end standby service ;
(4) Penetrate surface of anodized aluminum / carbon steel well .
| PV Panel Grounding Clip Parameter | |
| Model Number : | Solar-Panel-Grounding-Clips-SPC-GW-03 |
| Material | SUS 304 Stainless Steel |
| Specification | As per drawing / Tailored |
| Application | All solar panel installation |
| Warranty | 8 – 10 years |
| Sample | 3 – 5 days |
| Delivery Date | In stock |
| Type | solar earthing plate |
| Duration | 20 years |
We carry many different types of grounding clips for different clamps and rails, accept customized. Please do feel free to contact us about your needs. Our website is: www.SolarPartsComponents.com.
| Brief Descriptions : | |
| Solar Panel Grounding Clips Model 3C for PV module earthing kits | |
| Item type: | Solar Mounting Components |
| Technical Parameters : | |
| Installation Site : | solar panel mounting racking |
| Profile Material : | SUS 304 Stainless Steel |
| Color : | Polish milling |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN/M2 |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Life Span | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
Drawing & Size for Solar Panel Grounding Clip SPC-GW-03

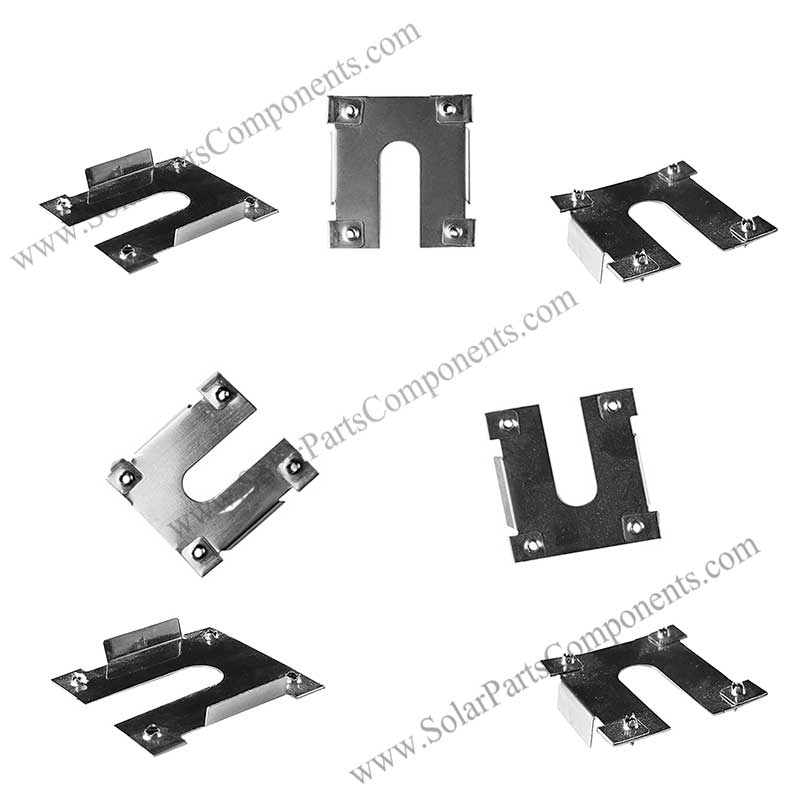

specification of Solar Panel Grounding Clip SPC-GW-03
The inquiry of Solar Panel Grounding Clip
A:
Hope everything goes well.
I would like to follow up your inquiry.
If there is any purchase schedule for that, feel free let me know.
Q：
We are interested of importing your solar grounding clips.
Please quote and send us sample.
Thank you.
A:
Could you tell me more details about the solar grounding clips you need?
Our company has kinds of the grounding clips, which one do you want?
Q:
Please provide us the rate for the attached product.
Thanks.
A:
Could you please tell us the quantity you require so that we can work out the offers?
Q:
This is our intended order for grounding clips.
Should the price be found workable, and delivery date acceptable, we intend to place a large order with your company.
A:
Following is totally cost for this order:
Based on 8000 pieces in unit, our factory price is…
If no problem, we'll release invoice in the next email for you.
Q:
Ok.
Thank you very much.

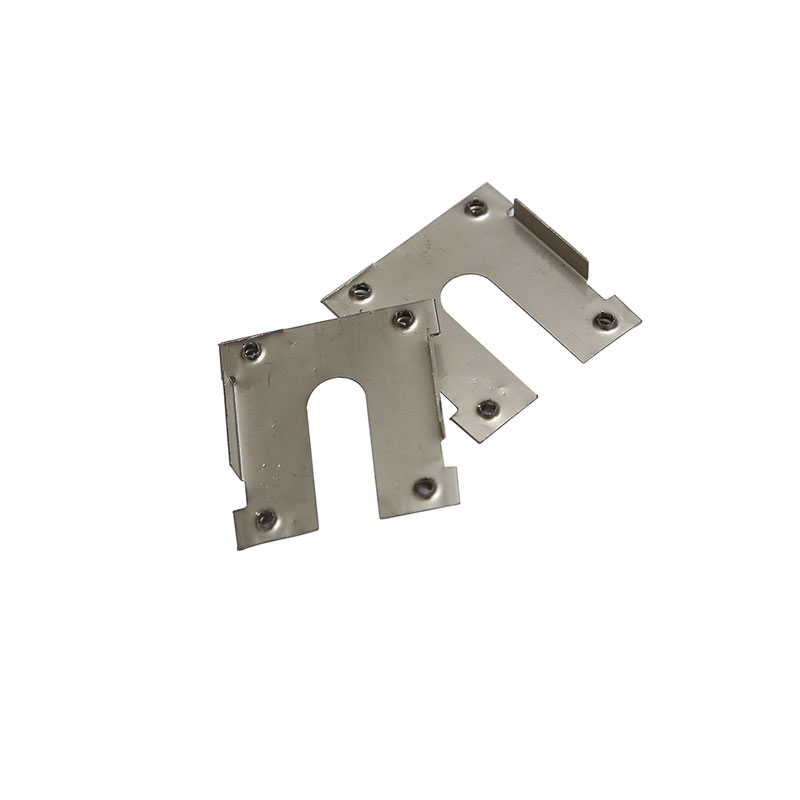

Solar Panel Grounding Clip
Drawing sizes for solar mounting rail earthing plates 3C
Our solar earthing plates 3C is designed for framed PV module mounting installation .
Earthing plates 3C are used to earth the PV panels to the racking system .

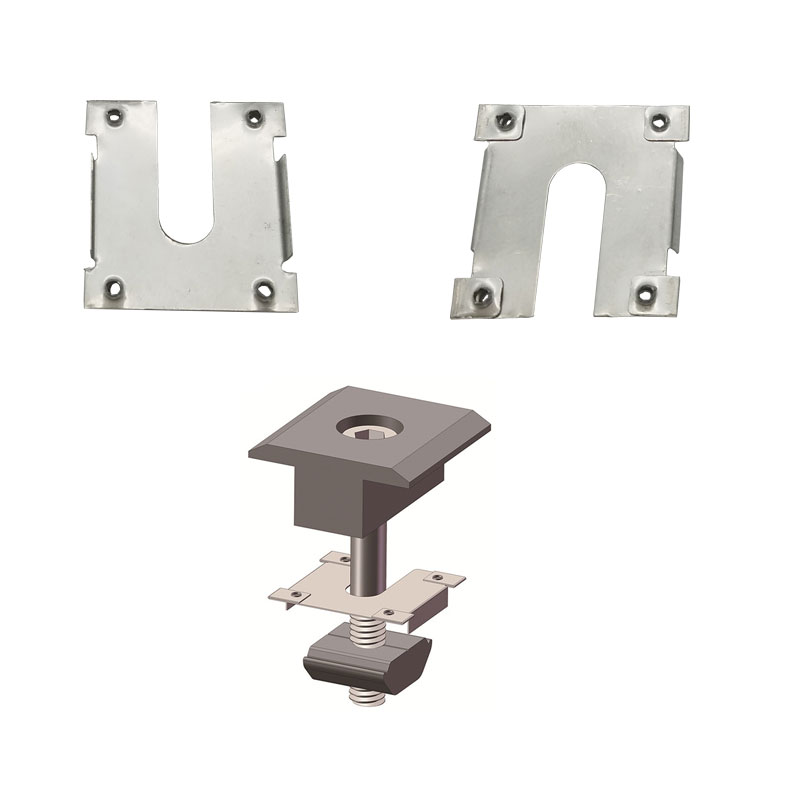

It's easy to fix grounding plates with aluminum rails by stainless steel bolts, washers .
Factory direct solar mounting rail earthing plates 3C wholesale with size and drawing details
solar panel mounting rail earthing plates Size & drawing for model 3C
Welcome to purchase Ground Mounting Rail Earthing Plate 3C from Solar Panel Parts & Components Factory .

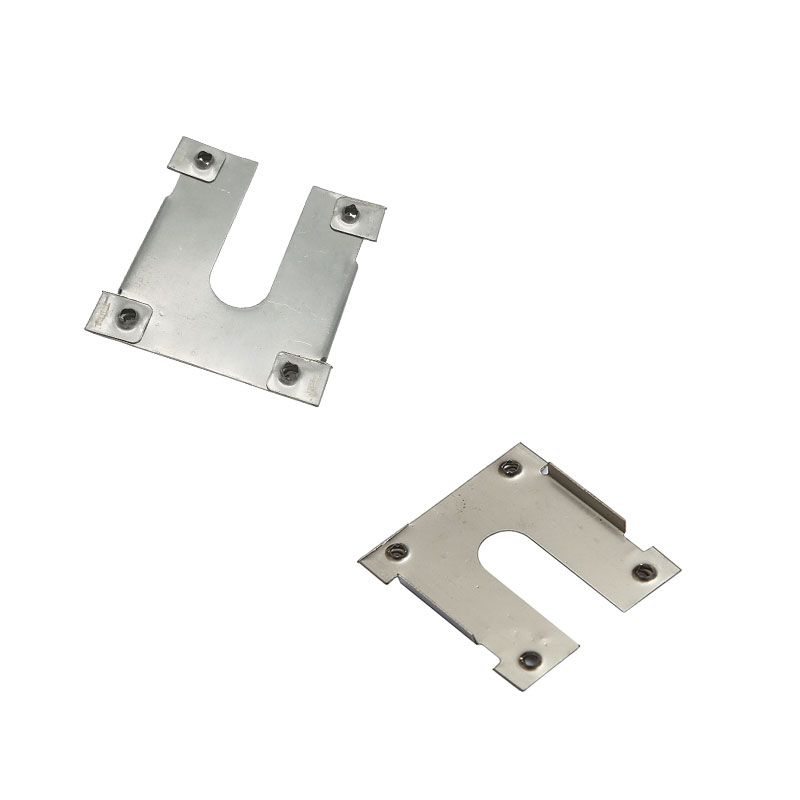

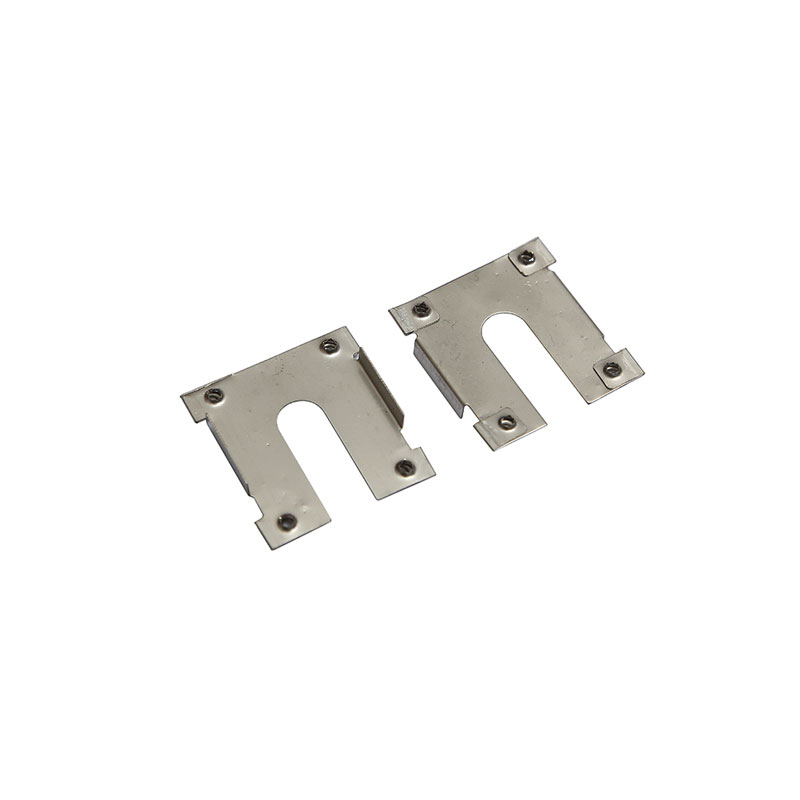

Solar Panel Grounding Clip SUS304
As on of the most important hardwares for solar mounting system, the solar panel grounding clip is designed to pierces the anodized surface or insulating surface of the frames to ensure good earth connection between solar panels and solar mounting system.The rails are then in combination with each other and to ground.
Dimension size: 34mm(1.339″) x 32.3mm(1.272″)

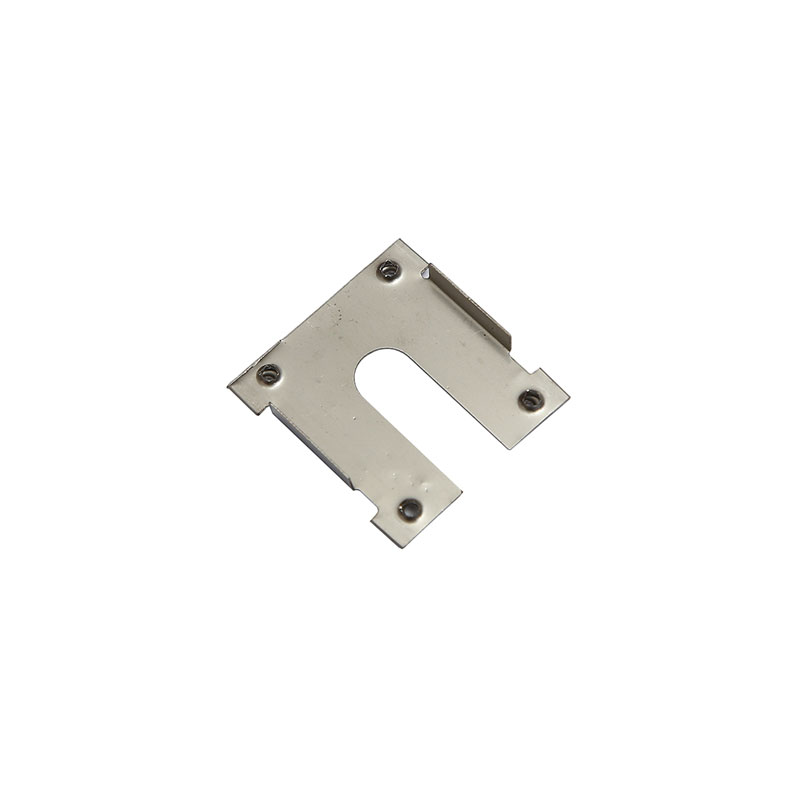

Solar Panel Grounding Clip SUS304
