Solar Mounting Grounding Components
- Product Type: PV module grounding electrical clips
- Product Model: SPC-GW-12
- Material: SUS 304 Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Solar Panels Installation
Product Description :
This electrical clip is very important for earthing . It’s connected PV modules with rails to ground for electrical safety .
Solar grounding clips SPC-GW-12 can protect solar mounting system equipments like : inverters, PV modules, controllers, refrigerators, lighting fixtures .. from
damaging of grounding and lightning .
Solar grounding clips SPC-GW-12 can provide a continuous earthing on roof / ground mounting solar systems .
The four spur holes can penetrate surfaces of aluminum rails and creat good electric conduction well .
It’s designed to be used with zinc coated lugs .
– Good safety kit for protecting solar mounting system from lightning and electrical surges ;
– Embed into aluminum / steel with teeth ;
– Gas tight ecectrical connecting with our Solar grounding clips SPC-GW-12;
– Anti corrosion , rusty resistant .
Besides the Solar grounding clips SPC-GW-12, our SPC provides the different products including the components and the solar mounting system to meet your needs.
Welcome to contact and get more information for solar mounting ground components.
|Brief Descriptions :|
|Solar Panel Grounding Electrical Clips Model 12L for PV module earthing kits|
|Item type:||Solar Mounting Components|
|Technical Parameters :|
|Installation Site :||solar panel pv modules installation|
|Profile Material :||SUS 304 Stainless Steel|
|Color :||Polish milling|
|Wind Load :||60 m / s|
|Snow Load :||1.4 KN/M2|
|Module Orientation :||Flat / Pitched|
|Standards :||AS/NZS 1170|
|JIS C 8955 : 2011|
|International Building Code IBC 2009|
|California Building Code CBC 2010|
|Designed Life Span||25 years|
|Packing Details :|
|Inner :||Bubble bag+inner box+Carton|
|Outer :||Wooden Box, Steel Pallet, MDF, etc|
Drawing & Size for grounding clips SPC-GW-12

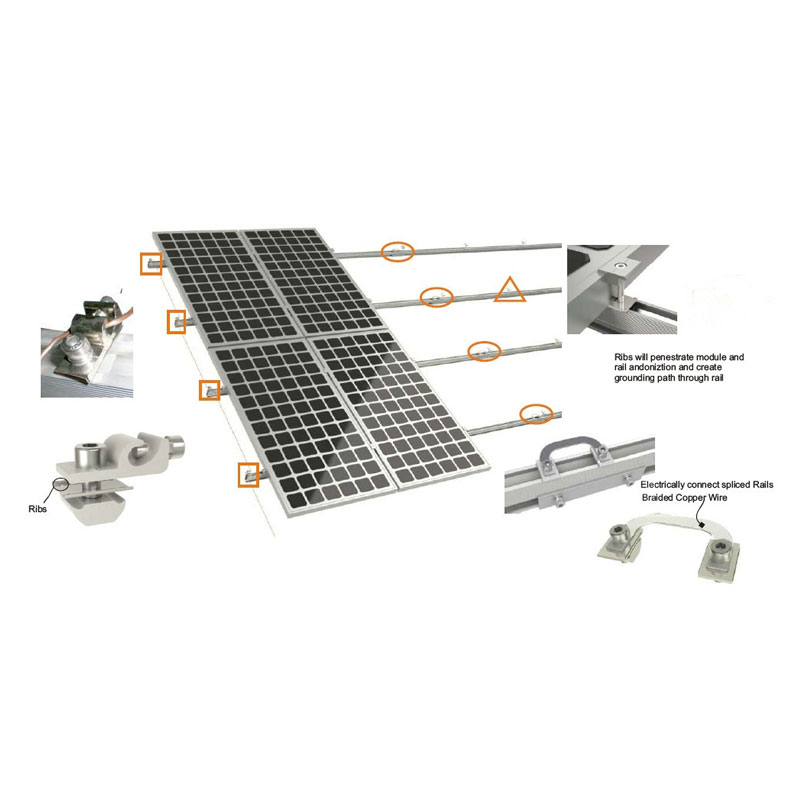

solar grounding clip for PV mounting system

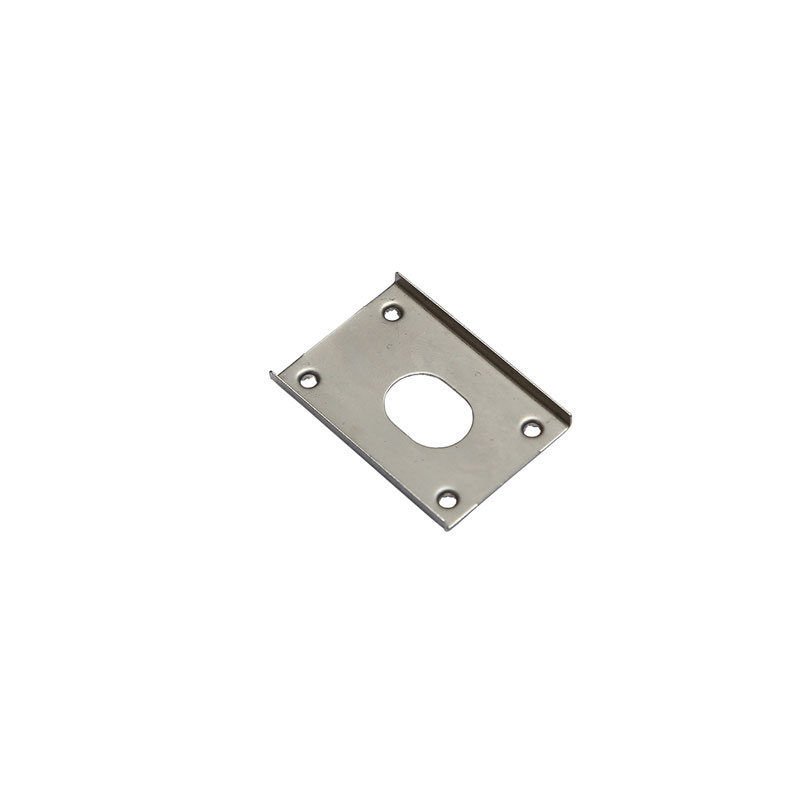

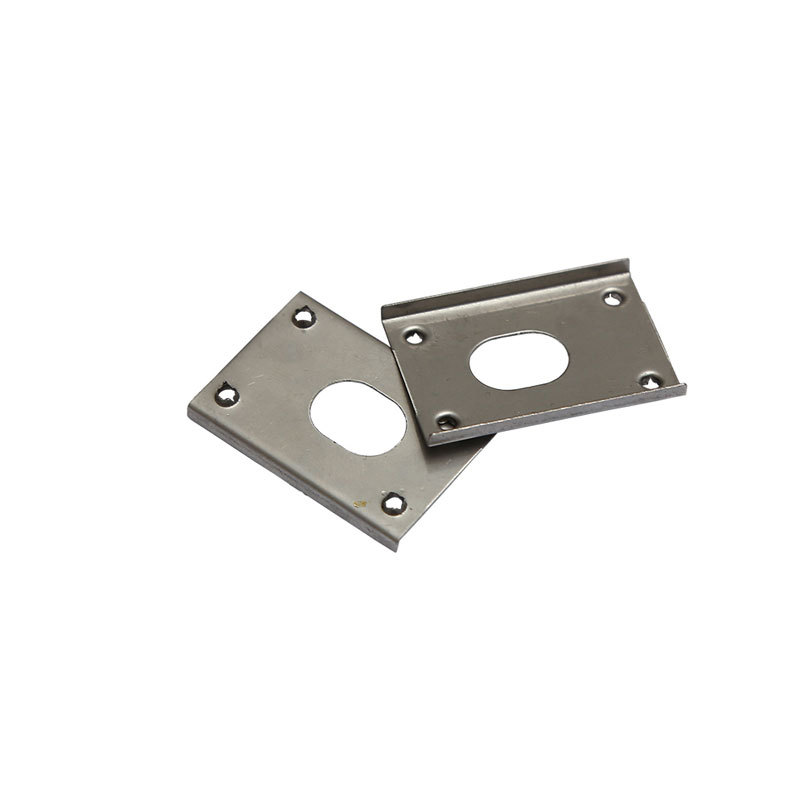

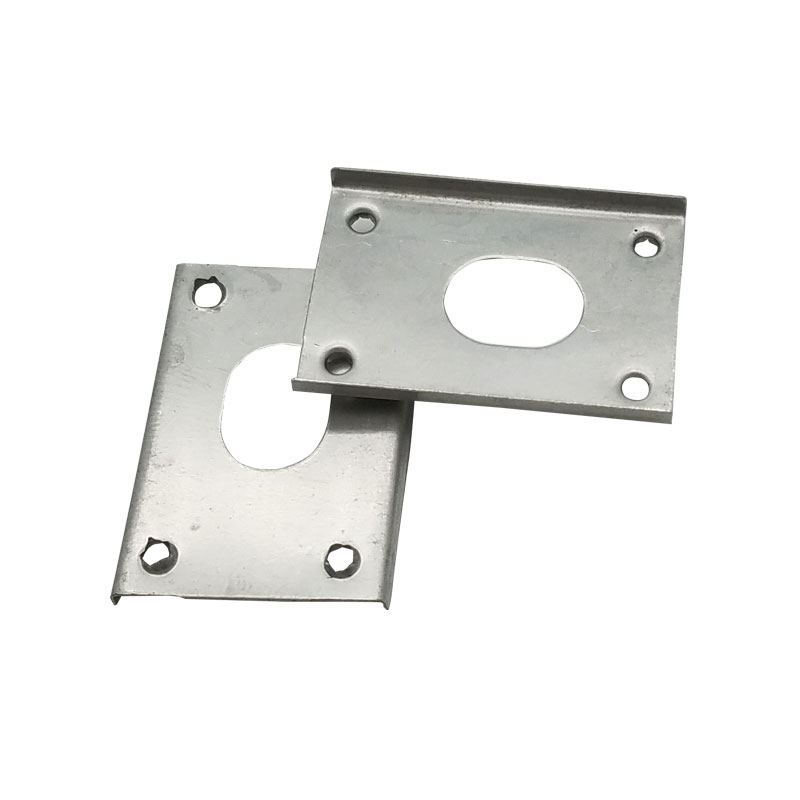

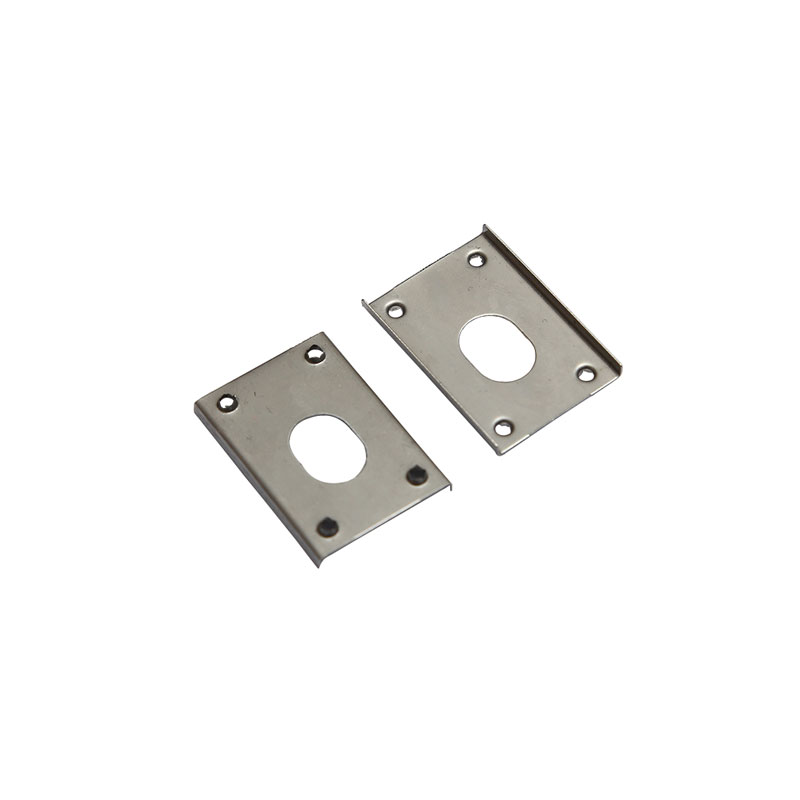

The grounding clip made of high-quality metal, it is resistant to rust and corrosion, it is matched with aluminum rails.
