Solar Mounting Components Ground Clips
- Product Type: Solar Panel Grounding Clip
- Product Model: SPC-GW-02
- Material: Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Framed Solar Panels Installation
Product Description :
Model : Solar-Panel-Ground-Clips-SPC-GW-02
This solar panel ground clip is used to connect PV modules with aluminum rails / carbon steels .
It's matched to installing with grounding lugs / mid clamps / end clamps .
This solar panel earthing plates is made of stainless steel with strong and sharp teeth .
Good corrosion resistance in material can last over 20 years life and good electric conducting .
Advantages
(1) Applied for PV solar system ;
(2) Easy & quick for mounting ;
(3) packed in carton ;
(4) great electronics conductive ;
(5) Well penetrating surface coating & oxides
| Solar Panel Ground Clips Specification | |
| Model Number : | Solar-Panel-Ground-Clips-SPC-GW-02 |
| Material | SUS 304 Stainless Steel |
| Specification | As per drawing / Tailored |
| Application | Framed solar panels |
| Warranty | 10 years |
| Sample | Available |
| Delivery Date | Within one week |
| Type | Solar panel grounded earthing plate |
| Duration | 20 years |
If you're interested in solar mounting components, we'd love to discuss with you about more and answer any questions you might have. As a professional manufacturer of PV mounting system and components, SPC is a great option for you.
Click here for more details and information: www.SolarPartsComponents.com
| Brief Descriptions : | |
| Solar Panel Ground Clips Model 2B for PV module earthing kits | |
| Item type: | Solar Mounting Components |
| Technical Parameters : | |
| Installation Site : | solar pv modules installation |
| Profile Material : | SUS 304 Stainless Steel |
| Color : | Polish milling |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN/M2 |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Life Span | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |

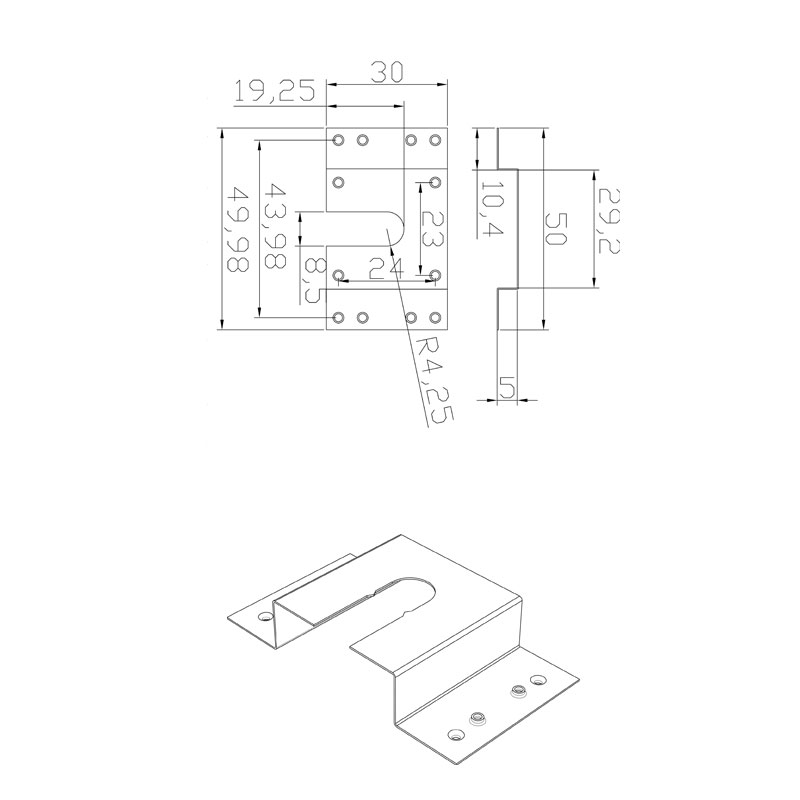

Drawing & Size for Solar Panel Ground Clip SPC-GW-02
specification of Solar Panel Ground Clip SPC-GW-02
Advantage of Solar Panel Ground Clip model 2B ?
This solar panel grounding clips model 2B is a kind of easy / fast / good grounding component for solar module .
This is a very simply solution for grounding PV modules by piercing aluminum rails .
Good quality component for electrical bonding & grounding with sus304 stainless steel material .
– No tools required ;
– No grounding wire for each PV module anymore;
– Safe & reliable ;
– Two ground clips per solar panel contact to rails;
– Important gear to prevent fire & shock hazard;
Keep your solar panel mounting system well grounded by using our ground plate series .
Welcome to purchase versatile, save, cost-effective solar panel grounding clips for your power plant jobs .
Factory direct solar panel grounding clips 2B wholesale with size and drawing details

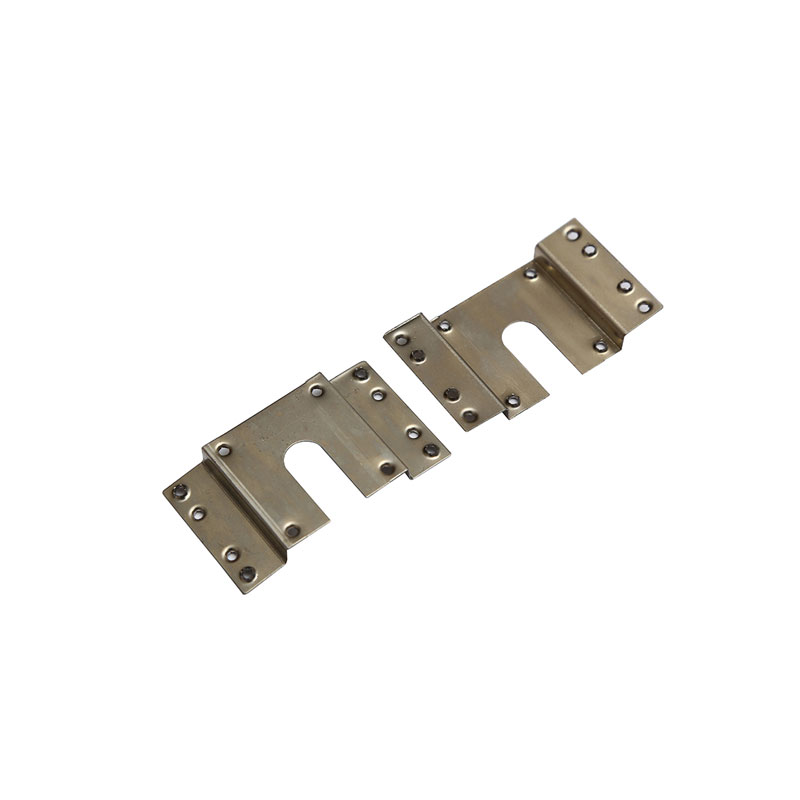

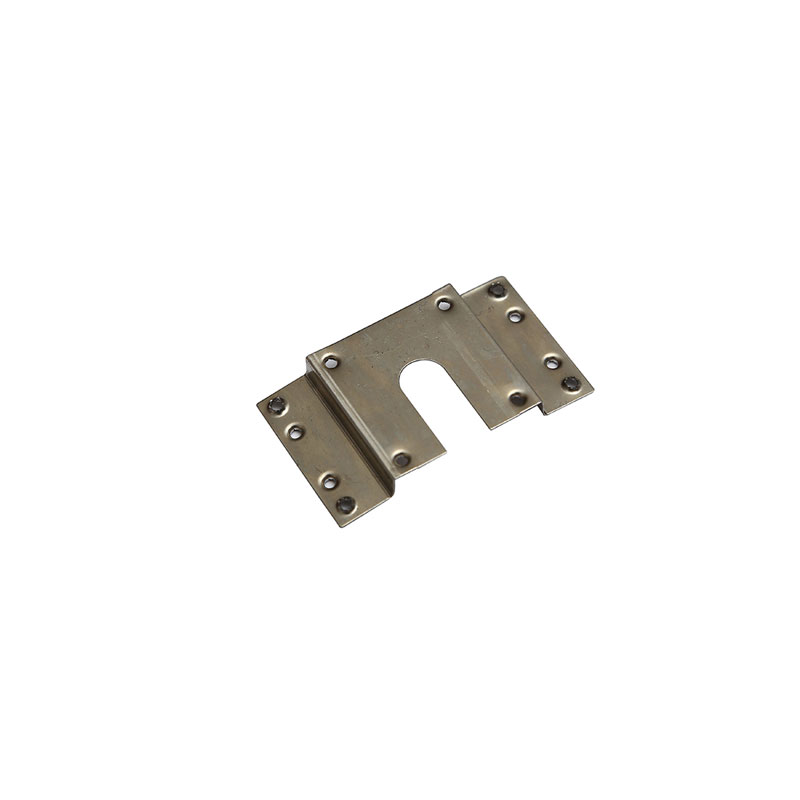

Solar panel ground clip wholesale
This model solar panel ground clip is also made of stainless steel 304 with well penetrating surface coating and oxides, super durable especially suitable for out door used.

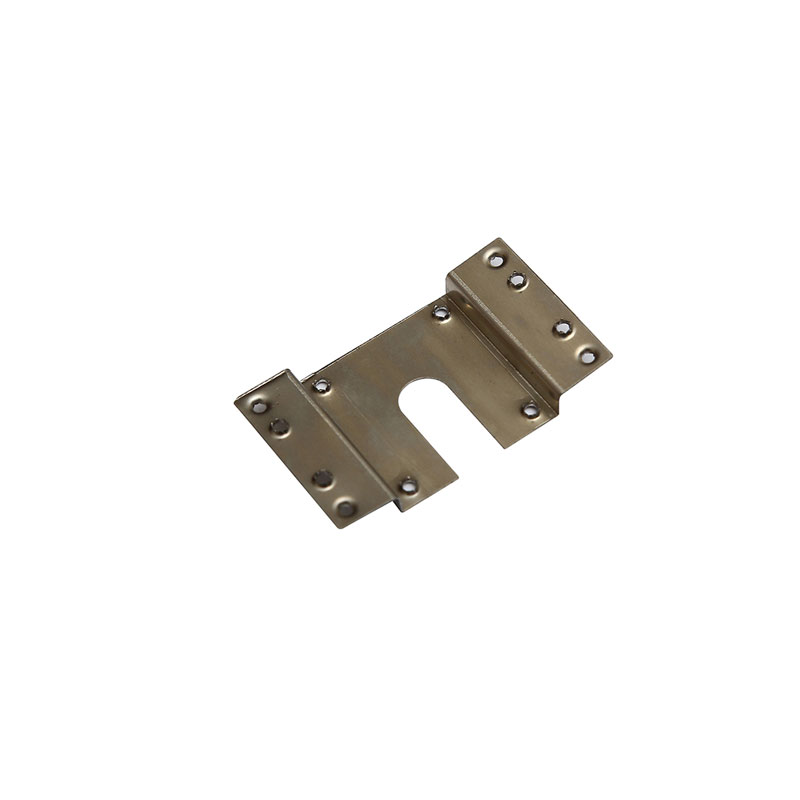

Solar panel ground clip wholesale
Dimension size of this groud clip is 50mm x 30mm, suitable for both Aluminum and Steel mounting rail.
