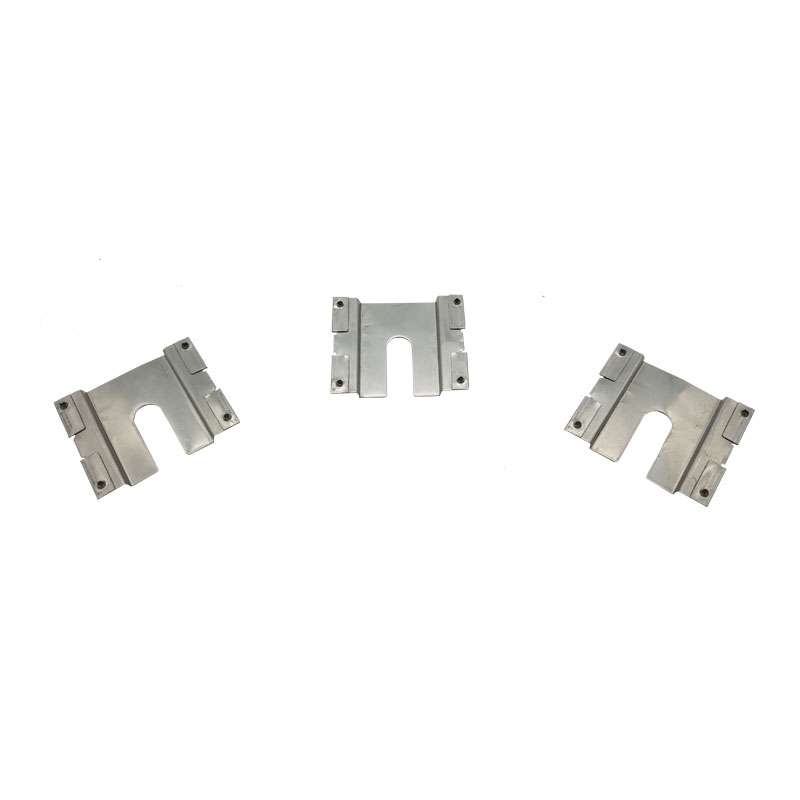

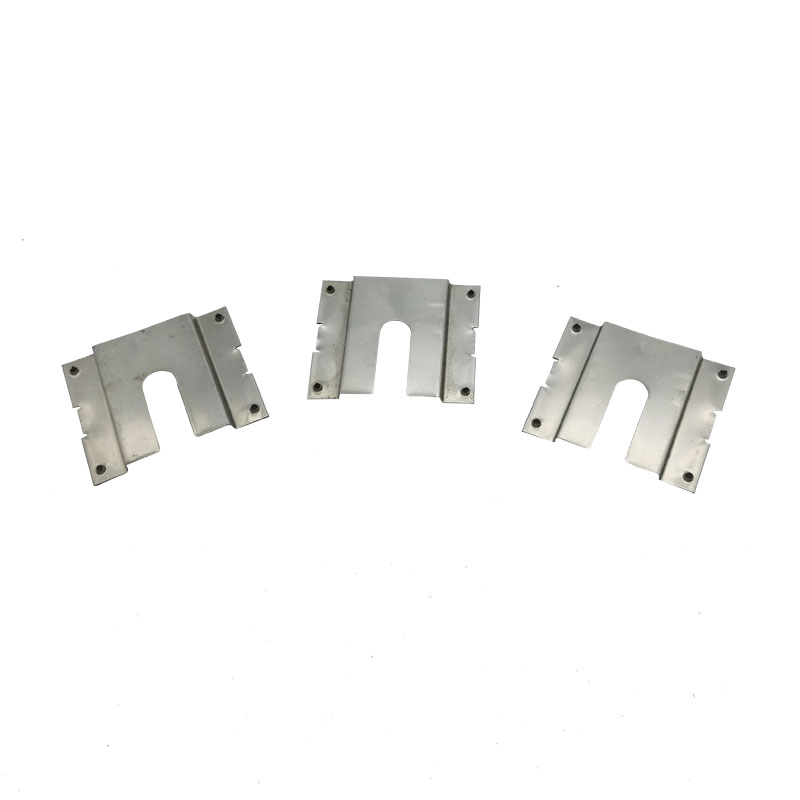

Solar earthing plates
- Product Type: Solar Panel Grounding Hardware
- Product Model: SPC-GW-17
- Material: Stainless Steel
- Max Wind Load :Â 60 m/s
- Max Snow Load :Â 1.4 KN / MÂ 2
- Application: Frame Solar Panels Earthing System
Product Description :
Model :Solar grounding clips-SPC-GW-17
Solar module grounding clips is design for preventing mounting systems from lightning strike and electrical failure .
Professional electrical engineer is strongly recommend when using our solar panel grounding clips , so that it can make sure whole earthing system is well
conducted and working well . Poor connecting grounding parts can lead to short circuit in case of operating .
Soar panel earthing plates -SPC-GW-17 is fixed between mid-clamps and aluminium rails , it's a piece of essential parts to secure solar panels and inverters well ground .
Comparing old way grounding method : bonding solar panels , connecting modules with copper wires . This earthing method is newly and neatly bonded to alum rails .
Together use with grounding lugs, washers and bolts, aluminum clamps , the grounding system is quickly completed .
– PV module equipment grounding component clip ;
– Lightning strike safe for solar panels and electrical appliances ;
– Simple and cost effective ;
|Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Solar Module Ground Clips for Mounting Racks|
|Model Number :||Solar-Module-Grounding-Clips-13M|
|Material||Stainless Steel SUS 304|
|Specification||As per drawing / Tailored|
|Application||Solar panel racking Installing Parts|
|Warranty||Â 20 years|
|Sample||Â In stock|
|Delivery Date||Â 5-7|
|Type||Electronic Grounding Conductor|
|Duration||Â 20 years|
As a professional manufacturer of PV panel mounting earthing plates, provide full sizes of earthing clips to meet the needs of different types of clamps and rails. welcome to purchase from us.Â Â More information please feel free to visit our website: www.SolarPartsComponents.com.
|Brief Descriptions :|
|Solar Module Grounding Clips for PV mounting earthing kits|
|Item type:||Solar Modules Grounded Components|
|Technical Parameters :|
|Installation Site :||PV Panel Rack Mounting|
|Profile Material :||SUS304 Stainless Steel|
|Color :||Anodized coating|
|Wind Load :||60 m / s|
|Snow Load :||1.4 KN/M2|
|Module Orientation :||Vertical / Horizontal|
|Standards :||AS/NZS 1170|
|JIS C 8955 : 2011|
|International Â Building Code IBC 2009|
|California Â Building Code CBC 2010|
|Designed Life Span||25 years|
|Packing Details :|
|Inner :||Bubble bag+inner box+Carton|
|Outer :||Wooden Box, Steel Pallet, MDF, etc|
Drawing & Size for Solar grounding clips SPC-GW-17
Solar Module Grounding Clips factory

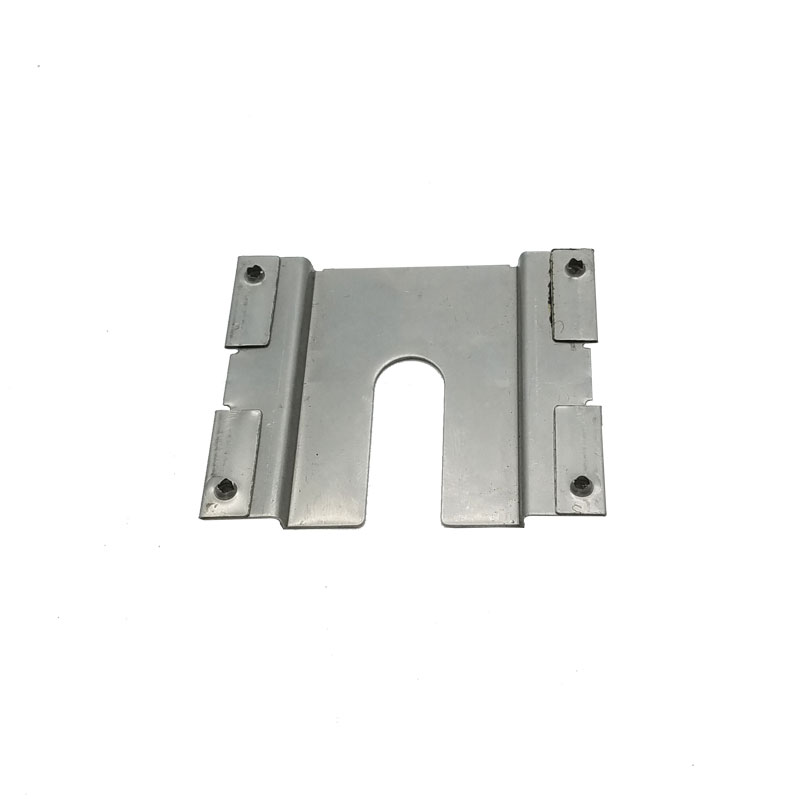

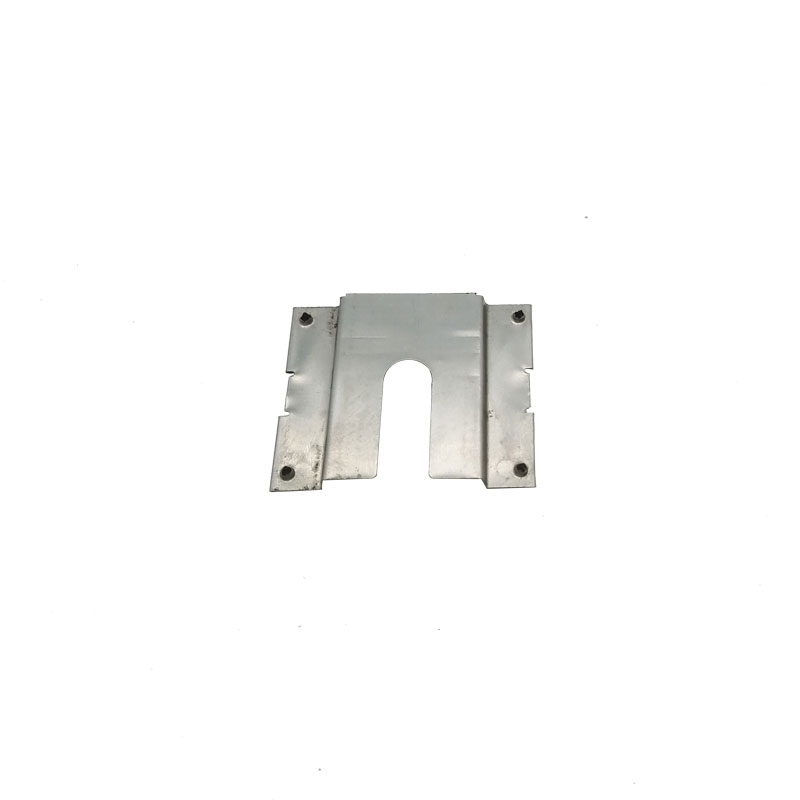

Dimension of this model of Solar Module Grounding Clips SPC-GW-17 is 47.3mm x 40mm. It is suitable for most types of the mounting rails.High quality material and reasonalbe factory price.
Professional solar panel clip factory, SPC carry various types of solar panel ground clips to meet different requirements, just let us know which item you need or the details you required, our engineer will check out the suitable solution for you.
How to using this Solar Module Grounding Clips 13M ?
More details kindly check >>>
How do I ground my solar system with solar grounding clipsï¼

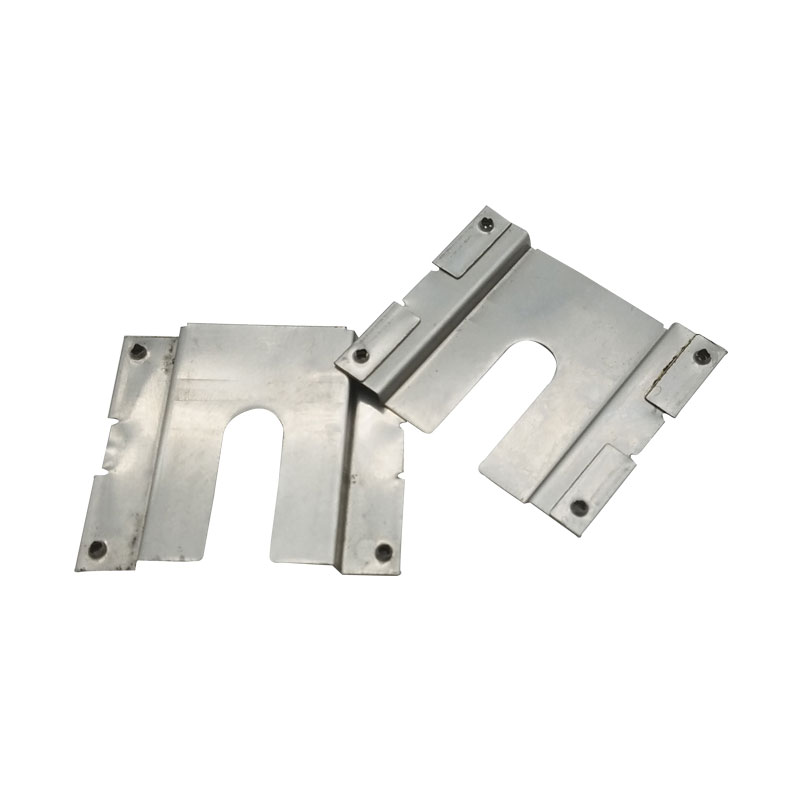

Solar grounding clips is one of the necessary process of the solar grounding system,
which has four spikes can pierce the anodic oxide layer of the frame of the solar module
through the spikes to realize the current conduction of the frame of the solar module
and the installation guide rail.
