Solar panel grounding lugs SPC-grounding-lug-NS1 for PV modules earthing grounded
Model : SPC-grounding-lug-NS1
Item : Earthing for solar panels ;
Finish : polishing ;
Material : SUS 304 stainless steel ;

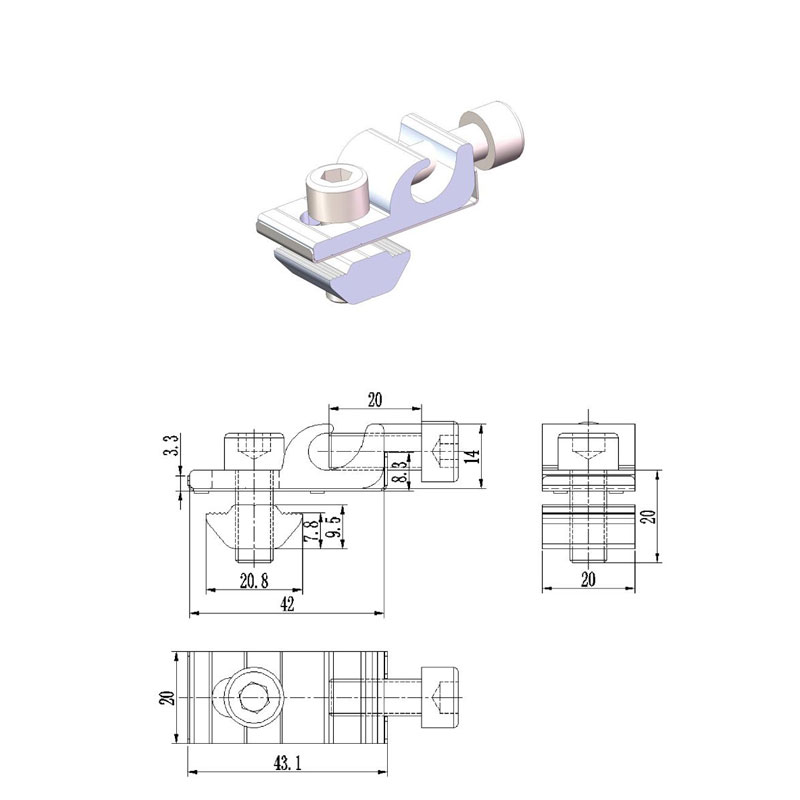

Total Size : 20 mm ( Width ) × 25 mm ( Deepth ) × 43.1 mm (Height) /
13/16″ (W) × 1″ (D) × 1 11/16″ (H) ;
Mounting Hole Size ( Φ 8.5 mm × 2 hole):
top upper hole for fixing conductiong wire ; side section hole for fixing with aluminum rail .

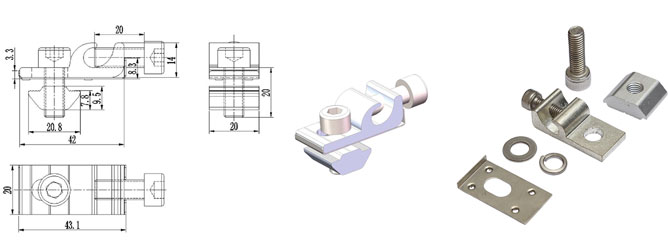

Matched Bolts & Nuts Sizes:
1) SUS 304 Hexagon Head Allen Bolt M 8 mm x 20 mm x 2 units;
2) M8×13 Ribbed Lock washers (SUS304) x 1 ;
3 ) D8 Spring washers ( SUS 304 ) x 1;
4) M8 T sliding nut ;
5) Solar Grounding Clip x 1 piece ;
Weight : 54 (g) / 0.12 (lb) ;
Packing : 200 pieces / carton ;
Packing Size : 260 mm ×205 mm × 180 mm /
10 1/4″ × 8 1/16″ × 7 1/8″

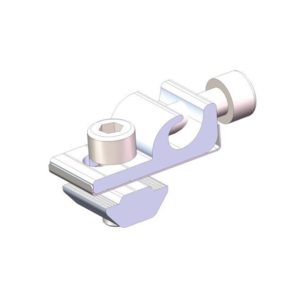

This Solar panel grounding lugs Model SPC-grounding-lug-NS1 is a stainless steel clamp kit for PV module earthing .
